| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
|---|---|
| Ai - SMD - Smart Motion Detection | Intelligent Ultra Motion Detection with human/vehicle recognition |
| Flag | COMING SOON |
| Product | BCS-P-DIP2x4FSR3-Ai1 |
| NDAA | National Defense Authorization Act |
| Camera type | Multi-sensor |
| Resolution | 4 Mpx |
| Sensor | 2×1/3'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 2688(H)×1520(V) |
| Lens | fixed |
| Focal length | 2×2.8 mm |
| Aperture | F1.6 |
| Focus | fixed |
| Iris | fixed |
| Angle of view | H: 97.68° V: 52.67° D: 102.52° |
| DORI | Detect 63m / Observe 25.2m / Recognize 12.6m / Identify 6.3m |
| Min illumination | 0.002Lux(F1.6,AGC) 0Lux(B/W,IR) |
| S/N ratio | 52dB |
| White balance | (AWB) Auto / manual |
| WDR | 130dB |
| Backlight compensation | BLC / HLC / WDR(130dB) |
| Shutter | Auto / manual 1~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| RoI | Region of Interest |
| Defog | Digital |
| Stream support | 3 |
| Resolutions | 4M(2688×1520)(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / 720P(1280×720) / D1(720×576) / (640×360) / 2CIF(704×288) / CIF(352×288) |
| Main stream | 2688×1520@25fps 2560×1440@25fps 2304×1296@30fps 1920×1080@30fps 1280×720@30fps |
| Second stream | 1280×720@30fps 720×576@30fps 640×360@30fps 704×288@30fps 352×288@30fps |
| Third stream | 720×576@30fps 640×360@30fps 704×288@30fps 352×288@30fps |
| Bitrate | 128Kbps~16Mbps |
| Video compression | H.265 / H.265+ / H.264 / MJPEG |
| Day/night | ICR |
| Illuminator type | IR LED |
| IR range | 30m |
| Microphone | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711U |
| Alarm in | 1 |
| Alarm out | 1 |
| Storage | NAS(NFS) |
| Memory card slot | microSD 512GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF(S/G/T/M) |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Network security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic/digest authentication RTSP, Digest authentication HTTP, TLS 1.2, WSSE/digest authentication ONVIF |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) |
| Power consumption | max 9.1W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Surge protection | 4kV |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | 176×104×72mm |
| Weight | 0.62 kg |
| Ai - Perimeter protection | Crossline, intrusion |
| &Ai - Object classification | Yes |
| &Ai - SMD | Yes |
| Ai - Human/vehicle detection | Recognition of people entering the area and crossing the line reduces false alarms. |
Warning: This product belongs to the BCS POINT product line.
Use only components and devices from the same line to ensure compatibility.
BCS POINT

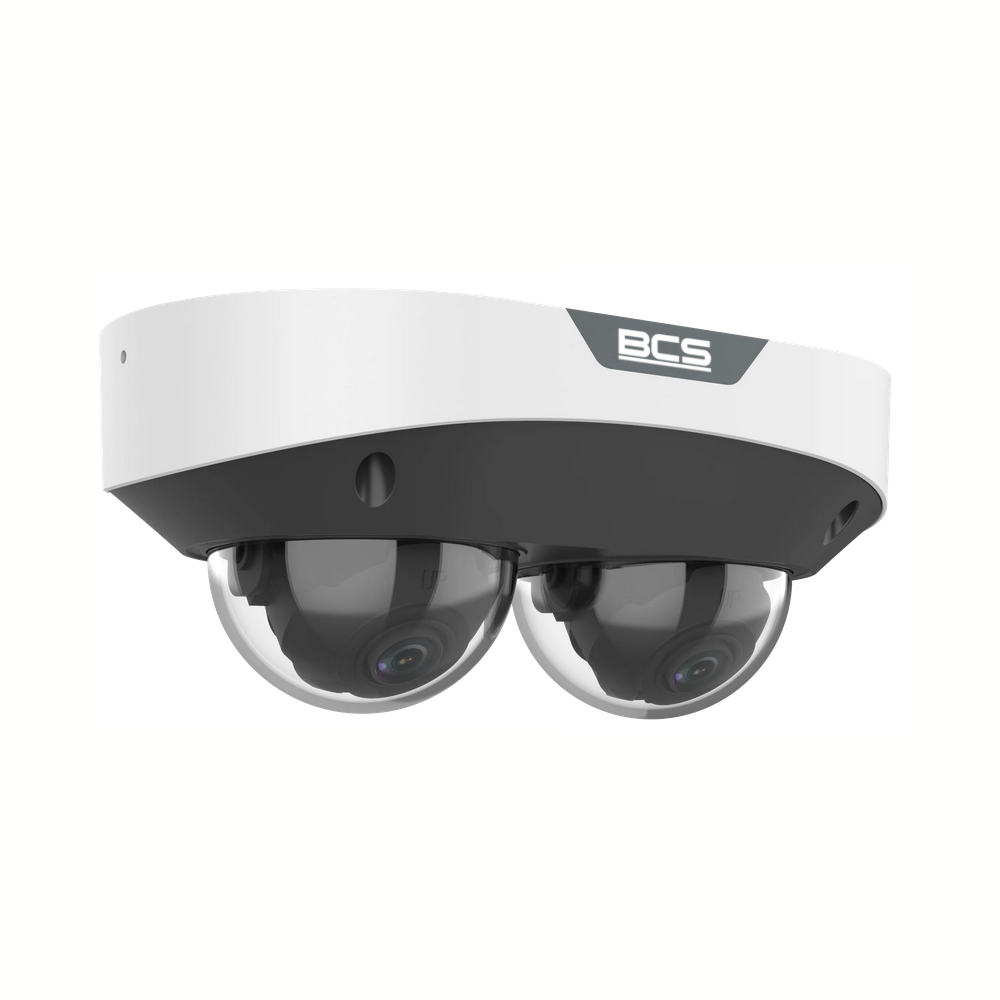

BCS-P-DIP2x4FSR3-Ai1
477,24 € gross
7 In Stock- 4Mpx multi-sensor IP camera
- 2×1/3" PS CMOS sensor
- NDAA-compliant
- SkyLight technology
- 2x 2.8mm fixed lenses
- WDR 130dB
- IR 30m
- Alarm 1/1, audio 1/1, microphone
- IP67, IK10 housing
- Built-in smart features
7 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
