| Flag | TO ORDER |
|---|---|
| Product | BCS-P-PDIP4x5VSR5-Ai2 |
| pa_product-line | BCS POINT |
| NDAA | National Defense Authorization Act |
| Camera type | Dome |
| Resolution | 5 Mpx |
| Sensor | 4×1/2.7'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 2880(H)×1620(V) |
| Lens | motozoom |
| Focal length | 4×2.7~13.5 mm |
| Aperture | F1.2 |
| Focus | Auto / manual |
| Iris | Auto |
| Optical zoom | 5× |
| Angle of view | H: 110.3°~31° V: 57.1°~17.5° D: 143.4°~38.1° |
| DORI | Detect 70.9~247.5m / Observe 28.4~99m / Recognize 14.2~49.5m / Identify 7.1~24.8m |
| Min illumination | 0.002Lux(F1.2,AGC) 0Lux(B/W,IR) |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| WDR | 130dB |
| Backlight compensation | WDR(130dB) |
| Gain control | (AGC) Auto / manual |
| RoI | Region of Interest |
| Defog | Digital |
| Image rotate | Mirror, Flip 0°/90°/180°/270° |
| Stream support | 3 |
| Resolutions | 5M(2880×1620) / 4M(2688×1520)(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / 720P(1280×720) / D1(720×576) / (640×360) / 2CIF(704×288) / CIF(352×288) |
| Main stream | 5MP(2880×1620)30fps / 4MP(2688×1520)30fps / 4MP(2560×1440)30fps / 3MP(2304×1296)30fps / 1080P(1920×1080)30fps / 720P(1280×720)30fps / D1(720×576)30fps / 640×360 30fps / 2CIF(704×288)30fps / CIF(352×288)30fps |
| Second stream | 1080P(1920×1080)30fps / 720P(1280×720)30 fps / D1(720×576)30fps / 640×360 30fps / 2CIF(704×288)30fps / CIF(352×288)30fps |
| Third stream | D1(720×576)30fps / 640×360 30fps / 2CIF(704×288)30fps / CIF(352×288)30fps |
| Bitrate | 128Kbps~16Mbps |
| Video compression | H.265 / H.265+ / H.264 / MJPEG |
| Day/night | ICR |
| Illuminator type | IR LED |
| IR range | 50m |
| Microphone | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711U |
| Alarm in | 3 |
| Alarm out | 2 |
| Storage | NAS(NFS) |
| Memory card slot | microSD 512GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Yes |
| Privacy masking | 8 |
| Network | RJ-45 10/100/1000Mbps |
| Compatibility | ONVIF(S/G/T/M) |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Network security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Power supply | PoE |
| Power supply type | 24V DC / 24V AC / PoE(802.3bt) |
| Power consumption | max 31W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Surge protection | 6kV |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | Ø318×136.6mm |
| Weight | 4.77 kg |
| pa_ai-built-in-intelligent-f | Built-in intelligent algorithm of image analisis |
| Ai - Perimeter protection | Crossline, intrusion |
| &Ai - Object classification | Yes |
| &Ai - SMD | Yes |
| Ai - People counting | People counting for intrusion and crossline, counting people in/out |
| pa_ai-human-vehicle-detectio | Recognition of people entering the area and crossing the line reduces false alarms. |
| pa_ai-smd-smart-motion-detec | Intelligent Ultra Motion Detection with human/vehicle recognition |
BCS-P-DIP4x5VSR5-Ai2
2597,76 € gross

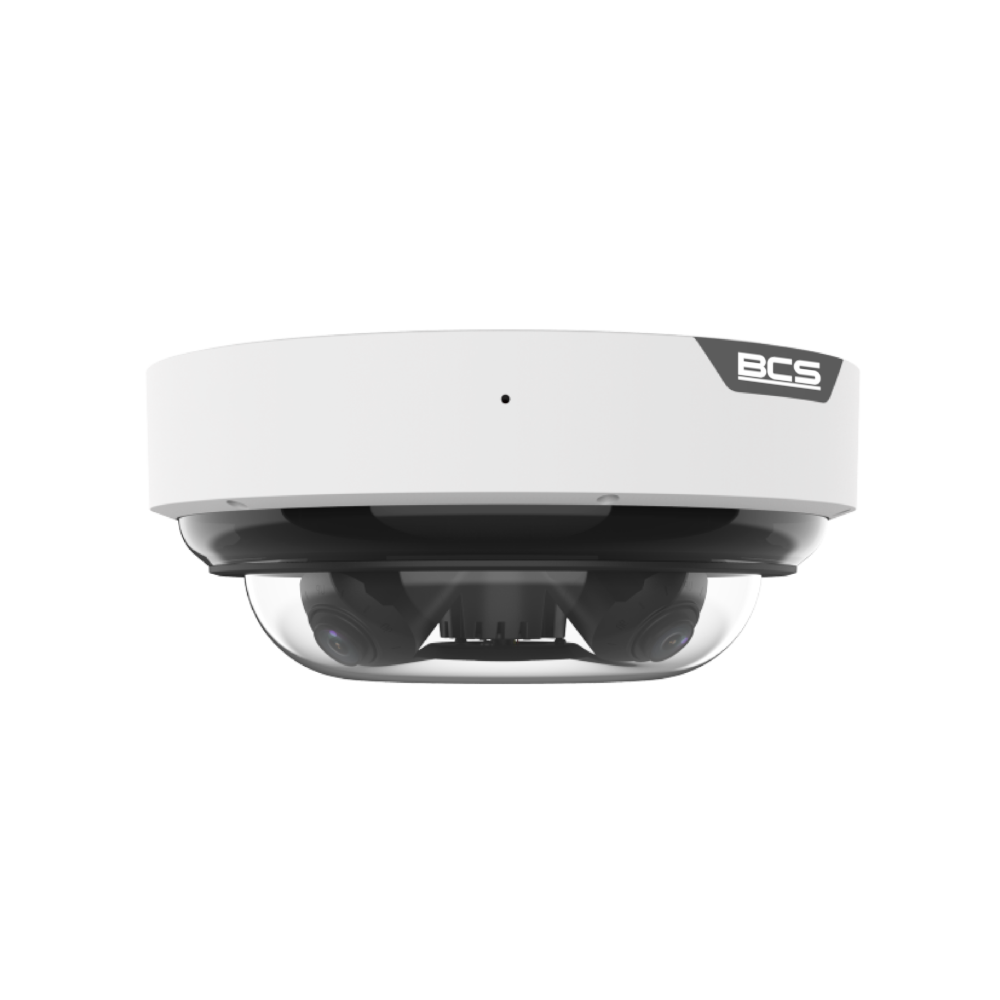

Out of Stock- 4x 5Mpx multi-sensor dome IP camera
- 4x 1/2.7" PS CMOS sensors
- SkyLight technology
- 4x 2.7–13.5 mm motorised zoom lens
- IR range: 50m
- Alarm 3/2, audio 1/1, microphone
- IP67, IK10 housing
- Built-in smart features
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
