| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion reduces false alarms |
|---|---|
| Recording in BCS CLOUD | Yes |
| Resolution | 8 Mpx |
| Pixels | 3840(H)×2160(V) |
| Focus | Auto / manual |
| Angle of view | H: 107.4°~ 29.2° V: 54.2°~ 16.3° |
| White balance | (AWB) Auto / manual |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Noise reduction | 2D/3D DNR |
| Aperture | F1.6 |
| Product | BCS-P-DIP58VSR4-Ai2 |
| NDAA | National Defense Authorization Act |
| Camera type | Dome |
| Sensor | 1/2.8'' CMOS |
| Scanning system | Progressive Scan |
| Lens | motozoom |
| Focal length | 2.8~12 mm |
| Iris | Auto |
| Optical zoom | 4× |
| Digital zoom | 16× |
| DORI | Detect 87~372m / Observe 35~149m / Recognize 17~74m / Identify 9~37m |
| Min illumination | 0.003Lux(F1.6,AGC) 0Lux(B/W,IR) |
| S/N ratio | 56dB |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1~1/100000s |
| Gain control | (AGC) Auto / manual |
| Defog | Digital |
| Image rotate | Mirror, Flip 0°/90°(corridor mode)/180°/270° |
| Stream support | 3 |
| Resolutions | 8M(3840×2160) / 5M(3072×1728) / 4M(2560×1440) / 2M(1920×1080) / 720P(1280×720) / D1(720×576) / (640×360) / 2CIF(704×288) / CIF(352×288) |
| Main stream | 3840×2160@20fps 3072×1728@30fps 2560×1440@30fps 1920×1080@30fps 1280×720@30fps |
| Second stream | 1920×1080@30fps 1280×720@30fps 720×576@30fps 640×360@30fps 704×288@30fps 352×288@30fps |
| Third stream | 720×576@30fps 640×360@30fps 704×288@30fps 352×288@30fps |
| Bitrate | 128Kbps~16Mbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR |
| Illuminator type | IR LED |
| IR range | 40m |
| Microphone | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711 |
| Alarm in | 1 |
| Alarm out | 1 |
| Memory card slot | microSD 256GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL , SNMP |
| Network security | HTTPS, SSL, TLS, Digest Authentication, Login Authentication, Account Lockout, IP address filtering, ARP protection |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) |
| Power consumption | max 9W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | Ø148×111mm |
| Weight | 0.97kg |
| Ai - Perimeter protection | Crossline, intrusion |
| &Ai - Object classification | Yes |
| Ai - Face detection | Face detection and tracking, snapshot |
| Ai - People counting | People counting for intrusion and crossline, counting people in/out |
Warning: This product belongs to the BCS POINT product line.
Use only components and devices from the same line to ensure compatibility.
BCS POINT
BCS-P-DIP58VSR4-Ai2
441,57 € gross

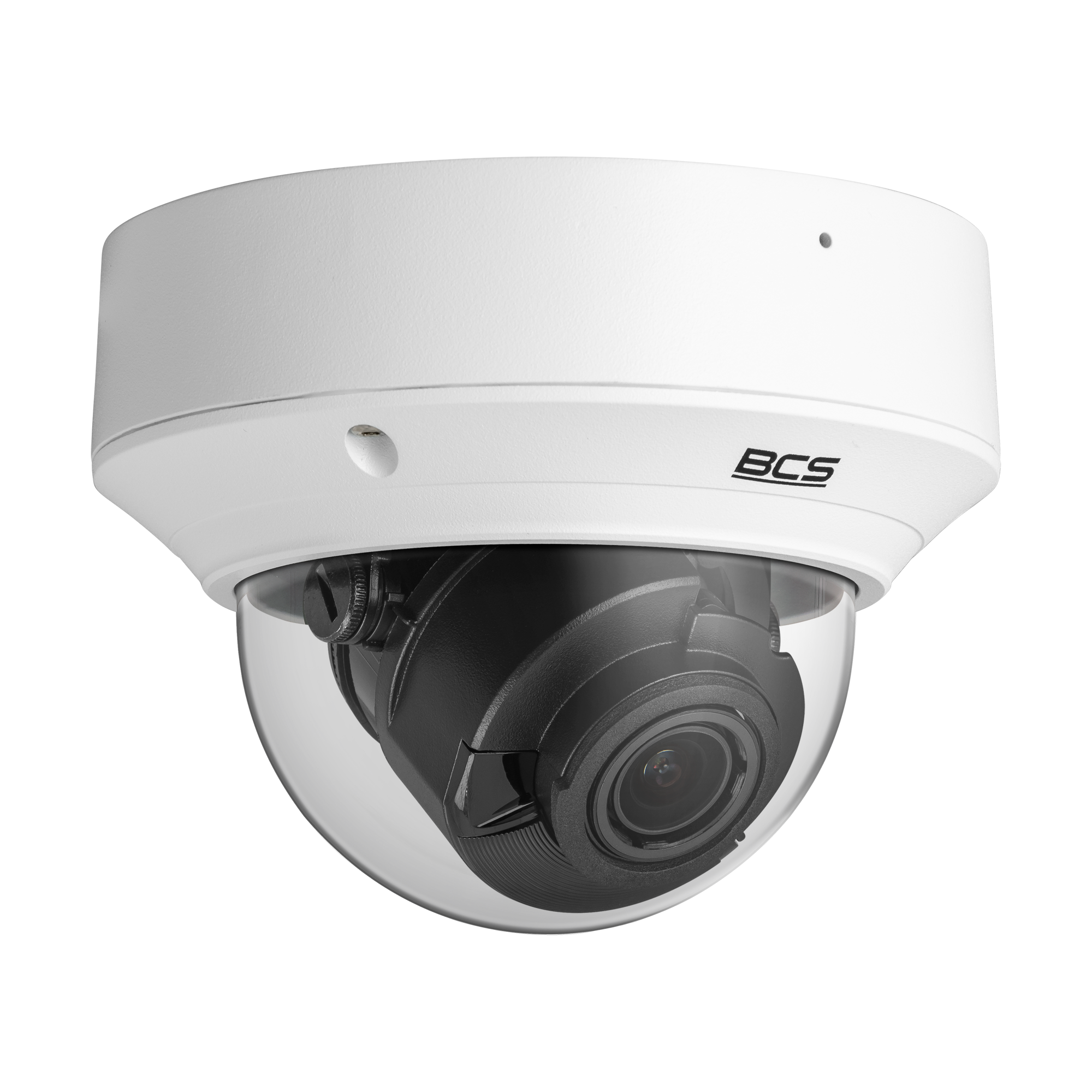

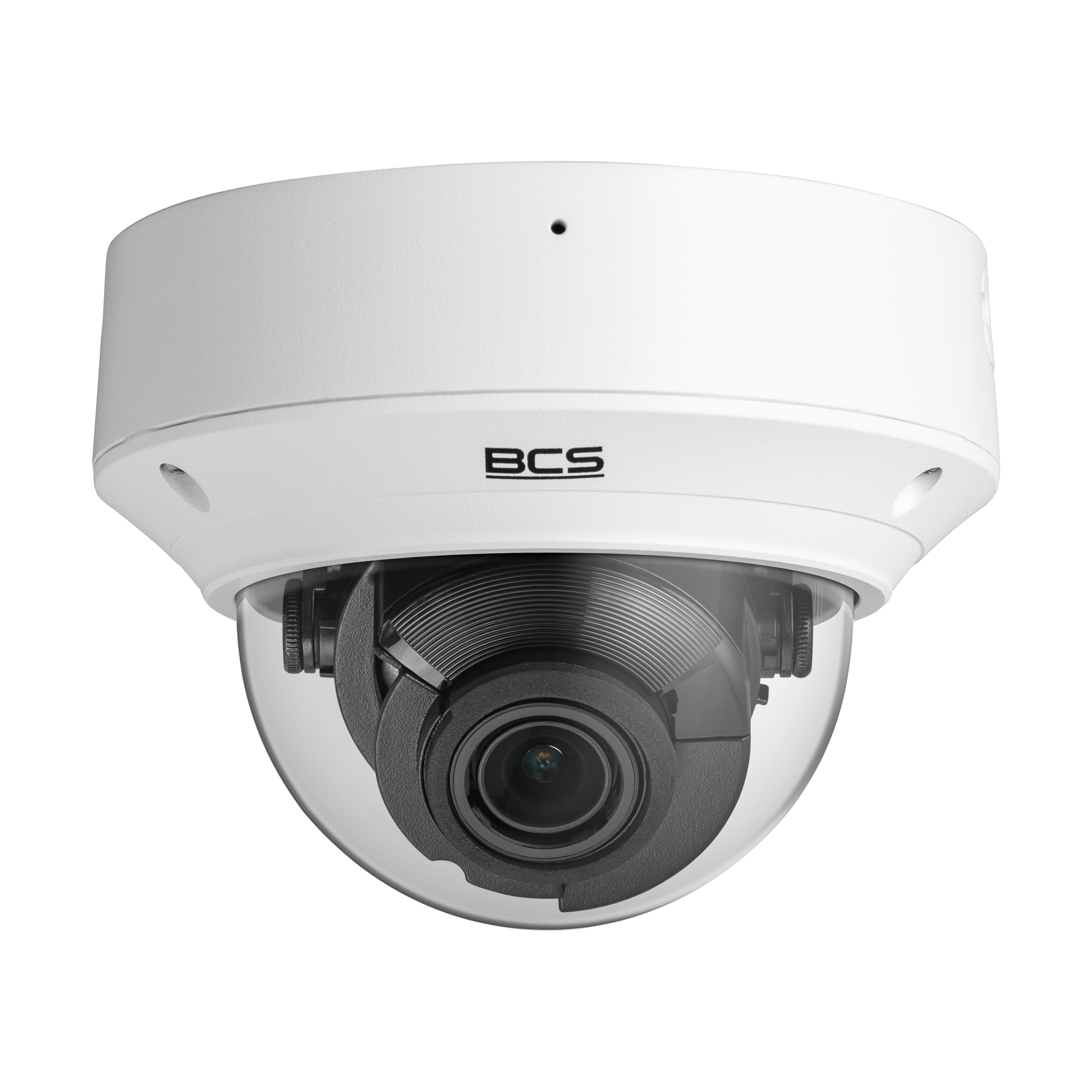

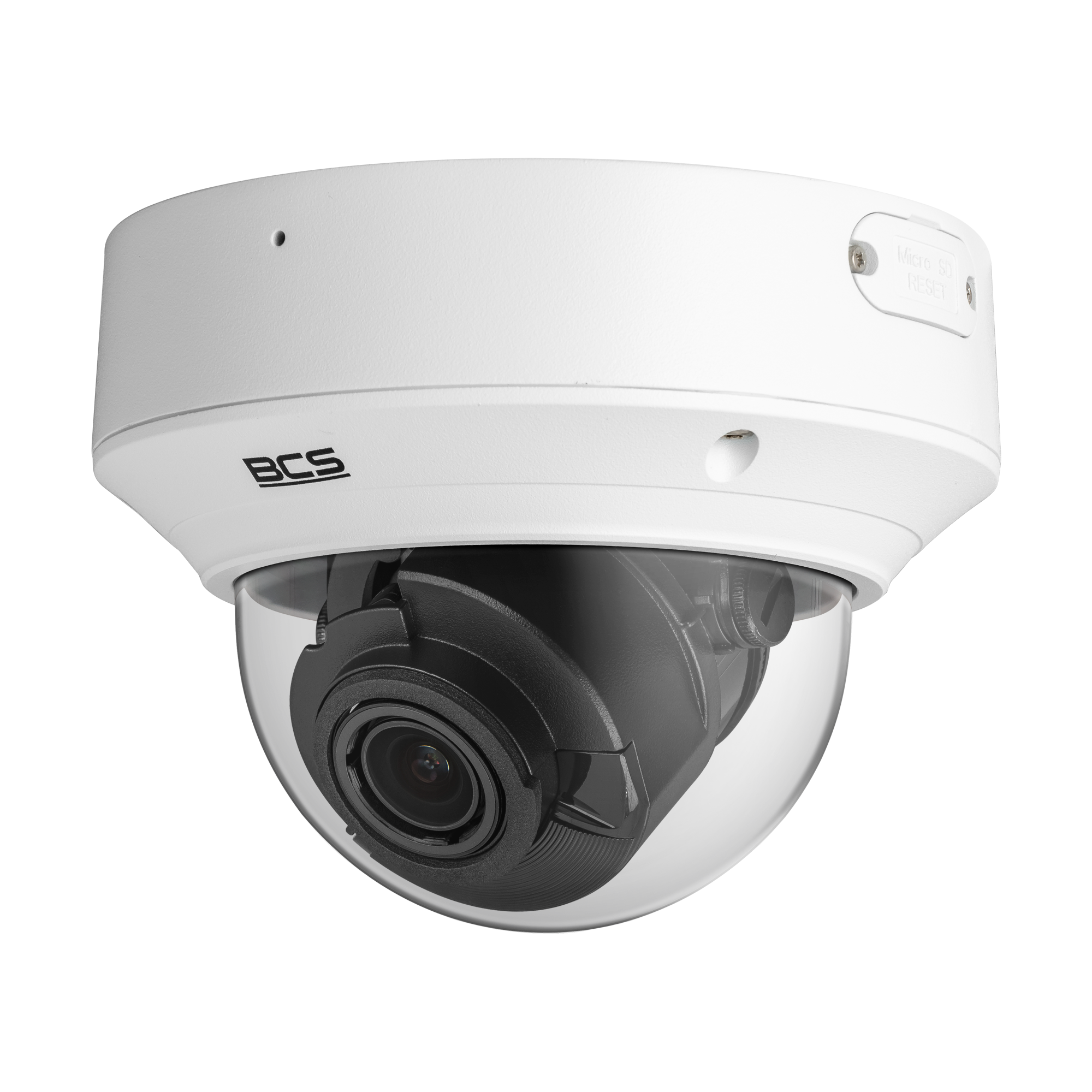

Out of Stock- 8Mpx dome IP camera
- 1/2.8" PS CMOS sensor
- SkyLight technology
- NDAA compliance
- 2.8–12 mm motorised zoom lens
- WDR 120dB
- IR 40m
- Alarm 1/1, audio 1/1, microphone
- IP67, IK10 housing
- Built-in smart features
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
