| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion reduces false alarms |
|---|---|
| Product | BCS-P-FIP512FR1-Ai2 |
| NDAA | National Defense Authorization Act |
| Resolution | 12 Mpx |
| Pixels | 4000(H)×3000(V) |
| Focus | fixed |
| DORI | Detect 44m / Observe 17m / Recognize 9m / Identify 4m |
| WDR | DWDR |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Defog | Digital |
| Aperture | F2.0 |
| Flag | TO ORDER |
| Camera type | Fisheye |
| Sensor | 1/1.7'' CMOS |
| Scanning system | Progressive Scan |
| Lens | Fisheye |
| Focal length | 1.8 mm |
| Iris | fixed |
| Digital zoom | 16× |
| Angle of view | H: 360° |
| Min illumination | 0.03Lux(F2.0,AGC) 0Lux(B/W,IR) |
| S/N ratio | 52dB |
| White balance | (AWB) Auto / manual |
| Backlight compensation | BLC / DWDR |
| Shutter | Auto / manual 1~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| Image rotate | Mirror, flip 180° |
| Stream support | 3 |
| Resolutions | 12M(4000×3000) / 3000×3000 / 2560×2560 / 3000×2000 / 3000×1500 / 2000×2000 / 1920×1080 / 2000×1500 / 720×576 / 352×288 |
| Main stream | Fisheye View: 12MP(4000×3000)@20fps 3000×3000@20fps 2560×2560@25fps Panorama View: 12MP(4000×3000)@20fps 3000×2000@20/25fps 3000×1500@20/25fp PTZ View: 1920×1080@20/25fps |
| Second stream | Fisheye View: 2000×1500@20fps 2000×2000@25fps |
| Third stream | Fisheye View: D1(720×576)@25fps CIF(352×288)@25fps |
| Bitrate | 128Kbps~16Mbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR |
| Illuminator type | IR LED |
| IR range | 15m |
| Microphone | Yes |
| Loudspeaker | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711U |
| Alarm in | 2 |
| Alarm out | 1 |
| Storage | NAS(NFS) |
| Memory card slot | microSD 256GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) |
| Power consumption | max 12W |
| Housing color | White |
| IP class | IP66 |
| IK10 | Yes |
| Surge protection | 4kV |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | Ø149×55mm |
| Weight | 0.52kg |
| Ai - Perimeter protection | Crossline, intrusion |
| &Ai - Object classification | Yes |
| Ai - Heat map | Recording the movement of objects over a period of time, statistics of the time density of movement presented graphically in red/blue color tones |
Warning: This product belongs to the BCS POINT product line.
Use only components and devices from the same line to ensure compatibility.
BCS POINT

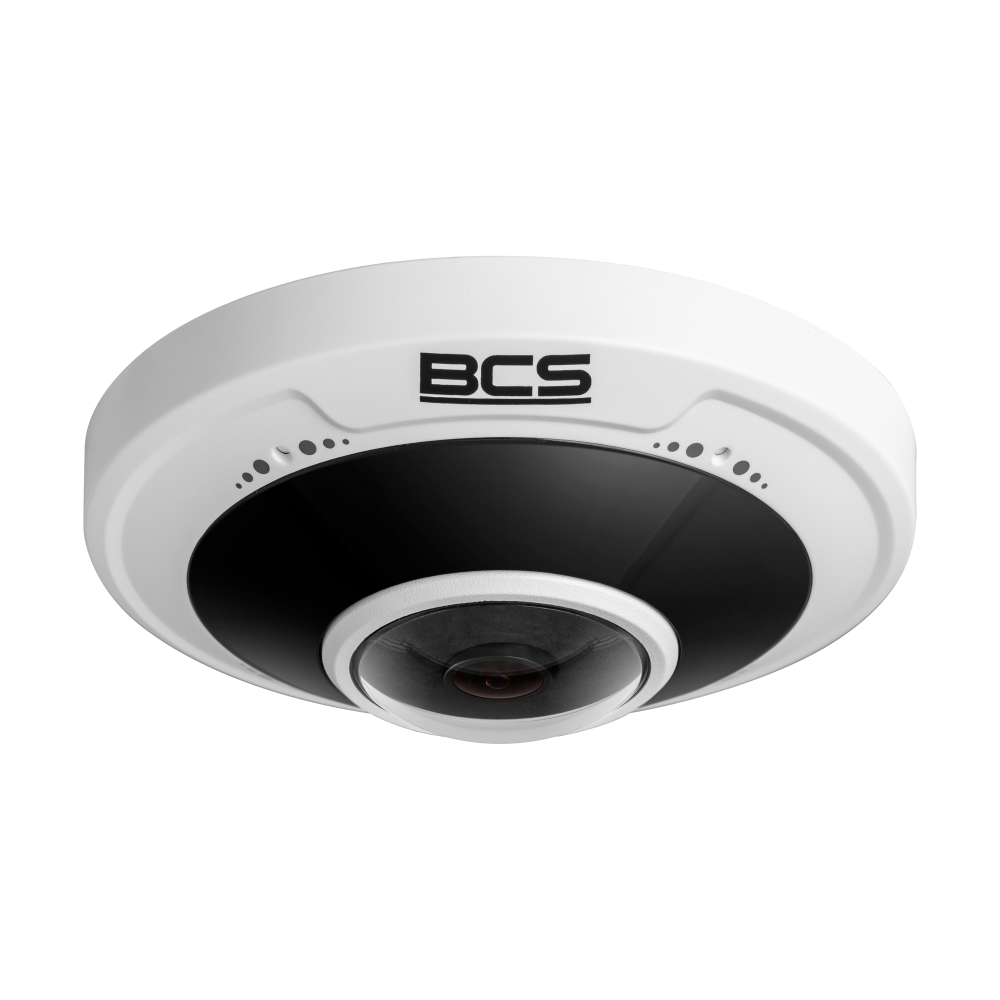

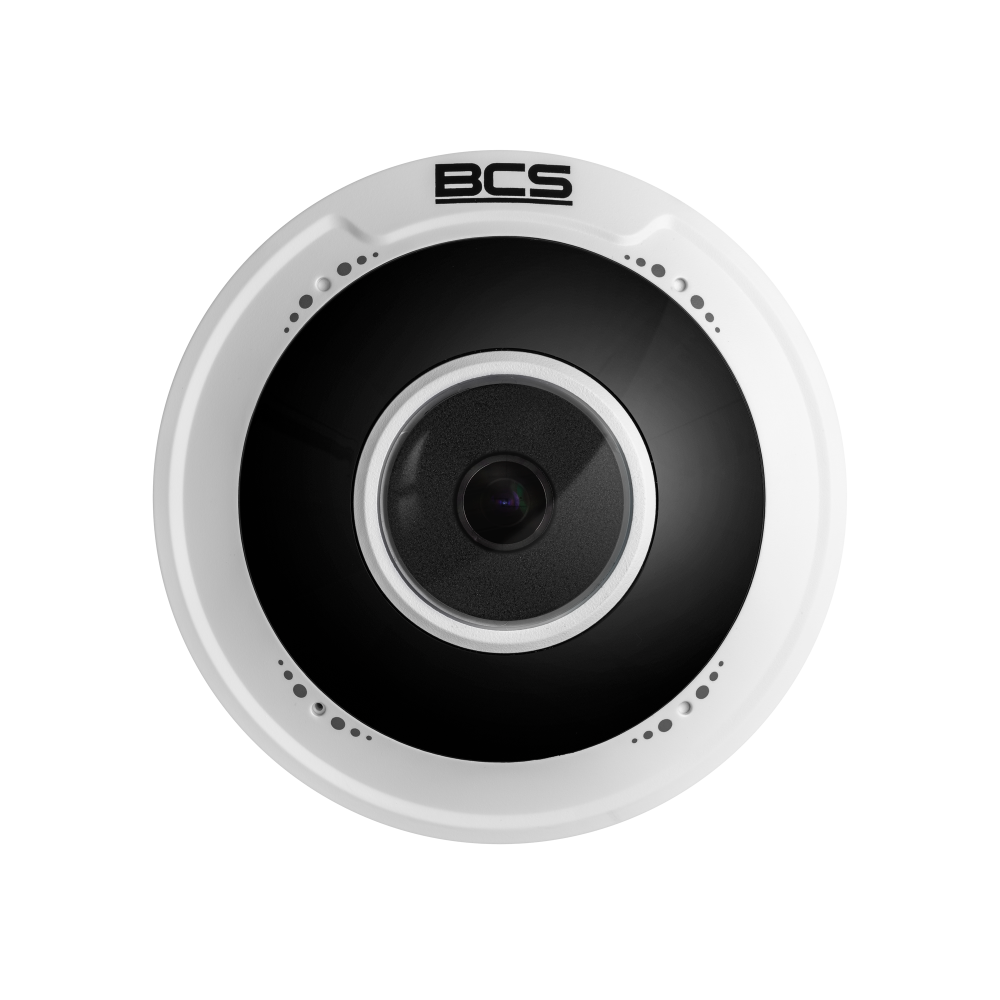

BCS-P-FIP512FR1-Ai2
1298,88 € gross
5 In Stock- 12Mpx IP camera
- 1/1.7" PS CMOS sensor
- NDAA compliant
- 1.8mm fisheye lens
- IR 15m
- Alarm 2/1, audio 1/1 (microphone, speaker)
- IP67, IK10 housing
- Built-in smart features
5 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
