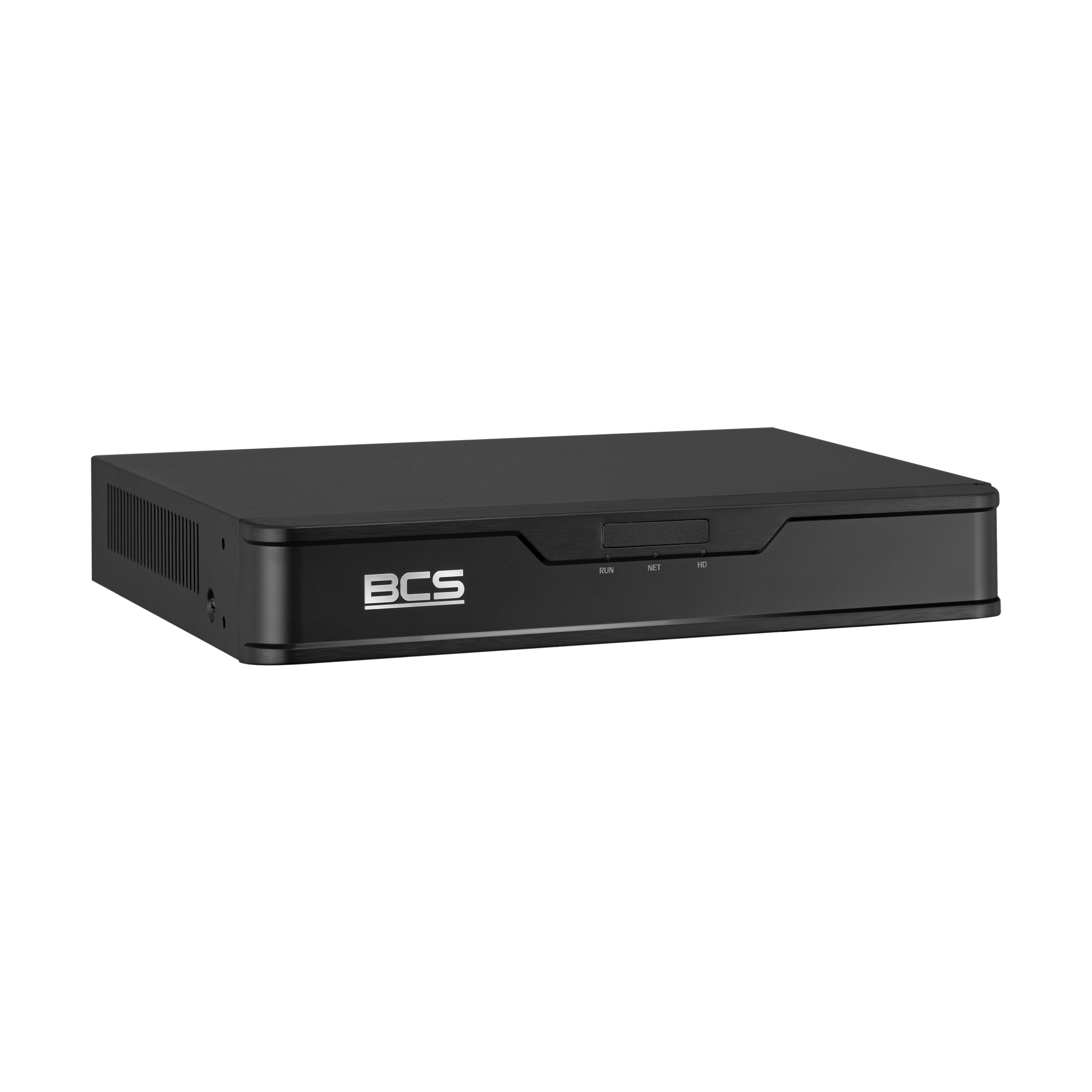

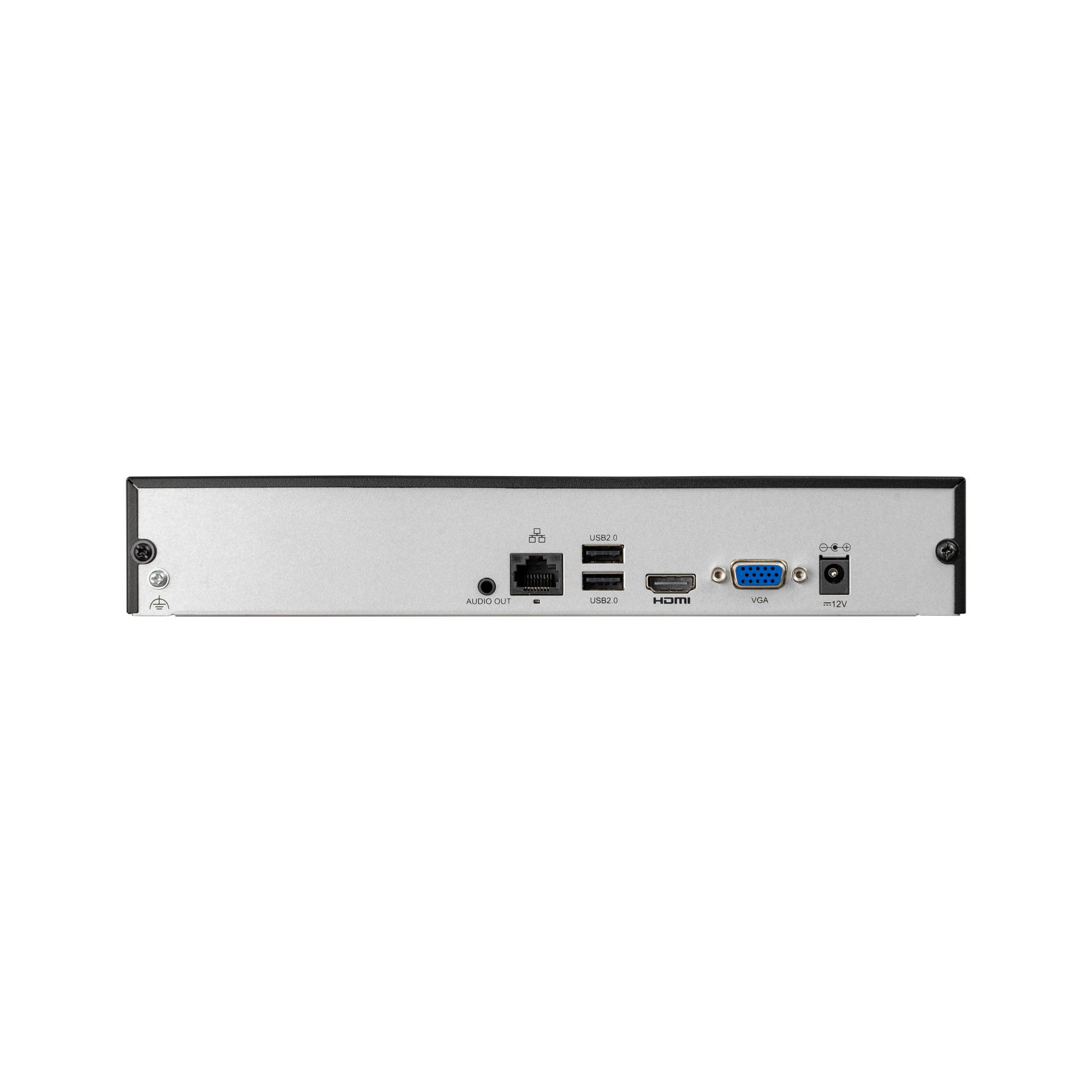

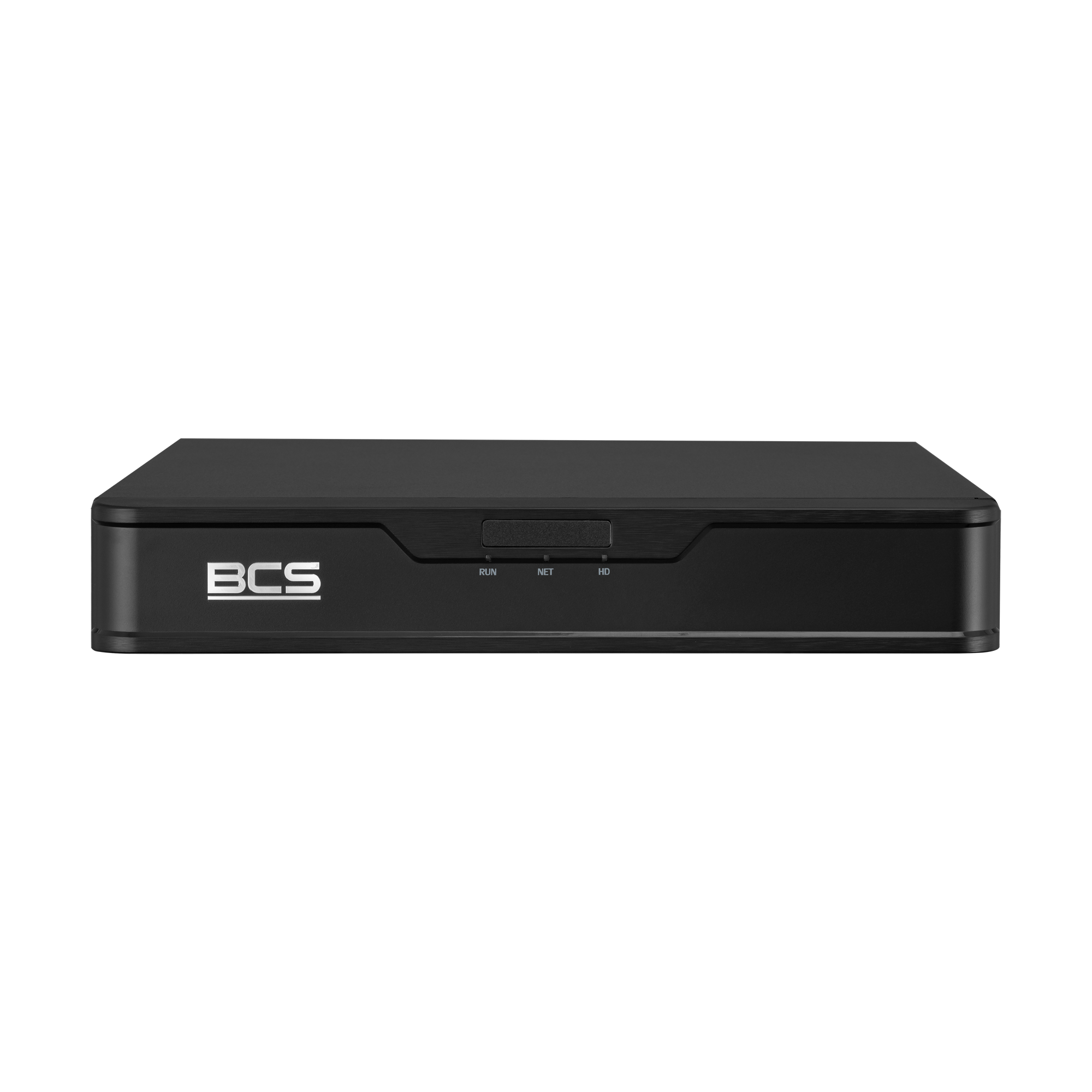

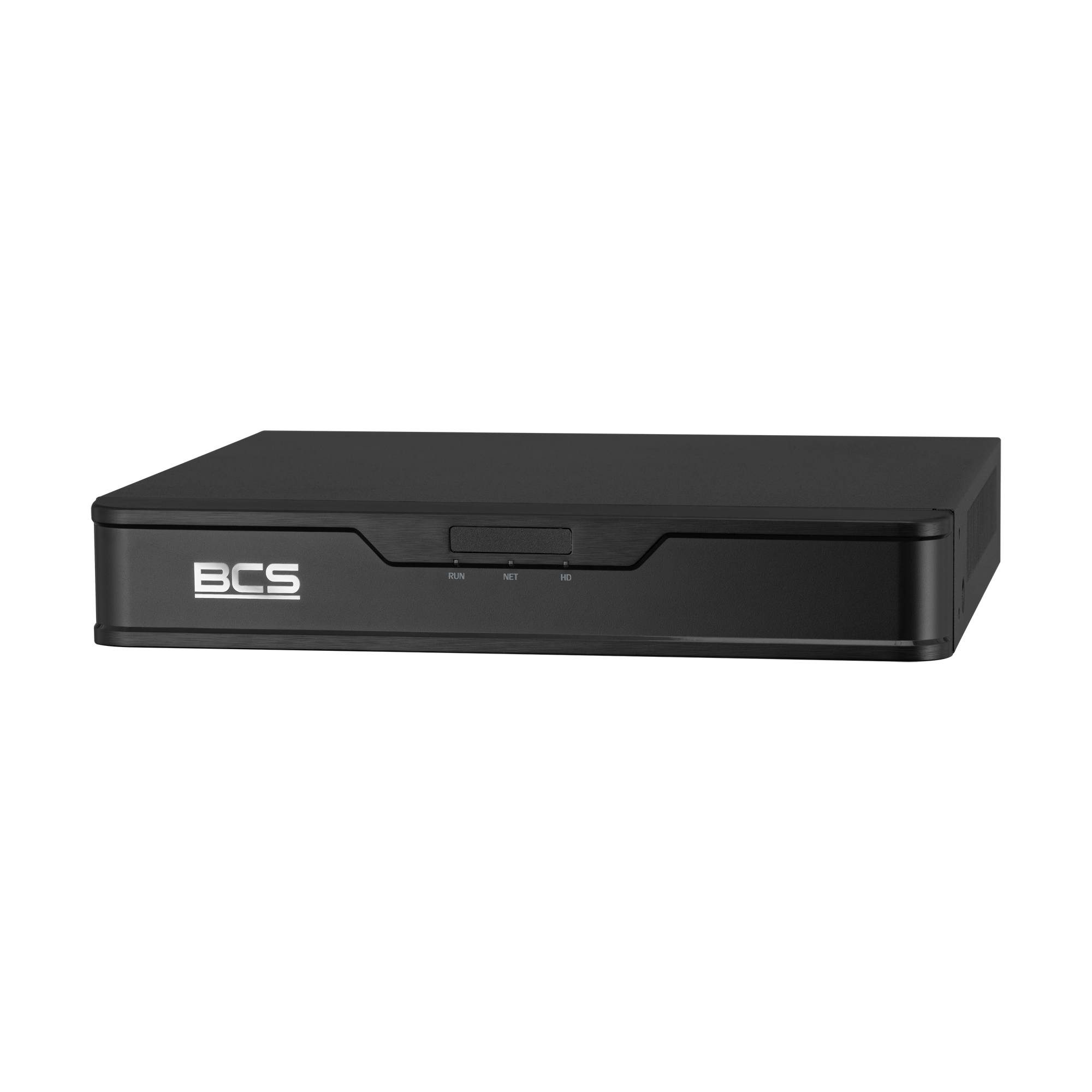

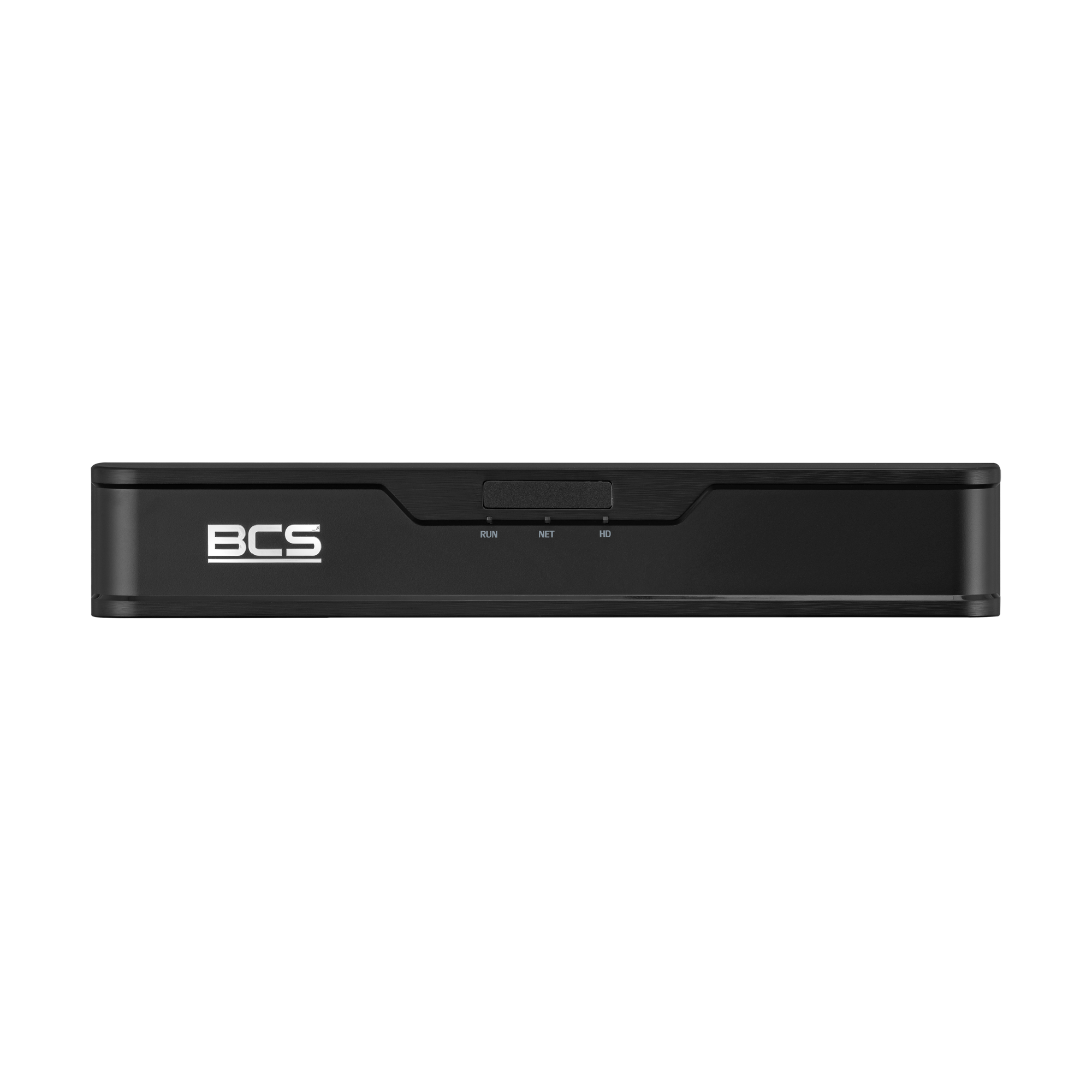

BCS POINT 4-channel IP recorder. Adapted to work with cameras with a maximum resolution of 4K. It allows for the installation of one hard drive with a total capacity of 6 TB. The recorder is powered from 12V DC and is placed in a 1U housing. Interfaces: HDMI 4K, VGA 1080P, RJ45 (100Mbps), audio 1/1, 1xUSB2.0, 1xUSB3.0.
Warning: This product belongs to the BCS POINT product line.
Use only components and devices from the same line to ensure compatibility.
BCS POINT
BCS-P-NVR0401-4KE-III
109,47 € gross
Out of Stock- 4-channel IP recorder
- Compliance with the NDAA
- Supports 1 hard drive
- Supports 8Mpx IP cameras
- Audio output
- HDMI 4K/VGA output
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
| Weight (without HDD) | 1 kg |
|---|---|
| Flag | PROMOTION |
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| HDD capacity | 6 TB |
| Power consumption (without HDD) | max 5W |
| Outgoing bandwidth | 48Mbps |
| Web Service (internet explorers) | Google Chrome, Microsoft Edge, Safari or similar |
| Product | BCS-P-NVR0401-4KE-III |
| NDAA | National Defense Authorization Act |
| System | IP |
| Channels | 4 |
| HDD support | 1 |
| Max recording resolution | 8 Mpx |
| Incoming bandwidth | 64Mbps |
| Display efficiency | 1×8M(30fps) / 1×5M(30fps) / 2×4M(30fps) / 4×3M(25fps) / 4×2M(30fps) |
| Recording resolutions | 8M / 5M / 4M / 3M / 2M / 960p / 720p / D1 / 2CIF / CIF |
| Video compression | H.265+ / H265 / H.264+ / H.264 |
| HDMI out | HDMI4K |
| VGA out | VGA |
| HDMI display resolutions | 3840×2160 / 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| VGA display resolutions | 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| Display split | 1/4 (3/4 corridor mode) |
| Synchronous playback | 1/4 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| User connections | 128 |
| Interfaces | 2×USB2.0 |
| Audio out | 1 |
| Audio compression | G.711A / G.711U |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF, support third party cameras |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Power supply | 12V DC |
| Working environment | -10°C~+55°C max 90% RH |
| Casing | 1U |
| Dimensions (W×D×H) | 260×240×47mm |
