The recorder supports up to 8 IP network cameras. 4K playback resolution. Supports H.264 / Ultra H.265 / H.265 encoding. Equipped with 2 USB ports (2x USB 2.0). Simultaneous operation of HDMI / VGA outputs with a maximum resolution of 4K (3840 × 2160) * HDMI only. Supports 1x HDD (up to 6TB total). Audio inputs / outputs: 0/1. It has a 1x RJ-45 (10 / 100M) network port.
Warning: This product belongs to the BCS POINT product line.
Use only components and devices from the same line to ensure compatibility.
BCS POINT
BCS-P-NVR0801-4KE-III
125,46 € gross
100 In Stock- 8-channel IP recorder
- Compliance with the NDAA
- Supports 1 hard drive
- Supports 8Mpx IP cameras
- Audio output
- HDMI 4K/VGA output
100 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Weight (without HDD) | 1 kg |
|---|---|
| System | IP |
| Channels | 8 |
| Max recording resolution | 8 Mpx |
| Power consumption (without HDD) | max 5W |
| Recording resolutions | 8M / 5M / 4M / 3M / 2M / 960p / 720p / D1 / 2CIF / CIF |
| Product | BCS-P-NVR0801-4KE-III |
| NDAA | National Defense Authorization Act |
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| HDD support | 1 |
| HDD capacity | 6 TB |
| Incoming bandwidth | 64Mbps |
| Outgoing bandwidth | 48Mbps |
| Display efficiency | 1×8M(30fps) / 1×5M(30fps) / 2×4M(30fps) / 4×3M(25fps) / 4×2M(30fps) / 8×720P(30fps) |
| Video compression | H.265+ / H265 / H.264+ / H.264 |
| HDMI out | HDMI4K |
| VGA out | VGA |
| HDMI display resolutions | 3840×2160 / 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| VGA display resolutions | 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| Display split | 1/4/8/9 (3/4/5/7/9 corridor mode) |
| Synchronous playback | 1/4/6/8 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| User connections | 128 |

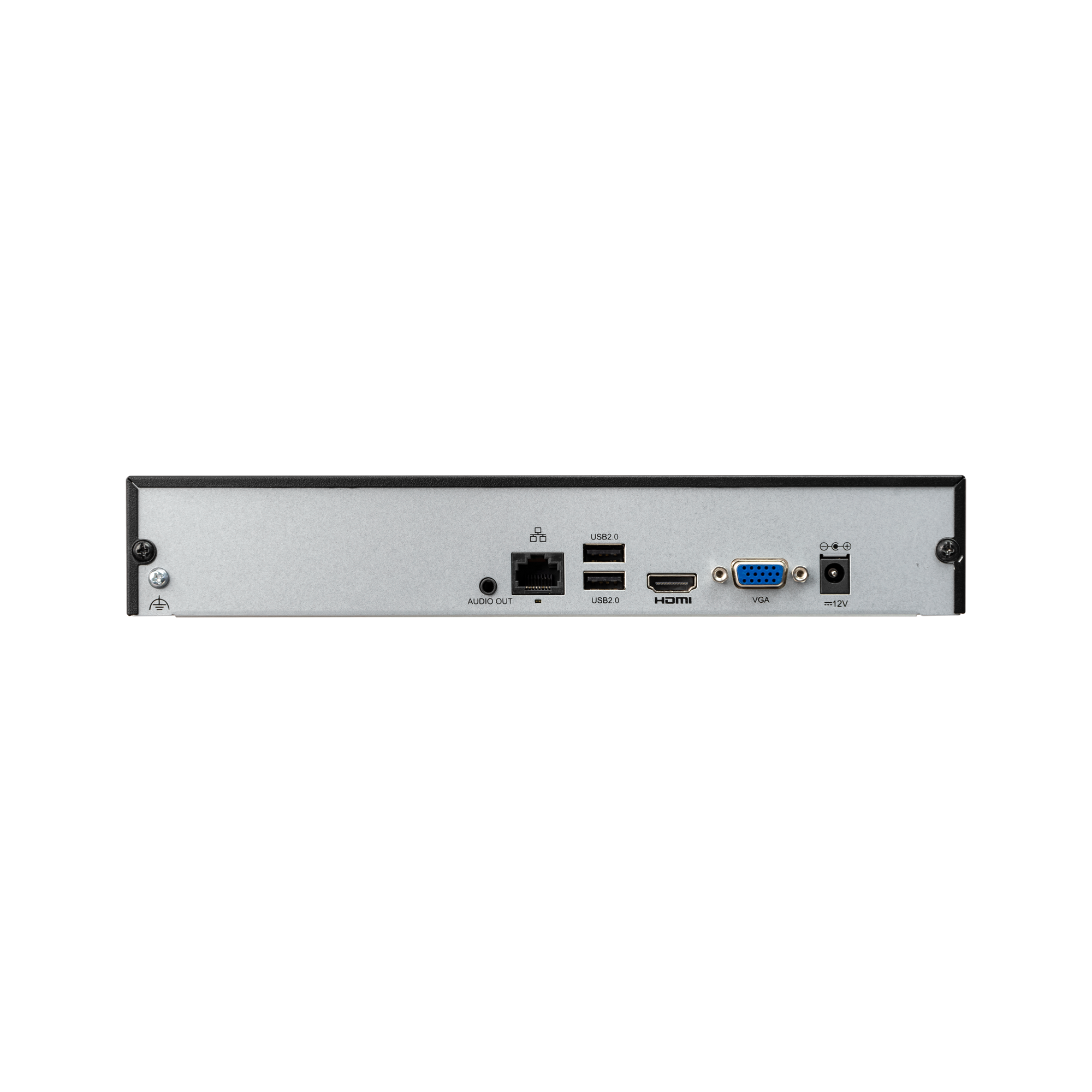

| Interfaces | 2×USB2.0 |
| Audio out | 1 |
| Audio compression | G.711A / G.711U |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF, support third party cameras |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Power supply | 12V DC |
| Working environment | -10°C~+55°C max 90% RH |
| Casing | 1U |
| Dimensions (W×D×H) | 260×240×47mm |
