Warning: This product belongs to the BCS POINT product line.
Use only components and devices from the same line to ensure compatibility.

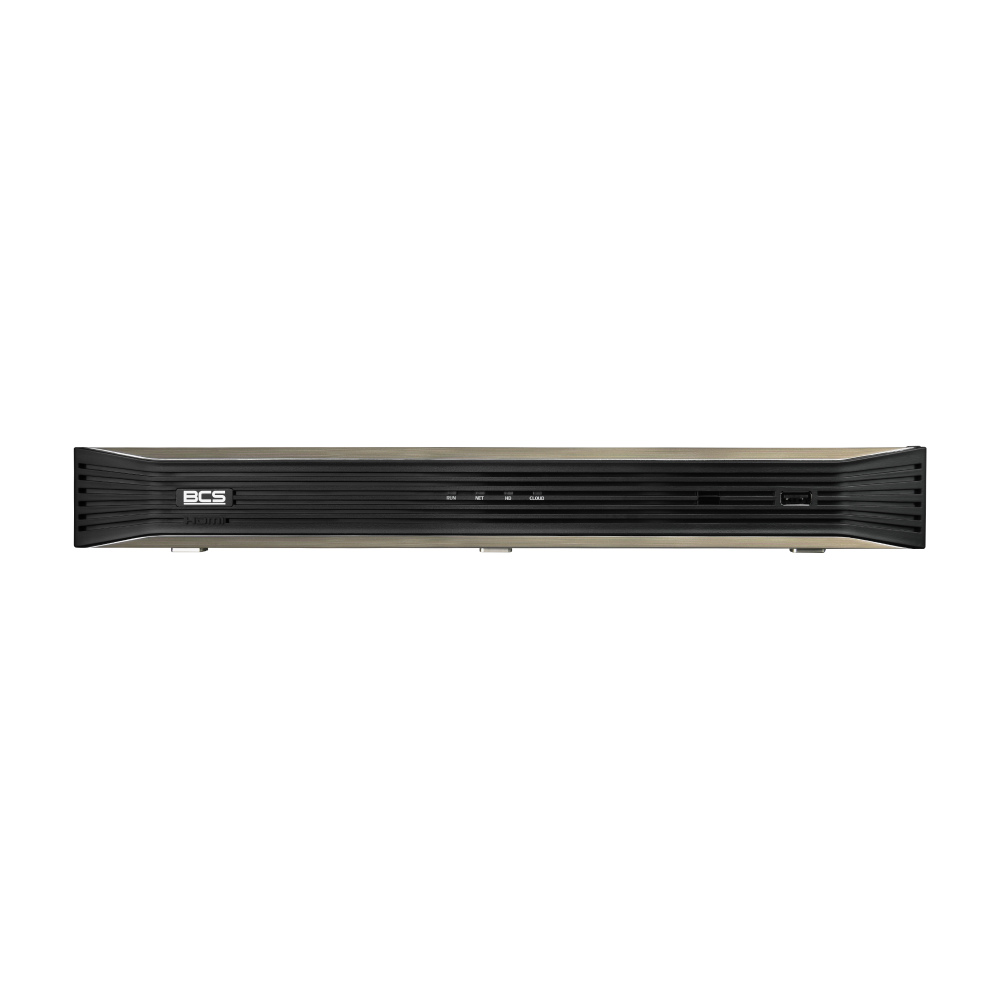

BCS-P-NVR0902-A-4K(4)

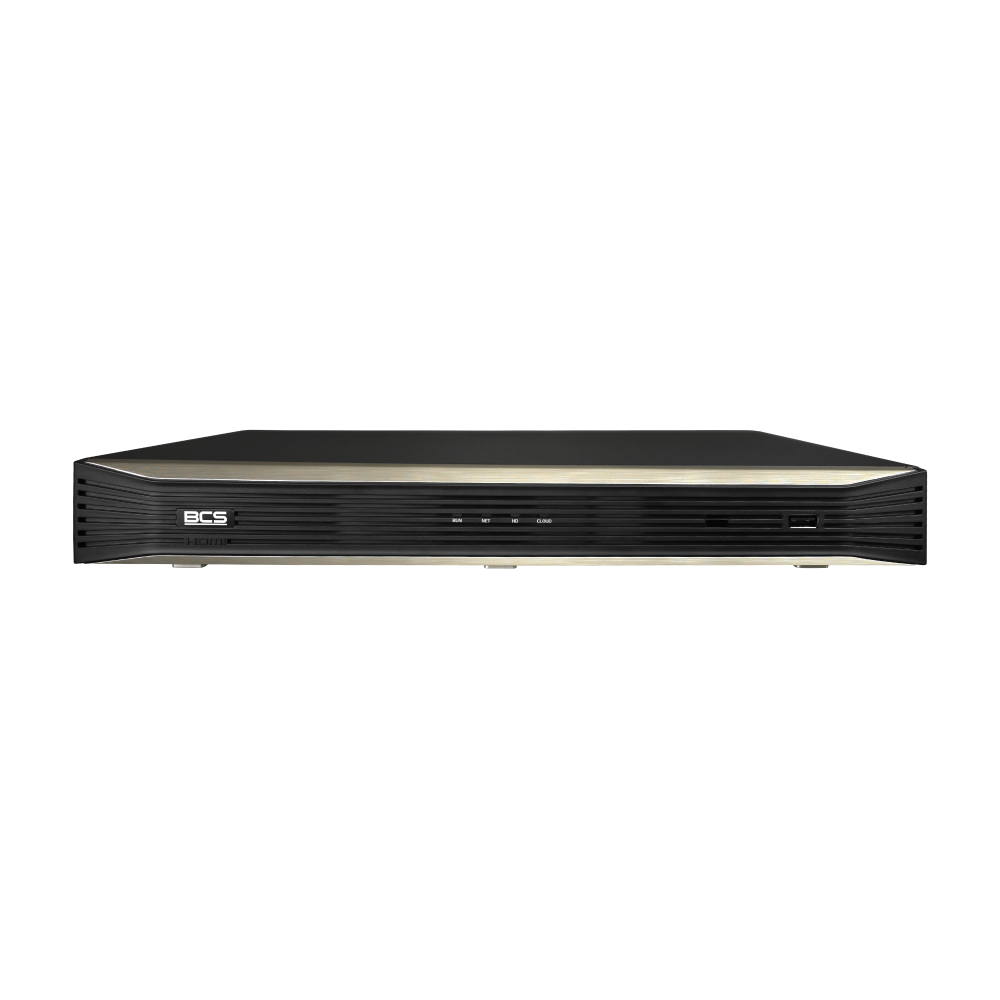

BCS-P-NVR0902-A-4K(4) - Image 2

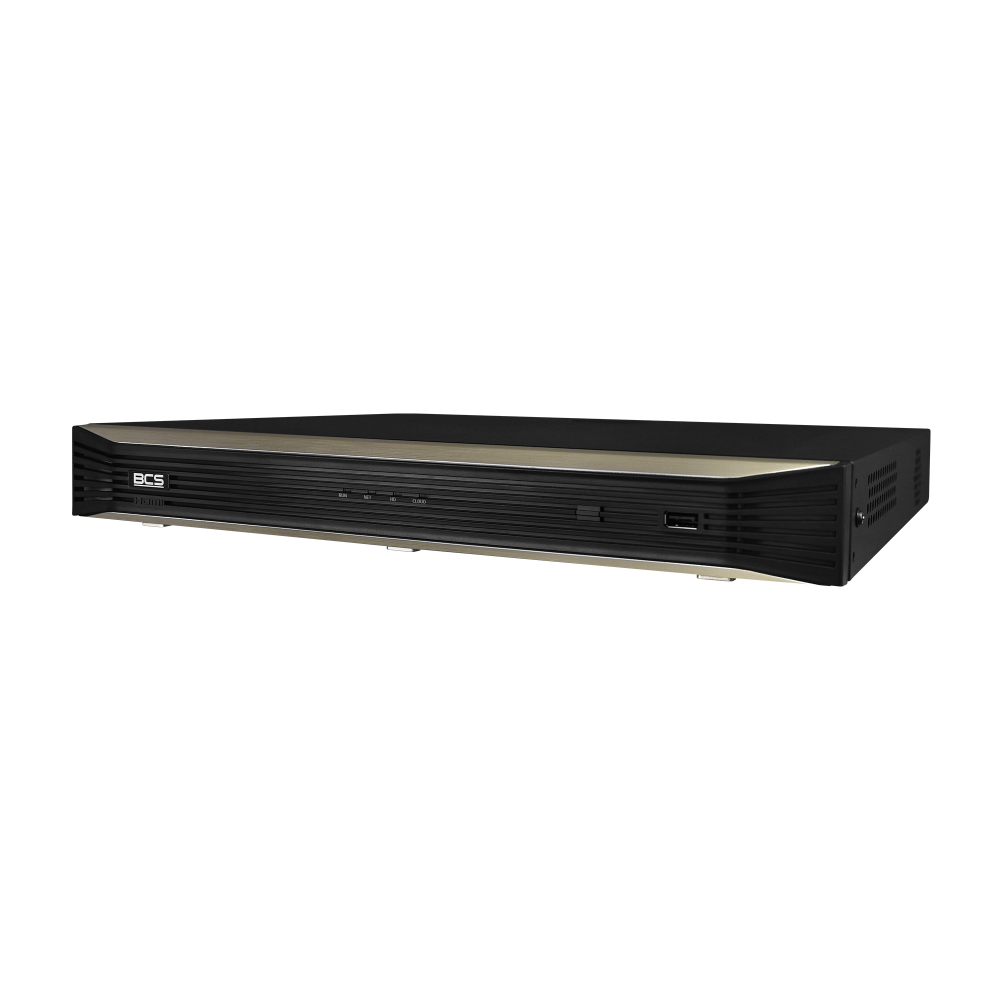

BCS-P-NVR0902-A-4K(4) - Image 3

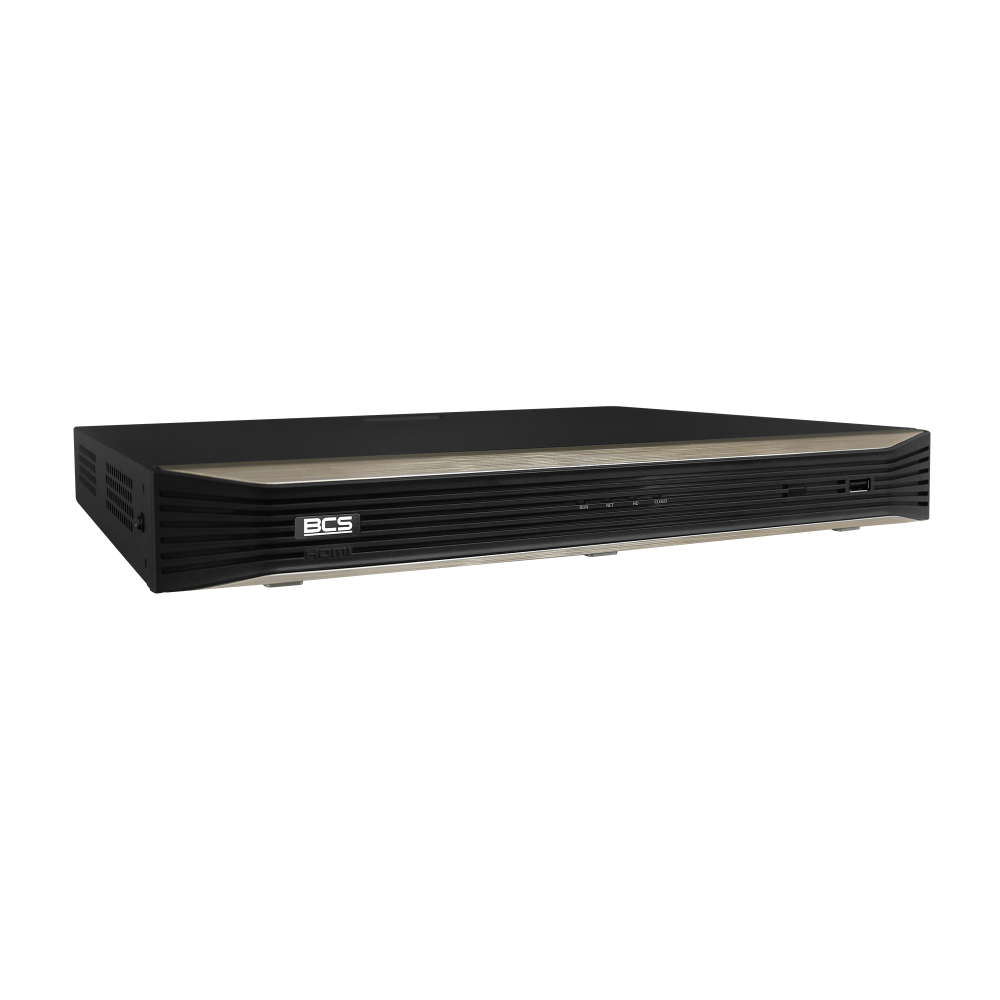

BCS-P-NVR0902-A-4K(4) - Image 4

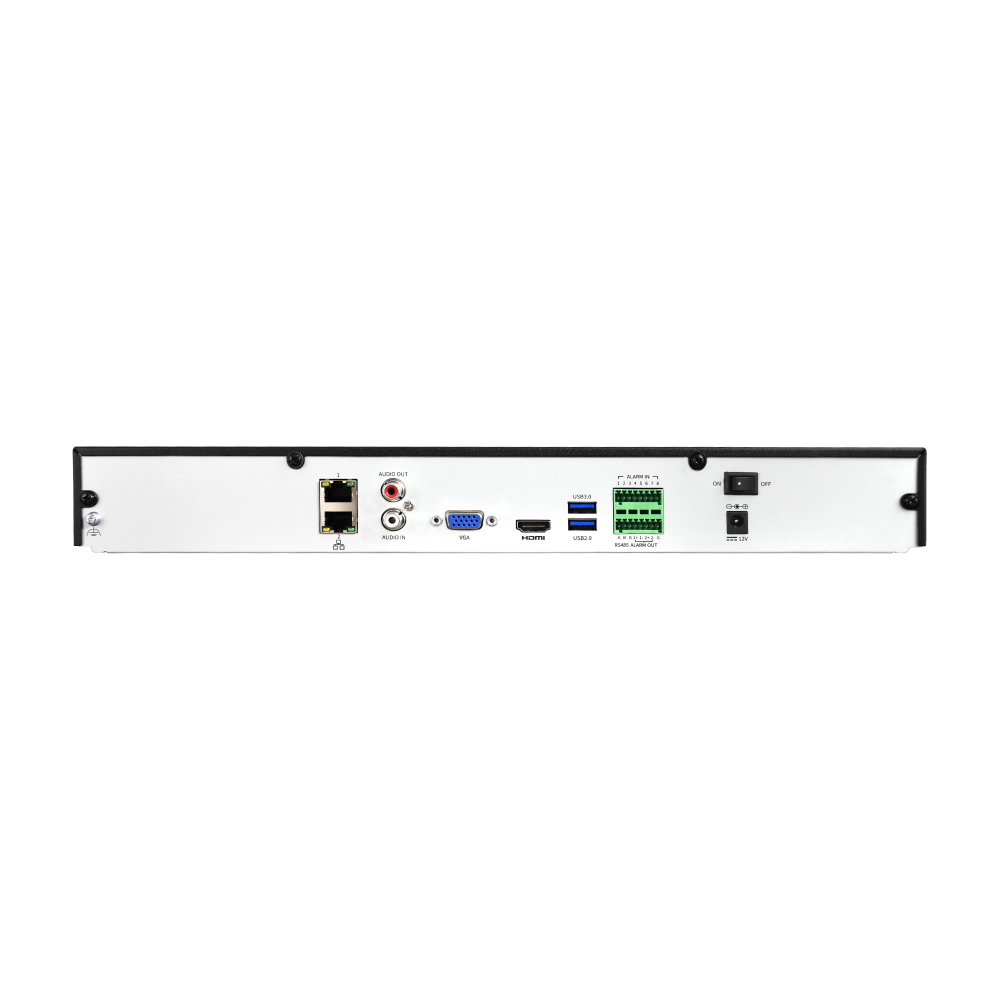

BCS-P-NVR0902-A-4K(4) - Image 5

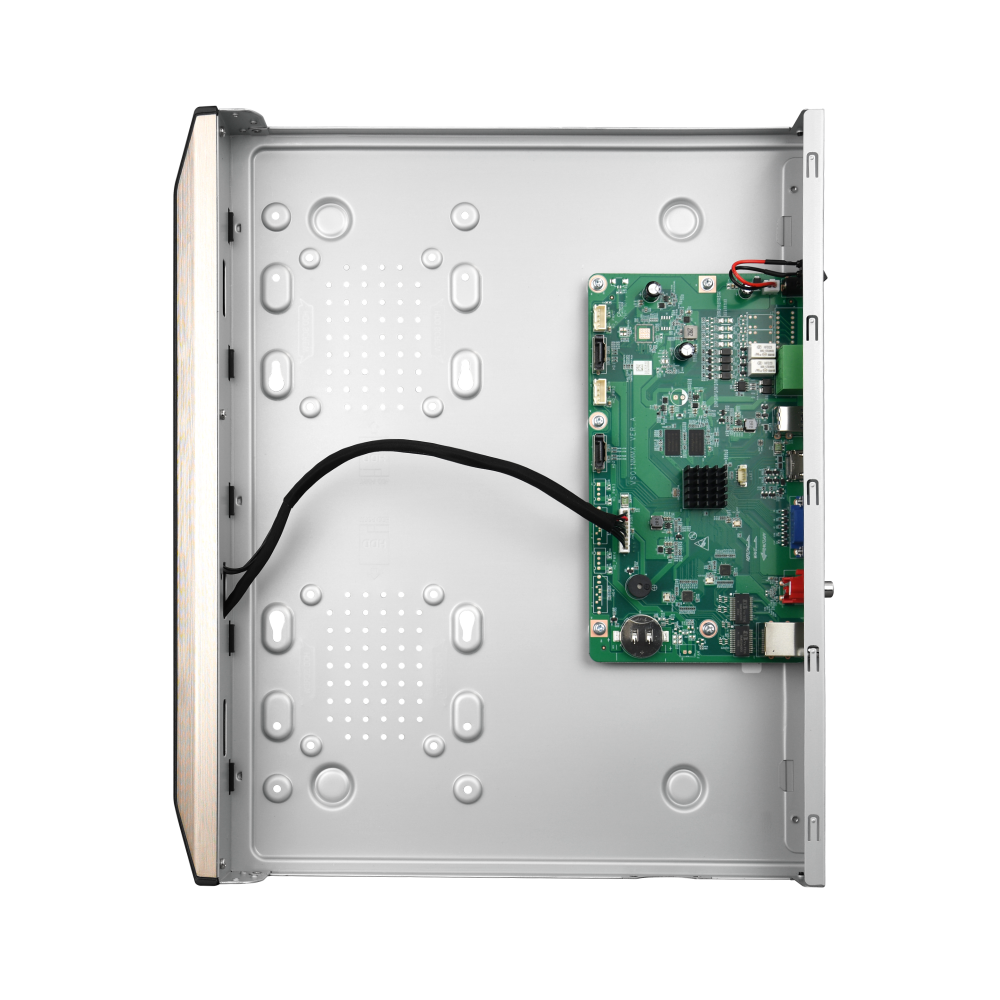

BCS-P-NVR0902-A-4K(4) - Image 6
BCS POINT

BCS-P-NVR0902-A-4K(4)

325,95 € gross

Out of Stock

Out of stock

This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.

SKU: 11821 Category:
Weight (without HDD)

2 kg
Product

BCS-P-NVR0902-A-4K(4)
NDAA

National Defense Authorization Act
Channels

9
ANR

Automatic synchronization of recordings from the camera's microSD card after the connection is lost and restored.
Web Service (internet explorers)

Google Chrome, Microsoft Edge, Safari or similar
Outgoing bandwidth

160Mbps
System

IP
Pentaplex function

Live view / recording / playback / archiving / remote access
VGA out

VGA
Power consumption (without HDD)

max 20W
HDD support

2
HDD capacity

8 TB
Max recording resolution

16 Mpx
Incoming bandwidth

320Mbps
Display efficiency

H.265(30fps): 2×16M / 2×12M / 4×4K / 6×5M / 8×4M / 9×3M H.264(30fps): 2×16M(4800×2688) / 2×12M / 2×4K / 4×5M / 6×4M / 8×3M / 9×1080P
Recording resolutions

16M / 12M / 8M / 6M / 5M / 4M / 3M / 2M / 960p / 720p / D1 / 2CIF / CIF
Video compression

H.265+ / H265 / H.264+ / H.264
HDMI out

HDMI4K
HDMI display resolutions

3840×2160 / 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768
VGA display resolutions

1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768
Display split

1/4/6/8/9 (3/4/5/7/9 corridor mode)
Synchronous playback

1/4/9/16
Archiving

Possibility to download material to external media such as USB FLASH, USB HDD
User connections

128
Interfaces

2×USB2.0, 1×USB3.0
Serial port

RS485
Audio in

1
Audio out

1
Audio compression

G.711A / G.711U
Alarm in

8
Alarm out

2
Support

Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
Network

2×RJ-45 10/100/1000Mbps
Compatibility

ONVIF(S/G/T), support third party cameras
Protocols

TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
Power supply

12V DC
Working environment

-10°C~+55°C max 90% RH
Casing

1U
Dimensions (W×D×H)

380×315×53mm
