| Flag | TO ORDER |
|---|---|
| Product | BCS-P-NVR25624R-A-8KR-Ai2 |
| pa_product-line | BCS POINT |
| NDAA | National Defense Authorization Act |
| System | IP |
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| Channels | 256 |
| HDD support | 24 |
| HDD capacity | 24 TB |
| &RAID | Yes |
| RAID type | 0/1/5/6/10/50/50 |
| Hot swap | Yes |
| ANR | Automatic synchronization of recordings from the camera's microSD card after the connection is lost and restored. |
| Max recording resolution | 32 Mpx |
| Incoming bandwidth | 768Mbps(512Mbps 8K) |
| Outgoing bandwidth | 768Mbps(640Mbps 8K) |
| Display efficiency | H265: 3x32MP@30, 6x16MP@30, 8x12MP@30, 12x4K@30, 16x6MP@30, 19x5MP@30, 24x4MP@30, 32x3MP@30, 48x1080P@30, 96x720P@30, 192xD1@30 H264: 2x32MP@30, 4x16MP@30, 6x12MP@30, 9x4K@30, 12x6MP@30, 14x5MP@30, 18x4MP@30, 24x3MP@30, 36x1080P@30, 72x720P@30, 144xD1@30 |
| Recording resolutions | 32M / 16M / 12M / 8M / 6M / 5M / 4M / 3M / 2M / 960p / 720p / D1 / 2CIF / CIF |
| Video compression | H.265+ / H265 / H.264 |
| HDMI out | HDMI8K/HDMI4K |
| VGA out | 2×VGA |
| HDMI display resolutions | 7680×4320(HDMI1) / 3840×2160 / 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| VGA display resolutions | 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| pa_heterogeneous-display-mod | HDMI1~VGA1 / HDMI2~VGA2 |
| Display split | 1/4/6/8/9/16/25/36/64 (3/4/5/7/9/10/12/16/32 corridor mode) |
| Fisheye Dewarping | Yes |
| Synchronous playback | 1/4/9/16 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| User connections | 128 |
| Interfaces | 2×USB2.0, 2×USB3.0, eSATA, 12VDC out, miniSAS |
| Serial port | RS232, RS485 |
| Audio in | 1 |
| Audio out | 2 |
| Audio compression | G.711A / G.711U |
| Alarm in | 16 |
| Alarm out | 10 |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | 2×RJ-45 10/100/1000Mbps |
| Compatibility | ONVIF(S/G/T), support third party cameras |
| Protocols | TCP/IP, P2P, SMTP, NFS, 802.1x, RTSP, UPnP, NTP, DHCP, PPPoE, HTTP, DNS, DDNS, SNMP, IPv4, HTTPS |
| Cluster support | N+1 |
| Power supply | 220V |
| pa_power-consumption-without | max 50W |
| Working environment | -10°C~+50°C max 90% RH |
| pa_dimensions-mm-wxdxh | 532.8×484.6×175 |
| Weight (without HDD) | 8 kg |
| POS | Yes |
| pa_ai-intelligent-functions- | All channels (up to 16 images/s in total) Face Detection, Face Comparison, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring, People Counting |

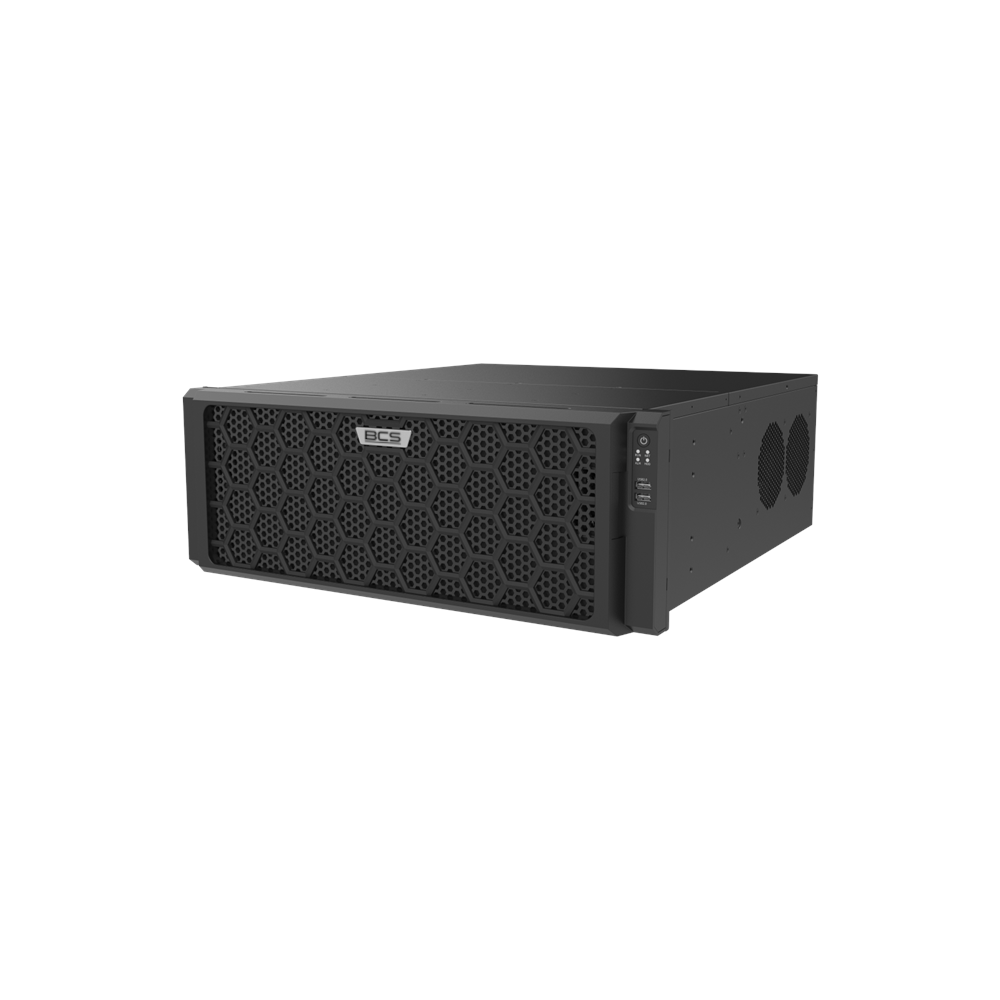

BCS-P-NVR25624R-A-8KR-Ai2
0,00 € gross
Out of Stock- 256-channel IP recorder
- Compliance with the NDAA
- Supports 24 hard drives
- Supports 32Mpx IP cameras
- 16/10 alarm channels, 2/1 audio channels
- HDMI 8K/HDMI 4K/2xVGA output
- Redundant power supply (second power supply optional)
- Smart features (optional)
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
