| Flag | COMING SOON |
|---|---|
| Product | BCS-P-NVR3208-A-4K(5L) |
| pa_product-line | BCS POINT |
| NDAA | National Defense Authorization Act |
| System | IP |
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| Channels | 32 |
| HDD support | 8 |
| HDD capacity | 12 TB |
| &RAID | Yes |
| ANR | Automatic synchronization of recordings from the camera's microSD card after the connection is lost and restored. |
| Max recording resolution | 16 Mpx |
| Incoming bandwidth | 320Mbps |
| Outgoing bandwidth | 160Mbps |
| Display efficiency | Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 H.264: 2 x 16MP(4800 x 2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1 |
| Recording resolutions | 16M / 12M / 8M / 6M / 5M / 4M / 3M / 2M / 960p / 720p / D1 / 2CIF / CIF |
| Video compression | H.265+ / H265 / H.264 |
| HDMI out | HDMI4K |
| VGA out | VGA |
| HDMI display resolutions | 3840×2160 / 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| VGA display resolutions | 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| Display split | 1/4/6/8/9/16/25/32 (3/4/5/7/9/10/12/16/32 corridor mode) |
| Synchronous playback | 1/4/9/16 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| User connections | 128 |
| Interfaces | 2×USB2.0, 1×USB3.0 |
| Serial port | RS485 |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711U |
| Alarm in | 16 |
| Alarm out | 4 |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | 2×RJ-45 10/100/1000Mbps |
| Compatibility | ONVIF(S/G/T), support third party cameras |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP |
| Cluster support | N+1 |
| Power supply | 100~240V AC |
| pa_power-consumption-without | max 32W |
| Working environment | -10°C~+55°C max 90% RH |
| Casing | 2U |
| pa_dimensions-mm-wxdxh | 442×426×89 |
| Weight (without HDD) | 4 kg |
| pa_ai-intelligent-functions- | Face Detection/Comparison, Vehicle Detection, SIP(Intrusion/Cross Line, Enter/Leave Area), Ultra Motion Detection(UMD), Temperature(Fire/Smoking/Measurement/Smoke/Fire Detection), People Counting(People Flow, Crowd Density), Video Metadata, Traffic |

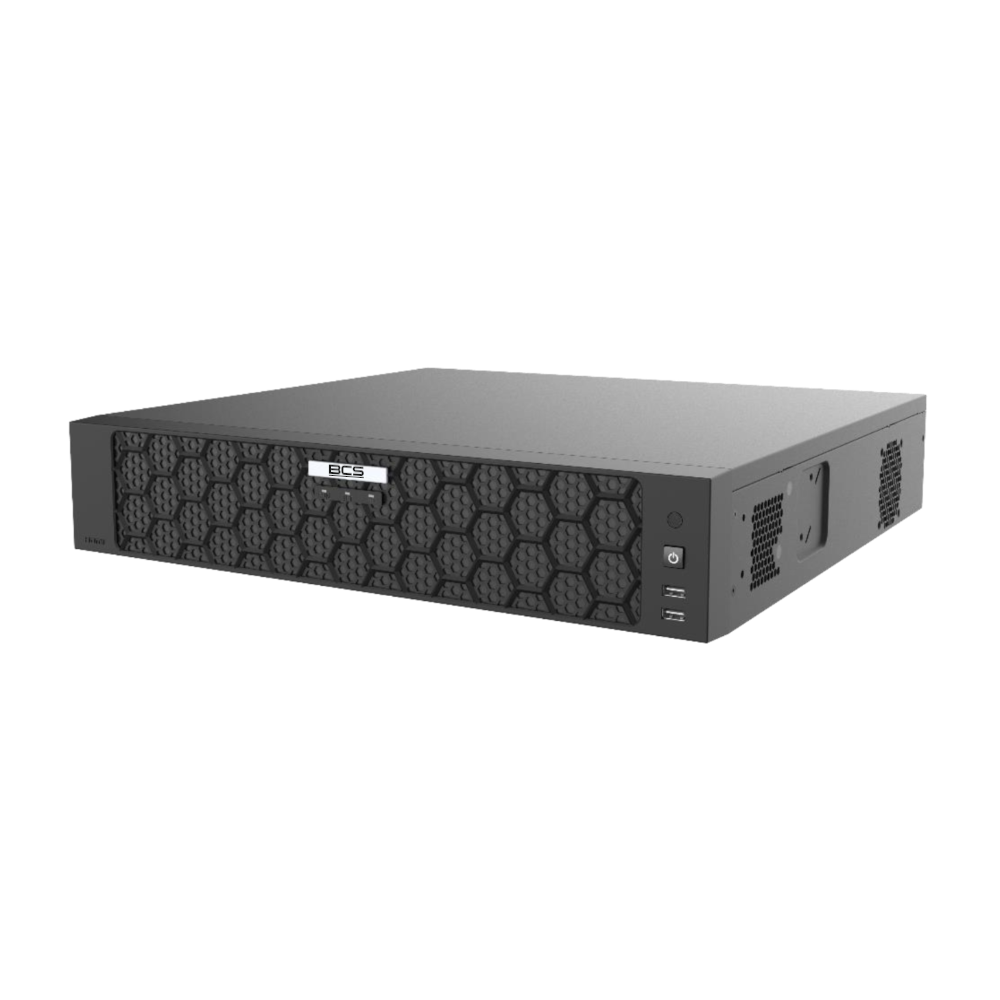

BCS-P-NVR3208-A-4K(5L)
1129,14 € gross
5 In Stock- 32-channel IP recorder
- Compliance with the NDAA
- Supports 8 hard drives
- RAID
- Support for 16Mpx IP cameras
- 16/4 alarm channels, 1/1 audio channels
- HDMI 4K/VGA output
