| Product | BCS-P-NVR3208R-A-4K-AI2 |
|---|---|
| pa_product-line | BCS POINT |
| NDAA | National Defense Authorization Act |
| System | IP |
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| Channels | 32 |
| HDD support | 8 |
| HDD capacity | 16 TB |
| &RAID | Yes |
| RAID type | 0/1/5/6/10 |
| ANR | Automatic synchronization of recordings from the camera's microSD card after the connection is lost and restored. |
| Max recording resolution | 32 Mpx |
| Incoming bandwidth | 384Mbps(200Mbps Ai) |
| Outgoing bandwidth | 384Mbps(200Mbps Ai) |
| Display efficiency | 2x32MP@30 4x16MP@30 5x12MP@30 8x4K@30 10x6M@30 12x5MP@30 16x4MP@30 20x3MP@30 32x1080P@30 Ai: 1x32MP@30 3x16MP@30 4x12MP@30 6x4K@30 8x6M@30 9x5MP@30 12x4MP@30 16x3MP@30 24x1080P@30 32x720P@30 |
| Recording resolutions | 32M / 16M / 12M / 8M / 6M / 5M / 4M / 3M / 2M / 960p / 720p / D1 / 2CIF / CIF |
| Video compression | H.265+ / H265 / H.264 |
| HDMI out | HDMI4K |
| VGA out | VGA |
| HDMI display resolutions | 3840×2160 / 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| VGA display resolutions | 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| Display split | HDMI1 VGA1: 1/4/6/8/9/16/25/32 HDMI2 VGA2: 1/4/6/8/9/16 Tryb korytarzowy HDMI1 VGA1: 3/4/5/7/9/10/12/16/32 HDMI2 VGA2: 3/4/5/7/9/10/12/16 |
| Synchronous playback | 1/4/9/16 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| User connections | 128 |

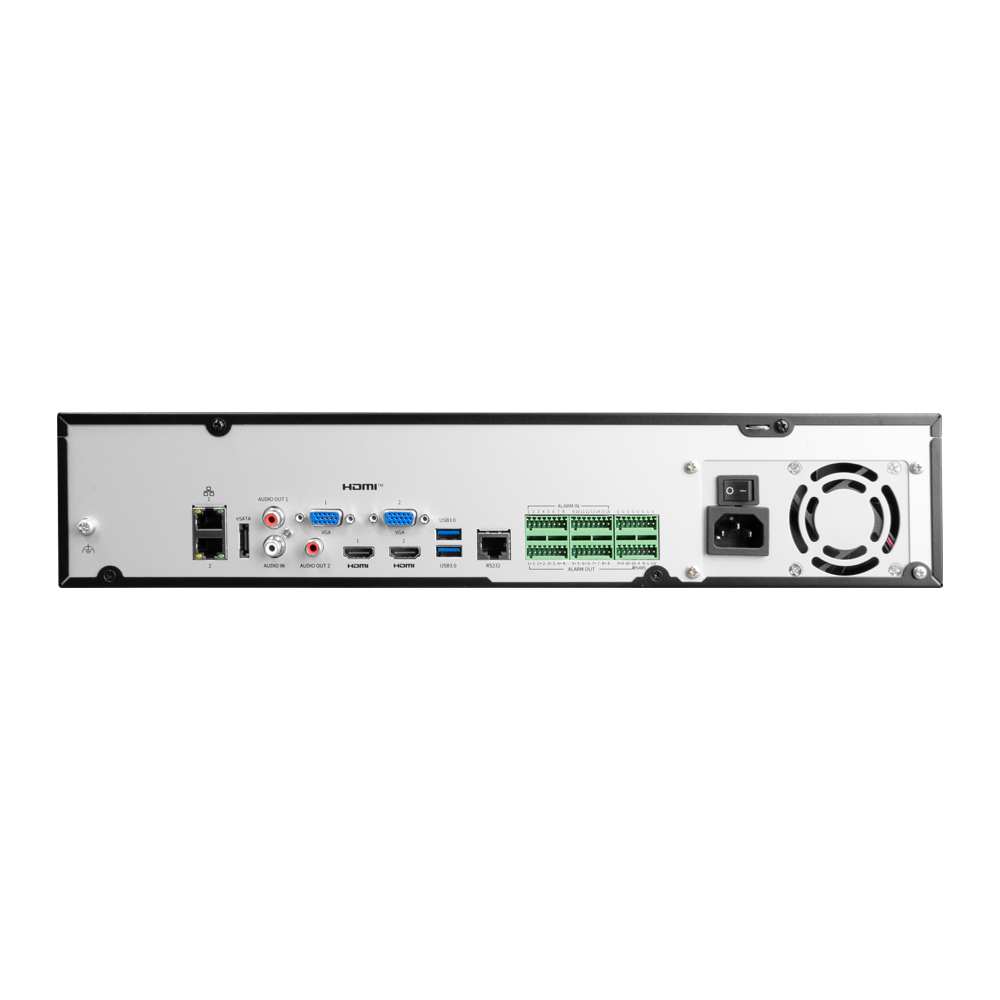

| Interfaces | 2×USB2.0, 2×USB3.0, eSATA, 12VDC out |
| Serial port | RS232, RS485 |
| Audio in | 1 |
| Audio out | 2 |
| Audio compression | G.711A / G.711U |
| Alarm in | 16 |
| Alarm out | 10 |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | 2×RJ-45 10/100/1000Mbps |
| Compatibility | ONVIF(S/G/T), support third party cameras |
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4 |
| Cluster support | N+1 |
| Power supply | 100~240V AC |
| pa_power-consumption-without | max 35W |
| Working environment | -10°C~+50°C max 90% RH |
| Casing | 2U |
| pa_dimensions-mm-wxdxh | 442×432×86 |
| Weight (without HDD) | 5.5 kg |
| POS | Yes |
| pa_ai-built-in-intelligent-f | Yes |
| Ai - Perimeter protection | Smart Intrusion Prevention (SIP) 2 million records |
| &Ai - Object classification | Yes |
| Ai - Face detection | Yes |
| &Ai - SMD | Yes |
| Ai - Face recognition | 3 million records |
| Ai - Metadata | 2 million records |
| Ai - ARTR | 5 libraries max 25k positions 2 million records |
| Ai - Smart search | AcuSearch, AcuTrack |
| pa_ai-intelligent-functions- | Face Detection/Comparison, Vehicle Detection, SIP(Intrusion/Cross Line, Enter/Leave Area), Ultra Motion Detection(UMD), Temperature(Fire/Smoking/Measurement/Smoke/Fire Detection), People Counting(People Flow, Crowd Density), Video Metadata, Traffic |
| pa_ai-smd-smart-motion-detec | Ultra Motion Detection (UMD) |

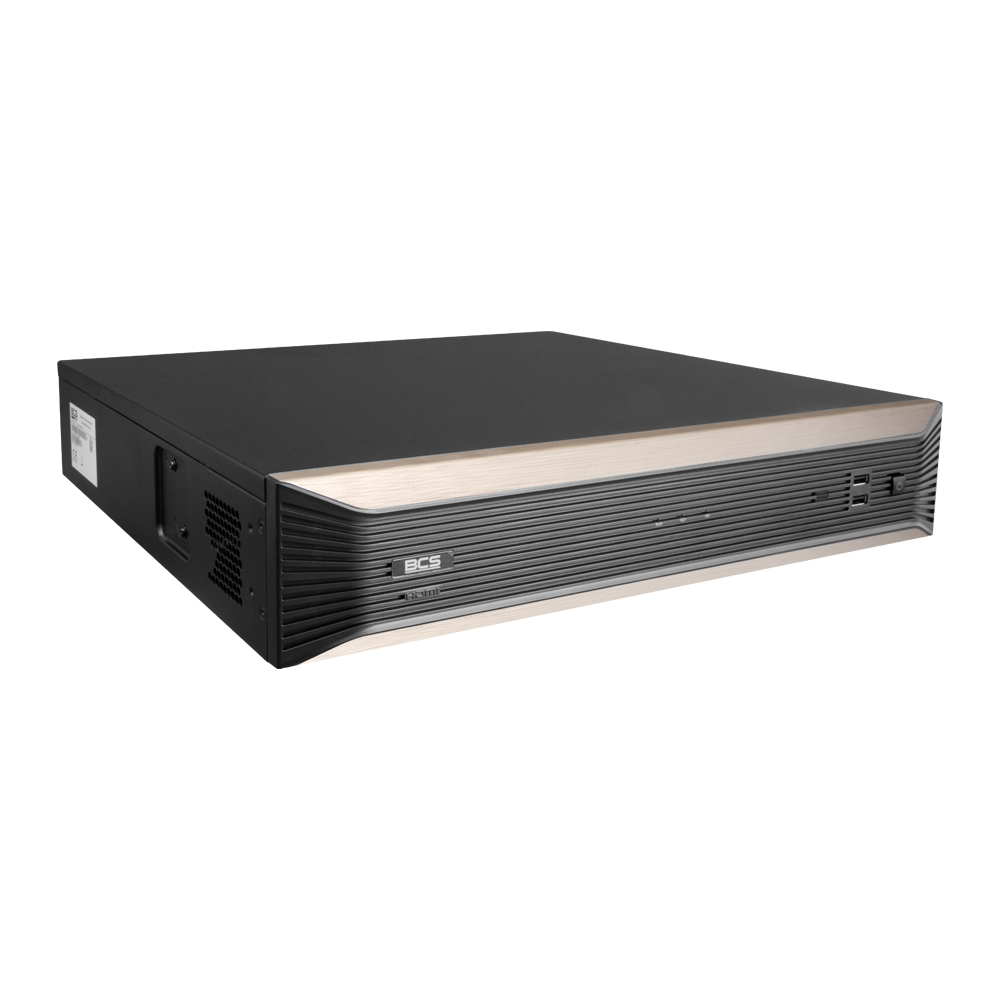

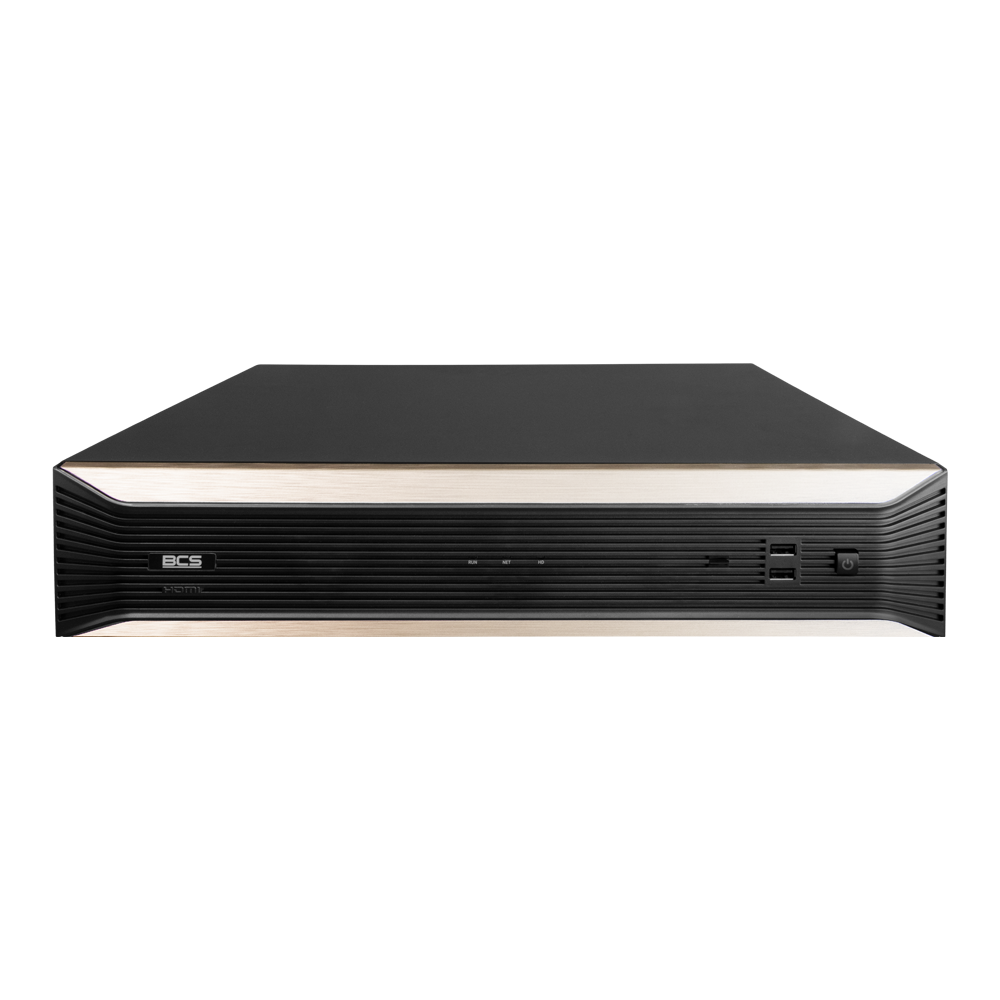

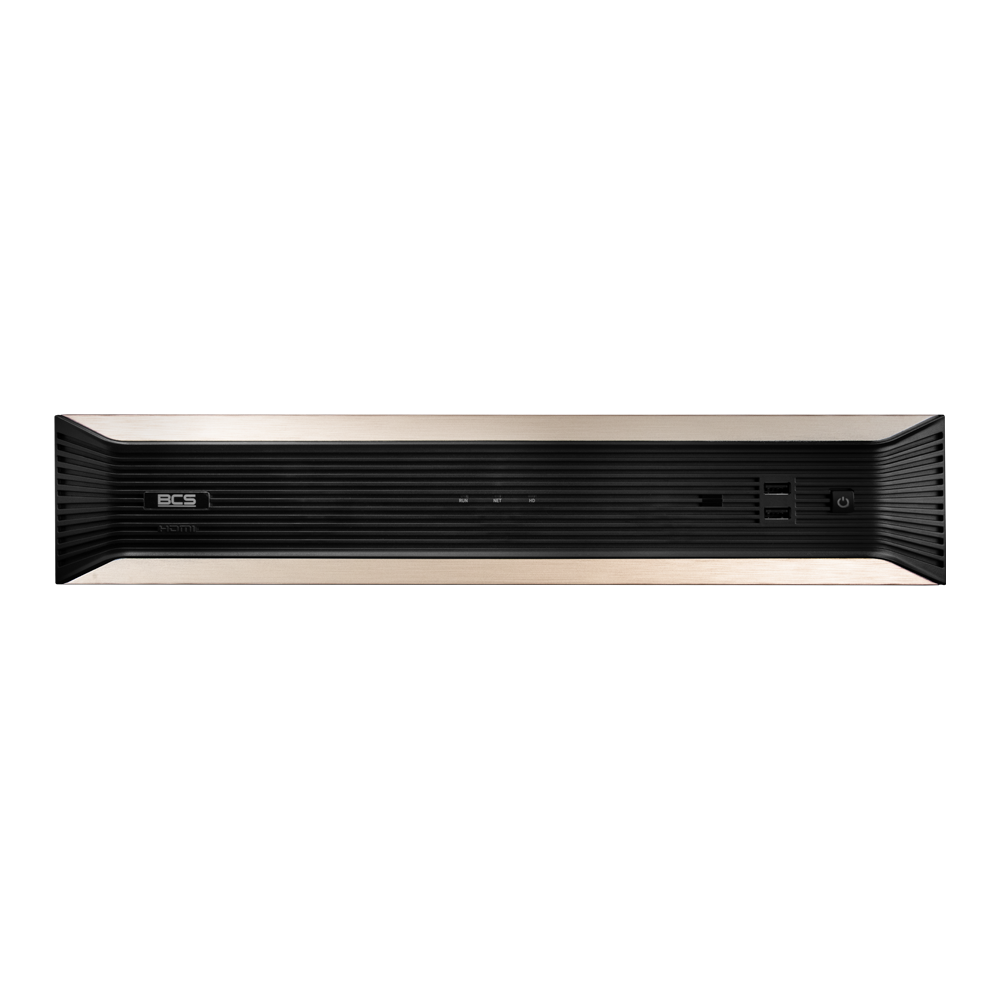

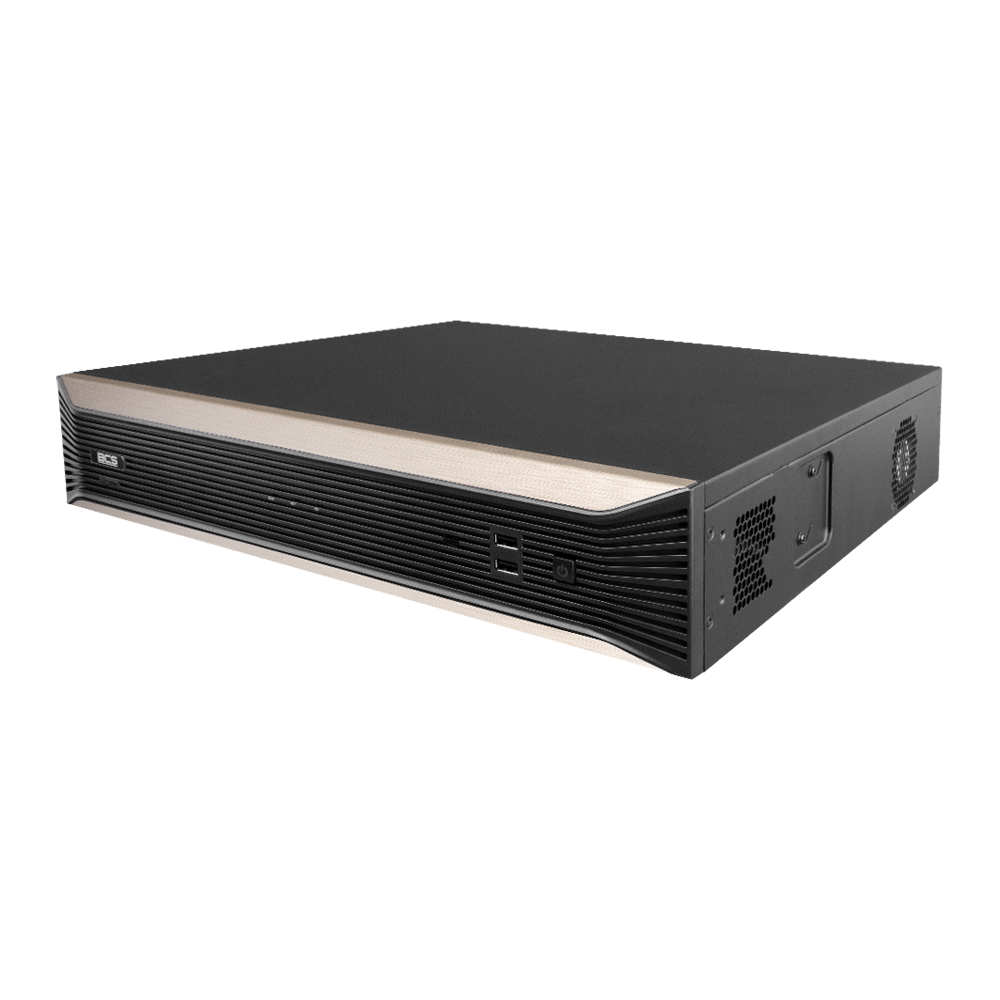

BCS-P-NVR3208R-A-4K-AI2
2258,28 € gross
Out of Stock- 32-channel IP recorder
- Compliance with the NDAA
- Supports 8 hard drives
- RAID
- Support for 32Mpx IP cameras
- 16/10 alarm channels, 1/2 audio channels
- HDMI 4K/VGA output
- Built-in smart features
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
