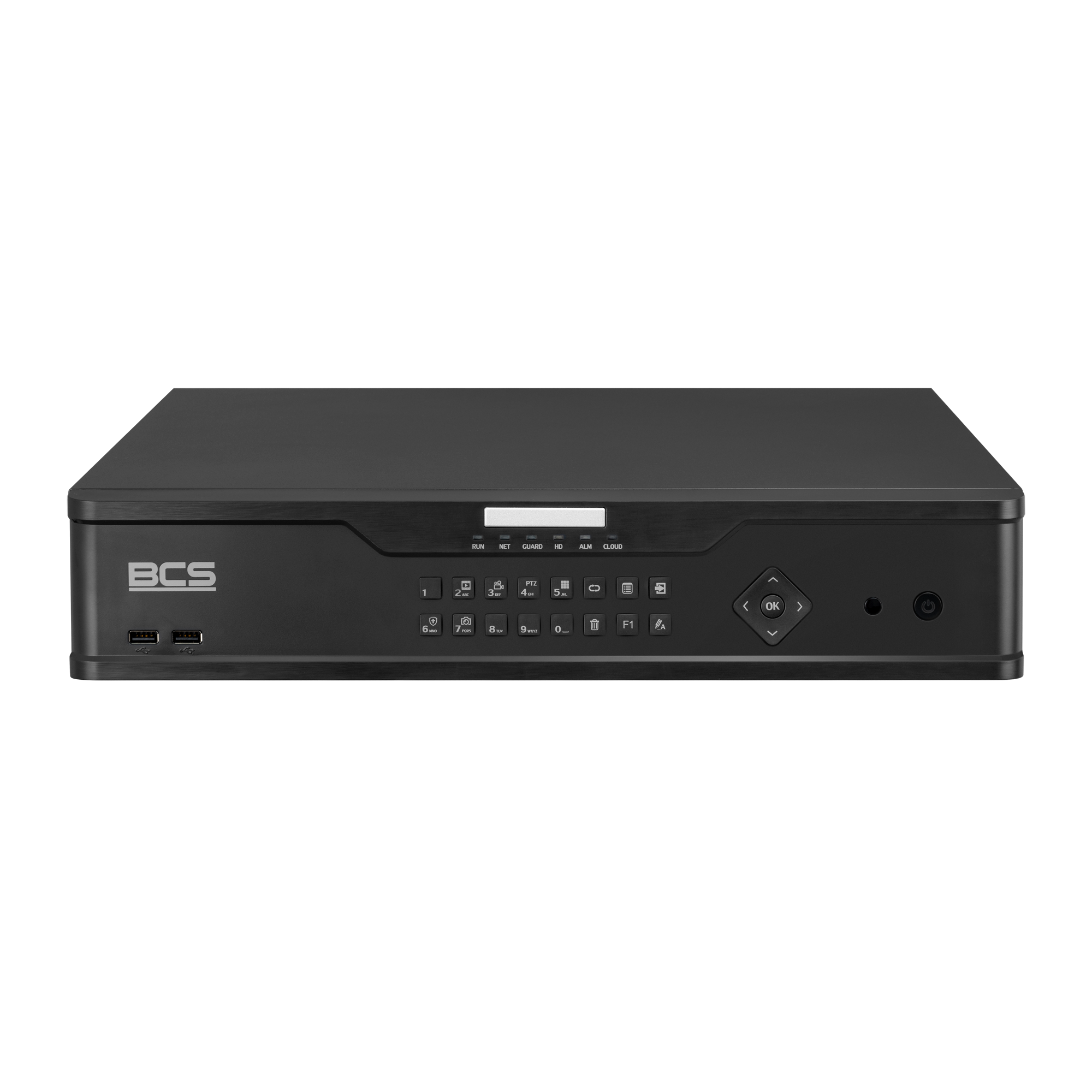

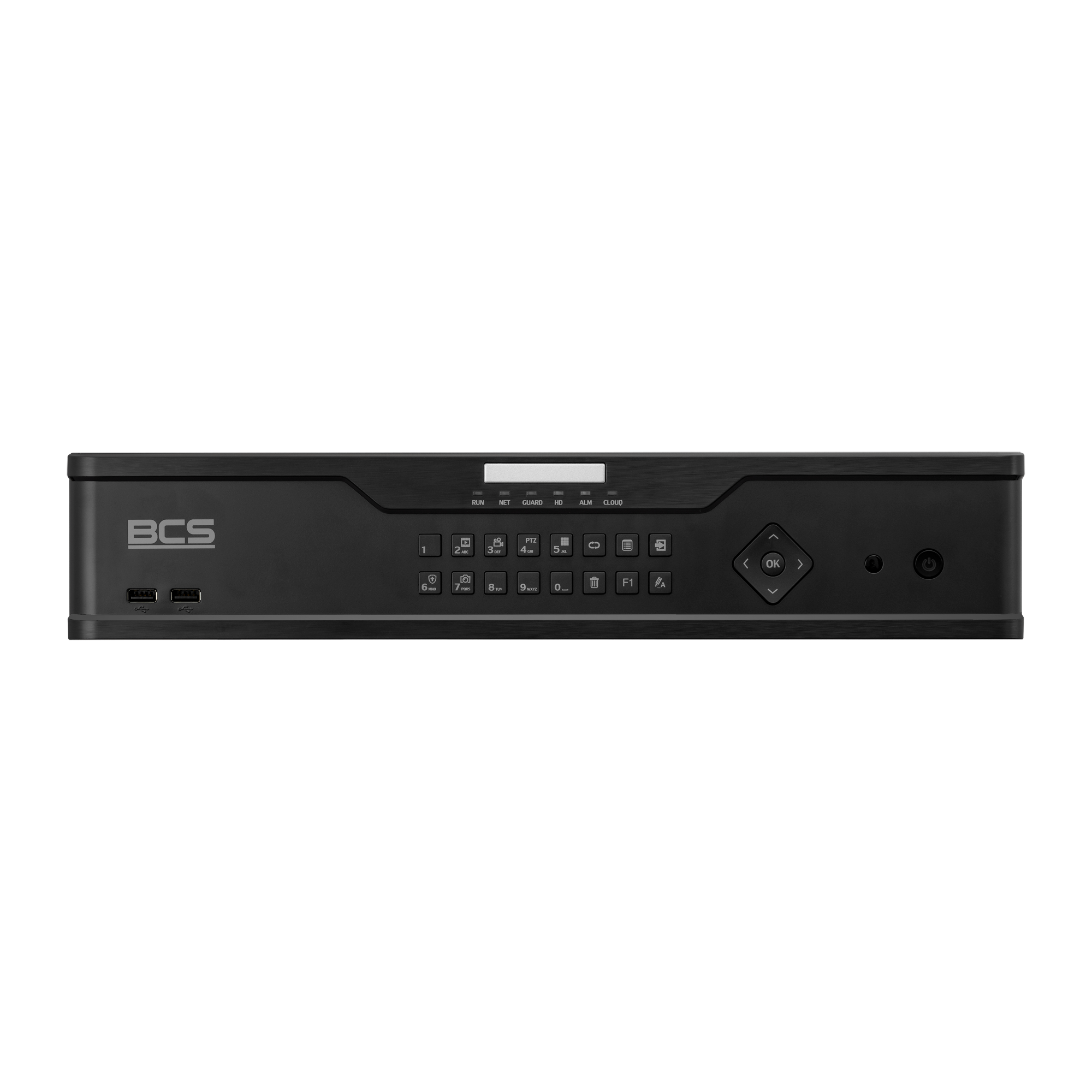

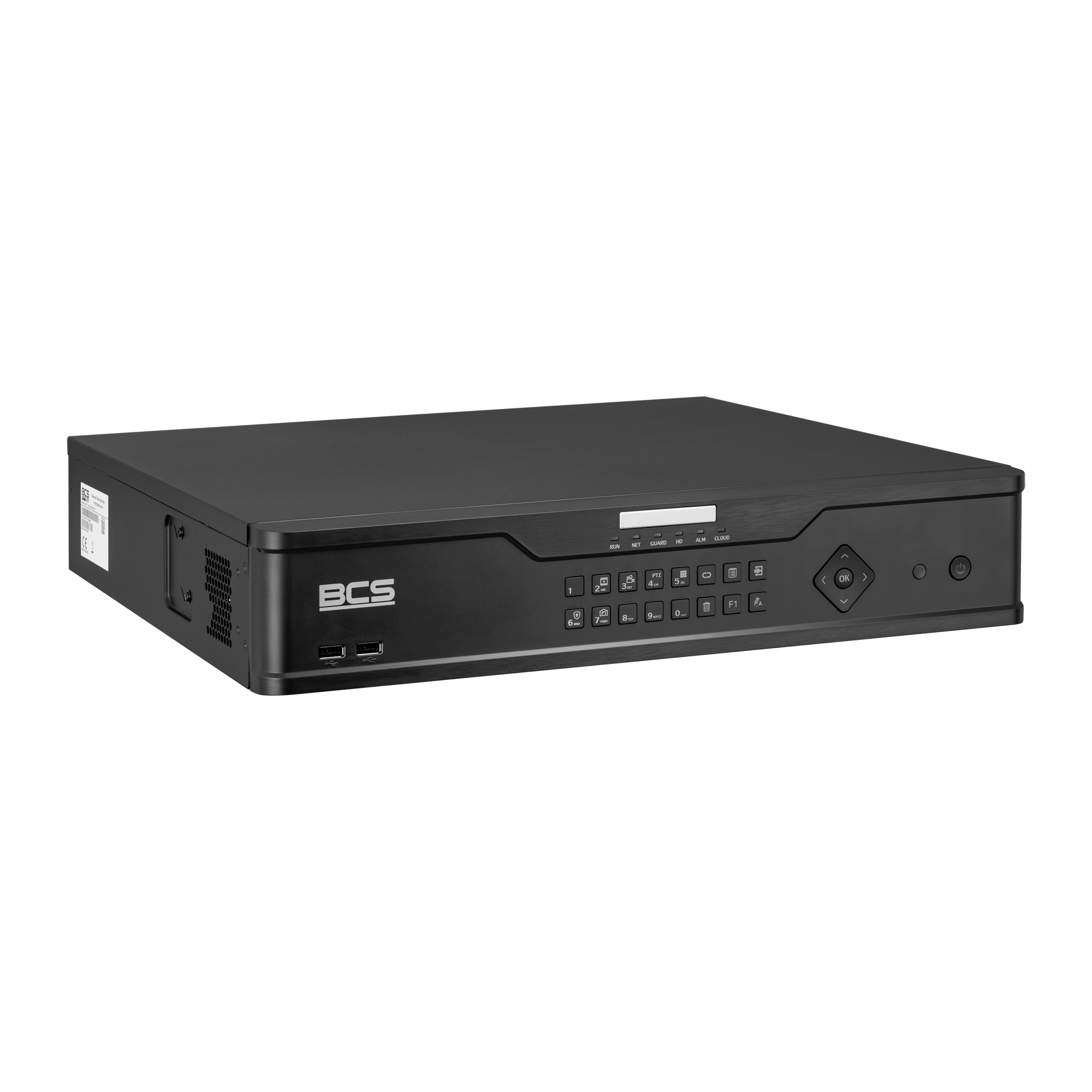

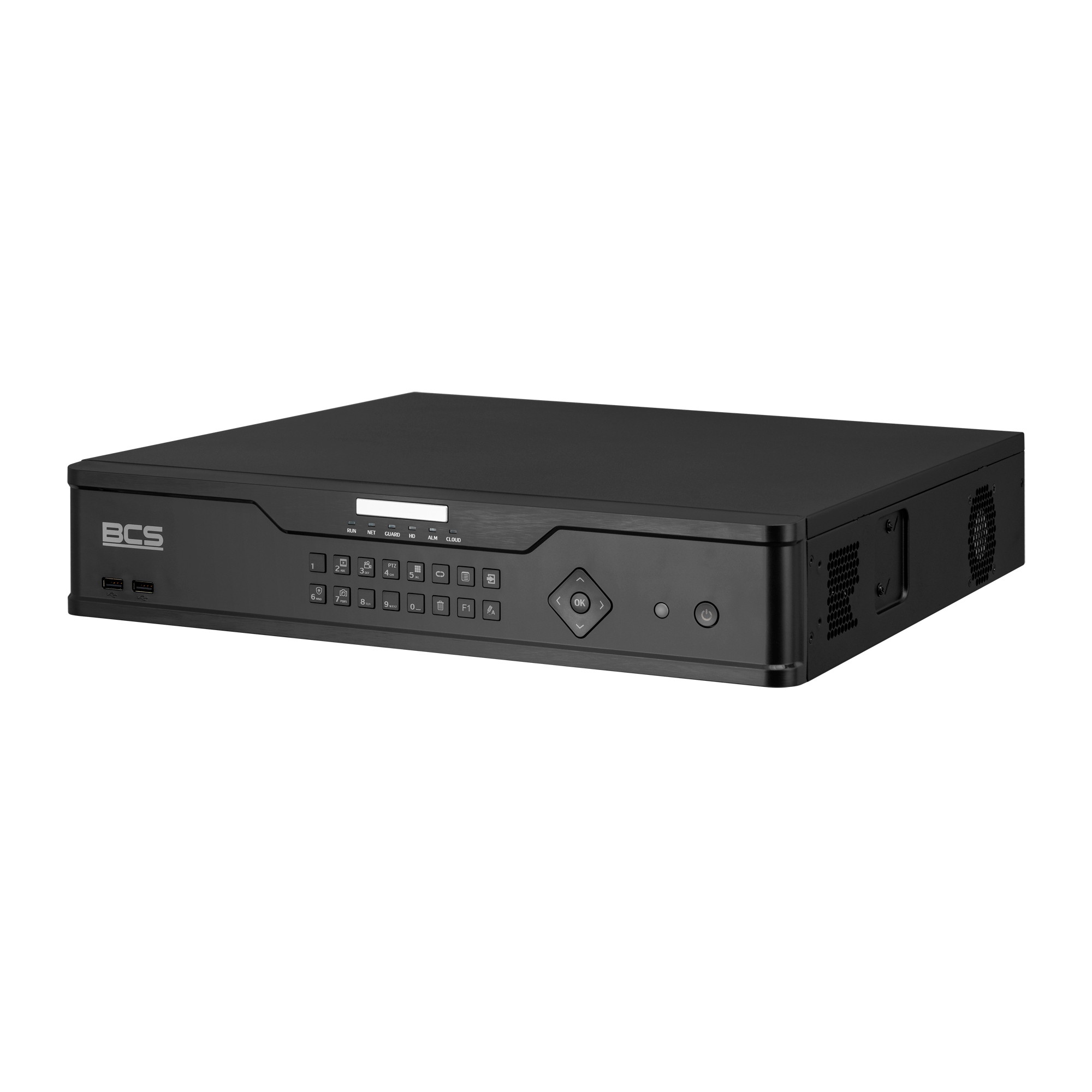

BCS Point 32-channel IP recorder. Adapted to work with cameras with a maximum resolution of 12Mpx. Allows for installation of up to 8 hard drives with a capacity of 10 TB each. The recorder is powered from 100 – 240V AC (50 ~ 60Hz). Support for intelligent functions, audio – 1 output, alarm 16/4. 2xHDMI, 1xVGA, 2xRJ-45 (10/100 / 1000Mbps), 1xUSB 3.0, 2xUSB 2.0 interfaces.
Warning: This product belongs to the BCS POINT product line.
Use only components and devices from the same line to ensure compatibility.
Save 72%
BCS POINT
BCS-P-NVR3208R-A-4K-III
480,59 € gross
4 In Stock- 32-channel IP recorder
- Supports 8 hard drives
- RAID
- Supports 12Mpx IP cameras
- 16/4 alarm channels, 1/1 audio channels
- 2x HDMI 4K/VGA outputs
4 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Weight (without HDD) | 5.7 kg |
|---|---|
| Flag | PROMOTION |
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| HDD capacity | 10 TB |
| Web Service (internet explorers) | Google Chrome, Microsoft Edge, Safari or similar |
| Max recording resolution | 12 Mpx |
| Power consumption (without HDD) | max 25W |
| Video compression | H.265+ / H265 / H.264+ / H.264 |
| Product | BCS-P-NVR3208R-A-4K-III |
| NDAA | National Defense Authorization Act |
| System | IP |
| Channels | 32 |
| HDD support | 8 |
| &RAID | Yes |
| RAID type | 0/1/5/6/10 |
| Incoming bandwidth | 384Mbps |
| Outgoing bandwidth | 384Mbps |
| Display efficiency | 2×12M(30fps) / 4×8M(30fps) / 8×4M(30fps) / 9×4M(25fps) / 16×2M(30fps) / 32×960p(25fps) |
| Recording resolutions | 12M / 8M / 6M / 5M / 4M / 3M / 2M / 960p / 720p / D1 / 2CIF / CIF |
| HDMI out | 2×HDMI4K |
| VGA out | VGA |
| HDMI display resolutions | 3840×2160 / 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| VGA display resolutions | 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| Display split | 1/4/8/9/16/32 (3/4/5/7/9/10/12/16/32 corridor mode) |
| Fisheye Dewarping | Yes |
| Synchronous playback | 1/4/9/16 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| User connections | 128 |

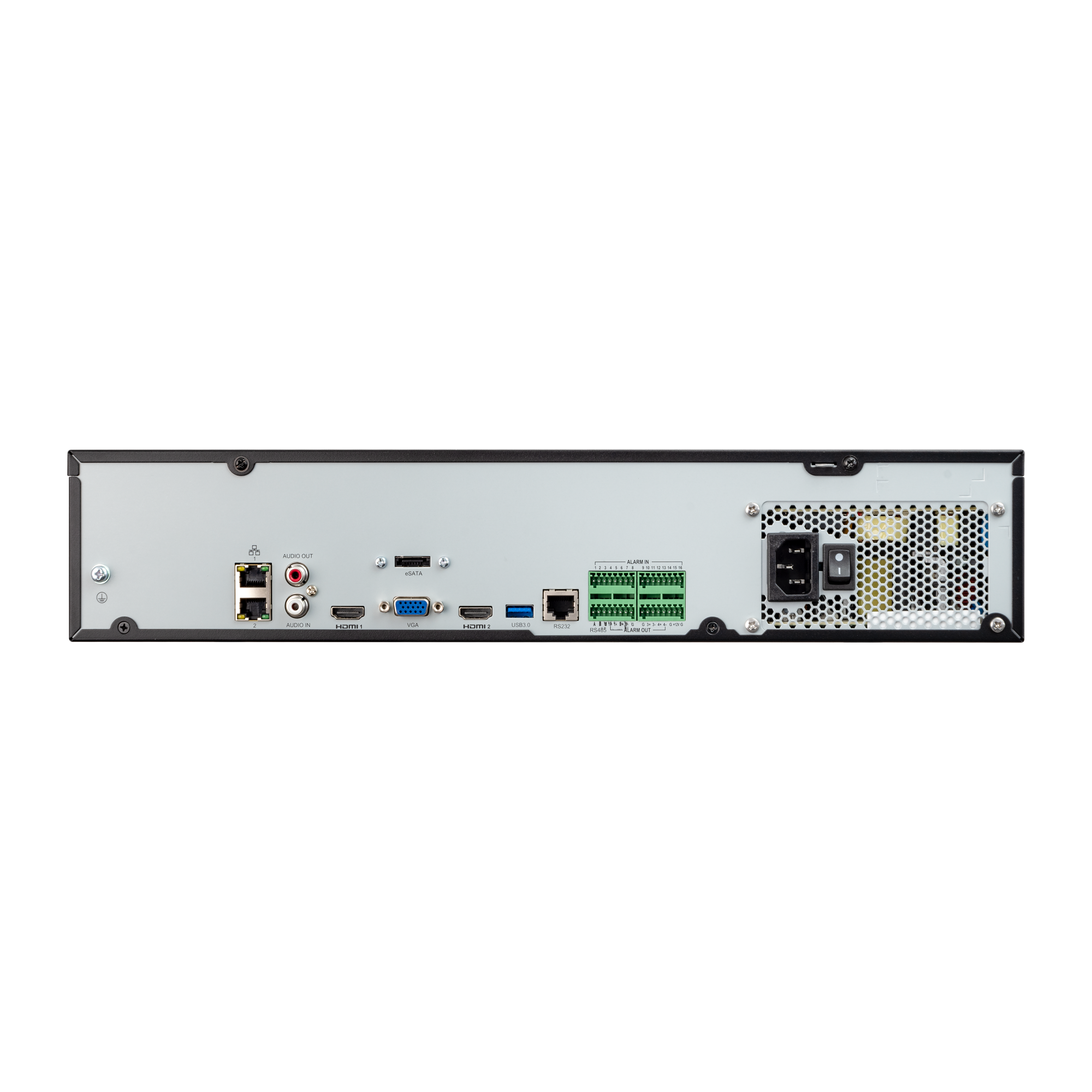

| Interfaces | 2×USB2.0, 1×USB3.0, eSATA, 12VDC out |
| Serial port | RS232, RS485 |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711U |
| Alarm in | 16 |
| Alarm out | 4 |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | 2×RJ-45 10/100/1000Mbps |
| Compatibility | ONVIF, support third party cameras |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Power supply | 100~240V AC |
| Working environment | -10°C~+55°C max 90% RH |
| Casing | 2U |
| Dimensions (W×D×H) | 442×426×89mm |
