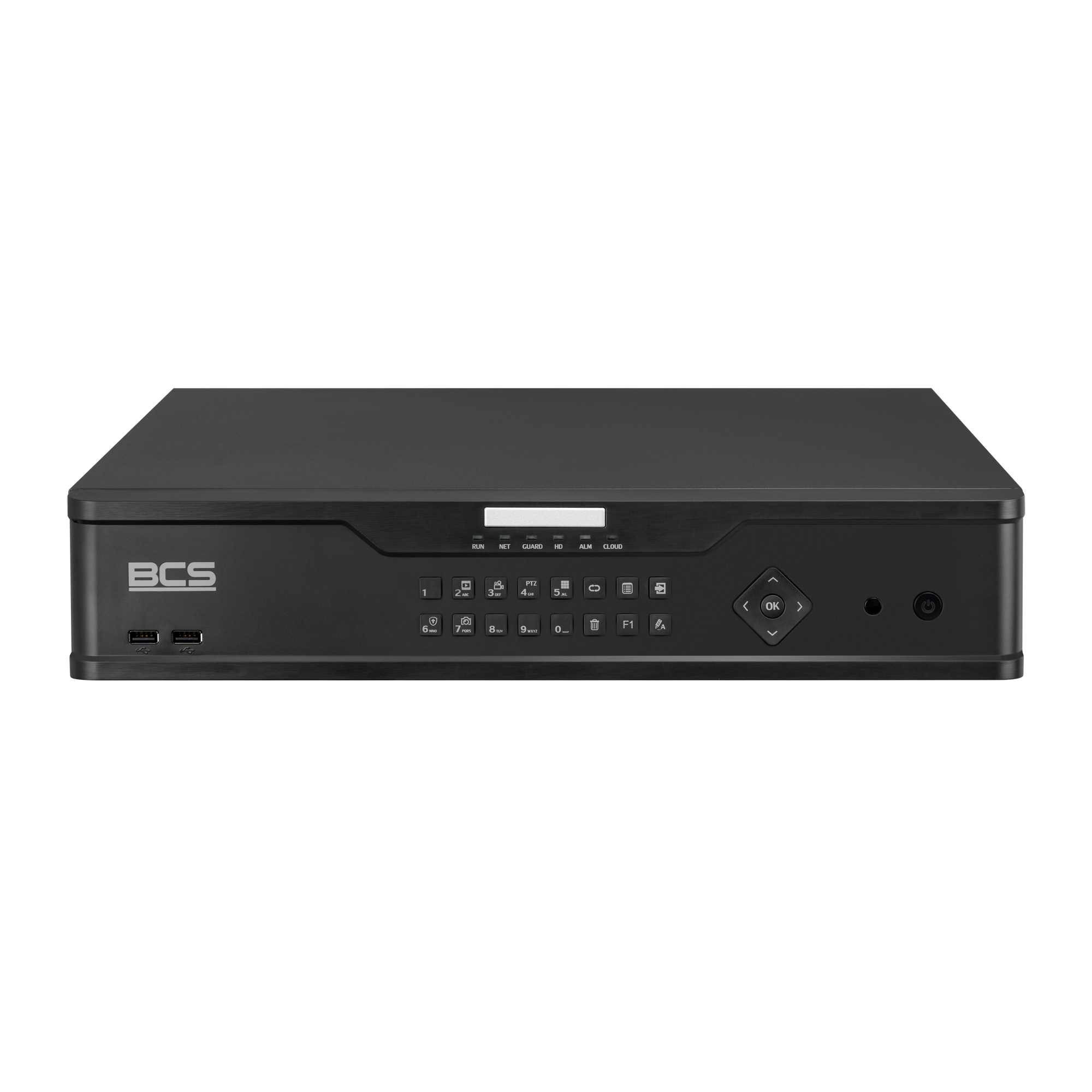

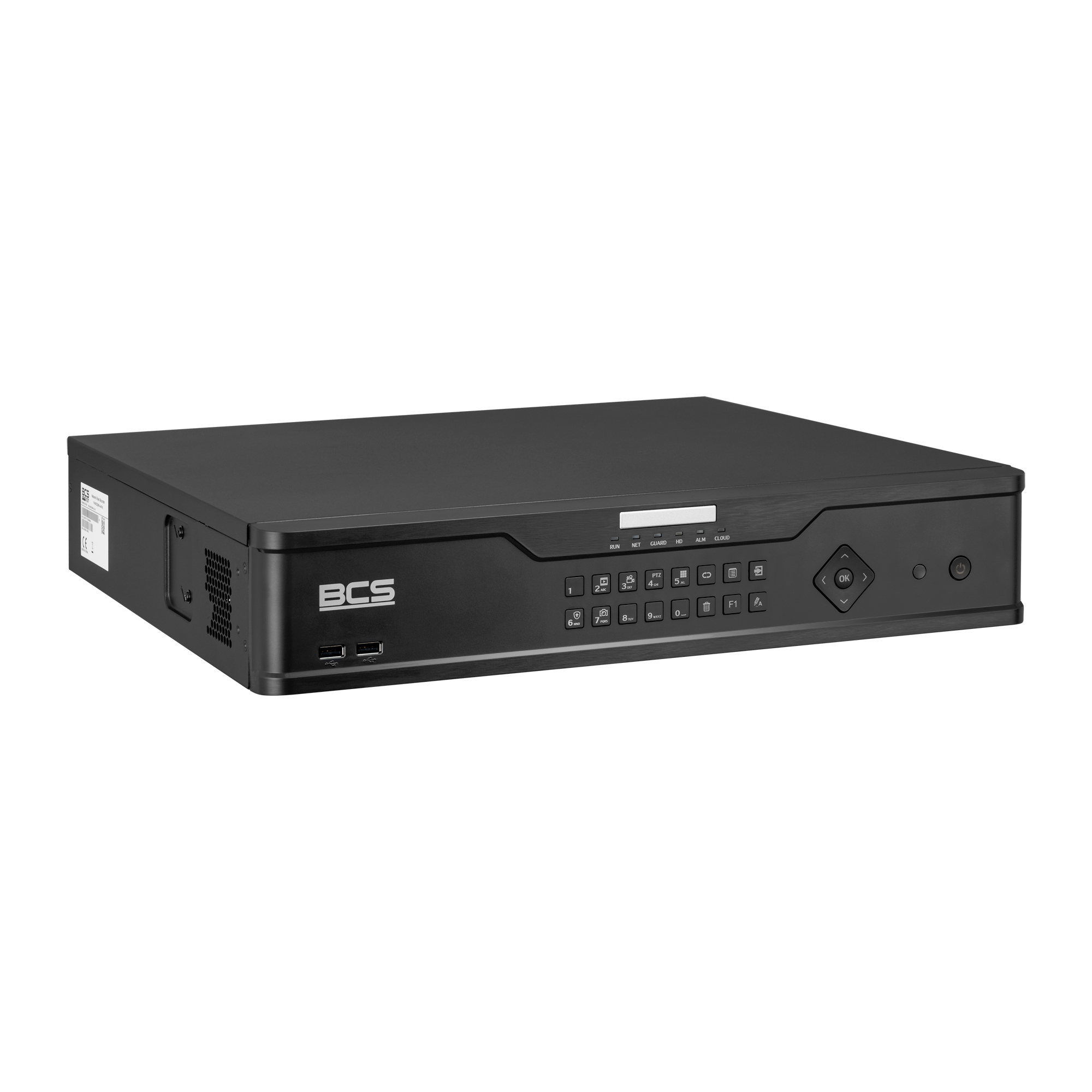

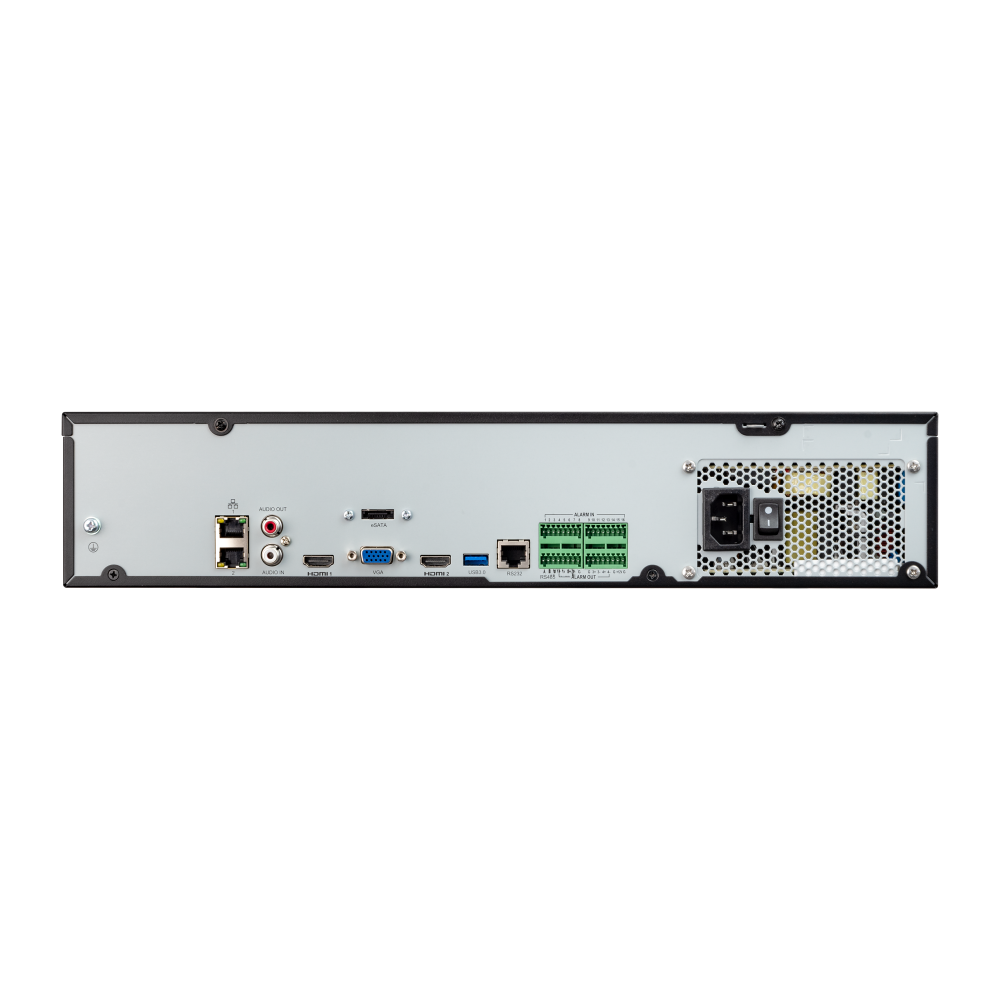

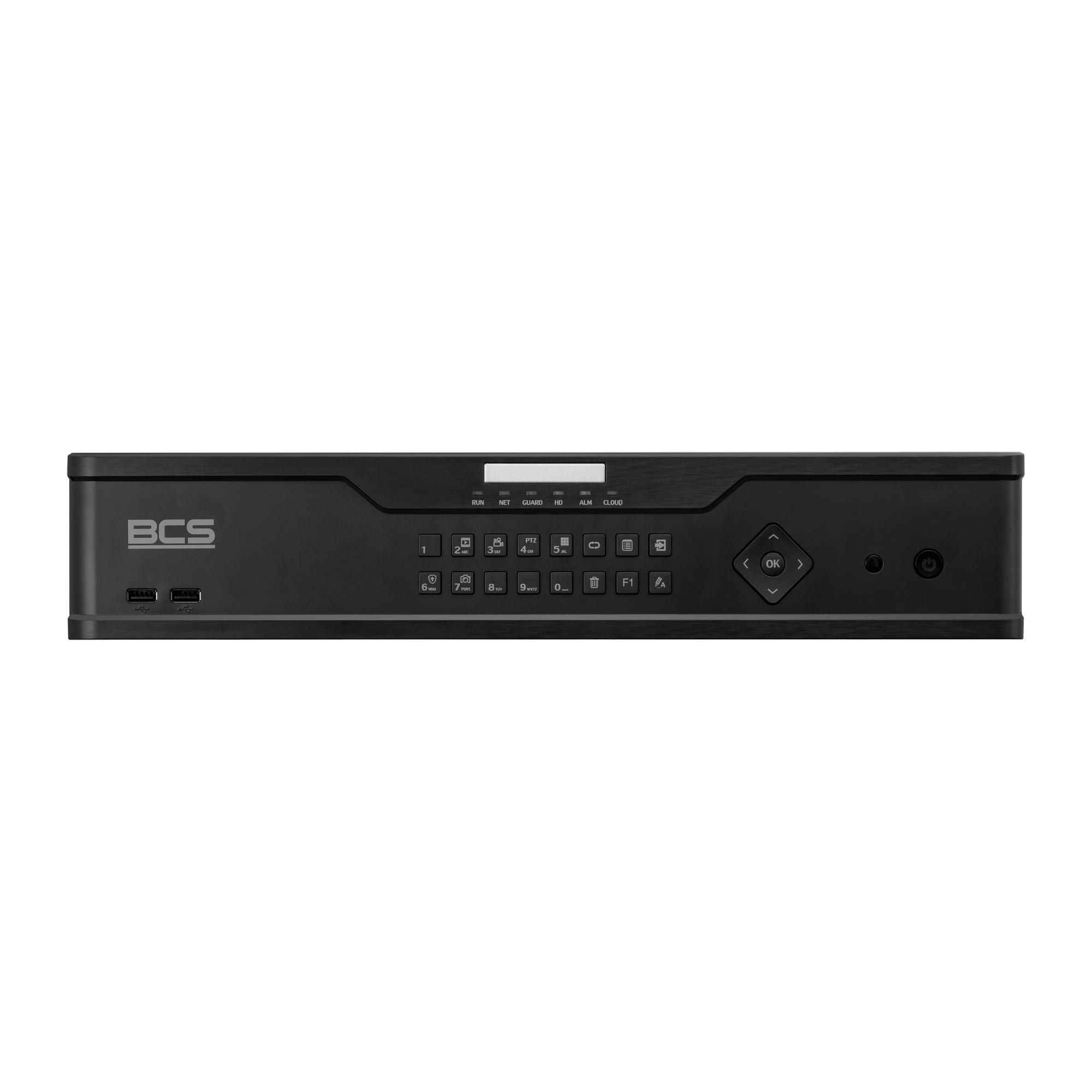

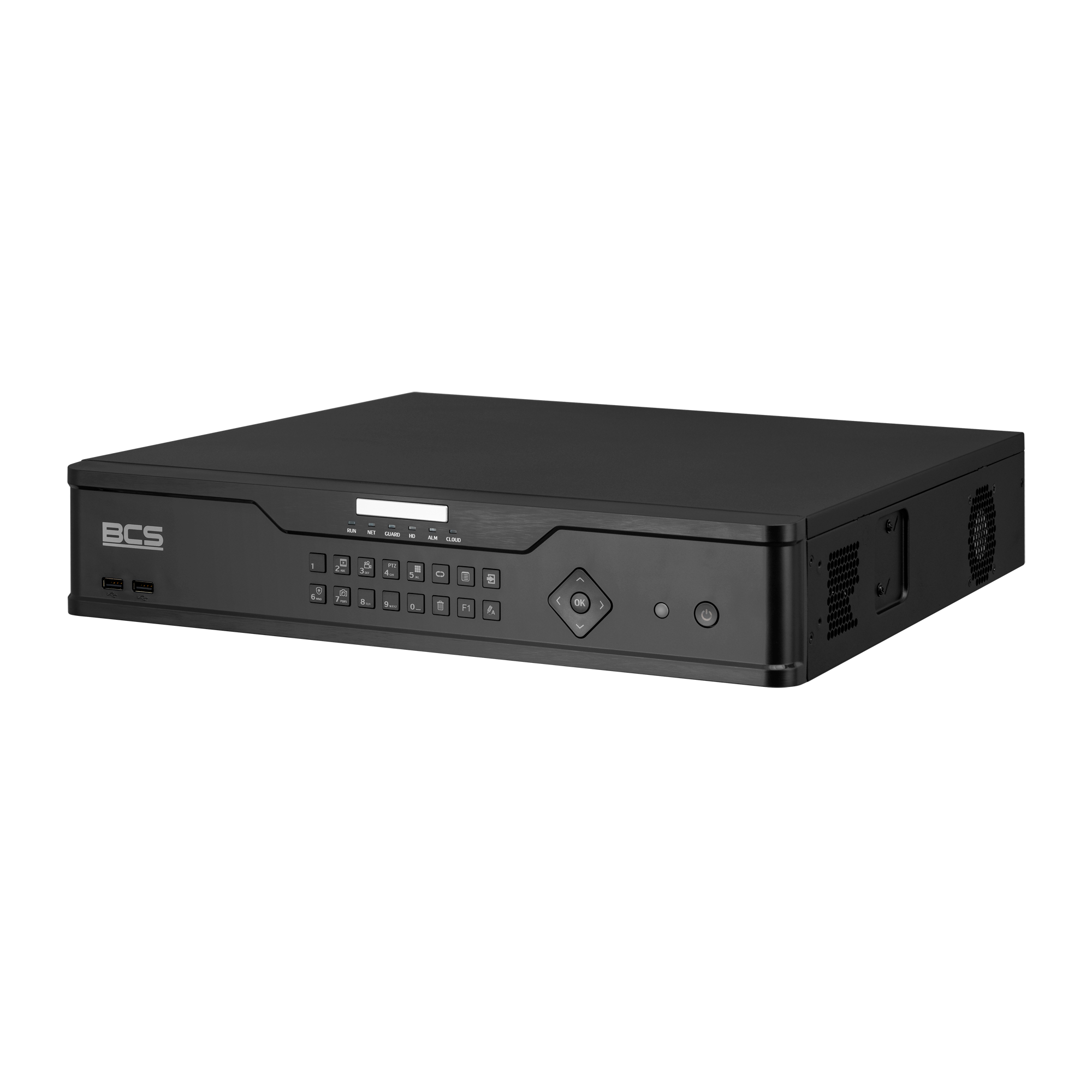

BCS Point 64-channel IP recorder. Adapted to work with cameras with a maximum resolution of 12Mpx. Channels: 64 to 12Mpx, Technology: IP, Resolution: 3840 x 2160 (4K), Video compression: H.265 + / H265 / H.264 + / H.264, Video inputs / outputs: 1x VGA, 2x HDMI, Alarm inputs / outputs: 16/4, Audio inputs / outputs: 1/1, Archiving: 8x HDD (up to 80TB in total), RS485, 3x USB (2x USB 2.0, 1x USB 3.0), Network interface: 2x RJ-45 port (10/100 / 1000M), Support Fisheye dewraping, Support RAID 0,1,5,6,10, Face detection, people counting, intruder, line crossing, audio detection, Power supply: 100~240V AC.
Warning: This product belongs to the BCS POINT product line.
Use only components and devices from the same line to ensure compatibility.
BCS POINT
BCS-P-NVR6408R-A-4K-III
1971,69 € gross
Out of StockBCS Point 64-channel IP recorder. Adapted to work with cameras with a maximum resolution of 12Mpx.
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
| Weight (without HDD) | 5.7 kg |
|---|---|
| System | IP |
| Channels | 64 |
| &RAID | Yes |
| Outgoing bandwidth | 384Mbps |
| Power consumption (without HDD) | max 25W |
| Product | BCS-P-NVR6408R-A-4K-III |
| NDAA | National Defense Authorization Act |
| HDMI out | 2×HDMI4K |
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| HDD support | 8 |
| HDD capacity | 10 TB |
| RAID type | 0/1/5/6/10 |
| Max recording resolution | 12 Mpx |
| Incoming bandwidth | 384Mbps |
| Display efficiency | 2×12M(30fps) / 4×8M(30fps) / 8×4M(30fps) / 9×4M(25fps) / 16×2M(30fps) / 32×960p(25fps) / 36×720p(30fps) / 64×D1(25fps) |
| Recording resolutions | 12M / 8M / 6M / 5M / 4M / 3M / 2M / 960p / 720p / D1 / 2CIF / CIF |
| Video compression | H.265+ / H265 / H.264+ / H.264 |
| VGA out | VGA |
| HDMI display resolutions | 3840×2160 / 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| VGA display resolutions | 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| Display split | 1/4/8/9/16/32 (3/4/5/7/9/10/12/16/32 corridor mode) |
| Fisheye Dewarping | Yes |
| Synchronous playback | 1/4/9/16 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| User connections | 128 |
| Interfaces | 2×USB2.0, 1×USB3.0, eSATA, 12VDC out |
| Serial port | RS232, RS485 |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711U |
| Alarm in | 16 |
| Alarm out | 4 |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | 2×RJ-45 10/100/1000Mbps |
| Compatibility | ONVIF, support third party cameras |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE, RTSP |
| Power supply | 100~240V AC |
| Working environment | -10°C~+55°C max 90% RH |
| Casing | 2U |
| Dimensions (W×D×H) | 442×425×89mm |
