| Ai - Human/vehicle detection | Recognition of people entering the area and crossing the line reduces false alarms. |
|---|---|
| Camera type | Panoramic |
| Sensor | 1/2.7'' CMOS |
| Lens | fixed |
| Iris | fixed |
| S/N ratio | 52dB |
| Shutter | Auto / manual 1~1/100000s |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Product | BCS-P-PEIP1x8FWR2-Ai1 |
| NDAA | National Defense Authorization Act |
| Resolution | 8 Mpx |
| Image rotate | Mirror horizontal/vertical, Flip 180° |
| Scanning system | Progressive Scan |
| Pixels | 3840(H)×2160(V) |
| Focal length | 1.68 mm |
| Aperture | F2.0 |
| Focus | fixed |
| Angle of view | H: 180° V: 100° D: 180° |
| DORI | Detect 38m / Observe 15m / Recognize 8m / Identify 4m |
| Min illumination | 0.01Lux(F2.0,AGC) 0Lux(B/W,IR) |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| RoI | Region of Interest |
| Defog | Digital |
| Stream support | 3 |
| Resolutions | 8M(3840×2160) / 5M(3072×1728) / 4M(2560×1440) / 2M(1920×1080) / 720P(1280×720) / D1(720×576) / (640×360) / 2CIF(704×288) / CIF(352×288) |
| Main stream | 3840×2160@30fps 3072×1728@30fps 2560×1440@30fps 1920×1080@30fps |
| Second stream | 1280×720@30fps 720×576@30fps 640×360@30fps 704×288@30fps 352×288@30fps |
| Third stream | 720×576@30fps 704×288@30fps 352×288@30fps |
| Bitrate | 128Kbps~16Mbps |
| Video compression | H.265 / H.265+ / H.264 / MJPEG |
| Day/night | ICR |
| Illuminator type | IR LED |
| IR range | 20m |
| Microphone | Yes |
| Audio compression | G.711A / G.711U |
| Storage | NAS(NFS) |
| Memory card slot | microSD 512GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Network security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic/digest authentication RTSP, Digest authentication HTTP, TLS 1.2, WSSE/digest authentication ONVIF |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) |
| Power consumption | max 5.5W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Surge protection | 4kV |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | Ø111×93mm |
| Weight | 0.48kg |
| Casing | Metal |
| Ai - Perimeter protection | Crossline, intrusion |
| &Ai - Object classification | Yes |
Warning: This product belongs to the BCS POINT product line.
Use only components and devices from the same line to ensure compatibility.
BCS POINT

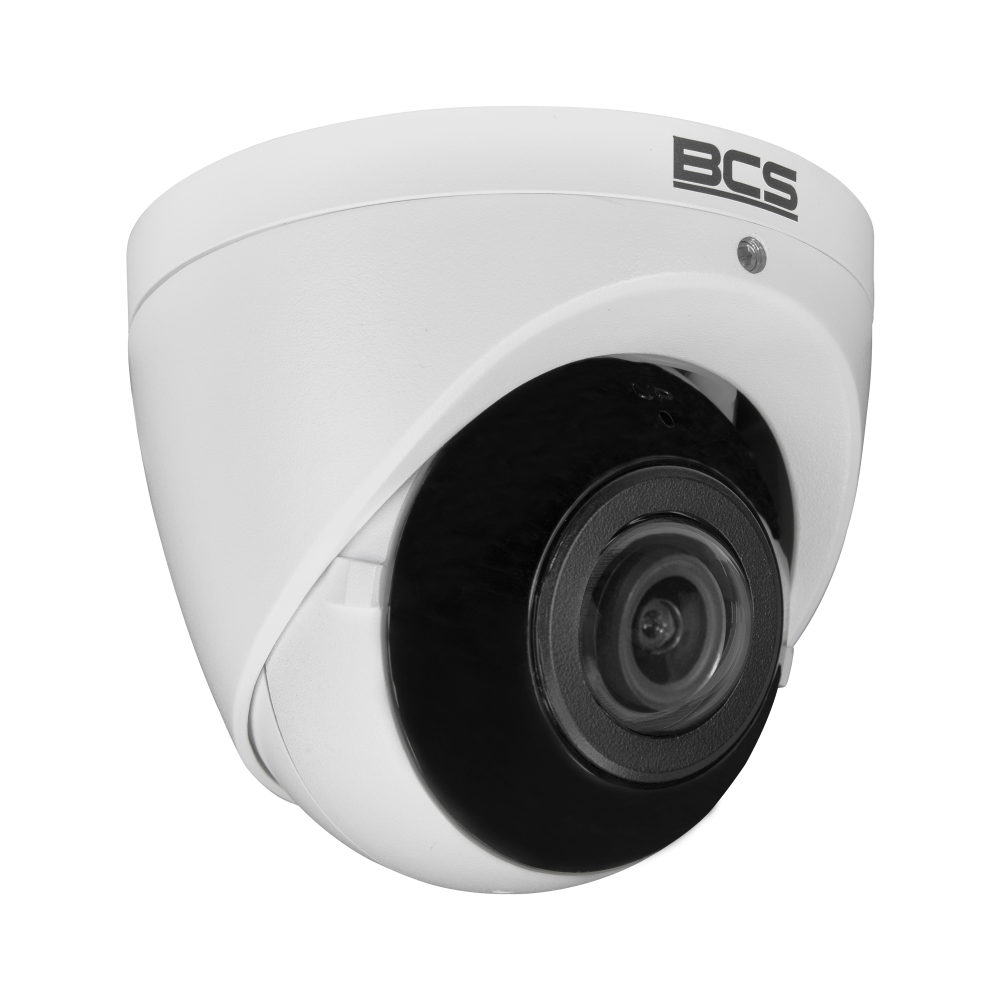

BCS-P-PEIP1x8FWR2-Ai1
393,60 € gross
22 In Stock- 8Mpx panoramic IP camera
- 1/2.7" PS CMOS sensor
- NDAA compliant
- 1.68mm fixed lens
- Field of view: H: 180°, V: 100°
- WDR 120dB
- IR 20m
- Microphone
- IP67, IK10 housing
- Built-in smart features
22 in stock
