| Ai - Human/vehicle detection | Recognition of people entering the area and crossing the line reduces false alarms. |
|---|---|
| Camera type | Panoramic |
| Sensor | 1/2.7'' CMOS |
| Lens | fixed |
| Iris | fixed |
| S/N ratio | 52dB |
| Shutter | Auto / manual 1~1/100000s |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Stream support | 2 |
| Product | BCS-P-PTIP2X4FCL3-Ai2 |
| NDAA | National Defense Authorization Act |
| Resolution | 8 Mpx |
| Scanning system | Progressive Scan |
| Pixels | 5120(H)×1440(V) |
| Focal length | 2 × 4 mm |
| Aperture | F1.0 |
| Focus | fixed |
| Angle of view | H: 180° V: 47° D: 180° |
| DORI | Detect 90m / Observe 36m / Recognize 18m / Identify 9m |
| Min illumination | 0.0005Lux(F1.0,AGC) |
| White balance | (AWB) Auto / manual |
| WDR | 130dB |
| Backlight compensation | BLC / HLC / WDR(130dB) |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| RoI | Region of Interest |
| Defog | Digital |
| Resolutions | 8M(5120×1440) / 2M(2560×720) |
| Main stream | 5120×1440@20fps |
| Second stream | 2560×720@20fps |
| Bitrate | 128Kbps~16Mbps |
| Video compression | H.265 / H.265+ / H.264 / MJPEG |
| Illuminator type | WhiteLight |
| WhiteLight range | 30m |
| NightColor | Yes |
| Microphone | Yes |
| Loudspeaker | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711U |
| Alarm in | 1 |
| Alarm out | 1 |
| Storage | NAS(NFS) |
| Memory card slot | microSD 512GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Network security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic/digest authentication RTSP, Digest authentication HTTP, TLS 1.2, WSSE/digest authentication ONVIF |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) |
| Power consumption | max 13W |
| Housing color | White |
| IP class | IP67 |
| Surge protection | 4kV |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | 273×130×76mm |
| Weight | 0.95kg |
| Casing | Metal |
| Ai - Perimeter protection | Crossline, intrusion |
| &Ai - Object classification | Yes |
| Ai - People counting | People counting for intrusion and crossline, counting people in/out |
Warning: This product belongs to the BCS POINT product line.
Use only components and devices from the same line to ensure compatibility.
BCS POINT

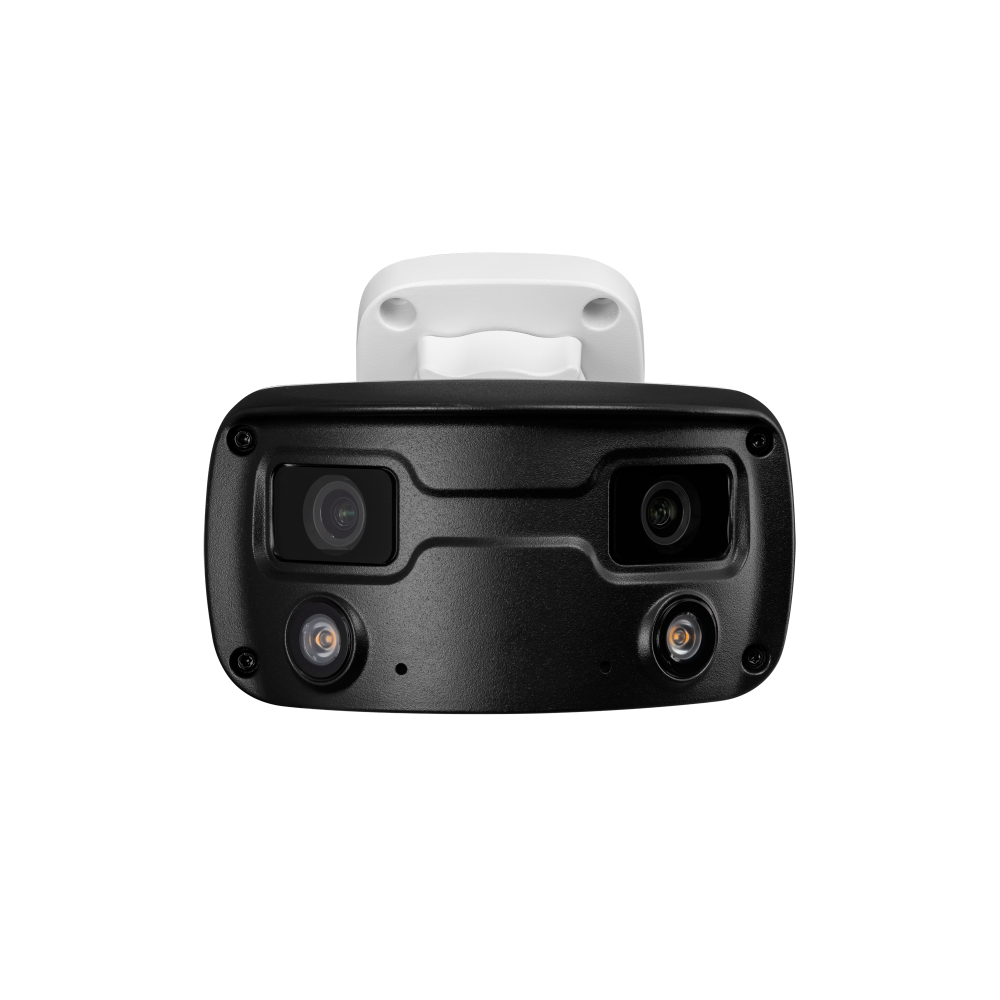

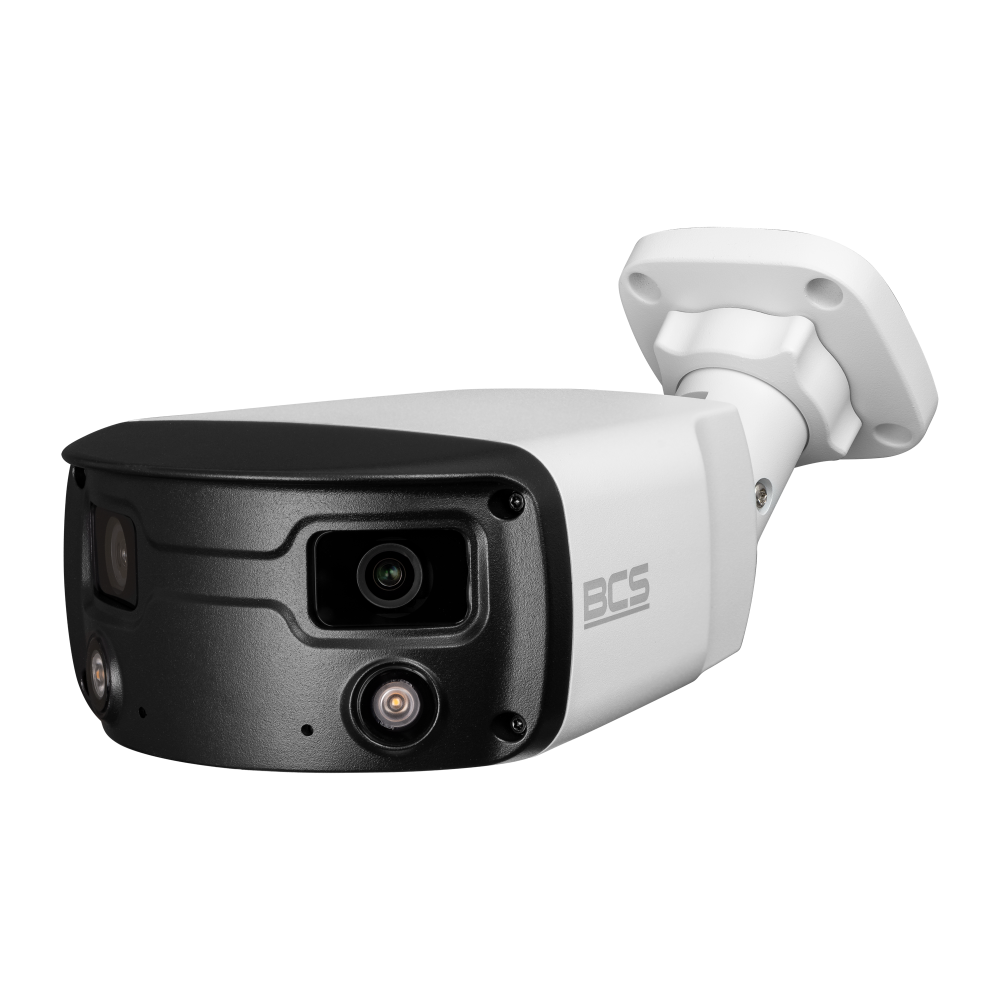

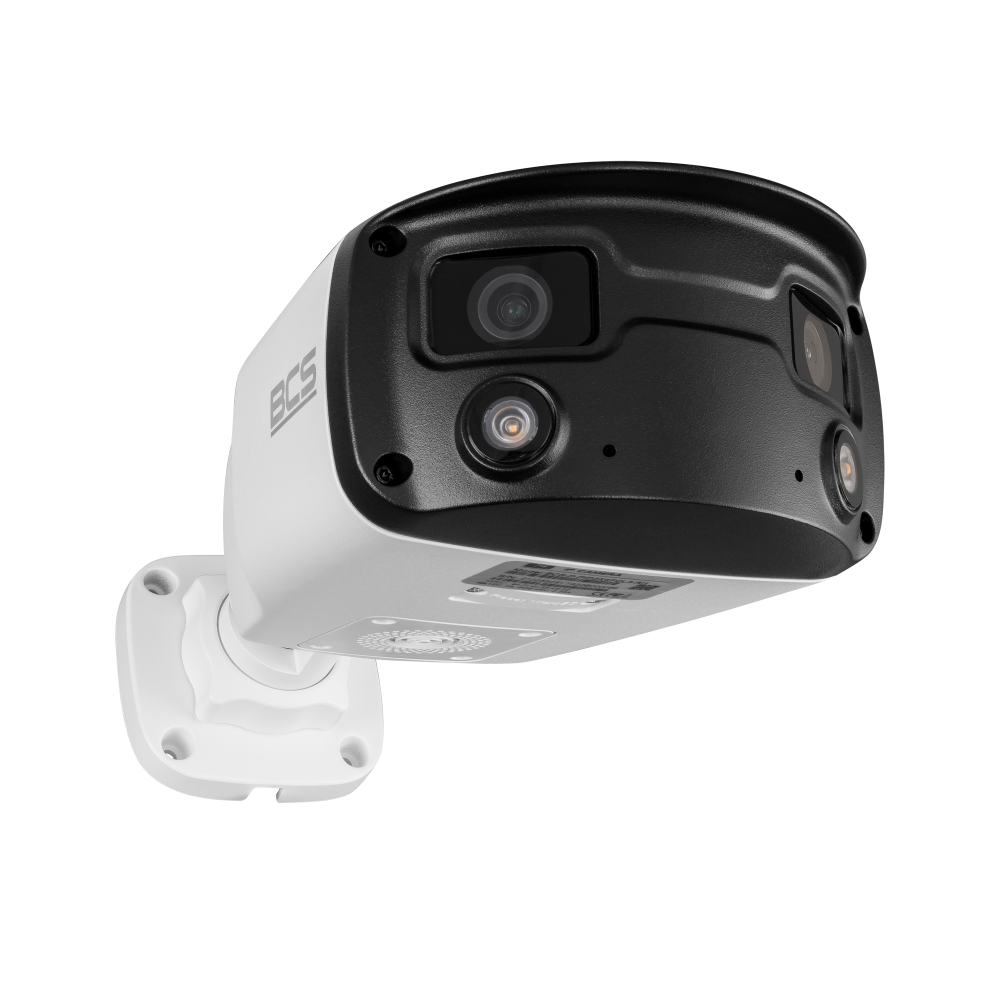

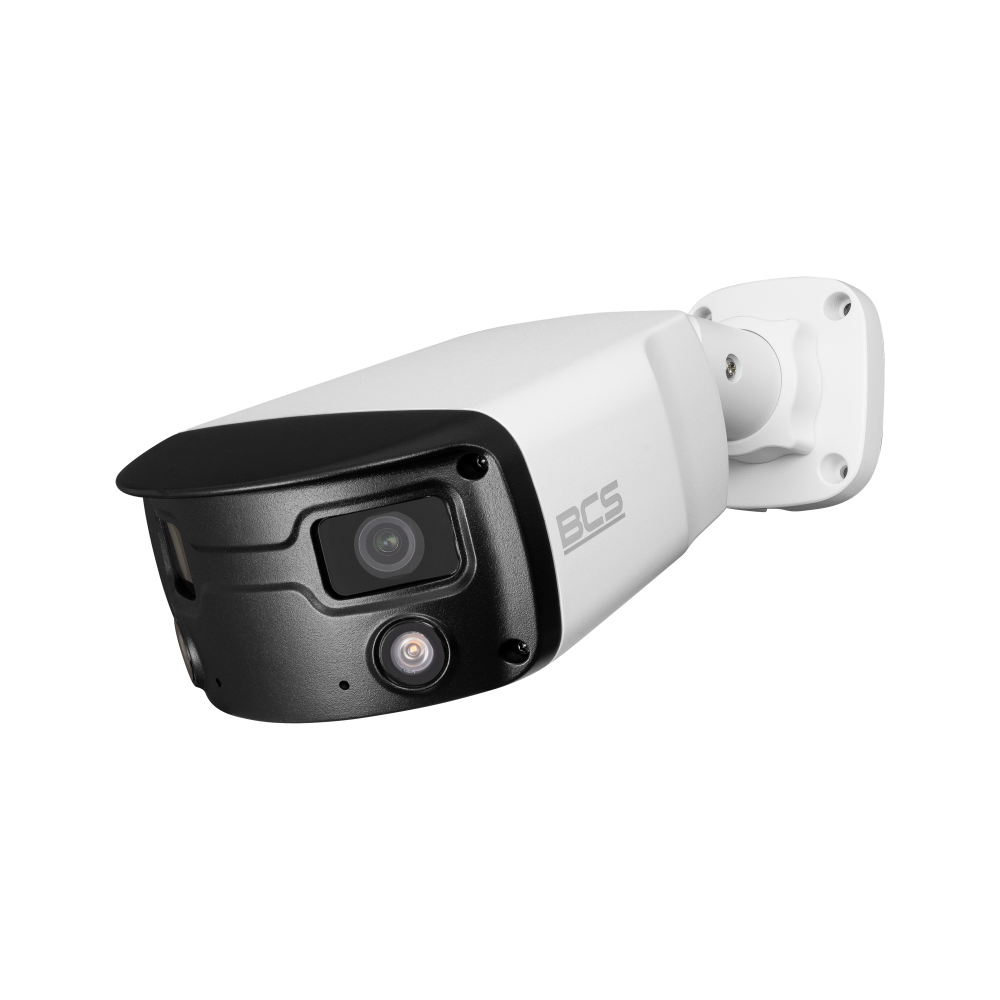

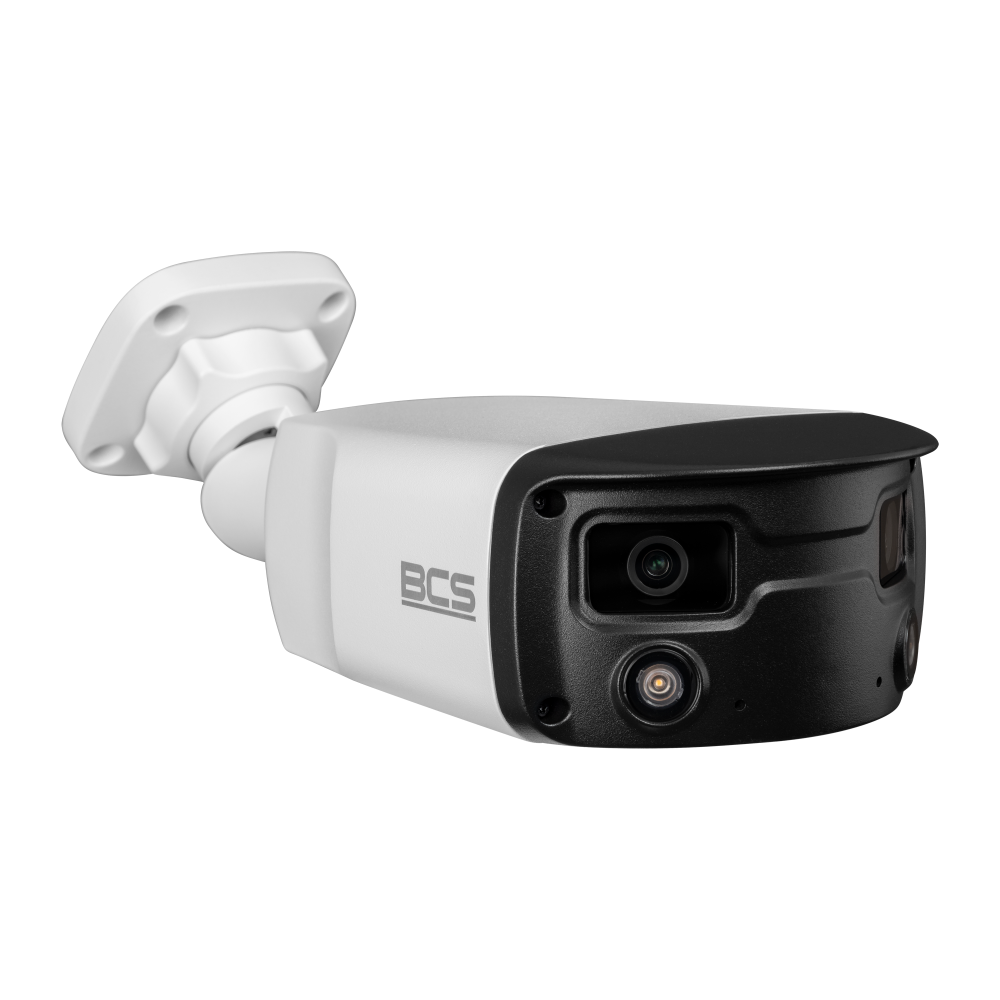

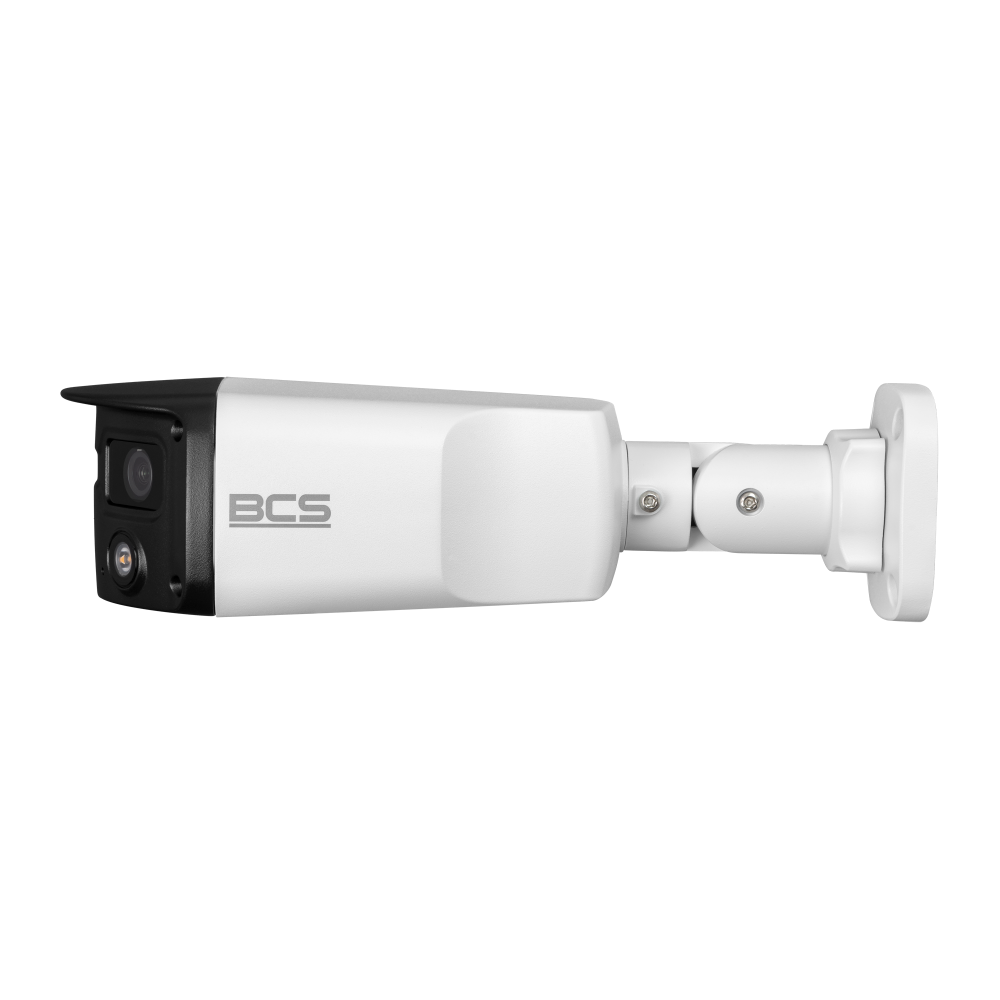

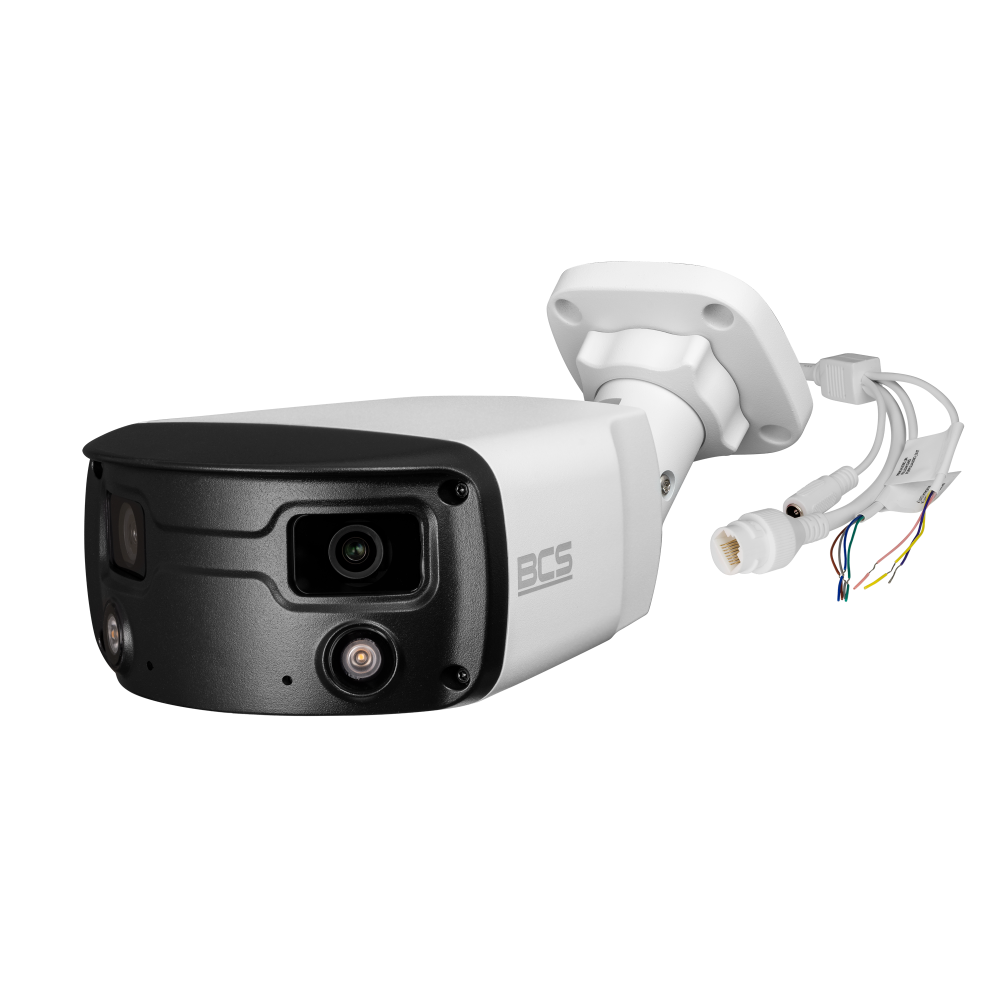

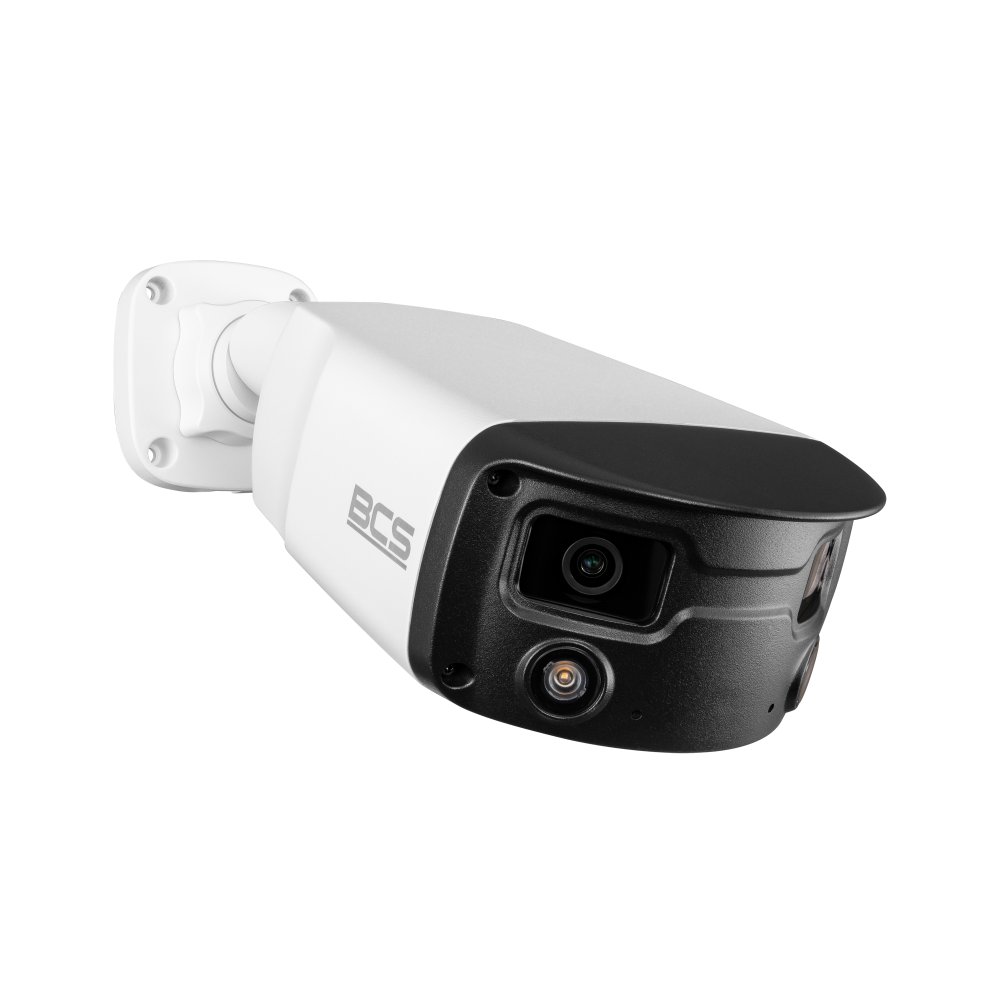

BCS-P-PTIP2X4FCL3-Ai2
490,77 € gross
90 In Stock- 8Mpx panoramic IP bullet camera
- 2×1/2.7" PS CMOS sensor
- NightColor technology
- NDAA compliance
- 2x 4mm fixed lens
- WhiteLight 30m
- WDR: 130 dB
- Alarm 1/1, audio 1/1, microphone, speaker
- IP67-rated housing
- Built-in smart features
