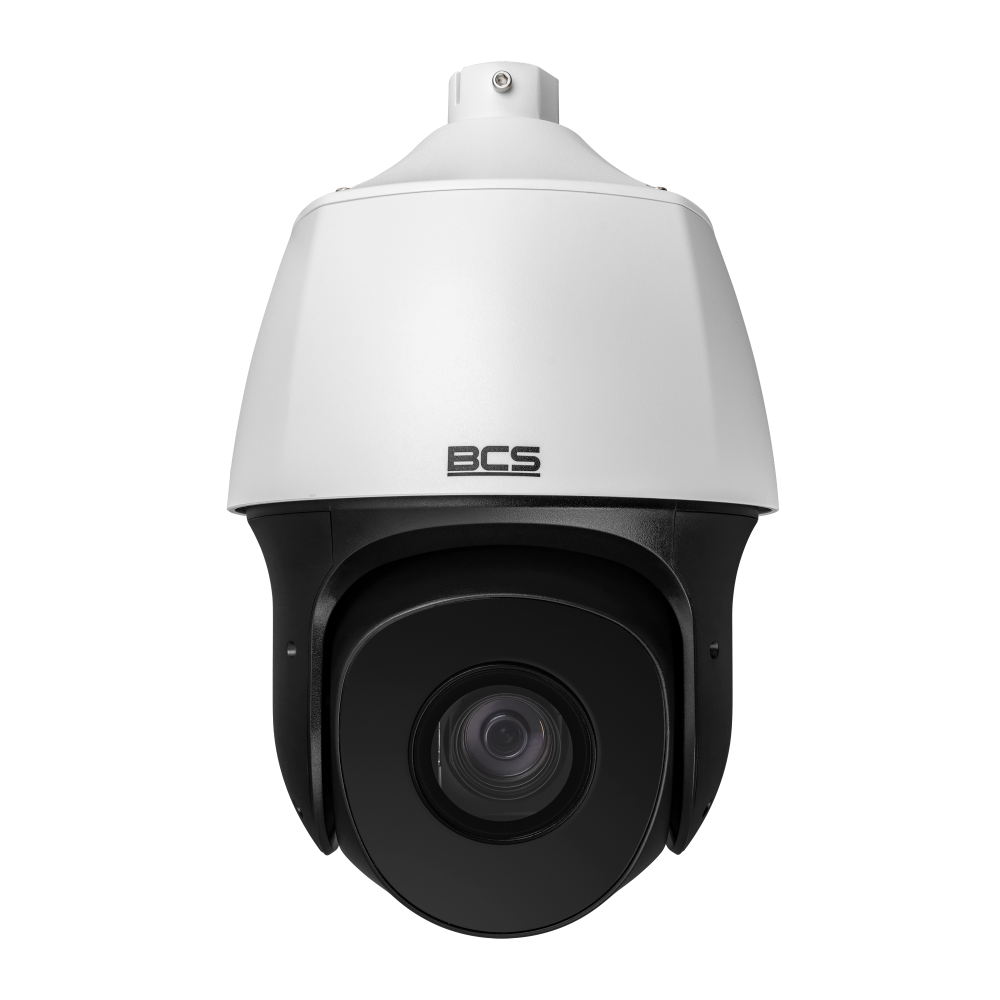

2Mpx rotating IP camera, 1/2.8″ sensor with 5-125 mm motozoom lens and 25x optical zoom from the BCS Point series. Resolution: 2M (1920×1080), infrared illuminator up to 150m, video compression: H.265 / H.265 + / H.264 / H.264 + / MJPEG, Day / Night – ICR, alarm – 2/1, audio – 1/1, RS485, motion detection, privacy masks, auto tracking, perimeter protection, object recognition, face detection, counting people, built-in slot for a 256GB microSD memory card. White housing, protection class – IP66. Power: DC 12V / PoE (802.3at).
Warning: This product belongs to the BCS POINT product line.
Use only components and devices from the same line to ensure compatibility.
BCS POINT
BCS-P-SIP4225SR15-Ai2
902,82 € gross
17 In Stock- 2Mpx pan-tilt IP camera
- 1/2.8" PS CMOS sensor
- SkyLight technology
- NDAA compliant
- 5–125 mm motorised zoom lens
- 25x optical zoom
- WDR 120dB
- IR 150m
- Alarm 2/1, audio 1/1
- IP66-rated housing
- Built-in smart features
17 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Accessories included | Adapter PTZ, power supply 12VDC |
|---|---|
| Recording in BCS CLOUD | Yes |
| Resolution | 2 Mpx |
| Pixels | 1920(H)×1080(V) |
| Focus | Auto / manual |
| Angle of view | H:54.37°~2.68° V:32.23°~1.51° D:66.88°~3.16° |
| White balance | (AWB) Auto / manual |
| Noise reduction | 2D/3D DNR |
| Product | BCS-P-SIP4225SR15-Ai2 |
| NDAA | National Defense Authorization Act |
| Camera type | PTZ |
| Sensor | 1/2.8'' CMOS |
| Scanning system | Progressive Scan |
| Third stream | 720×576 / 640×360 / 704×288 / 352×288 (25/30fps) |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Lens | motozoom |
| Focal length | 5~125 mm |
| Aperture | F 1.5~F3.0 |
| Iris | Auto / manual |
| Optical zoom | 25× |
| Digital zoom | 16× |
| DORI | Detect 85~1707m / Observe 34~683m / Recognize 17~341m / Identify 8~171m |
| Min illumination | 0.001Lux(F1.5,AGC) 0Lux(B/W,IR) |
| S/N ratio | 52dB |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1~1/100000s |
| Gain control | (AGC) Auto / manual |
| Image rotate | Mirror, Flip 0°/90°/180°/270° |
| Stream support | 3 |
| Resolutions | 2M(1920×1080) / 720P(1280×720) / D1(720×576) / 2CIF(704×288) / (640×360) / CIF(352×288) |
| Main stream | 1920×1080 / 1280×720(25/30fps) |
| Second stream | 1280×720 / 720×576 / 704×288 / 640×360 / 352×288(25/30fps) |
| Bitrate | 128Kbps~16Mbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 150m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711U / G.711A |
| Alarm in | 2 |
| Alarm out | 1 |
| Memory card slot | microSD 256GB |
| Other interfaces | RS485 |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 24 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Network security | HTTPS, SSL, TLS, Digest Authentication, Login Authentication, Account Lockout, IP address filtering, ARP protection |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3at) |
| Power consumption | max 25W |
| Housing color | White |
| IP class | IP66 |
| Surge protection | TVS 6kV |
| Working environment | -40°C~+65°C max 95% RH |
| Dimensions | Ø220mm×370mm |
| Weight | 3.3 kg |
| PAN speed | 2°/s~75°/s(180°/s preset) |
| TILT speed | 2°/s~75°/s(80°/s preset) |
| PAN range | 0°~360° |
| TILT range | -15°~90° auto-flip |
| Auto tracking | Yes |
| Ai - Perimeter protection | Crossline, intrusion |
| &Ai - Object classification | Yes |
| Ai - Face detection | Face detection and tracking, snapshot |
| Ai - People counting | People counting for intrusion and crossline, counting people in/out |
| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion reduces false alarms |
