| Product | BCS-P-TIP74VSR5-ITC-0832(2) |
|---|---|
| ^Product line | BCS POINT |
| NDAA | National Defense Authorization Act |
| Recording in BCS CLOUD | Yes |
| Camera type | Bullet |
| Resolution | 4 Mpx |
| Sensor | 1/1.8'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 2688(H)×1520(V) |
| Lens | motozoom |
| Focal length | 8~32 mm |
| Aperture | F1.7 |
| Focus | Auto / manual |
| Iris | Auto |
| Optical zoom | 4× |
| Digital zoom | 16× |
| Angle of view | H: 42°~15.5° V: 23.1°~8.8° D: 48.5°~18.3° |
| Min illumination | 0.002Lux(F1.7) |
| S/N ratio | 50dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| RoI | Region of Interest |
| Defog | Digital |
| Stream support | 3 |
| Resolutions | 4M(2688×1520) / 2M(1920×1080) / 720P(1280×720) / D1(720×576) / 2CIF(704×288) / CIF(352×288) |
| Main stream | 2688×1520@60fps 1920×1080@60fps 1280×720@60fps 720×576@60fps |
| Second stream | 1280×720@60fps 720×576@60fps 704×288@60fps 352×288@60fps |
| Third stream | 720×576@60fps 704×288@60fps 352×288@60fps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ |
| Day/night | ICR |
| Illuminator type | IR LED |
| IR range | 50m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711U |
| Alarm in | 2 |
| Alarm out | 2 |
| Memory card slot | microSD 512GB |
| Other interfaces | 2×RS485 |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Privacy masking | 4 |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IGMP, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH, IPv4 |
| &Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3at) |
| Power consumption | max 20W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Working environment | -40°C~+60°C max 90% RH |
| Dimensions | 406×126×130mm |
| Weight | 1.87 kg |
| ^Box dimensions in mm (W×D×H) | 470×187×190 |
| &Ai - ARTR | Yes |
| ^Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Ai - ARTR | License plate recognition, photo, tracking, max speed 80 km/h, black and white list |

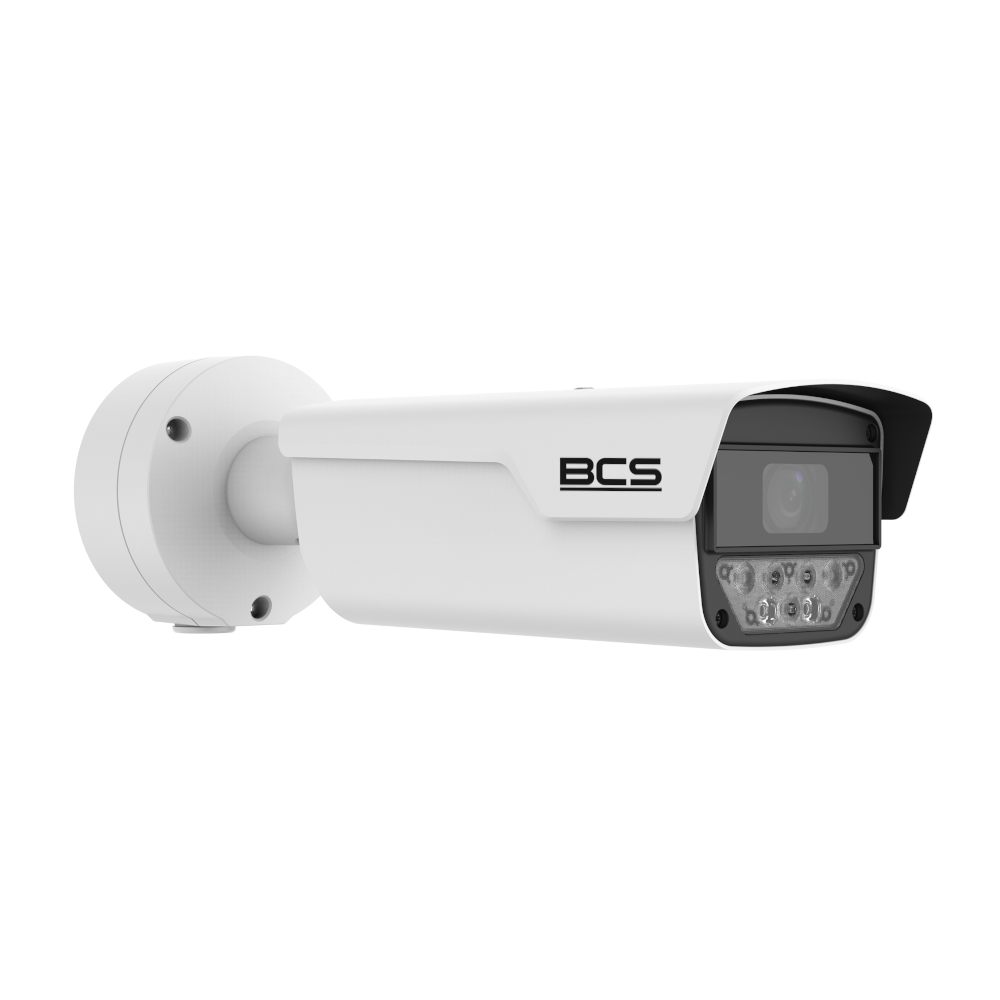

BCS-P-TIP74VSR5-ITC-0832(2)
1366,53 € gross
7 In Stock7 in stock
