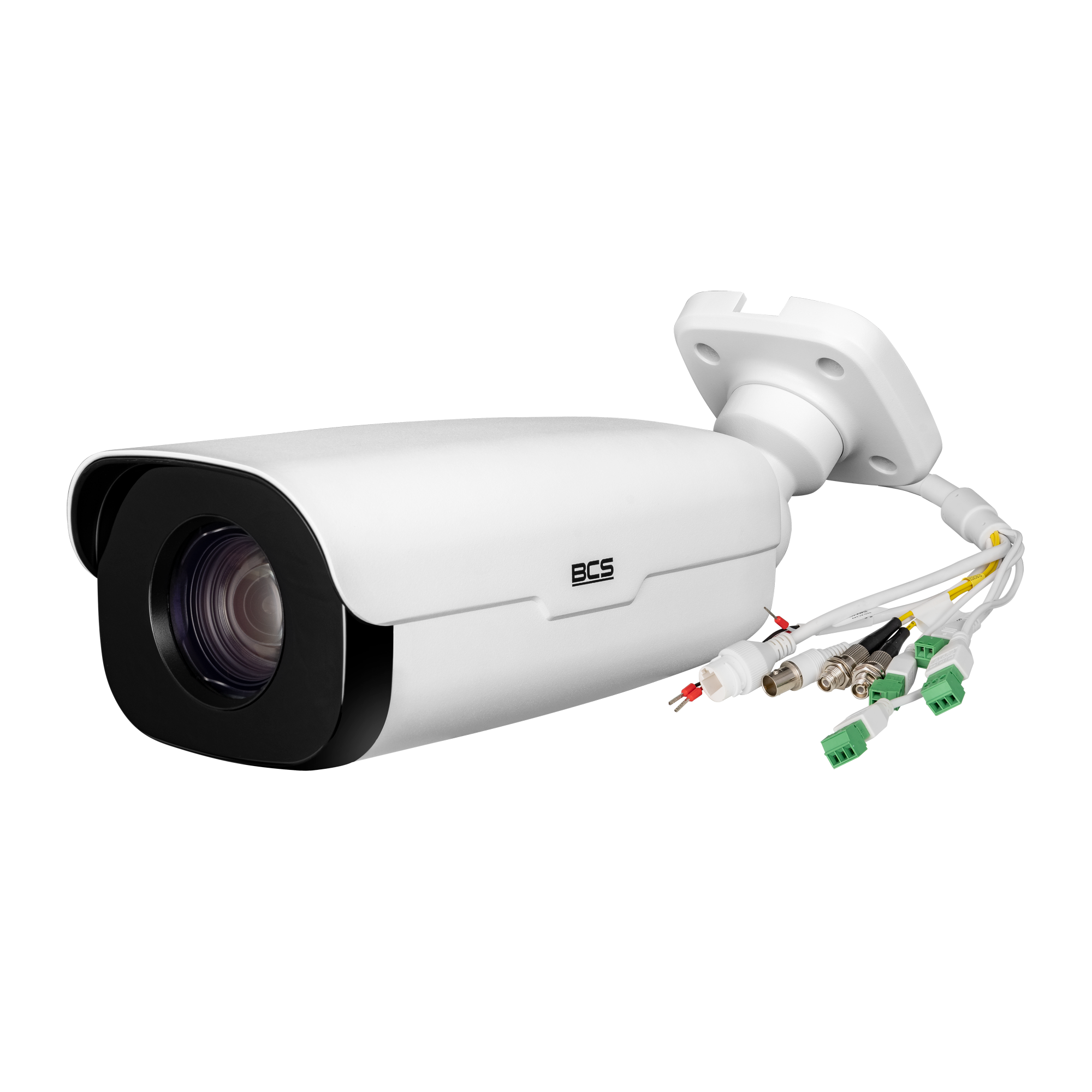

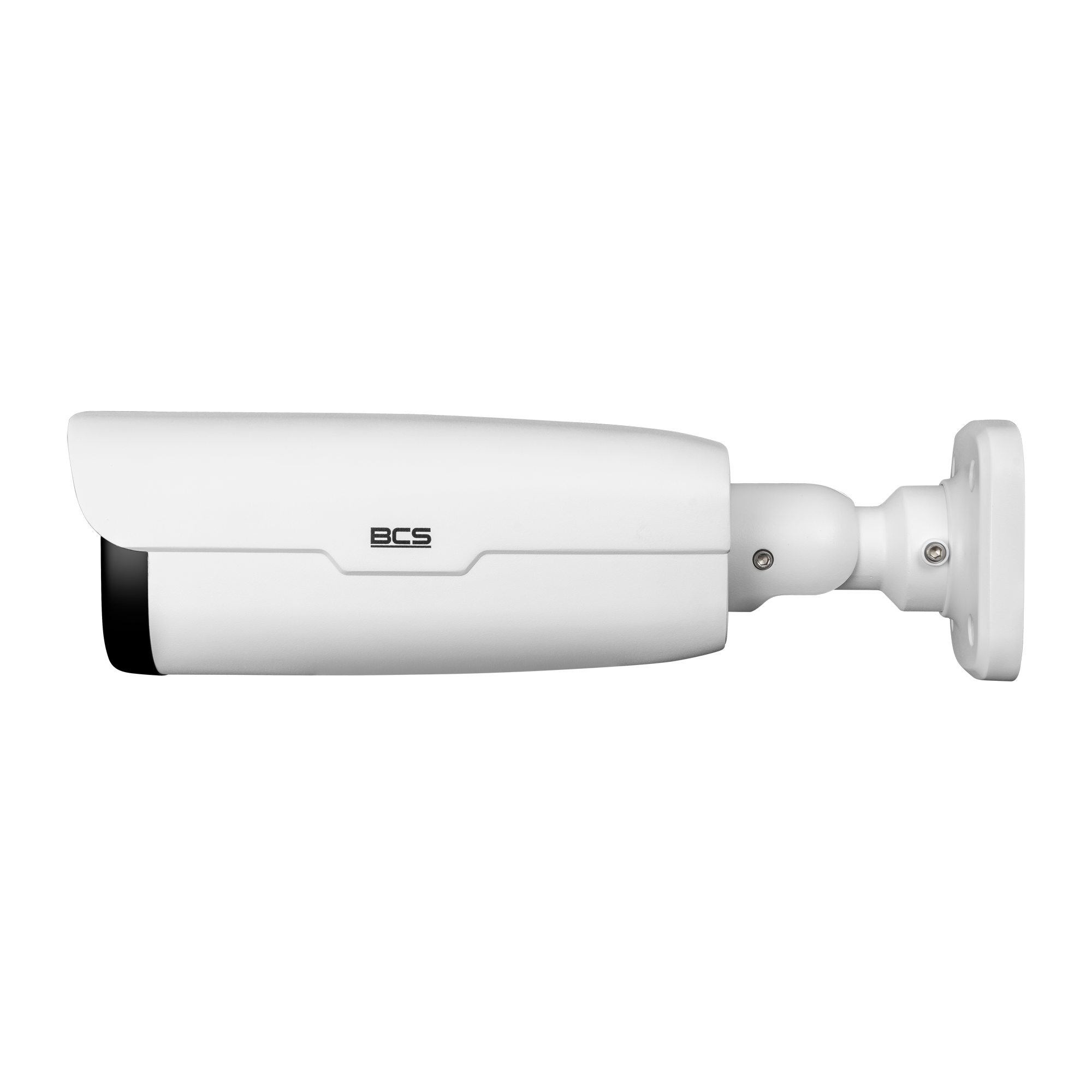

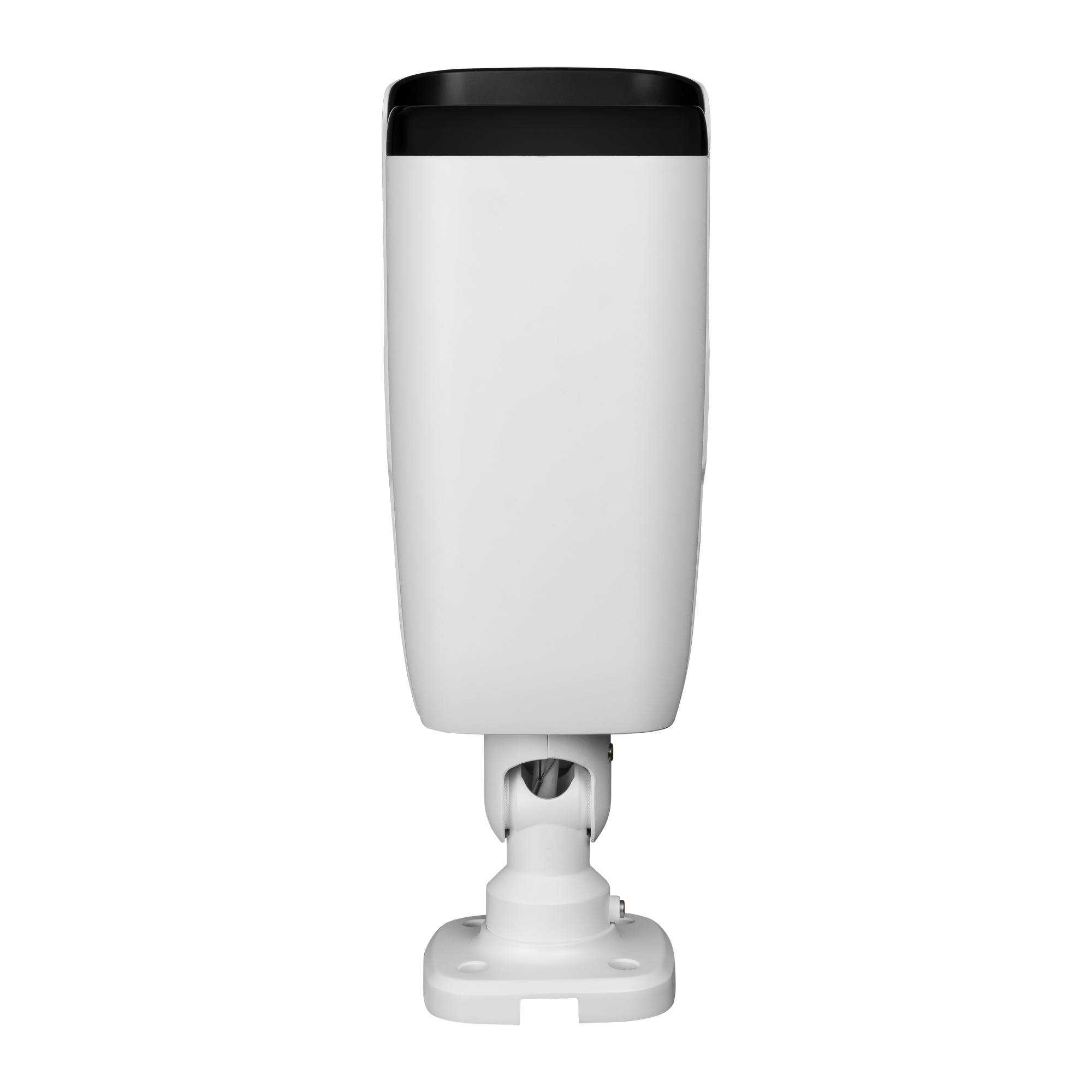

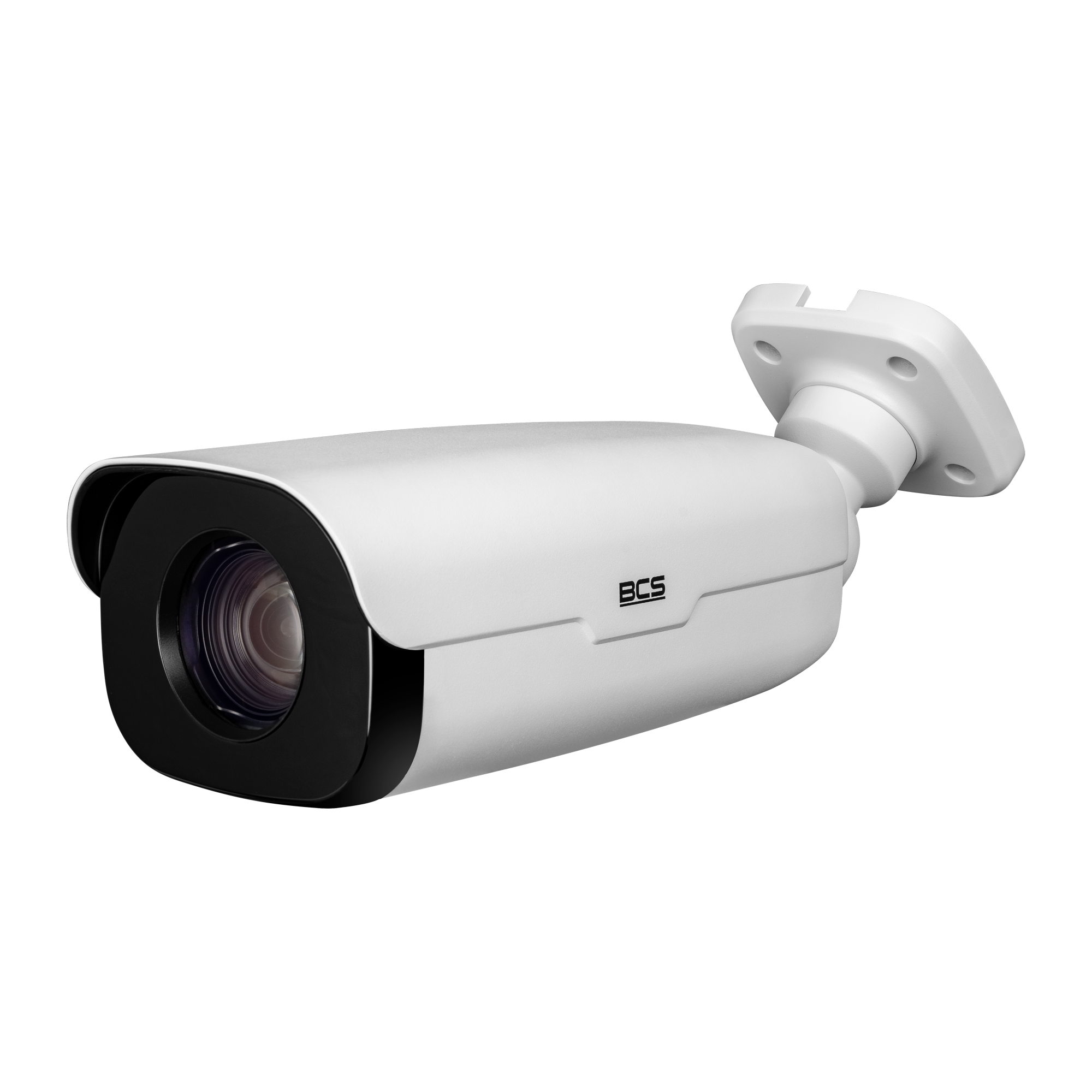

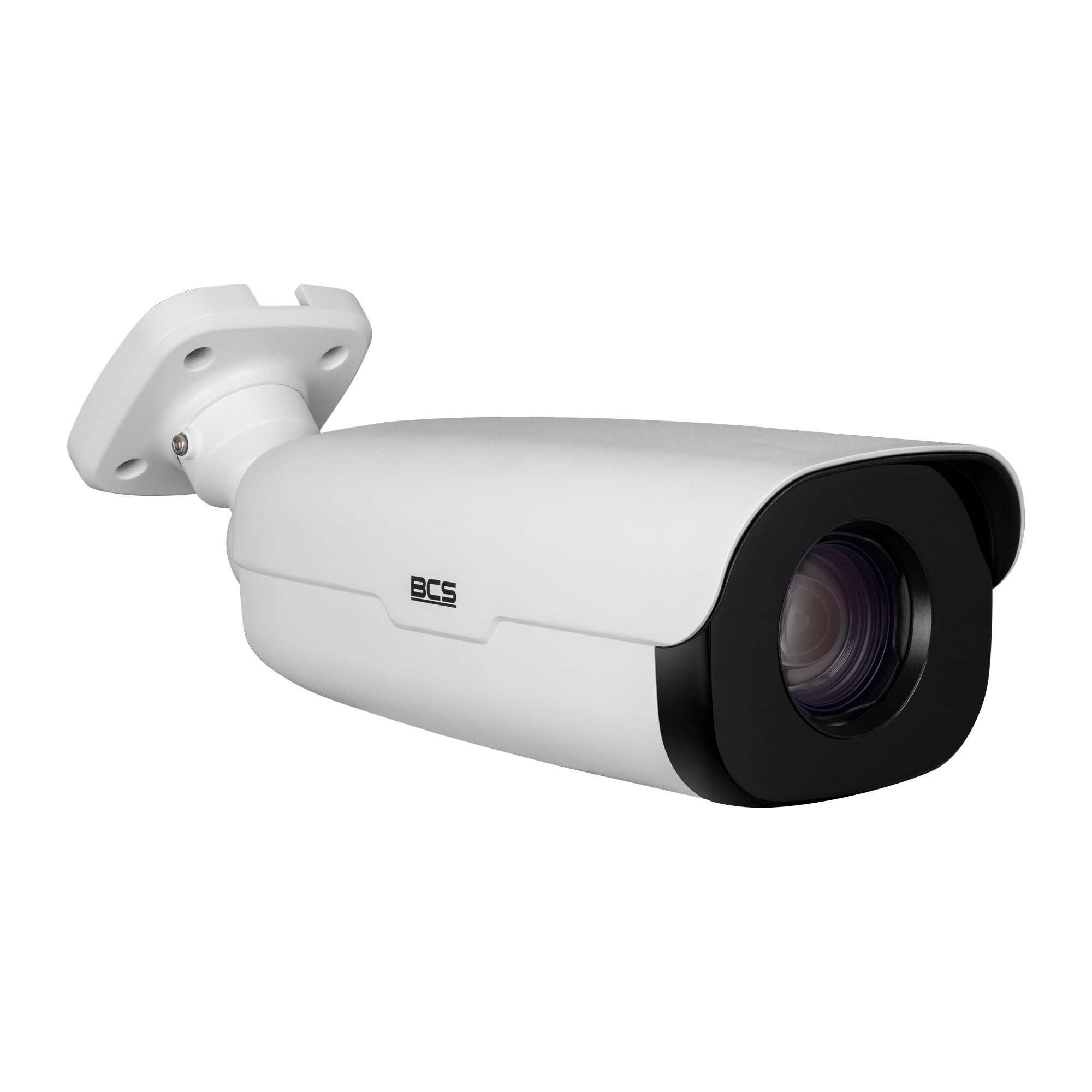

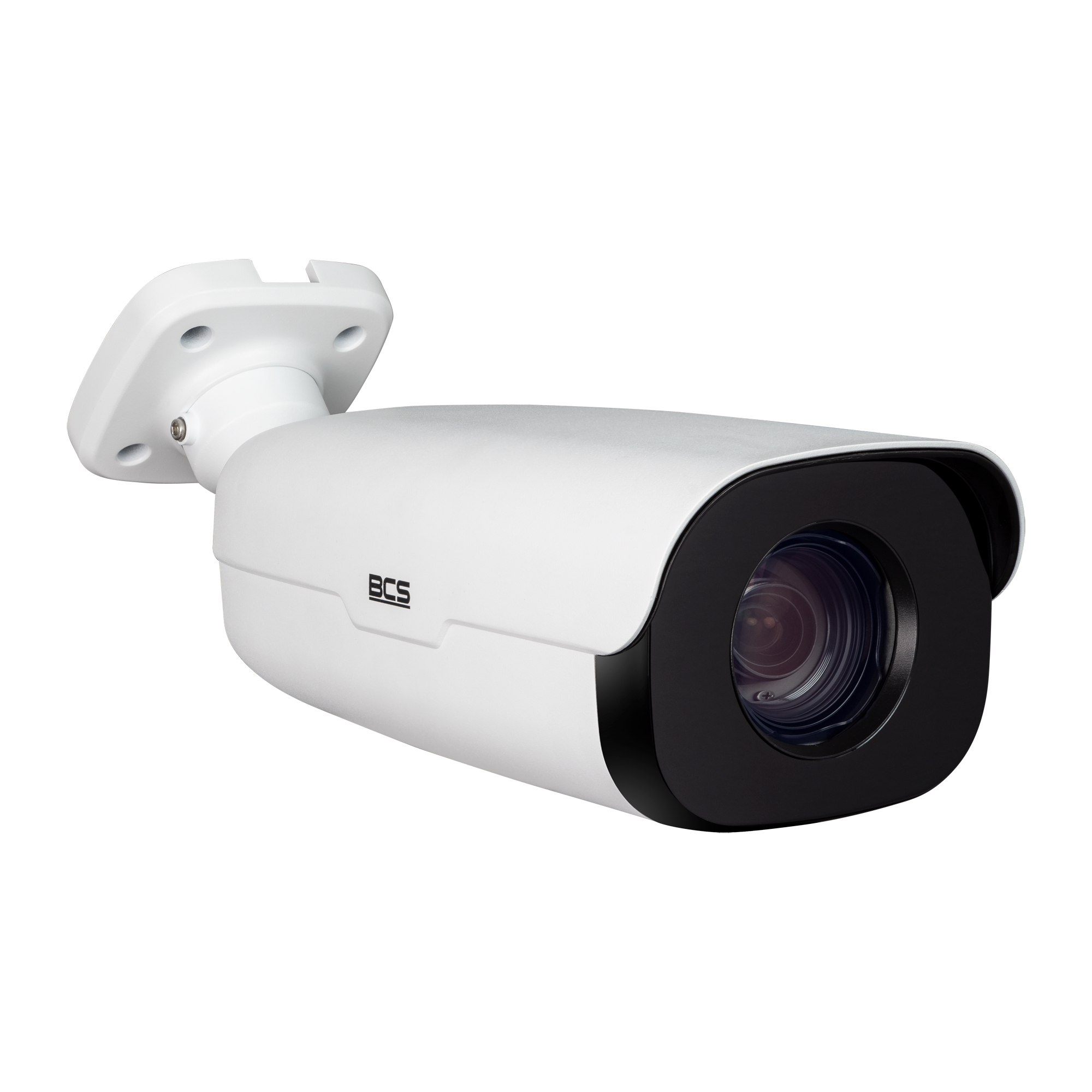

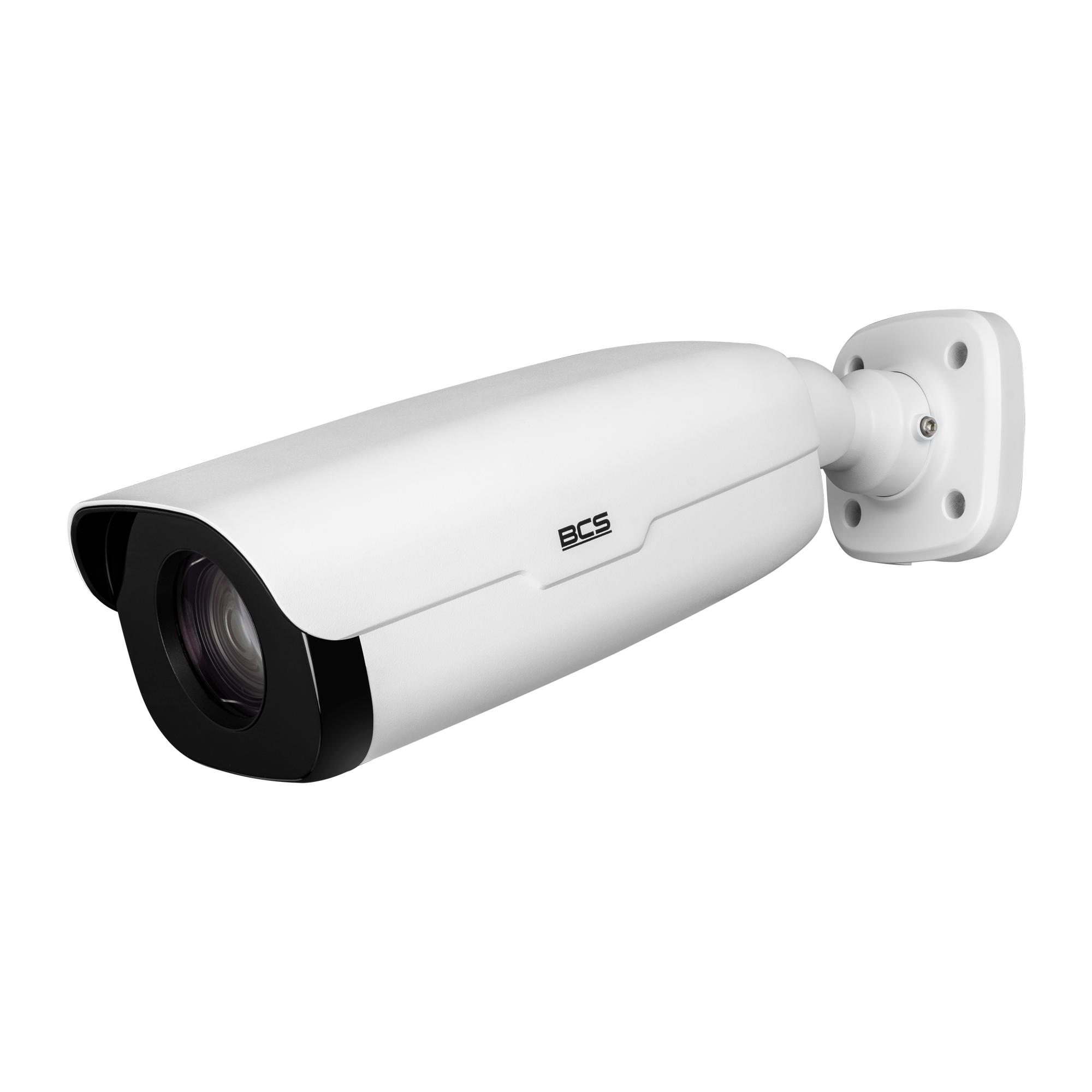

4Mpx tube IP camera from BCS Point. 1 / 1.8 “CMOS sensor with 6.5 ~ 143mm motozoom lens and 22x optical zoom. Video compression: H.265 / H.265 + / H.264 / H.264 + / MJPEG, illuminator – 150m, alarm – 1/1, audio – 1/1, additional interfaces – RS485, BNC, built-in intelligent functions, DORI, motion detection, privacy masks, perimeter protection, object recognition, people counting, built-in microSD memory card slot – 256GB. IP67 white housing. : AC 24V / PoE (802.3at).
Warning: This product belongs to the BCS POINT product line.
Use only components and devices from the same line to ensure compatibility.
BCS POINT
BCS-P-TIP94VSR15-Ai2
2258,28 € gross
Out of Stock- 4Mpx IP bullet camera
- 1/1.8" PS CMOS sensor
- SkyLight technology
- NDAA compliance
- 6.5–143 mm motorised zoom lens
- 22x optical zoom
- WDR 120dB
- IR 150m
- Alarm 1/1, audio 1/1
- IP67-rated housing
- Built-in smart features
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion reduces false alarms |
|---|---|
| Product | BCS-P-TIP94VSR15-Ai2 |
| NDAA | National Defense Authorization Act |
| Resolution | 4 Mpx |
| Pixels | 2688(H)×1520(V) |
| Focus | Auto / manual |
| Angle of view | H: 3.49°~ 60.47° V: 1.97°~ 36.3° |
| White balance | (AWB) Auto / manual |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Flag | TO ORDER |
| Noise reduction | 2D/3D DNR |
| Iris | Auto |
| Camera type | Bullet |
| Sensor | 1/1.8'' CMOS |
| Scanning system | Progressive Scan |
| Lens | motozoom |
| Focal length | 6.5~143 mm |
| Aperture | F1.5 |
| Optical zoom | 22× |
| Digital zoom | 16× |
| DORI | Detect 97~2145m / Observe 39~858m / Recognize 19~429m / Identify 10~214m |
| Min illumination | 0.001Lux(F1.5,AGC) 0Lux(B/W,IR) |
| S/N ratio | 52dB |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1~1/100000s |
| Gain control | (AGC) Auto / manual |
| Image rotate | Mirror, Flip 0°/90°/180°/270° |
| Stream support | 3 |
| Resolutions | 4M(2688×1520)(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / 720P(1280×720) / D1(720×576) / (640×360) / 2CIF(704×288) / CIF(352×288) |
| Main stream | 2688×1520@30fps 2560×1440@30fps 2304×1296@30fps 1920×1080@30fps 1280×720@30fps |
| Second stream | 1920×1080@30fps 1280×720@30fps 720×576@30fps 640×360@30fps 704×288@30fps 352×288@30fps |
| Third stream | 720×576@30fps 640×360@30fps 704×288@30fps 352×288@30fps |
| Bitrate | 128Kbps~16Mbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR |
| Illuminator type | IR LED |
| IR range | 150m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711U |
| Alarm in | 1 |
| Alarm out | 1 |
| Memory card slot | microSD 256GB |
| Other interfaces | RS485, BNC |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Network security | HTTPS, SSL, TLS, Digest Authentication, Login Authentication, Account Lockout, IP address filtering, ARP protection |
| Power supply | PoE |
| Power supply type | 24V AC / PoE(802.3at) |
| Power consumption | max 15W |
| Housing color | White |
| IP class | IP67 |
| Working environment | -40°C~+60°C max 95% RH |
| Dimensions | 395×137×112mm |
| Weight | 3.7kg |
| Ai - Perimeter protection | Crossline, intrusion |
| &Ai - Object classification | Yes |
| Ai - People counting | People counting for intrusion and crossline, counting people in/out |
