- Dual-protocol TCP/IP/SIP camera module with a button
- Designed for IP or 2-wire IP systems – in IP mode, it works with LAN switches / PoE switches; in 2-wire mode, it is powered and transmits the signal via a 2-wire bus (requires the BCS-ADIP-II/-III adapter, together with the BCS-ZA4815 or ZA4820 power supply)
- Compatible with TCP/IP/SIP video monitors running SIP version 4.4 or higher (IP mode); in 2-wire mode, it works with video monitors from the BCS-MON7600B(W)-2 series
- 1.9 mm fish-eye lens, field of view: 168.6° (H), 87.1° (V)
- Auto IR illuminator, auto ICR infrared filter, 120 dB WDR, HLC, BLC, 3DNR noise reduction
- For installation in BCS-RA1-N, BCS-RA2-N and BCS-RA3-N frames
- Built-in web service for device management
- Anodised aluminium front panel, IK07
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE
BCS-PAN-KAM(4)
388,68 € gross

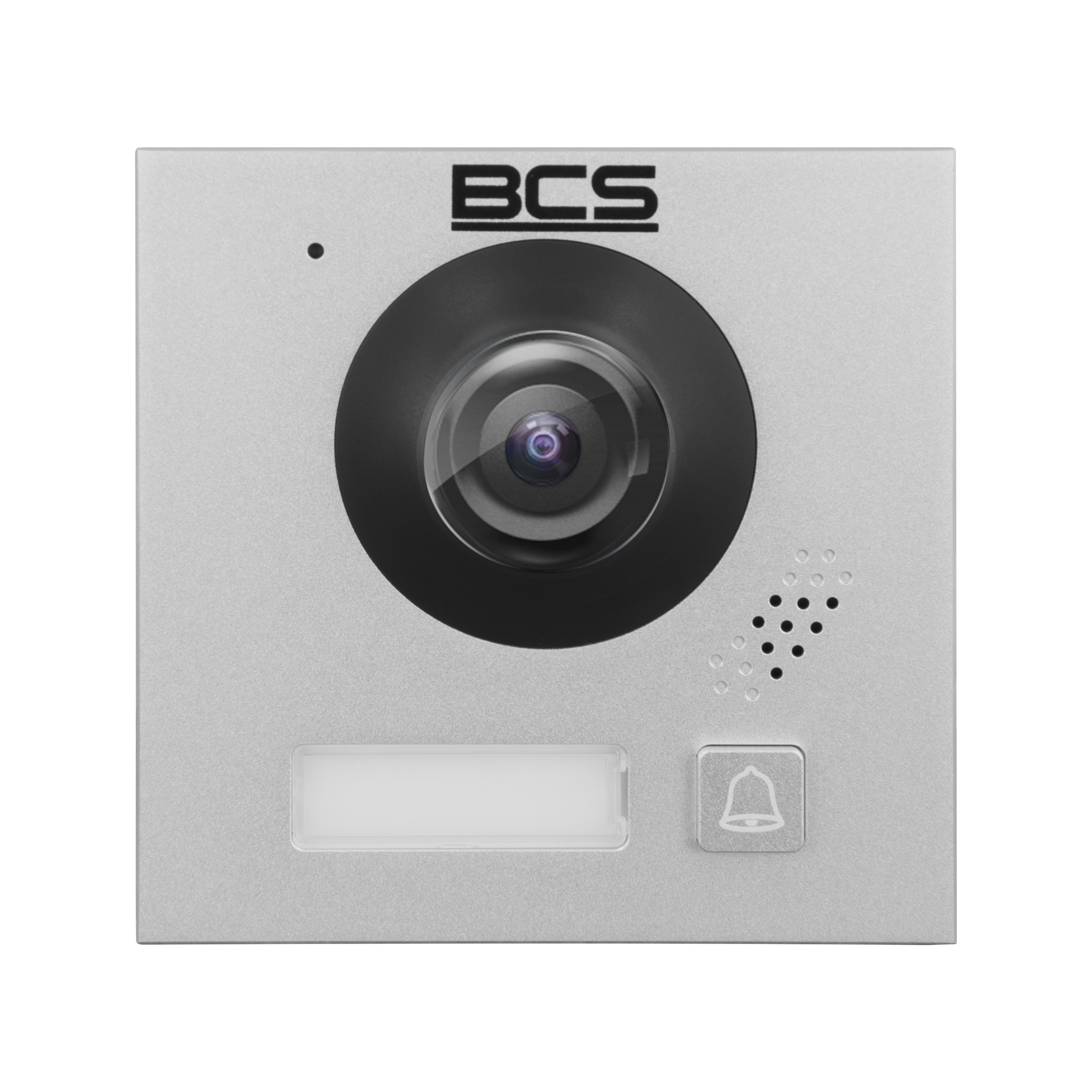

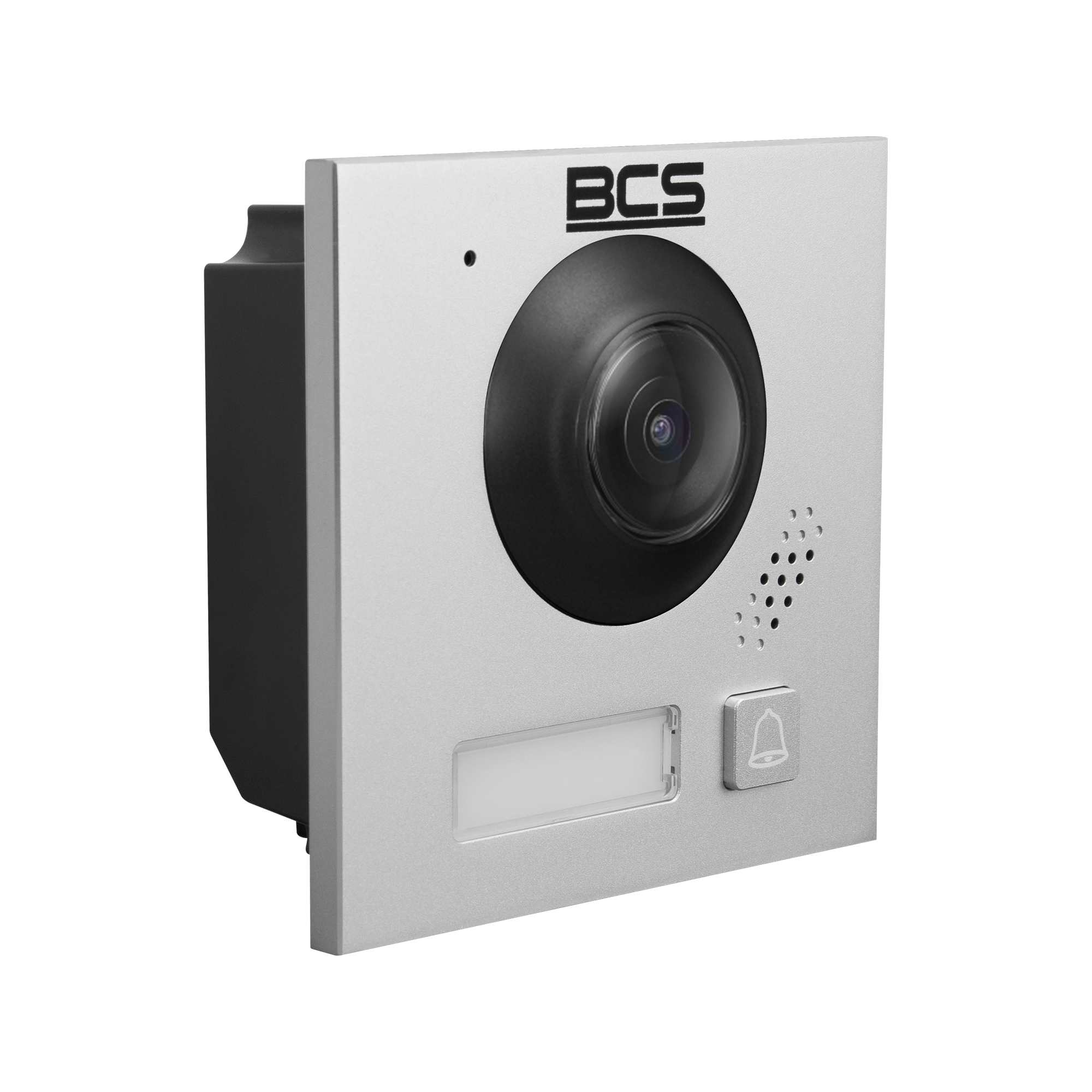

49 In StockA camera module with a single call button for the IP/2-wire IP modular panel system.
It can be used as a single-family panel when fitted into a single BCS-RA1-N frame, or it can be expanded with additional modules featuring call buttons, information displays or access control devices (keypad, card reader, fingerprint reader).
When using additional modules, frames from the BCS-RA2-N or BCS-RA3-N series should be used (depending on the size and number of modules).
Once fitted into the frame, the unit can be installed either flush-mounted or surface-mounted using a dedicated housing, depending on the size of the frame used (mounting housings and frames are available separately).
49 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Number of supported places | Depending on configuration (max 200) |
|---|---|
| Product | PAN-KAM(4) |
| Alarm out | Yes, for future use |
| Camera horizontal angle of view | 168.6 |
| System type | IP, 2-wire IP |
| Number of door opening codes | Depending on configuration (max 50) |
| Working environment (temperature) | -30°C ~ +60°C |
| Camera sensor | 1/2.9'' |
| Device type | Camera Module |
| Call buttons | depending on configuration |
| Proximity reader | Depending on configuration |
| Keyboard | Depending on configuration |
| Finger print reader | Depending on configuration |
| Display | Depending on configuration |
| Information leds | Depending on configuration |
| Camera resolution | Strumień główny: max 720p; strumień dodatkowy max 1080p |
| Camera video compression | H.264, H.265 |
| Onvif compatibility | Yes |
| Camera lens | 1.9 fisheye |
| Lens regulation (left/right) | No |
| Camera illumination | IR |
| Ethernet | Built-in |
| Panel power supply type | 48V DC / PoE(802.3at/af/passive) |
| Network connection | LAN, magistrala 2-wire |
| RS485 output | Tak, do podłączenia modułu BCS-MODK-III |
| 12V power supply output | Tak, 12VDC 600mA (wymagany switch PoE+) |
| Wiegand output | No |
| Panel color | Silver |
| Panel dimensions (mm) | 100×100×49.4 |
| Panel weight (g) | 430 |
| Mounting type | Surface / Recessed |
| Mobile app compatibility | Yes, videomonitor required |
| Material | Aluminum alloy |
| IP class | IP65 |
| IK class | IK07 |
| Max power consumption | 5W |
