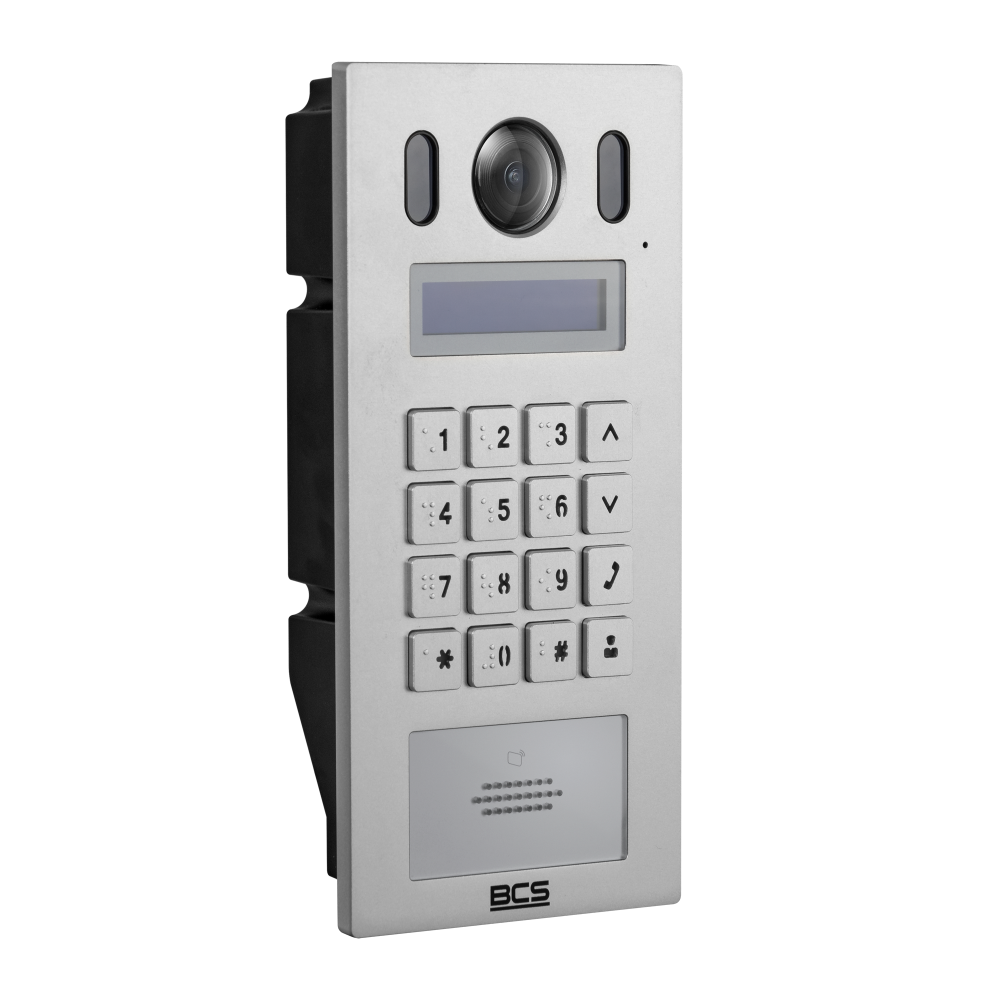

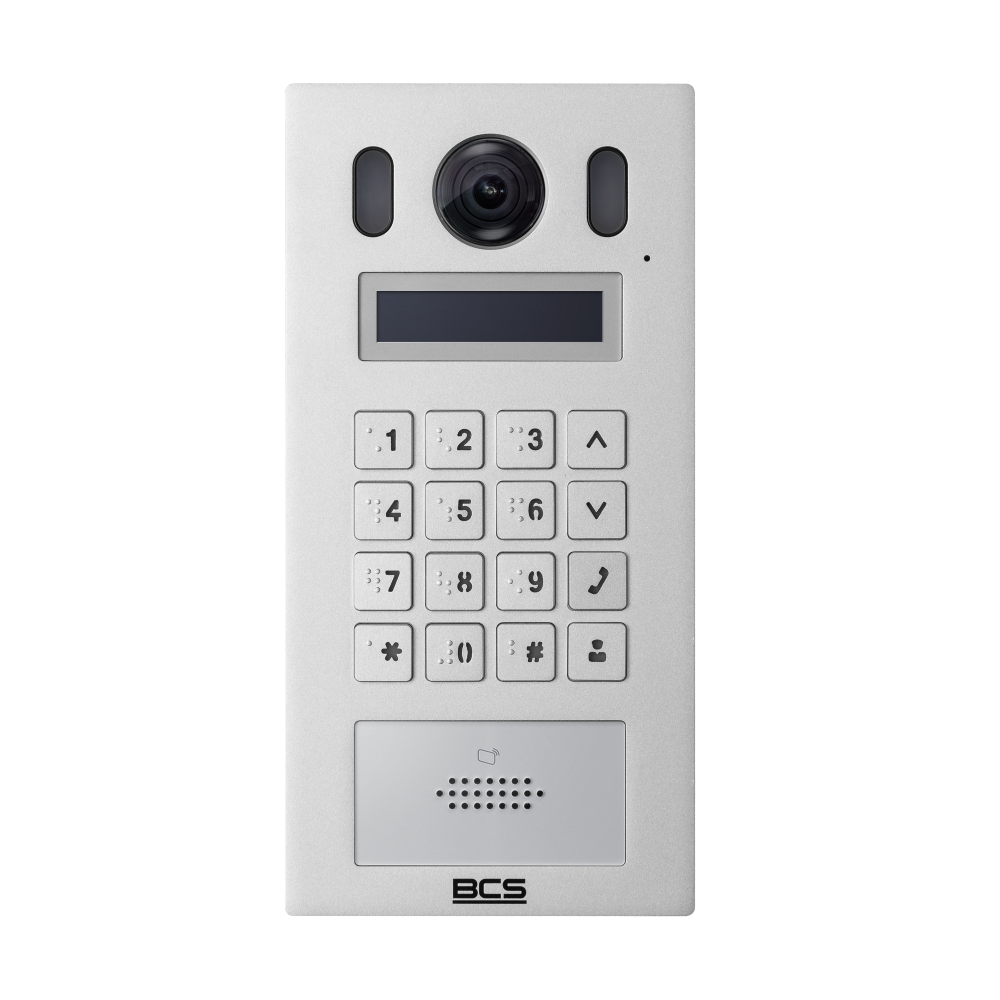

Dual-protocol multi-family TCP/IP/SIP outdoor panel
• Designed for IP or 2-wire IP systems (selectable):
in IP mode, it works with PoE switches (BCS PoE switches recommended)
in 2-wire mode, power supply and signal transmission via a 2-wire bus (requires the BCS-ADIP-II/-III adapter, together with the BCS-ZA4815/ZA4820 power supply)
- • 1/2.9” HD CMOS sensor, 2mm lens
- • Camera field of view: 140°/80° (H/V)
- • Built-in combination lock and 13.56 MHz proximity reader
- • Installation: flush-mounted or surface-mounted using a dedicated housing
- • Management via web service
- • Video recording on BCS LINE recorders: proprietary protocol; others: ONVIF or RTSP
- • Front panel made of aluminium alloy
- • Water resistance: IP65 (additional sealing required; see instructions)
