| Flag | TO ORDER |
|---|---|
| Product | BCS-SA4232SR15 |
| Camera type | PTZ |
| Transmission standard | HD-CVI / AHD / HD-TVI / ANALOG CVBS |
| Resolution | 2 Mpx |
| Sensor | 1/2.8'' CMOS STARVIS |
| Scanning system | Progressive Scan |
| Pixels | 1920(H)×1080(V) |
| Lens | motozoom |
| Focal length | 4.5~144 mm |
| Aperture | F1.6~4.0 |
| Focus | Auto/manual |
| Iris | Auto/manual |
| Optical zoom | 32× |
| Digital zoom | 16× |
| Angle of view | H: 59.6°~2.8° V: 34.1°~1.6° D: 67.9°~3.3° |
| DORI | Detect 1986m / Observe 785m / Recognize 398m / Identify 198m |
| Min illumination | 0.005Lux(F1.6,30IRE) 0.0005Lux(B/W,F1.6,30IRE) 0Lux(B/W,IR) |
| S/N ratio | 50dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1/3s~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| Defog | Electronic |
| Image rotate | Mirror, flip 180° |
| Resolutions | 2M(1920×1080)@25/30fps 720P(1280×720)@25/30/50/60fps |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 150m |
| Audio in | 1 |
| Alarm in | 2 |
| Alarm out | 1 |
| Other interfaces | RS485 |
| Support | Support for settings in the camera OSD menu by the BCS-XVR recorder |
| Privacy masking | 24 |
| Power supply | 24V DC |
| Power supply type | 24V DC |
| Power consumption | max 21W |
| Housing color | White |
| IP class | IP66 |
| Surge protection | TVS 6kV |
| Working environment | – 40°~+70° max 95% RH |
| Dimensions | Ø186×309mm |
| Weight | 3.9 kg |
| PAN speed | 0.1°/s~300°/s (400°/s preset) |
| TILT speed | 0.1°/s~200°/s (300°/s preset) |
| PAN range | 0°~360° |
| TILT range | -15°~90° auto-flip |
| Automatic functions | 300 presets, 8 tour(32 presety), 5 pattern, 5 auto scan |
| Accessories included | Wall mount, adapter APTZ1, power supply 24VDC |
BCS UNIVERSAL

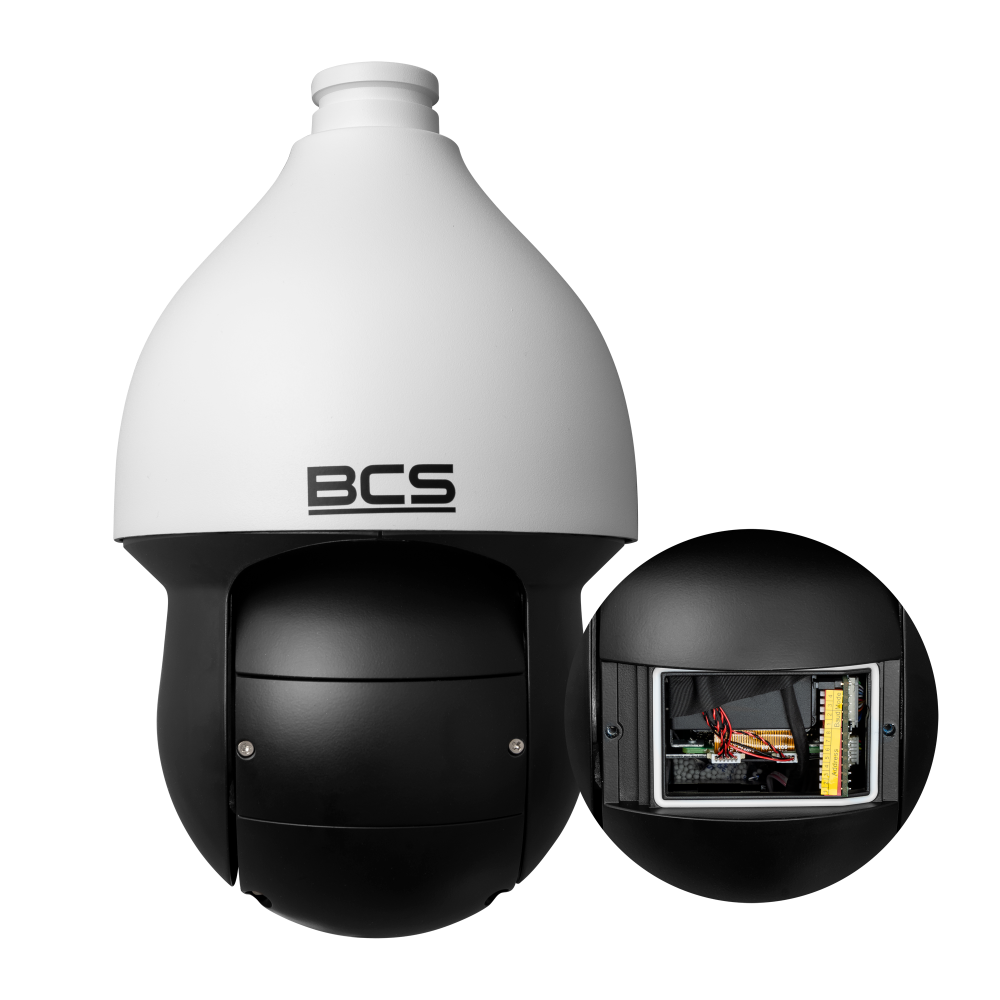

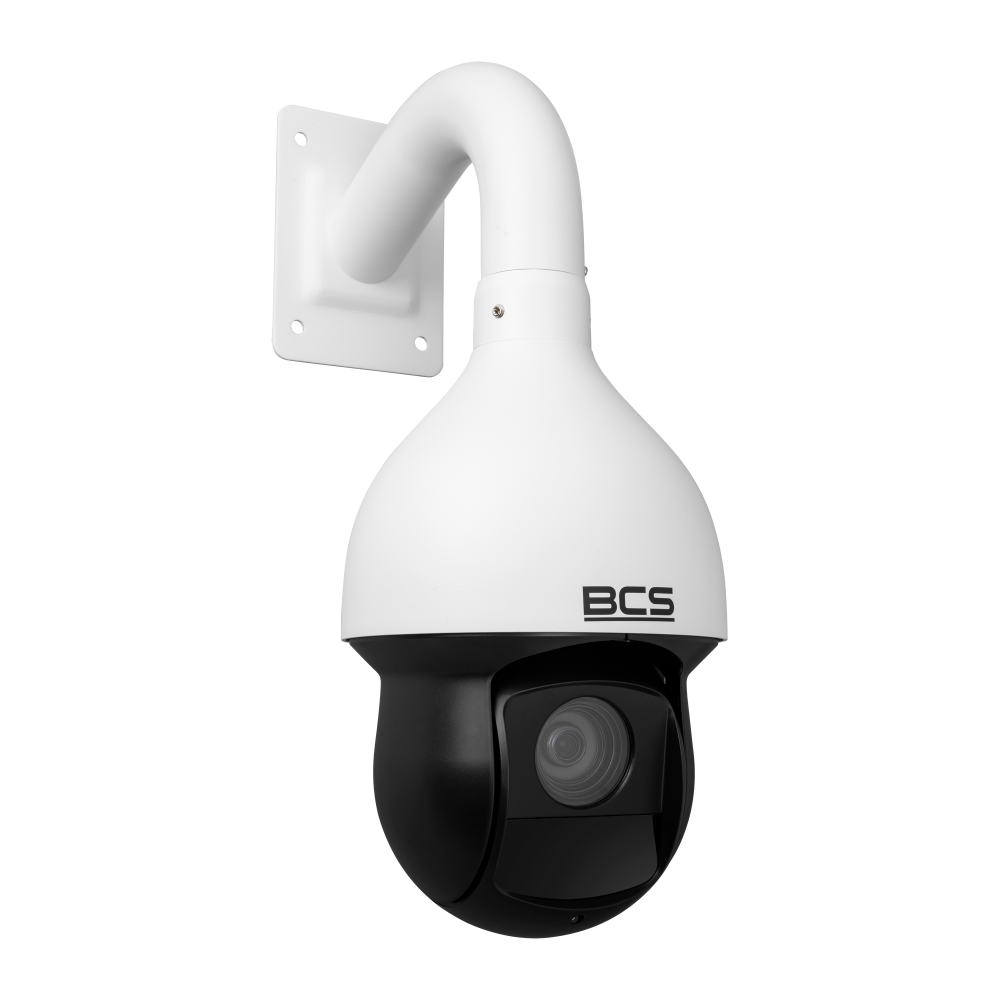

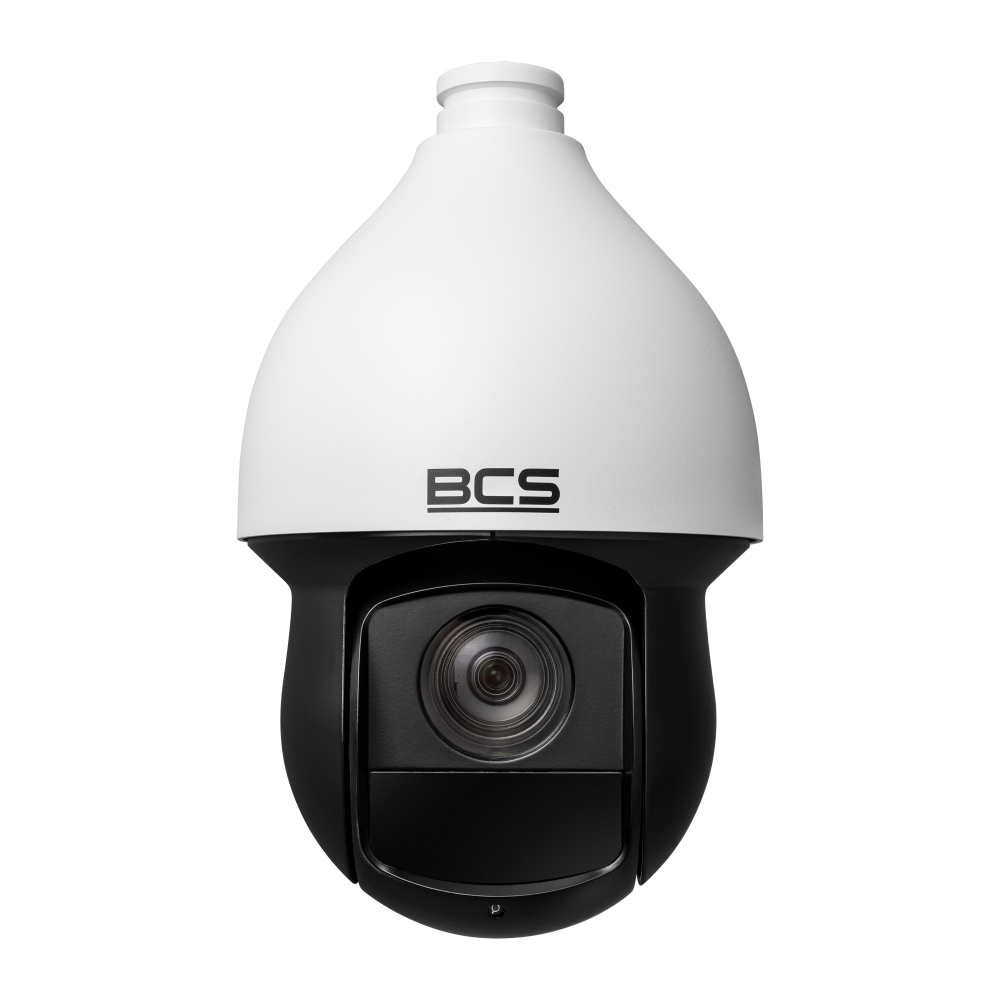

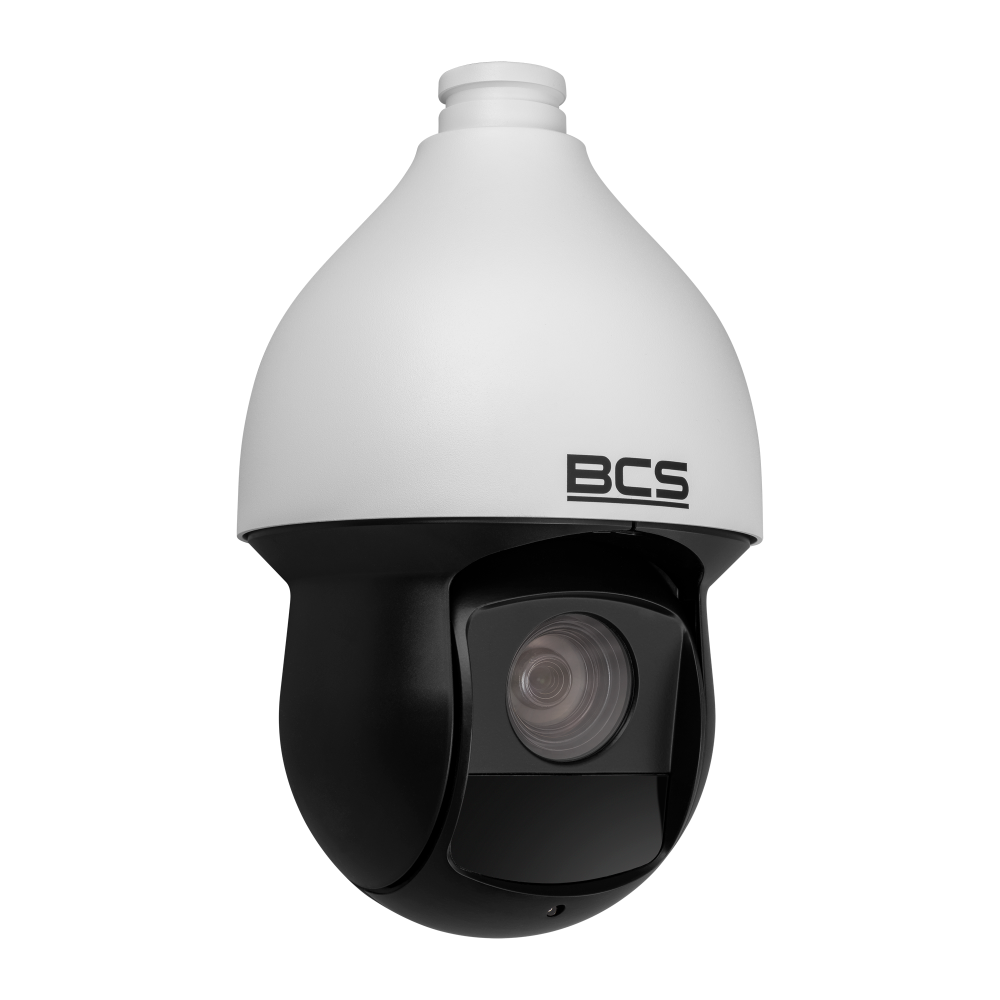

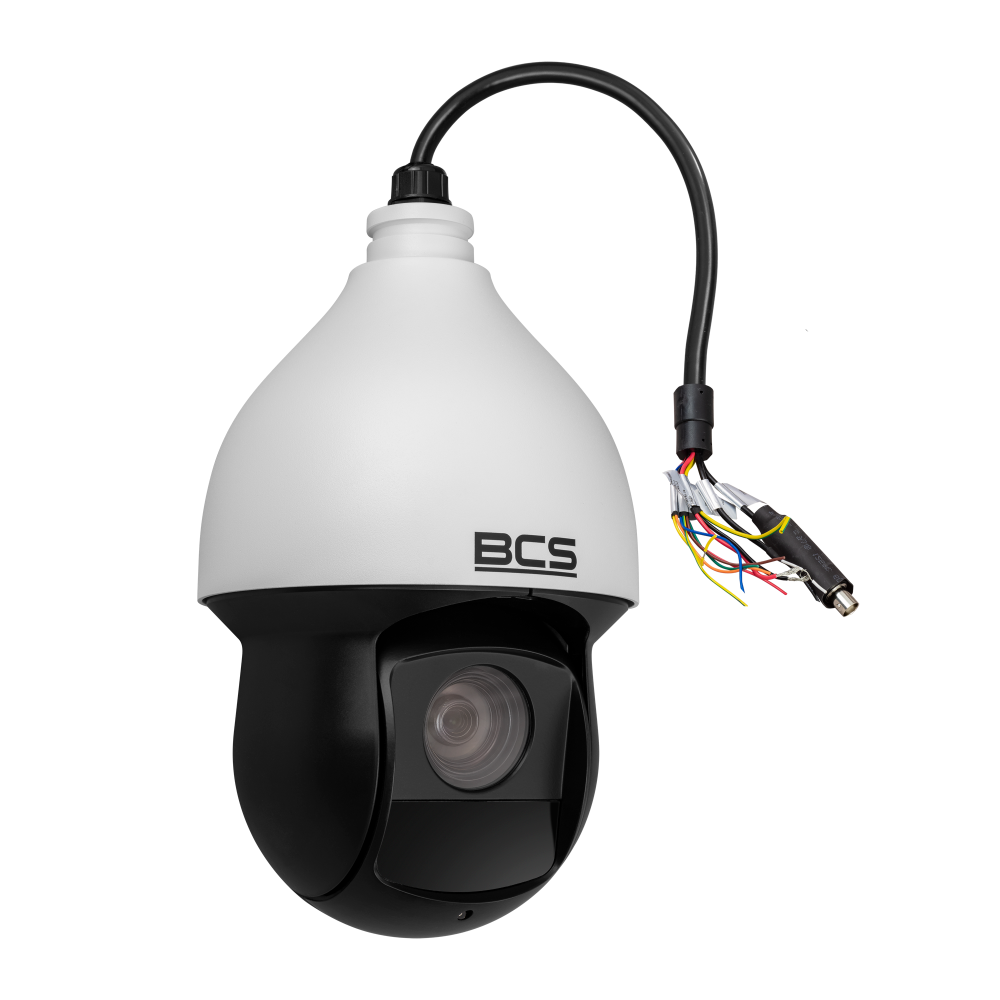

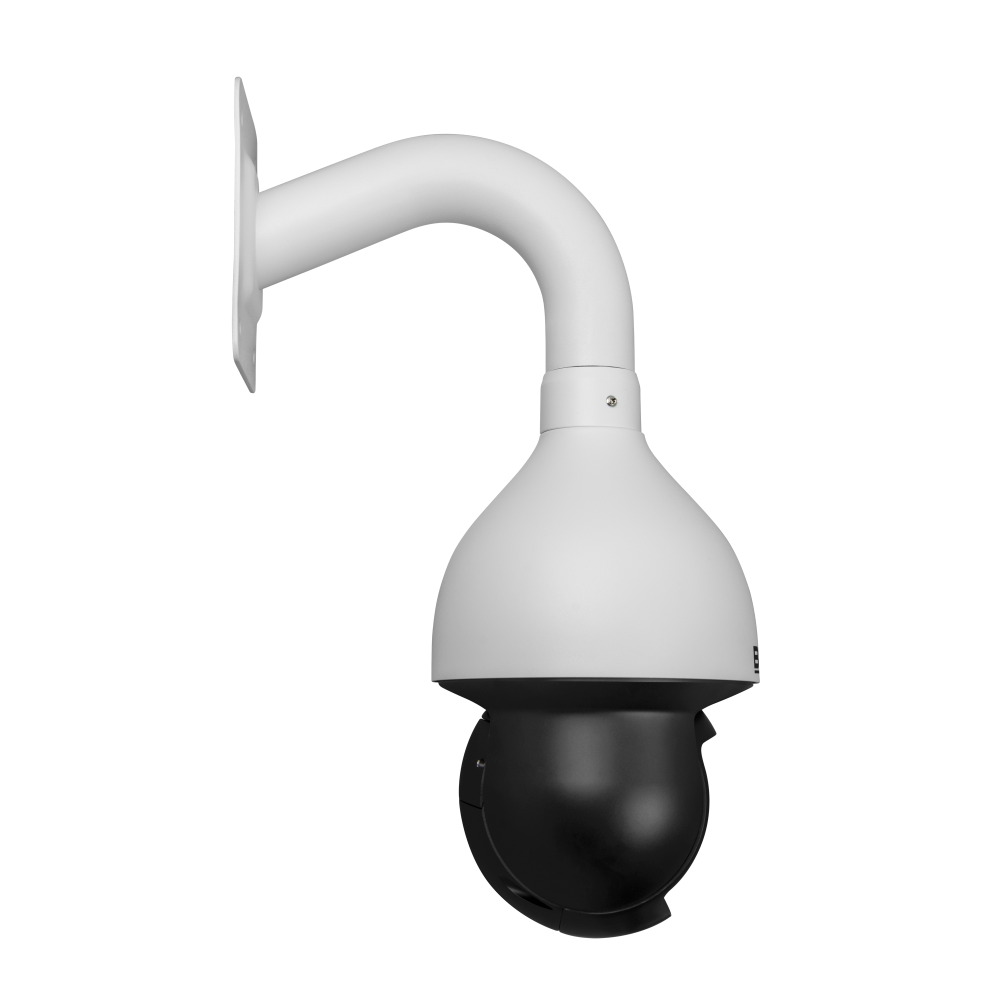

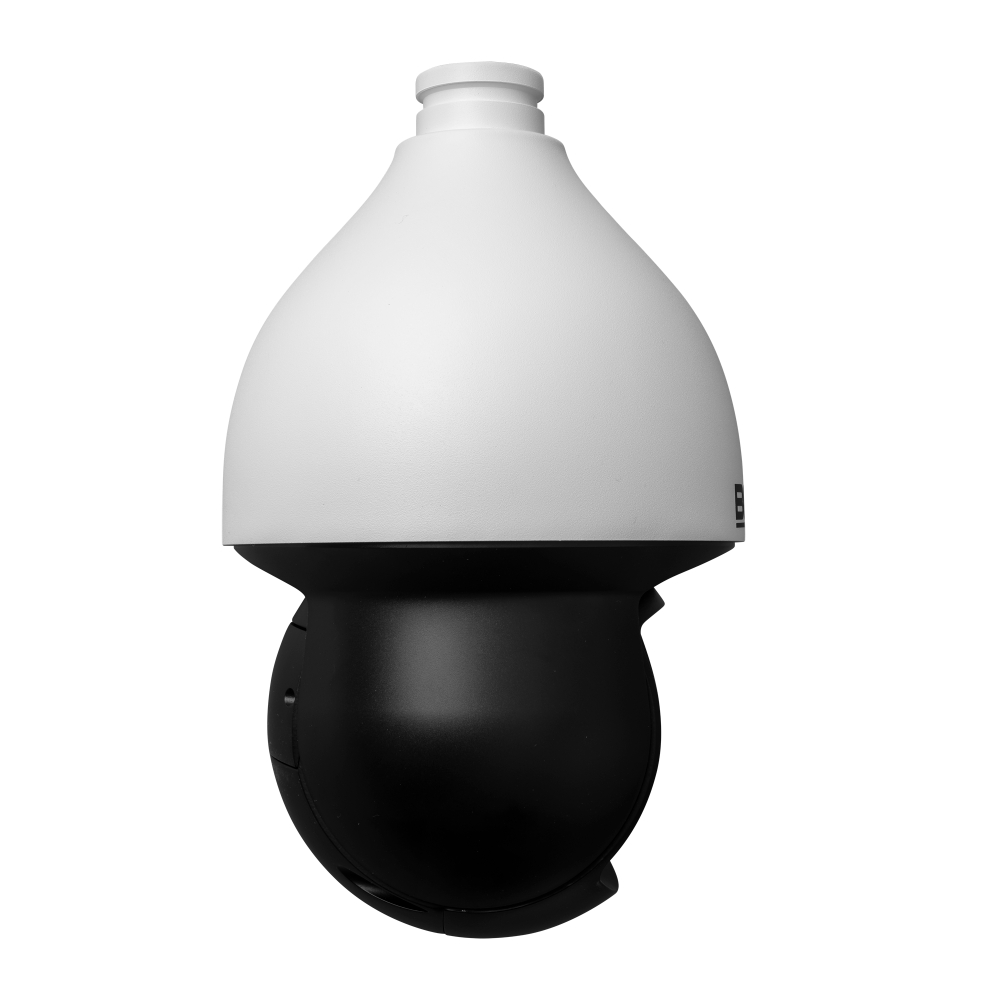

BCS-SA4232SR15
1451,40 € gross
Out of Stock- 2Mpx analogue HD PTZ pan-tilt-zoom camera
- HDCVI/AHD/TVI/CVBS
- 1/2.8" STARVIS PS CMOS sensor
- SkyLight technology
- 4.5–144 mm motorised zoom lens
- 32x optical zoom
- WDR 120dB
- IR 150m
- Alarm 2/1, audio input
- IP66-rated housing
