| Ai - Human/vehicle detection | Yes |
|---|---|
| Resolution | 12 Mpx |
| Scanning system | Progressive Scan |
| ROM | 128MB |
| Focus | fixed |
| DORI | Detect 42m / Observe 17m / Recognize 8m / Identify 4m |
| WDR | DWDR |
| Ai - Built-in intelligent functions | Yes |
| Product | BCS-SFIP21200IR-II |
| Camera type | Fisheye |
| Stream support | 3 |
| Sensor | 1/1.7'' CMOS STARVIS |
| Pixels | 4000(H)×3000(V) |
| RAM | 1GB |
| Lens | Fisheye |
| Focal length | 1.98 mm |
| Aperture | F2.8 |
| Iris | fixed |
| Digital zoom | 16× |
| Angle of view | H: 180˚ V:180˚ |
| Min illumination | 0.001Lux(Color,F2.8,1/3s,30IRE) 0.01Lux(Color,F2.8,1/30s,30IRE) 0Lux(F2.8,IR) |
| S/N ratio | 50dB |
| White balance | (AWB) Auto / manual |
| Backlight compensation | BLC / HLC / DWDR |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Resolutions | 12M(4000×3000) / 8M(2880×2880) / 6M(2880×2160) / 3M(2048×1536) / 1.3M(1280×960) / D1(704×576/704×480) / CIF(352×288/352×240) |
| Main stream | 4000×3000(1~25fps) 3840×2160(1~25/30fps) |
| Second stream | 704×576/704×480(1~25/30fps) |
| Third stream | 1280×1024(1~25/30fps) |
| Bitrate | H.265: 3Kbps~ 9984Kbps H.264: 8Kbps~ 16384Kbps |
| Video compression | H.265 / H.264 / H.264B / H.264H / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 10m |
| Microphone | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.726 / AAC |
| Alarm in | 2 |
| Alarm out | 2 |
| Storage | FTP, SFTP, NAS |
| Memory card slot | microSD 128GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF |
| Protocols | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP |
| Power supply | PoE |
| Power supply type | 12VDC / PoE(802.3af) |
| Power consumption | max 12W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | Ø150×47,7mm |
| Weight | 0.8 kg |
| Ai - Perimeter protection | Yes |
| &Ai - Object classification | Yes |
| Ai - Heat map | Yes |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

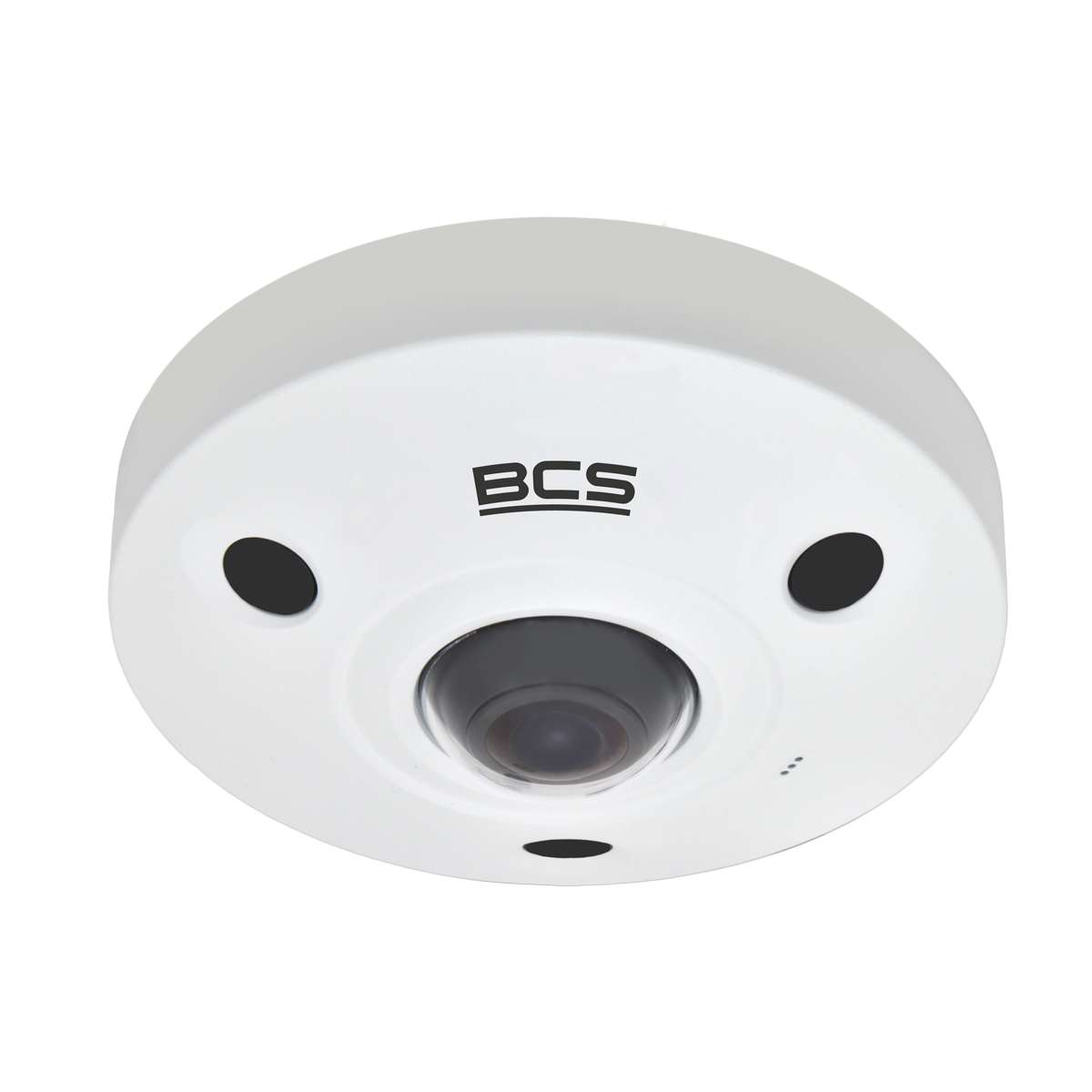

BCS-SFIP21200IR-II
1393,59 € gross
Out of Stock- 12Mpx IP Camera
- 1/1.7″ PS STARVIS CMOS Sensor
- 1.98mm Fisheye Lens
- 10m IR
- Alarm 2/2, Audio 1/1
- IP67, IK10 Housing, Microphone
- Built-in Smart Features
