It is a highly efficient, non-isolated DC / DC converter that increases voltage. The converter enables operation in a wide range of input voltages and has a fixed output voltage of 48 VDC. A typical application of the module is the generation of PoE 48 VDC voltage from 12 VDC or 24 VDC from a buffer power supply. The OF (Open Frame) design allows the device to be built into any housing, but the most convenient method of installation is dedicated BCS housings and mounting plates with system punchings in a 10.8mm raster. It is compatible with the spacing of the mounting holes of the built-in modules. The system solution allows for vertical or horizontal installation of selected devices in any open part of the housing or mounting plate.
BCS POWER

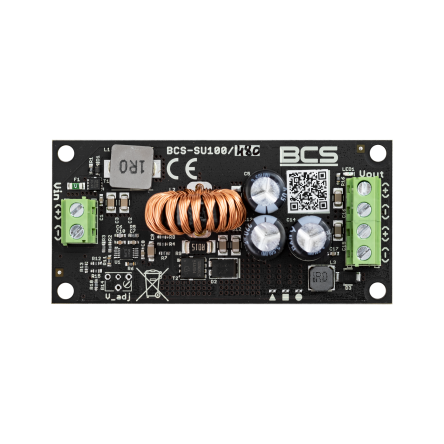

BCS-SU100/48
41,82 € gross
100 In Stock- Non-isolated DC/DC step-up converter
- Supply voltage 10–30 V DC
- Output voltage 48 VDC ±3%
- Output power: 120W @24V, 80W @12V
- Converter quiescent current: 27 mA @12 V
- An LED indicates the presence of output voltage
- Mounting via snap-in spacer pins, mounting holes spaced at 10.8 mm
- Operating temperature range: -20–+40°C
- Dimensions: 40 × 83 × 27 mm
100 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Product | BCS-SU100/48 |
|---|
