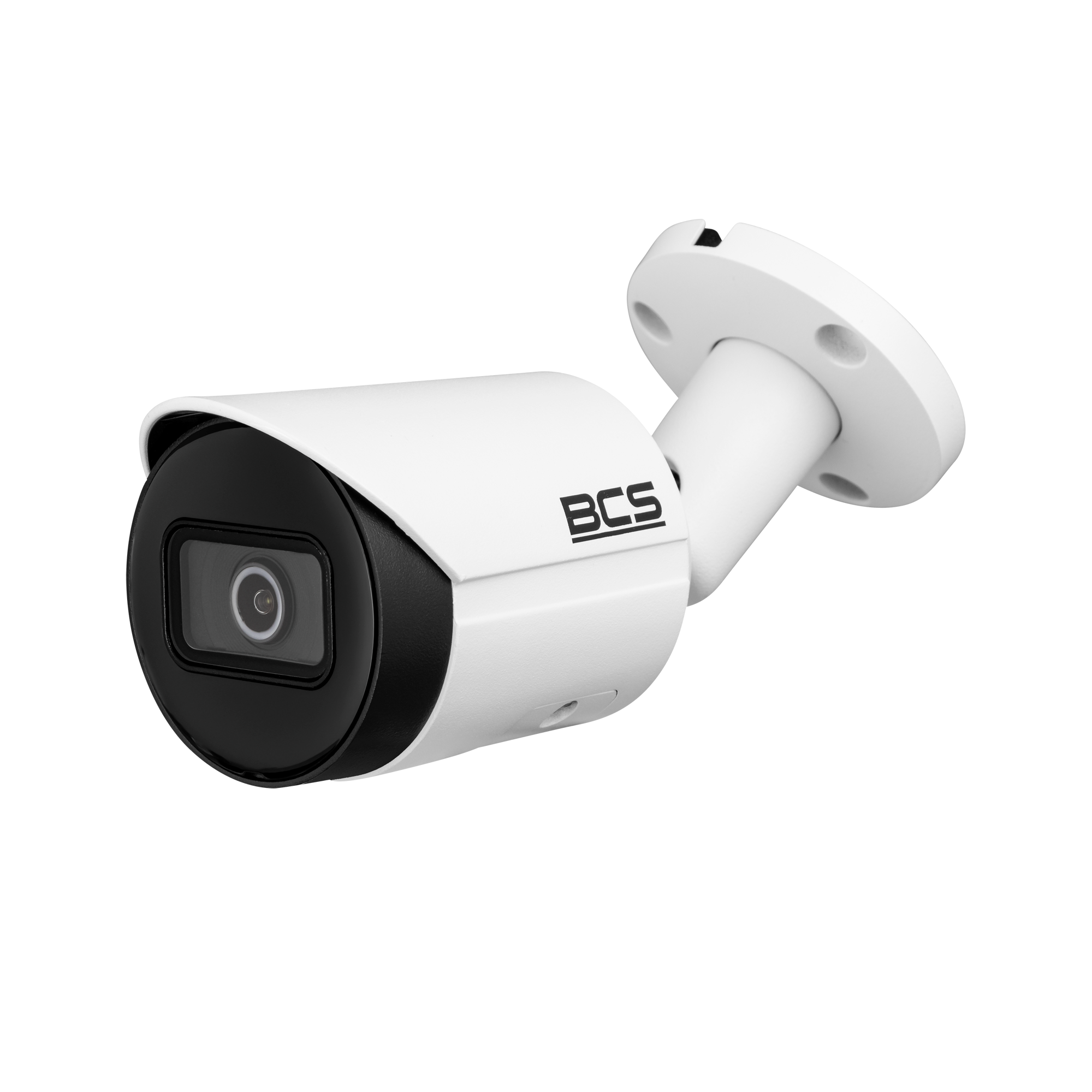

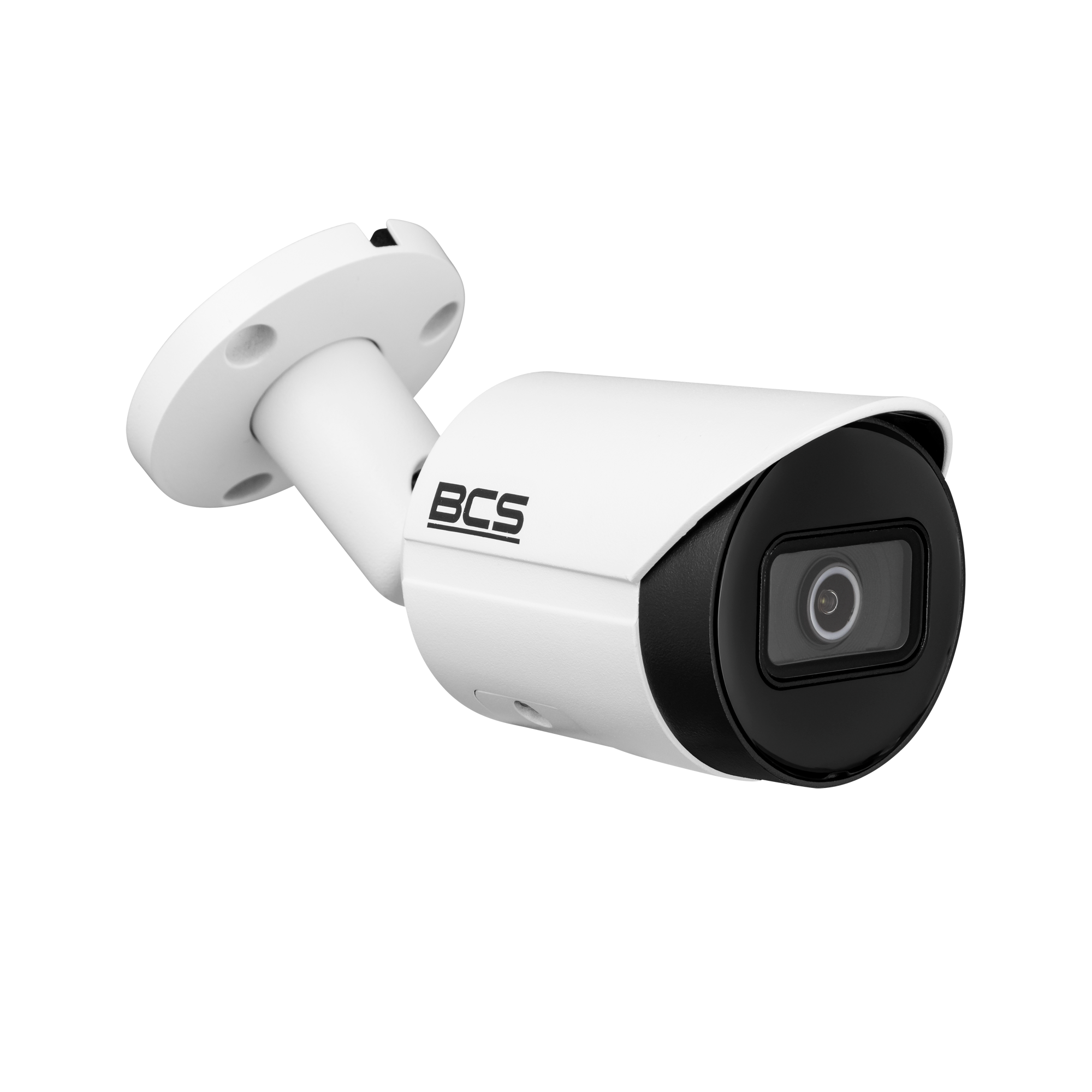

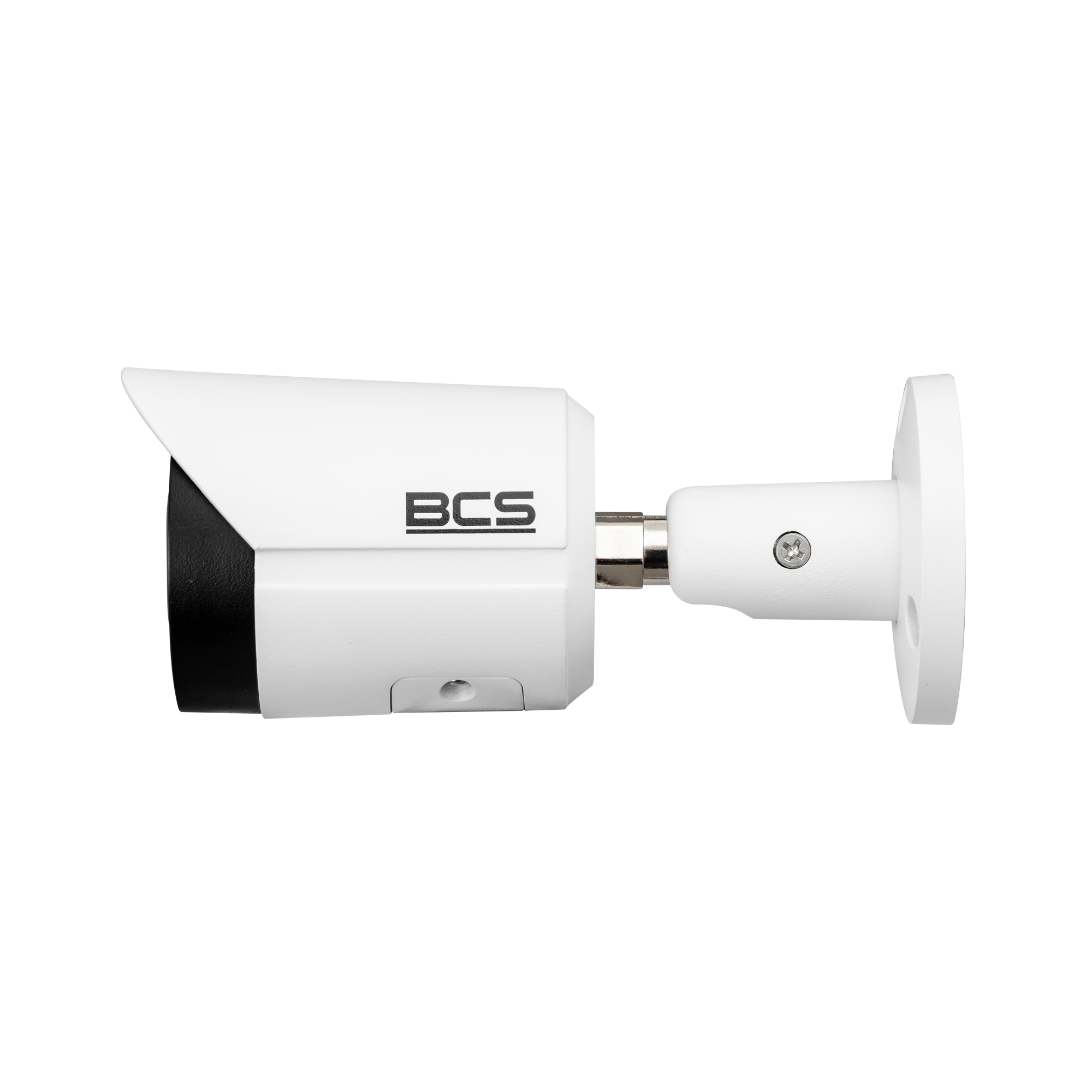

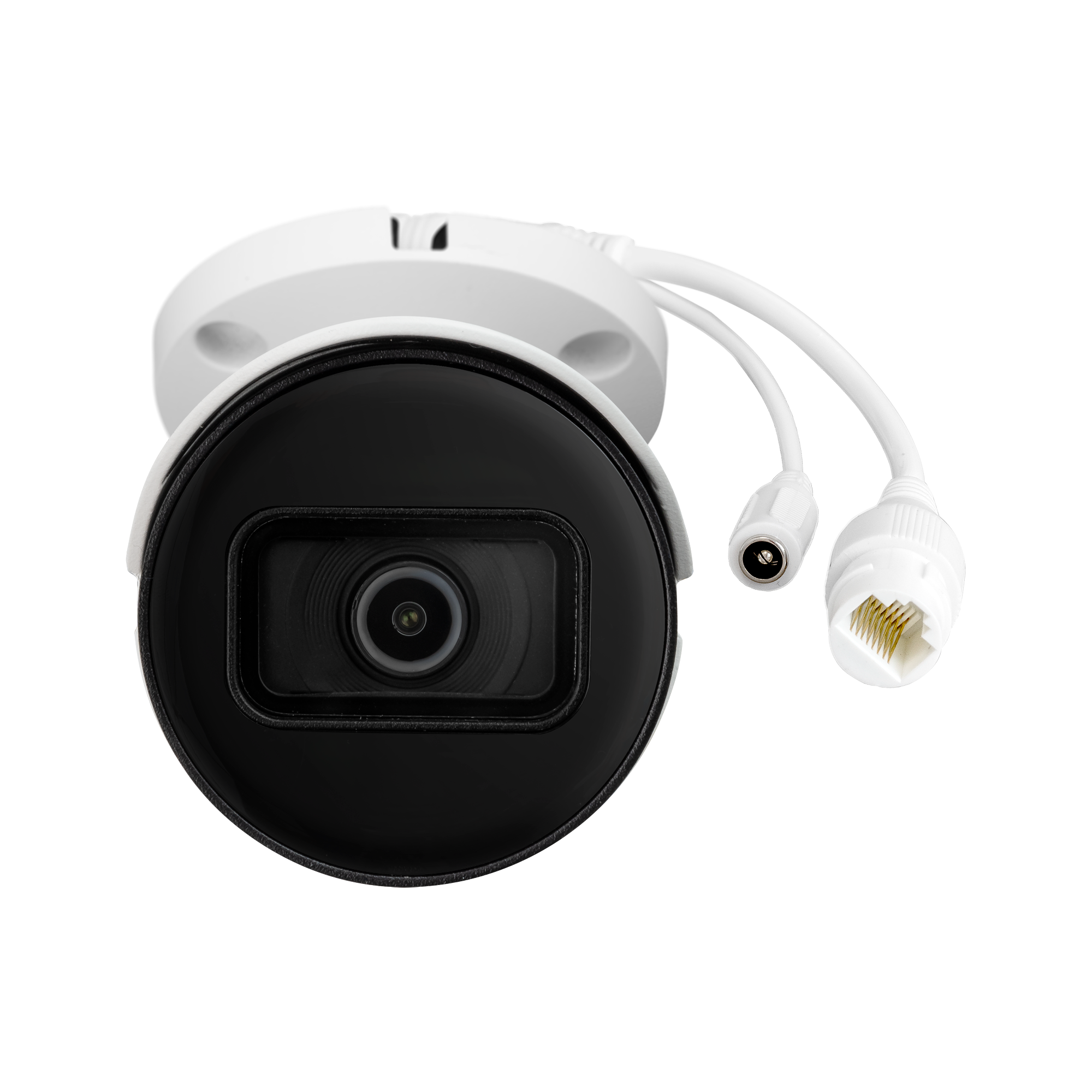

BCS LINE tube 5Mpx IP camera. 1/2.7″ CMOS sensor with 2.8mm lens, WDR (120dB), infrared illuminator – 30m, intelligent functions, motion detection, privacy masks, perimeter protection, 256GB microSD memory card slot, white IP67 housing, power supply: 12V DC. Dimensions: Ø70 x 166.2mm.
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE
BCS-TIP3501IR-E-V
113,16 € gross
Out of Stock- 5Mpx IP bullet camera
- 1/2.7" PS CMOS sensor
- 2.8mm fixed lens
- WDR 120dB
- IR 30m
- IP67 housing
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
| Ai - Perimeter protection | Yes |
|---|---|
| Resolution | 5 Mpx |
| Scanning system | Progressive Scan |
| ROM | 128MB |
| Focus | fixed |
| DORI | Detect 56m/ Observe 22m/ Recognize 11m/ Identify 6m |
| Product | BCS-TIP3501IR-E-V |
| Ai - Built-in intelligent functions | Yes |
| Camera type | Bullet |
| Sensor | 1/2.7'' CMOS |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Pixels | 2592(H)×1944(V) |
| RAM | 256MB |
| Lens | fixed |
| Focal length | 2.8 mm |
| Aperture | F1.6 |
| Iris | fixed |
| Digital zoom | 16× |
| Angle of view | H: 103° V: 71° |
| Min illumination | 0.008Lux(F1.5) 0Lux(F1.5,IR) |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Image rotate | Mirror, Flip 0°/90°/180°/270° |
| Stream support | 2 |
| Resolutions | 5M(2592×1944) / 4M(2688×1520) / 3M(2304×1296) / 2M(1920×1080) / 1.3M(1280×960) / 720P(1280×720) / D1(704×576/704×480) / VGA(640×480) / CIF(352×288/352×240) |
| Main stream | 2592×1944(1~20fps) 2688×1520/2304×1296/1920×1080/1280×960/1280×720(1~25/30fps) |
| Second stream | 704×576/704×480/640×480/352×288/352×240(1~25/30fps) |
| Bitrate | H.264: 32Kbps~8192Kbps,H.265: 12Kbps~8192Kbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 30m |

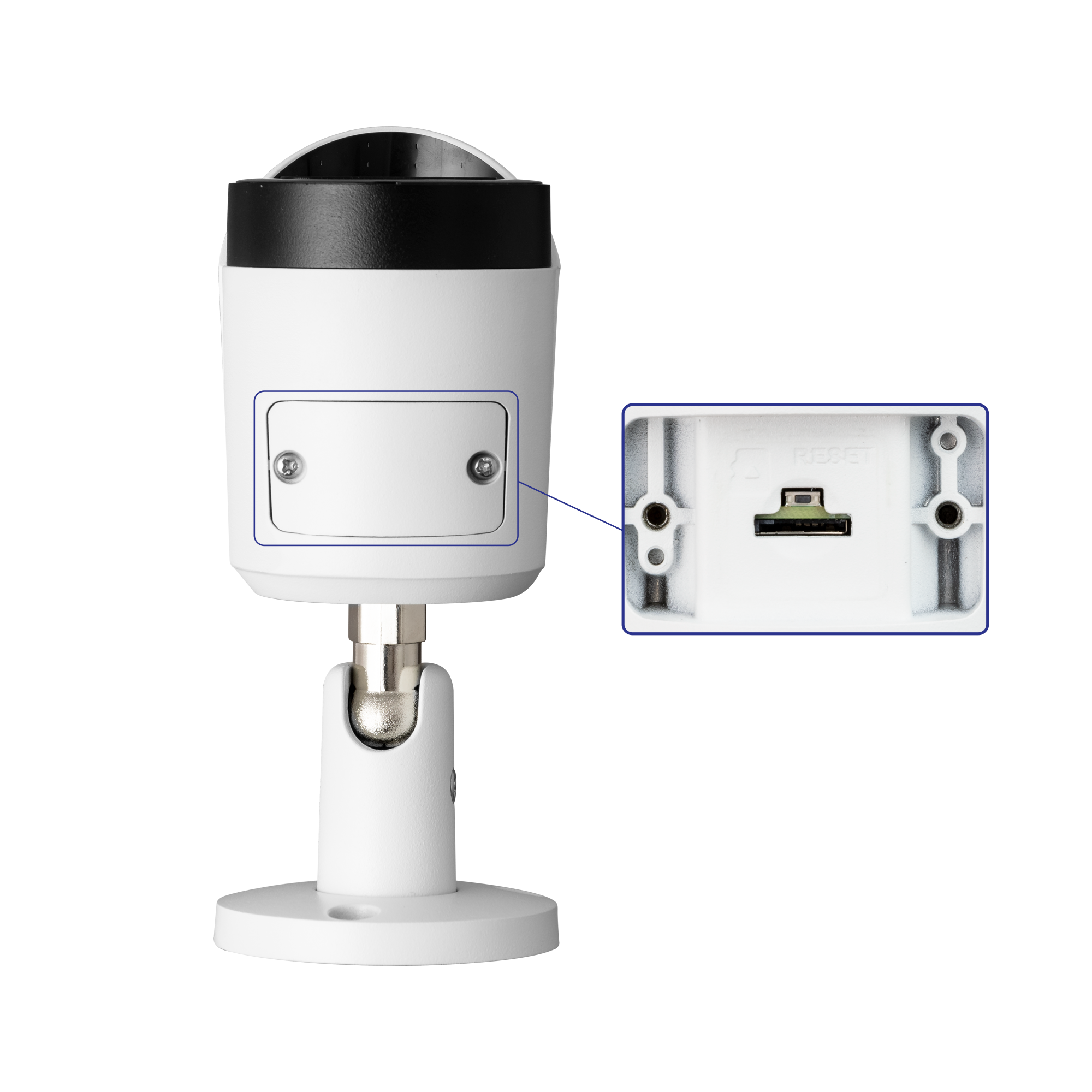

| Memory card slot | microSD 256GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, Bonjour |
| Power supply | PoE |
| Power supply type | 12VDC / PoE(802.3af) |
| Power consumption | max 5.6W |
| Housing color | White |
| IP class | IP67 |
| Working environment | -40°C~+60°C max 95% RH |
| Dimensions | 70×166.2mm |
| Weight | 0.48 kg |
