| Flag | TO ORDER |
|---|---|
| Product | BCS-U-DIP62VSR4-Ai2 |
| NDAA | National Defense Authorization Act |
| Camera type | Dome |
| Resolution | 2 Mpx |
| Sensor | 1/2.8'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 1920(H)×1080(V) |
| Lens | motozoom |
| Focal length | 2.8~12 mm |
| Aperture | F1.4~3.1 |
| Focus | Auto / manual |
| Iris | Auto |
| Optical zoom | 4× |
| Angle of view | H: 34°~105.7° V: 19.1°~55.3° D: 39.1°~126.4° |
| Min illumination | 0.1Lux(F1.4) 0Lux(IR) |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | WDR(120dB) |
| Shutter | Auto / manual 1/30~1/10000s |
| Gain control | (AGC) Auto / manual |
| Defog | Electronic |
| Image rotate | Mirror, Flip |
| Stream support | 4 |
| Resolutions | 1920×1080 / 1280×720 / 640×360 / 352×240 |
| Main stream | 1920×1080@30fps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 40m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | ADPCM 16K / G.726 / G.711u / G.711a |
| Alarm in | 1 |
| Alarm out | 1 |
| Memory card slot | microSD 512GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Yes |
| Privacy masking | 8 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF |
| Protocols | IPv4, IPv6, RTP, RTSP, TCP, HTTP, UDP, HTTPS, FTP, SNTP, SMTP, uPNP, SNMPv2 |
| Network security | DirectIP, TLS, SSL, HTTPS, FEN, IEEE 802.1X, IP filtering, iBank, Chained Fingerprint, Digest Authentication |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) |
| Power consumption | max 8.3W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Built-in heater | Yes |
| Working environment | -40°C~+60°C max 90% RH |
| Dimensions | Ø155×104.4mm |
| Weight | 1 kg |
| pa_ai-built-in-intelligen-cd701 | Built-in intelligent algorithm of image analisis |
| Ai - Perimeter protection | Crossline, intrusion |
| &Ai - Object classification | Yes |
| Ai - Face detection | Face detection and tracking |
| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion reduces false alarms |
Warning: This product belongs to the BCS ULTRA product line.
Use only components and devices from the same line to ensure compatibility.
BCS ULTRA

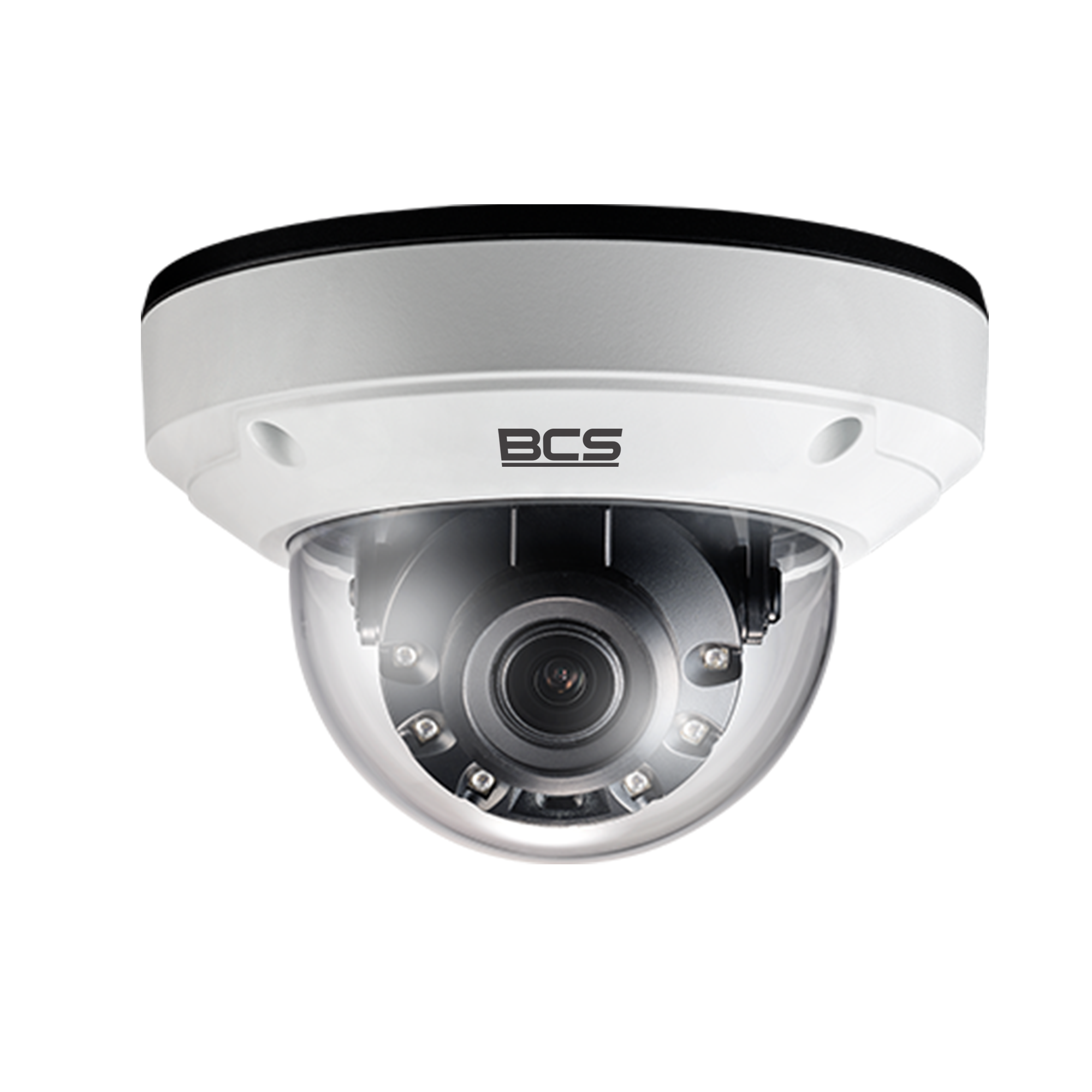

BCS-U-DIP62VSR4-Ai2
707,25 € gross
Out of Stock- 2Mpx IP dome camera
- 1/2.8" PS CMOS sensor
- NDAA compliance
- SkyLight technology
- 2.8–12 mm motorised zoom lens
- WDR 120dB
- IR 40m
- Alarm 1/1, audio 1/1
- IP67, IK10 housing
- Built-in smart features
