| Flag | TO ORDER |
|---|---|
| Product | BCS-U-DIP66VSR6-AI2 |
| pa_product-line | BCS ULTRA |
| NDAA | National Defense Authorization Act |
| Camera type | Dome |
| Resolution | 6 Mpx |
| Sensor | 1/1.8'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 3328(H)×1872(V) |
| Lens | motozoom |
| Focal length | 4.3~9.8 mm |
| Aperture | F1.6~2.6 |
| Focus | Auto / manual |
| Iris | P-Iris |
| Optical zoom | 2× |
| Angle of view | Wide : 110.4º(H) 57.8º(V) 133.8º(D) Tele : 45º(H) 25.2º(V) 51.8(D) |
| Min illumination | 0.13Lux(F1.6) 0Lux(IR) |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / WDR(120dB) |
| Shutter | Auto / manual 1/30~1/10000s |
| Gain control | (AGC) Auto / manual |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Image rotate | Mirror, Flip |
| Stream support | 4 |
| Resolutions | 3840×2160 / 1920×1080 / 1280×720 / 640×360 |
| Main stream | 3840×2160@15fps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 60m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | ADPCM 16K / G.726 / G.711u / G.711a |
| Alarm in | 1 |
| Alarm out | 1 |
| Memory card slot | microSD 512GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Yes |
| Privacy masking | 8 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/T/M) |
| Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp, SNMPv2 |
| Network security | FIPS 140-3 Level 3, Digest authentication, Password Protection, Brute force delay protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Power supply | PoE |
| Power supply type | PoE(802.3at) |
| Power consumption | max 13.2W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| pa_nema4x | Tak |
| Working environment | -40°C~+55°C max 90% RH |
| Dimensions | Ø160×120mm |
| Weight | 1.1 kg |
| pa_ai-built-in-intelligent-f | Built-in intelligent algorithm of image analisis |
| Ai - Perimeter protection | Crossline, intrusion |
| &Ai - Object classification | Yes |
| Ai - Face detection | Face detection and tracking |
| pa_ai-human-vehicle-detectio | Human/vehicle classification for crossline and intrusion reduces false alarms |

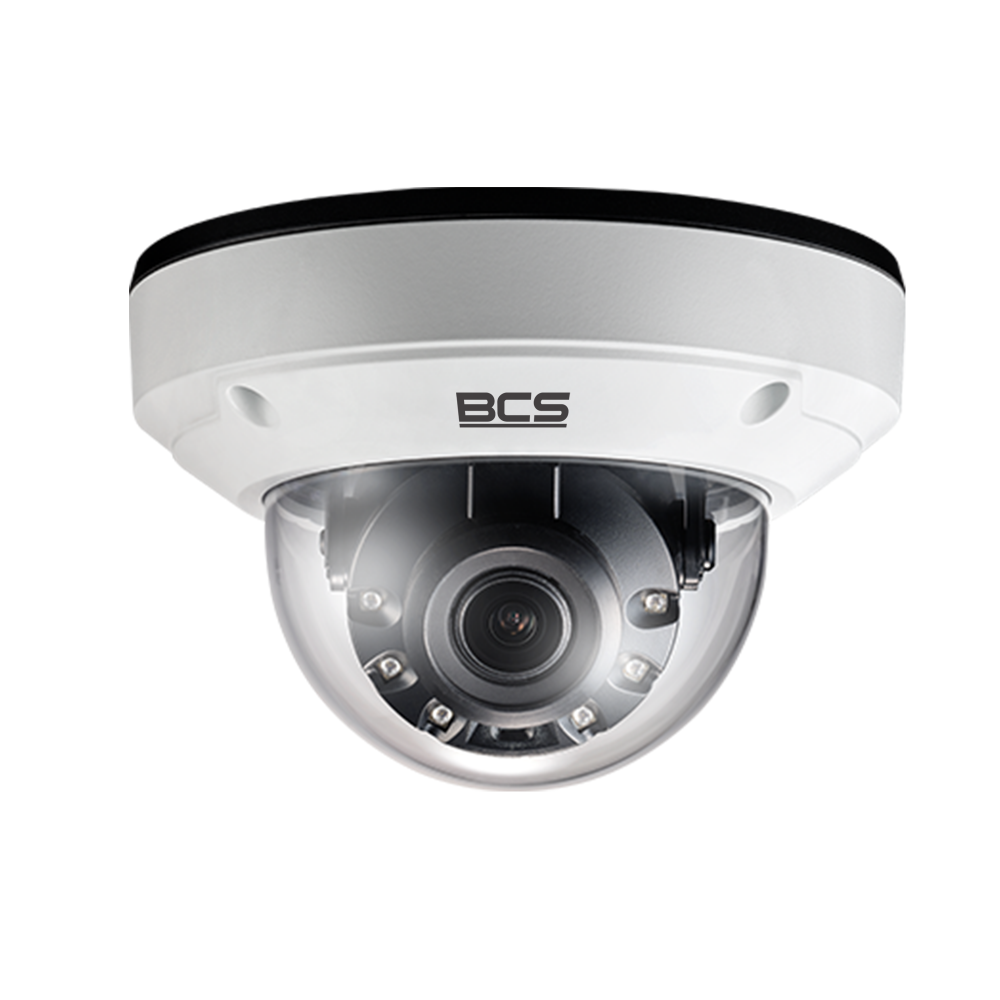

BCS-U-DIP66VSR6-AI2
1094,70 € gross
Out of Stock- 6Mpx dome IP camera
- 1/1.8" PS CMOS sensor
- NDAA compliant
- SkyLight technology
- 4.3–9.8 mm motorised zoom lens
- WDR 120dB
- IR 60m
- Alarm 1/1, audio 1/1
- IP67, IK10, NEMA4X housing
- Built-in smart features
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
