| Product | BCS-U-FIP512FWR2 |
|---|---|
| NDAA | National Defense Authorization Act |
| Camera type | Fisheye |
| Resolution | 12 Mpx |
| Sensor | 1/2.3'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 2944(H)×2944(V) |
| Lens | fixed |
| Focal length | 1.6 mm |
| Aperture | F2.0 |
| Focus | fixed |
| Iris | fixed |
| Angle of view | H: 180° V: 180° D: 180° |
| Min illumination | 0.3Lux(F2.0) 0Lux(IR) |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | WDR(120dB) |
| Shutter | Auto / manual 1/30~1/10000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2DNR/3DNR |
| Image rotate | 1O, 1P, 1P2R, 2P, 4R, 1O7R |
| Stream support | 4 |
| Resolutions | 2944×2944 / 768×768 |
| Main stream | 2944×2944@30fps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 20m |
| Microphone | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | ADPCM 16K / G.726 / G.711u / G.711a |
| Alarm in | 1 |
| Alarm out | 1 |
| Memory card slot | microSD 512GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Yes |
| Privacy masking | 8 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF |
| Protocols | IPv4, IPv6, RTP, RTSP, TCP, HTTP, UDP, HTTPS, FTP, SNTP, SMTP, uPNP, SNMPv2, mDNS (Multicast DNS), filtrowanie IP, szyfrowanie SSL, IEEE802.1x |
| Network security | DirectIP, TLS, SSL, HTTPS, FEN, IEEE 802.1X, IP filtering, iBank, Chained Fingerprint, Digest Authentication |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) klasa 3 |
| Power consumption | max 11.3W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Working environment | -30°C~+50°C max 90% RH |
| Dimensions | Ø135×56.9mm |
| Weight | 0.67 kg |
Warning: This product belongs to the BCS ULTRA product line.
Use only components and devices from the same line to ensure compatibility.
BCS ULTRA

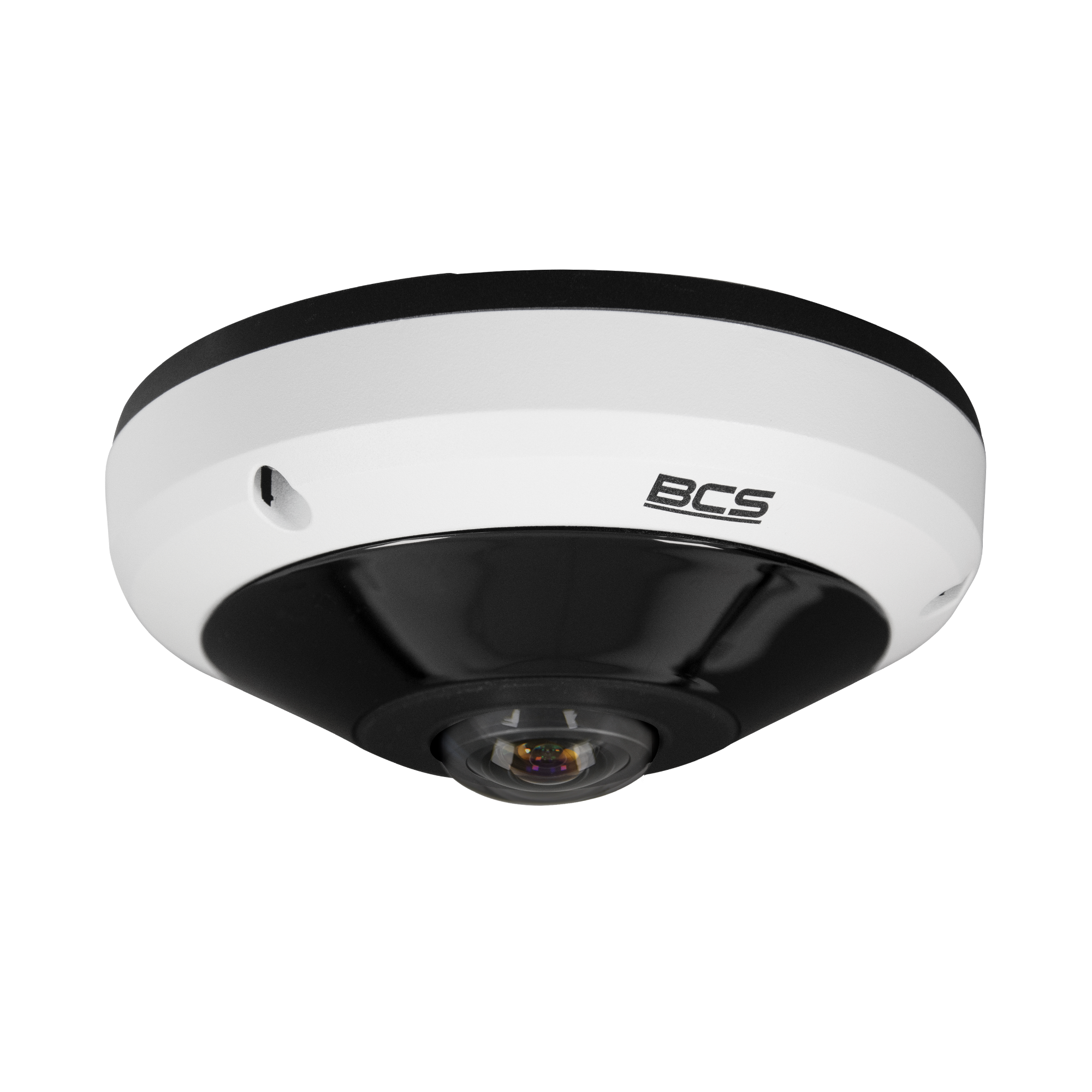

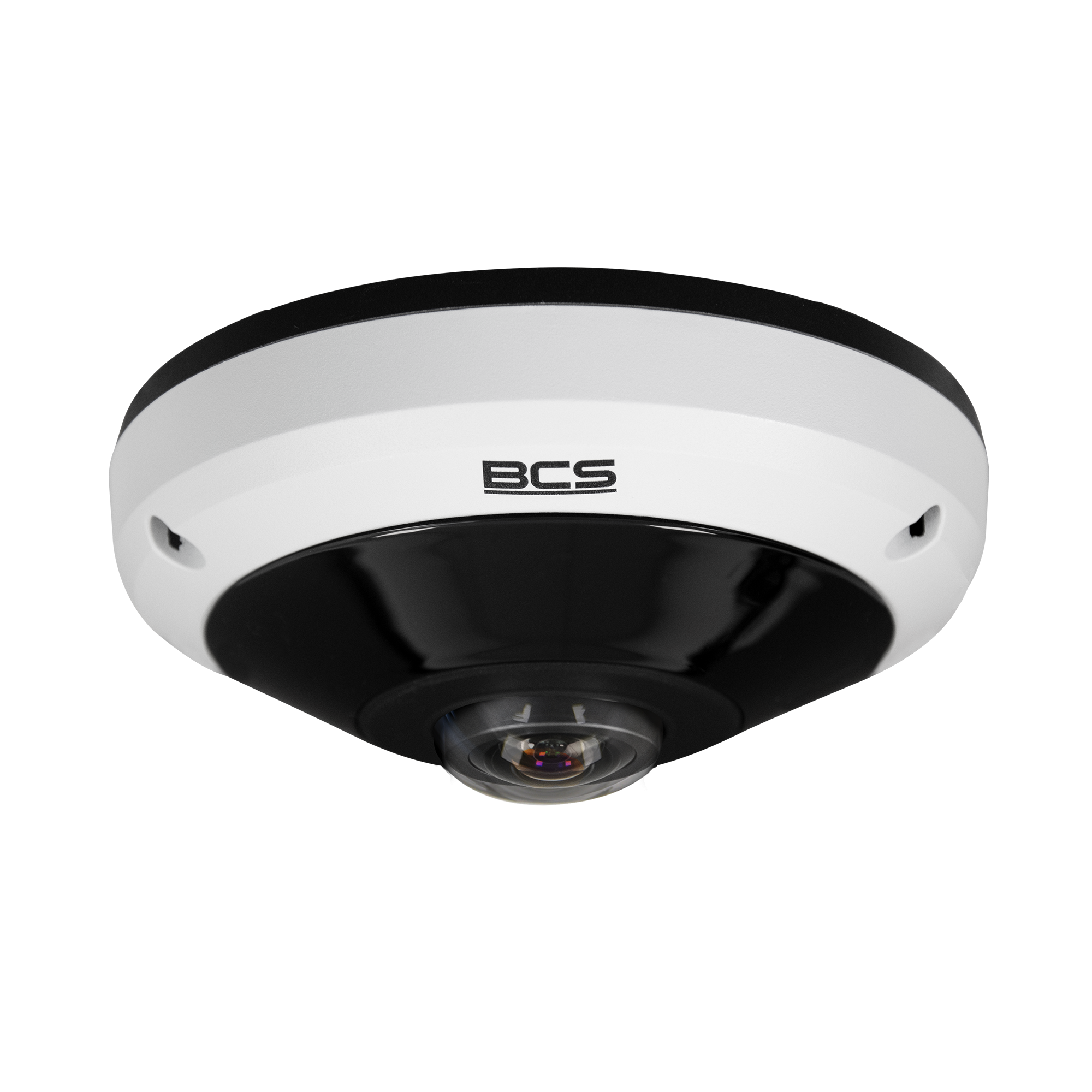

BCS-U-FIP512FWR2
878,22 € gross
Out of Stock- 12Mpx IP camera
- 1/2.3" PS CMOS sensor
- NDAA compliant
- 1.6mm fisheye lens
- WDR 120dB
- IR 20m
- Alarm 1/1, audio 1/1, microphone
- IP67, IK10 housing
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
