| Flag | TO ORDER |
|---|---|
| Product | BCS-U-NVR0402-A-4K-4P(6TB) |
| NDAA | National Defense Authorization Act |
| System | IP |
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| Channels | 4 |
| HDD support | 2 |
| HDD capacity | 10 TB |
| Record mode | Continuous, manual, alarm, motion detection, schedule, Ai |
| Max recording resolution | 12 Mpx |
| Incoming bandwidth | 160Mbps |
| Video compression | H.265+ / H265 / H.264+ / H.264 |
| HDMI out | HDMI4K |
| VGA out | VGA |
| HDMI display resolutions | 3840×2160 / 1920×1080 / 1280×1024 / 1280×720 / 1024×768 |
| VGA display resolutions | 1920×1080 / 1280×1024 / 1280×720 / 1024×768 |
| Display split | 1/2/3/4 |
| Synchronous playback | 4 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| Interfaces | 1×USB2.0, 1×USB3.0, 1×eSATA |
| Serial port | RS232 |
| Audio out | 1 |
| Alarm in | 4 |
| Alarm out | 1 |
| Alarm | Motion detection, signal lost,, sabotage, scene change, PIR, IPC, Ai functions, offline, HDD, IP, MAC, login |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | Client 1×RJ-45 10/100/1000Mbps, Video in 1×RJ-45 10/100/1000Mbps |
| Compatibility | ONVIF, support third party cameras |
| Network security | DirectIP, SSL, TLS, FEN, iBank, Firewall, Chained Fingerprint, IPC separated network |
| Standard | IEEE 802.3 af/at |
| Switch PoE power | 30W |
| PoE channels | 4 |
| Power supply | 12V DC + 48V DC |
| pa_power-consumption-with-f3386 | max 30.7W |
| Working environment | 0°C~+40°C max 90% RH |
| Casing | 1.5U |
| Dimensions (W×D×H) | 300×231×62mm |
| Weight (without HDD) | 2.2 kg |
| pa_ai-intelligent-functio-b8957 | Perimeter protection (intrusion, crossing the line), object recognition (person/motor vehicle), face detection |
Warning: This product belongs to the BCS ULTRA product line.
Use only components and devices from the same line to ensure compatibility.
BCS ULTRA

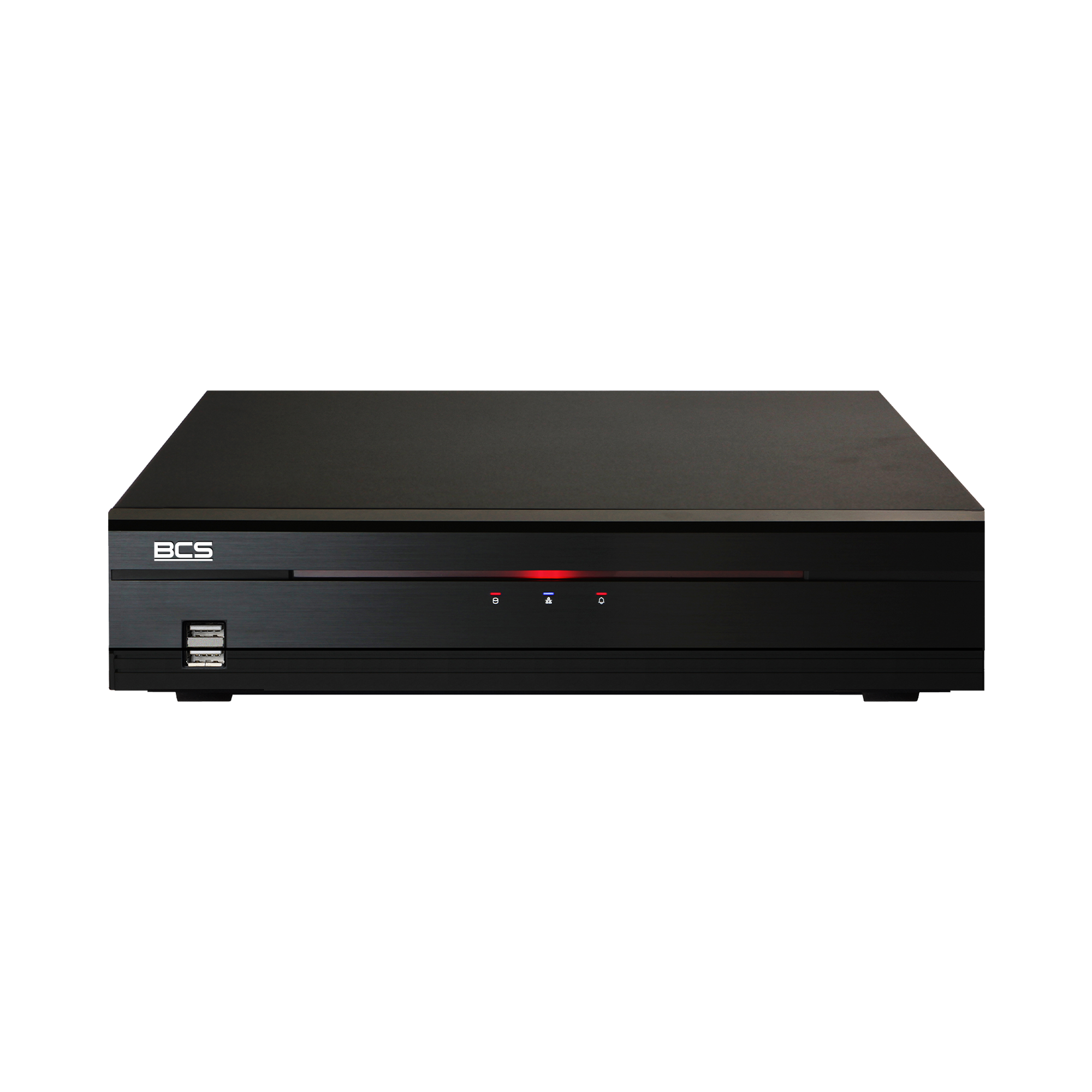

BCS-U-NVR0402-A-4K-4P(6TB)
1511,67 € gross
Out of Stock- 4-channel IP recorder
- Compliance with the NDAA
- Built-in 4-port 30W PoE switch
- Supports 2 hard drives
- Built-in 1x6TB hard drive
- Supports 12Mpx IP cameras
- 4/1 alarm, audio output
- HDMI 4K/VGA output
Out of stock
