Warning: This product belongs to the BCS ULTRA product line.
Use only components and devices from the same line to ensure compatibility.

BCS-U-NVR1602-A-4K-8P(6TB)
BCS-U-NVR1602-A-4K-8P(6TB) - Image 2
BCS-U-NVR1602-A-4K-8P(6TB) - Image 3
BCS-U-NVR1602-A-4K-8P(6TB) - Image 4
BCS-U-NVR1602-A-4K-8P(6TB) - Image 5
BCS-U-NVR1602-A-4K-8P(6TB) - Image 6
BCS ULTRA

BCS-U-NVR1602-A-4K-8P(6TB)

2091,00 € gross

19 In Stock
  • 16-channel IP recorder
  • Compliance with the NDAA
  • Built-in 8-port 50W PoE switch
  • Supports 2 hard drives
  • Built-in 1x6TB hard drive
  • Supports 12Mpx IP cameras
  • 4/1 alarm, audio output
  • HDMI 4K/VGA output

19 in stock

  • DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
  • Official BCS e-commerce Business Partner
  • Technical support
SKU: 12007 Categories: , , ,
Product

BCS-U-NVR1602-A-4K-8P(6TB)
NDAA

National Defense Authorization Act
System

IP
Pentaplex function

Live view / recording / playback / archiving / remote access
Channels

16
HDD support

2
HDD capacity

10 TB
Record mode

Continuous, manual, alarm, motion detection, schedule, Ai
Max recording resolution

12 Mpx
Incoming bandwidth

320Mbps
Video compression

H.265+ / H265 / H.264+ / H.264
HDMI out

HDMI4K
VGA out

VGA
HDMI display resolutions

3840×2160 / 1920×1080 / 1280×1024 / 1280×720 / 1024×768
VGA display resolutions

1920×1080 / 1280×1024 / 1280×720 / 1024×768
Display split

1/2/3/4/6/8/9/16
Synchronous playback

16
Archiving

Possibility to download material to external media such as USB FLASH, USB HDD

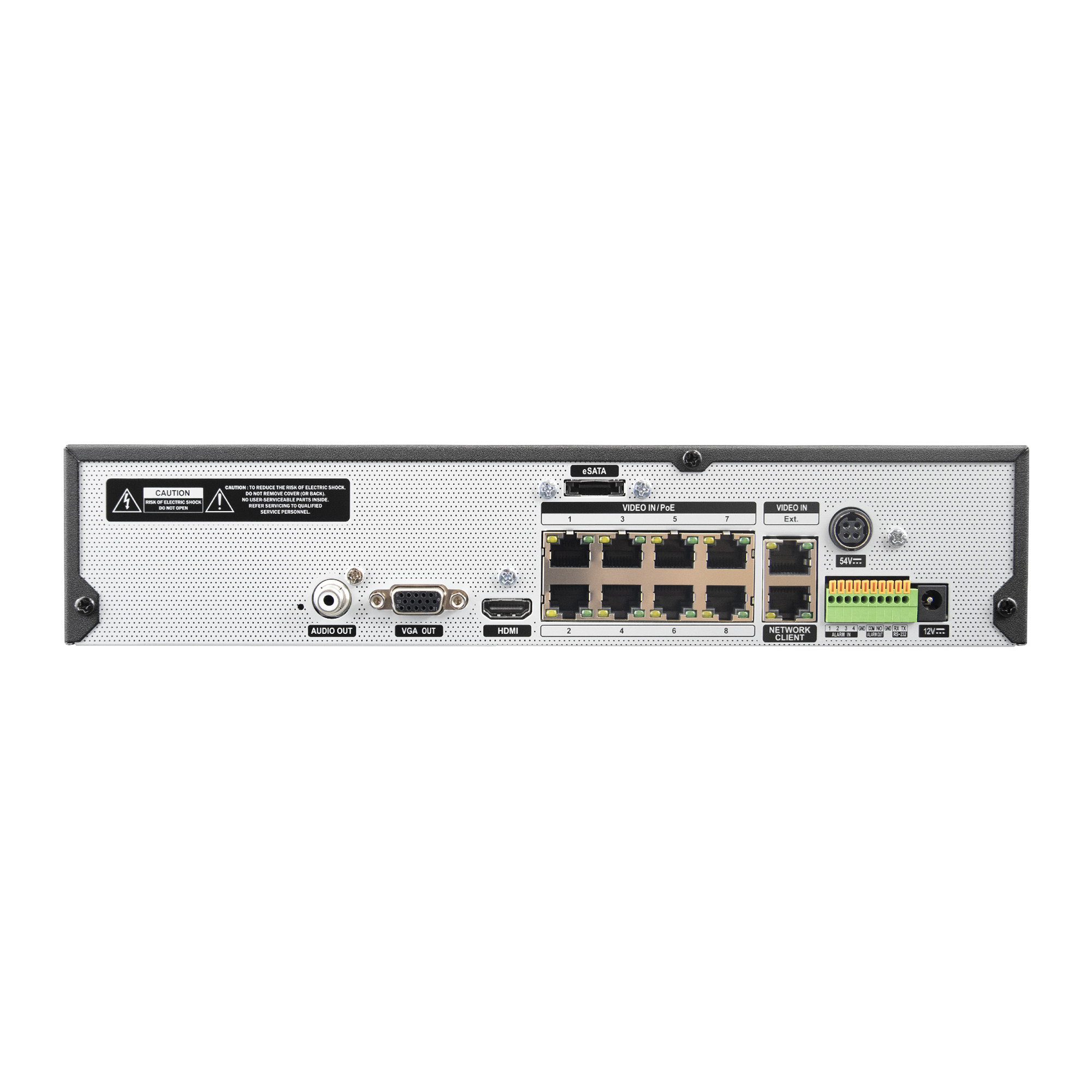

Interfaces

1×USB2.0, 1×USB3.0, 1×eSATA
Serial port

RS232
Audio out

1
Alarm in

4
Alarm out

1
Alarm

Motion detection, signal lost,, sabotage, scene change, PIR, IPC, Ai functions, offline, HDD, IP, MAC, login
Support

Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
Network

Client 1×RJ-45 10/100/1000Mbps, Video in 1×RJ-45 10/100/1000Mbps
Compatibility

ONVIF, support third party cameras
Network security

DirectIP, SSL, TLS, FEN, iBank, Firewall, Chained Fingerprint, IPC separated network
Standard

IEEE 802.3 af/at
Switch PoE power

50W
PoE channels

8
Power supply

12V DC + 48V DC
pa_power-consumption-with-f3386

max 50.4W
Working environment

0°C~+40°C max 90% RH
Casing

1.5U
Dimensions (W×D×H)

300×231×62mm
Weight (without HDD)

2.3 kg
pa_ai-intelligent-functio-b8957

Perimeter protection (intrusion, crossing the line), object recognition (person/motor vehicle), face detection
