| Flag | TO ORDER |
|---|---|
| Product | BCS-U-SIP1521SR10-Ai2 |
| pa_product-line | BCS ULTRA |
| NDAA | National Defense Authorization Act |
| Camera type | PTZ |
| Resolution | 5 Mpx |
| Sensor | 1/2.8'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 2592(H)×1944(V) |
| Lens | motozoom |
| Focal length | 5.33~111.93 mm |
| Aperture | F1.67~F3.69 |
| Focus | Auto / manual |
| Iris | DC Iris (Hall Sensor) |
| Optical zoom | 21× |
| Angle of view | Wide : 54.8°(H), 41.7°(V), 67.2°(D) Tele : 3.3°(H), 2.5°(V), 4.1°(D) |
| Min illumination | 0.13Lux(F1.67) 0Lux(B/W,IR) |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / WDR(120dB) |
| Shutter | Auto / manual 1/30~1/10000s |
| Gain control | (AGC) Auto / manual |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Image rotate | Mirror, Flip |
| Stream support | 4 |
| Resolutions | 4:3 mode : 30ips : 2592 x 1944(WDR) 16:9 mode : 30ips : 2592 x 1456(WDR) 4:3 : 2592×1944, 1920×1440, 1280x960x 640×480 16:9 : 2592×1456, 1920×1080, 1280×720, 640×360 |
| Video compression | H.265 / H.265+ / H.264+ / H.264 / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 100m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | ADPCM 16K / G.726 / G.711u / G.711a |
| Alarm in | 1 |
| Alarm out | 1 |
| Memory card slot | microSD 512GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Yes |
| Privacy masking | 32 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF |
| Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, FTPS, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Network security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Power supply | PoE |
| Power supply type | PoE(802.3at) |
| Power consumption | max 16.8W |
| Housing color | White |
| IP class | IP66 |
| Working environment | -30°C~+55°C max 95% RH |
| Dimensions | Ø173.65mm×173.5mm |
| Weight | 2.37 kg |
| PAN speed | 0.02°/s~240°/s(240°/s preset) |
| TILT speed | 0.02°/s~240°/s(240°/s preset) |
| PAN range | 0°~360° |
| TILT range | 0°~90° |
| Auto tracking | Yes |
| Automatic functions | 256 presets |
| pa_ai-built-in-intelligent-f | Built-in intelligent algorithm of image analisis |
| Ai - Perimeter protection | Intrusion, crossline, loitering, sabotage |
| &Ai - Object classification | Yes |
| Ai - Face detection | Face detection and tracking |
| pa_ai-human-vehicle-detectio | Human/vehicle classification for crossline and intrusion reduces false alarms |

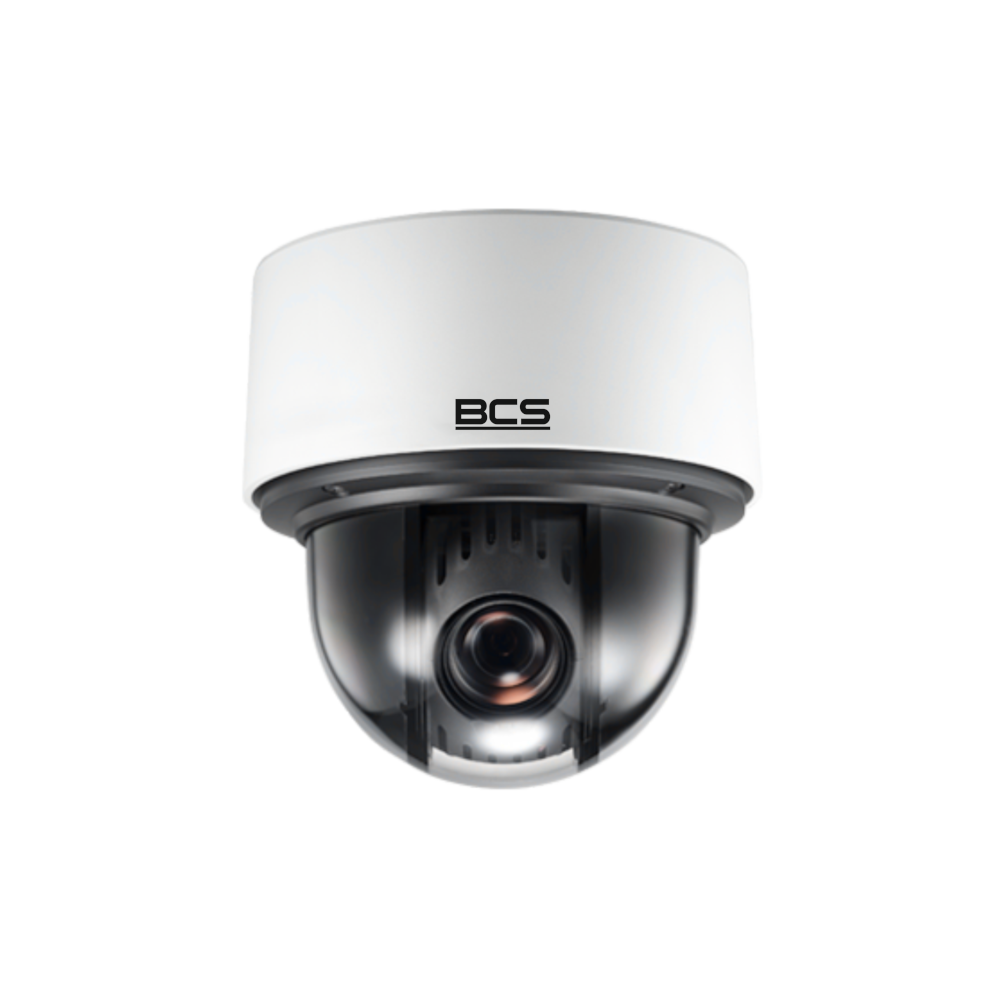

BCS-U-SIP1521SR10-Ai2
1654,35 € gross
Out of Stock- 5Mpx pan-tilt IP camera
- 1/2.8" PS CMOS sensor
- NDAA compliant
- SkyLight technology
- 5.33–111.93 mm motorised zoom lens
- 21x optical zoom
- IR 100m
- Alarm 1/1, audio 1/1
- IP66-rated housing
- Built-in smart features
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
