| Product | BCS-U-TIP68VSR4 |
|---|---|
| NDAA | National Defense Authorization Act |
| Camera type | Bullet |
| Resolution | 8 Mpx |
| Sensor | 1/2.8'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 3840(H)×2160(V) |
| Lens | motozoom |
| Focal length | 2.7~13.5 mm |
| Aperture | F1.8~3.32 |
| Focus | Auto / manual |
| Iris | Auto |
| Optical zoom | 5× |
| Angle of view | H: 32.6°~110.6° V: 18.3°~57.3° D: 37.4°~134.1° |
| Min illumination | 0.2Lux(F1.8) 0Lux(IR) |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / WDR(120dB) |
| Shutter | Auto / manual 1/30~1/10000s |
| Gain control | (AGC) Auto / manual |
| Image rotate | Mirror, Flip |
| Stream support | 4 |
| Resolutions | 3840×2160 / 1920×1080 / 1280×720 / 640×360 |
| Main stream | 3840×2160@15fps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 40m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | ADPCM 16K / G.726 / G.711u / G.711a |
| Alarm in | 1 |
| Alarm out | 1 |
| Memory card slot | microSD 512GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Yes |
| Privacy masking | 8 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF |
| Protocols | IPv4, IPv6, RTP, RTSP, TCP, HTTP, UDP, HTTPS, FTP, SNTP, SMTP, uPNP, SNMPv2 |
| Network security | DirectIP, TLS, SSL, HTTPS, FEN, IEEE 802.1X, IP filtering, iBank, Chained Fingerprint, Digest Authentication |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) |
| Power consumption | max 13.2W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Built-in heater | Yes |
| Working environment | -40°C~+55°C max 90% RH |
| Dimensions | 80×75×237mm |
| Weight | 1 kg |
Warning: This product belongs to the BCS ULTRA product line.
Use only components and devices from the same line to ensure compatibility.
BCS ULTRA

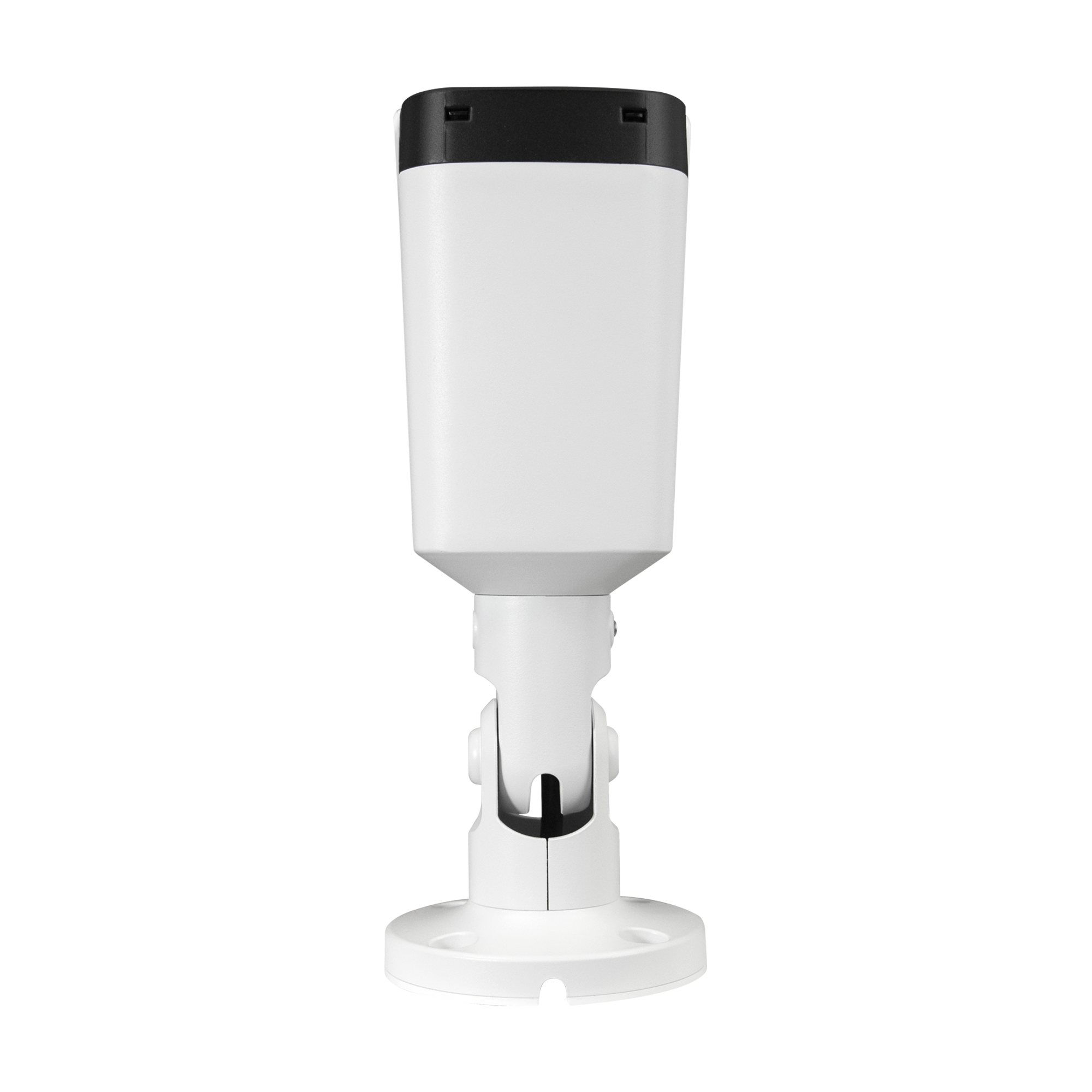

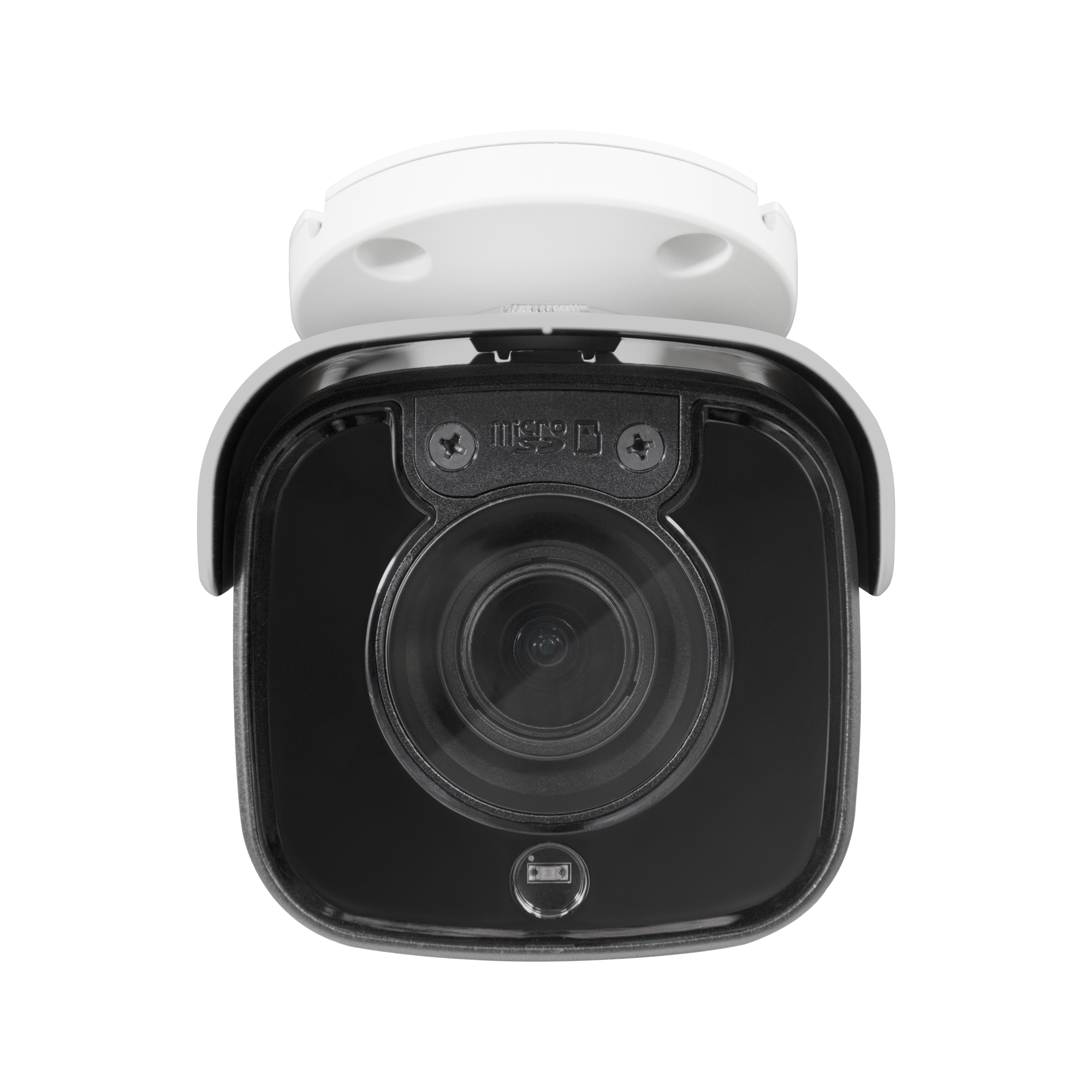

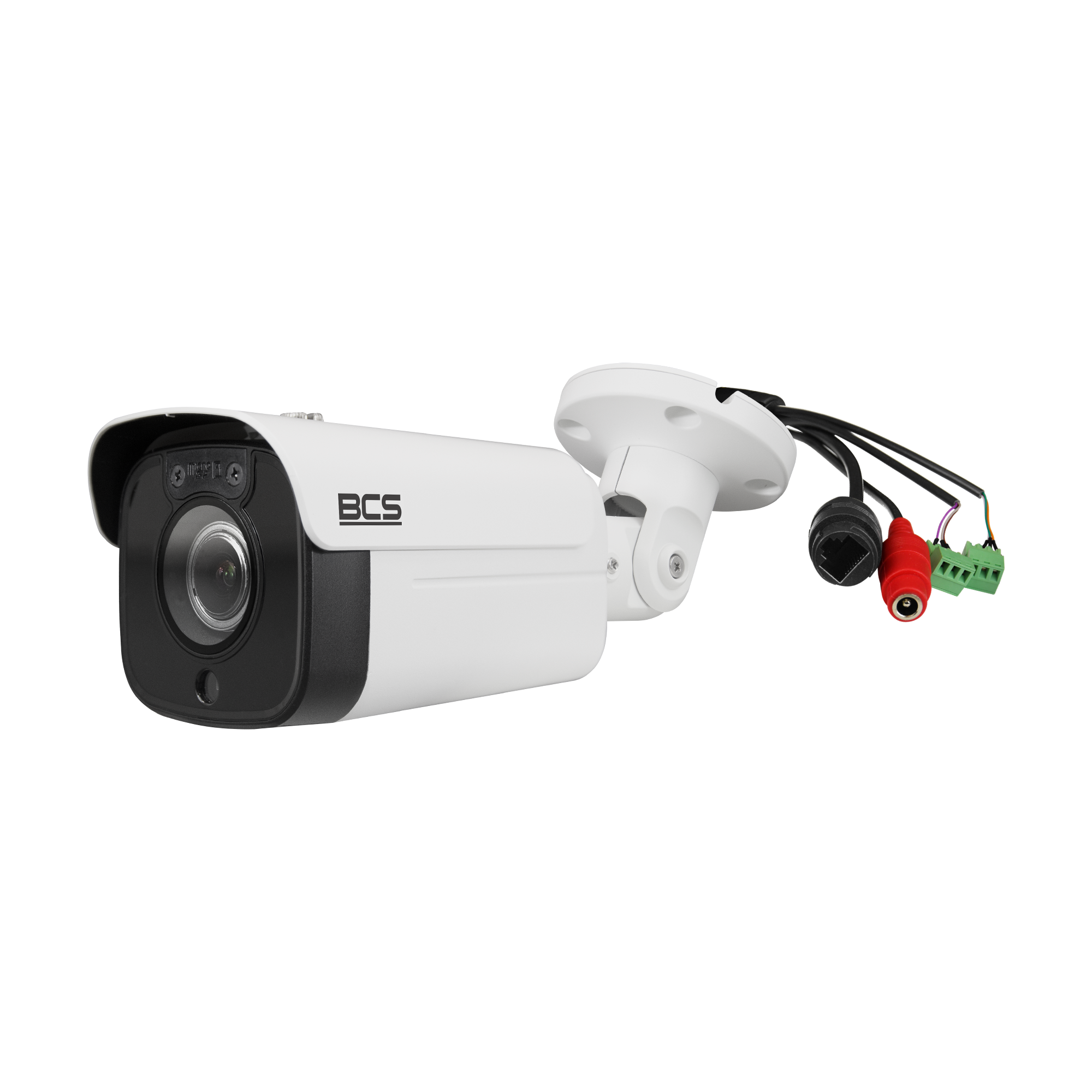

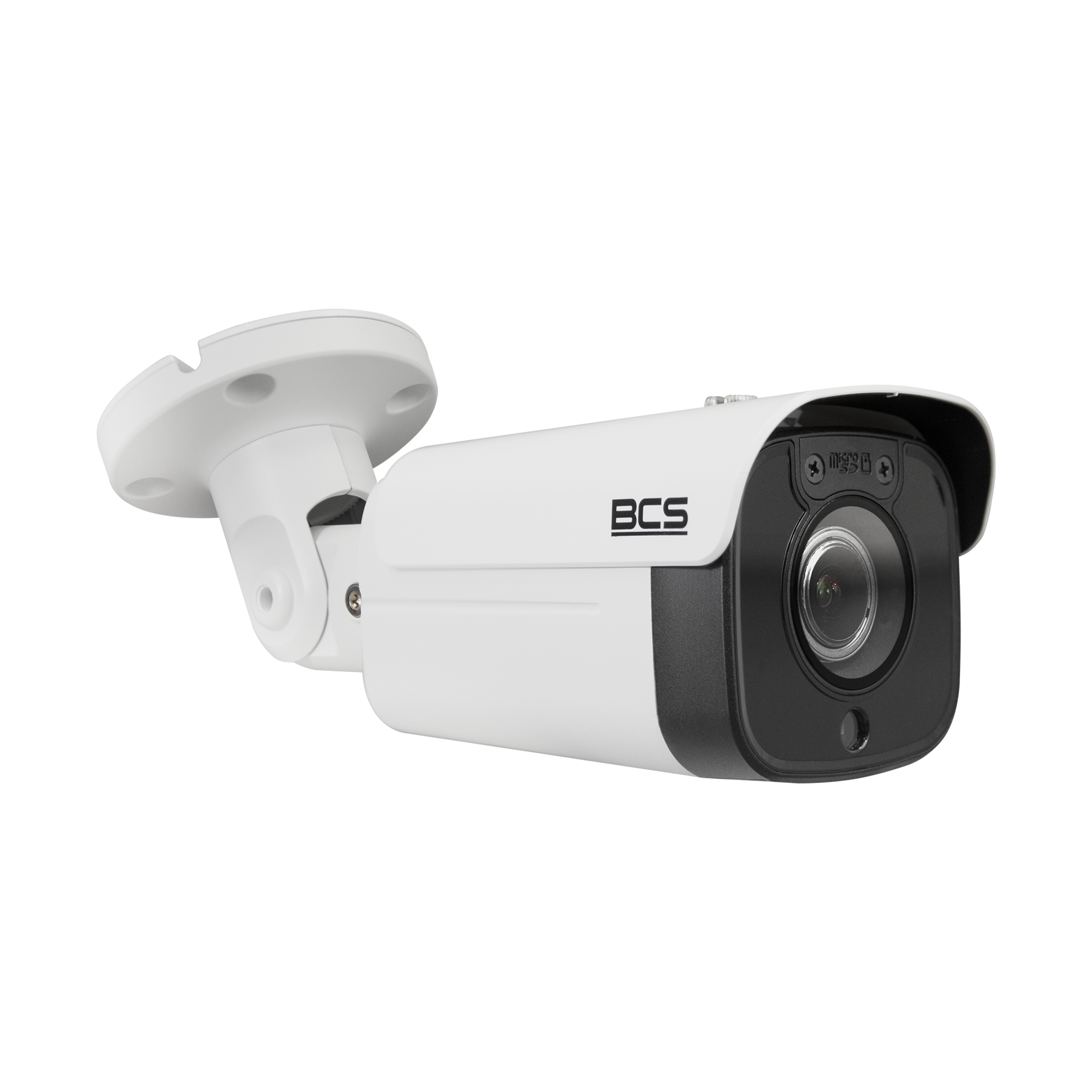

BCS-U-TIP68VSR4
643,29 € gross
Out of Stock- 8Mpx IP bullet camera
- 1/2.8" PS CMOS sensor
- SkyLight technology
- NDAA compliant
- 2.7–13.5 mm motorised zoom lens
- WDR 120dB
- IR 40m
- Alarm 1/1, audio 1/1
- IP67, IK10 housing
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
