Buffer power supply kit for 16 PoE devices.

Out of stock

This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.

SKU: 8315 Categories: ,

A set for buffer power supply of IP CCTV cameras. The device is a convenient solution to the problem of a buffer power supply for surveillance cameras that require uninterrupted operation. The device is designed to work with IP cameras and other network devices powered in PoE 802.3at / af and PoE PASSIVE standards.

The device is especially recommended for systems requiring higher network bandwidth, such as 4K Ultra HD CCTV monitoring.

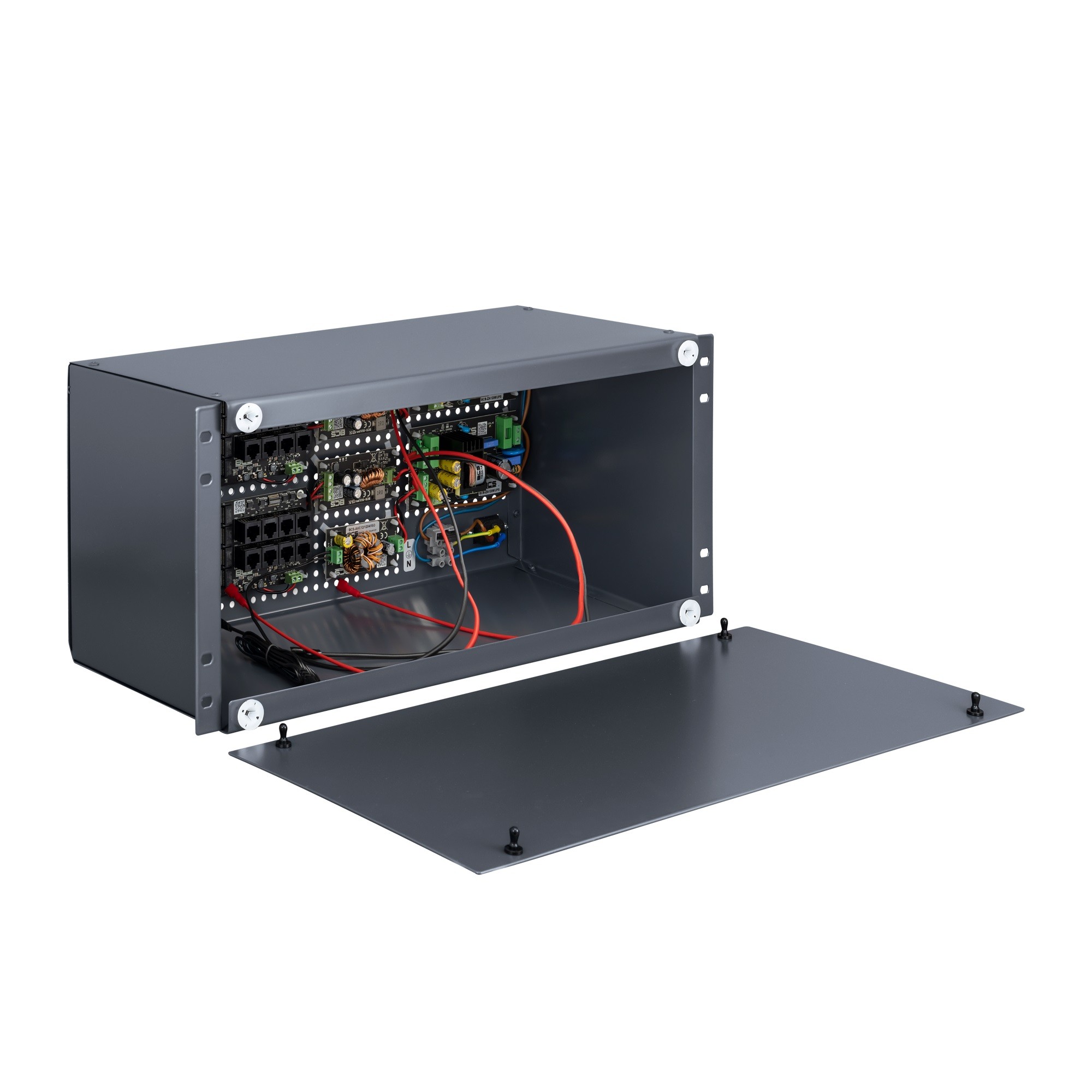

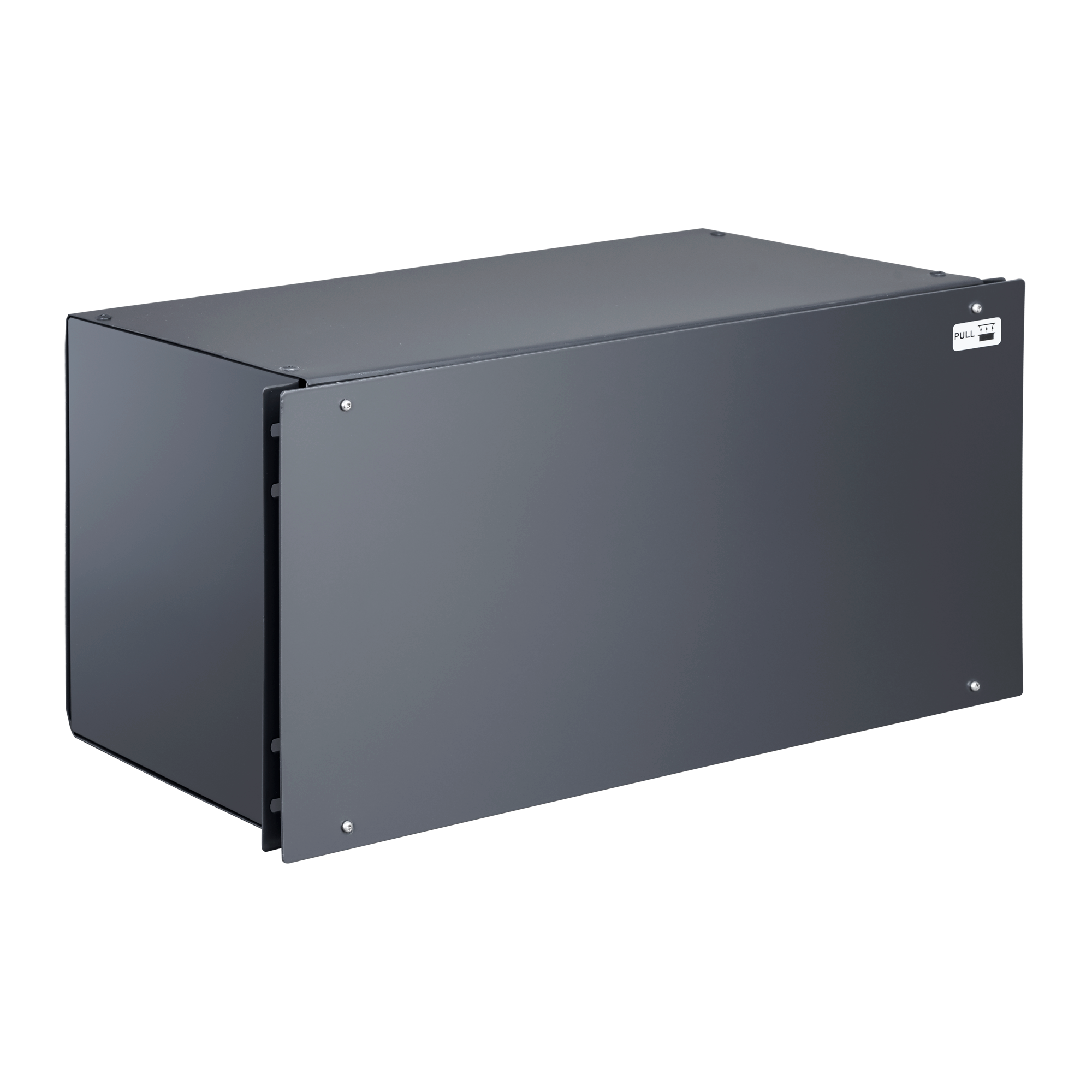

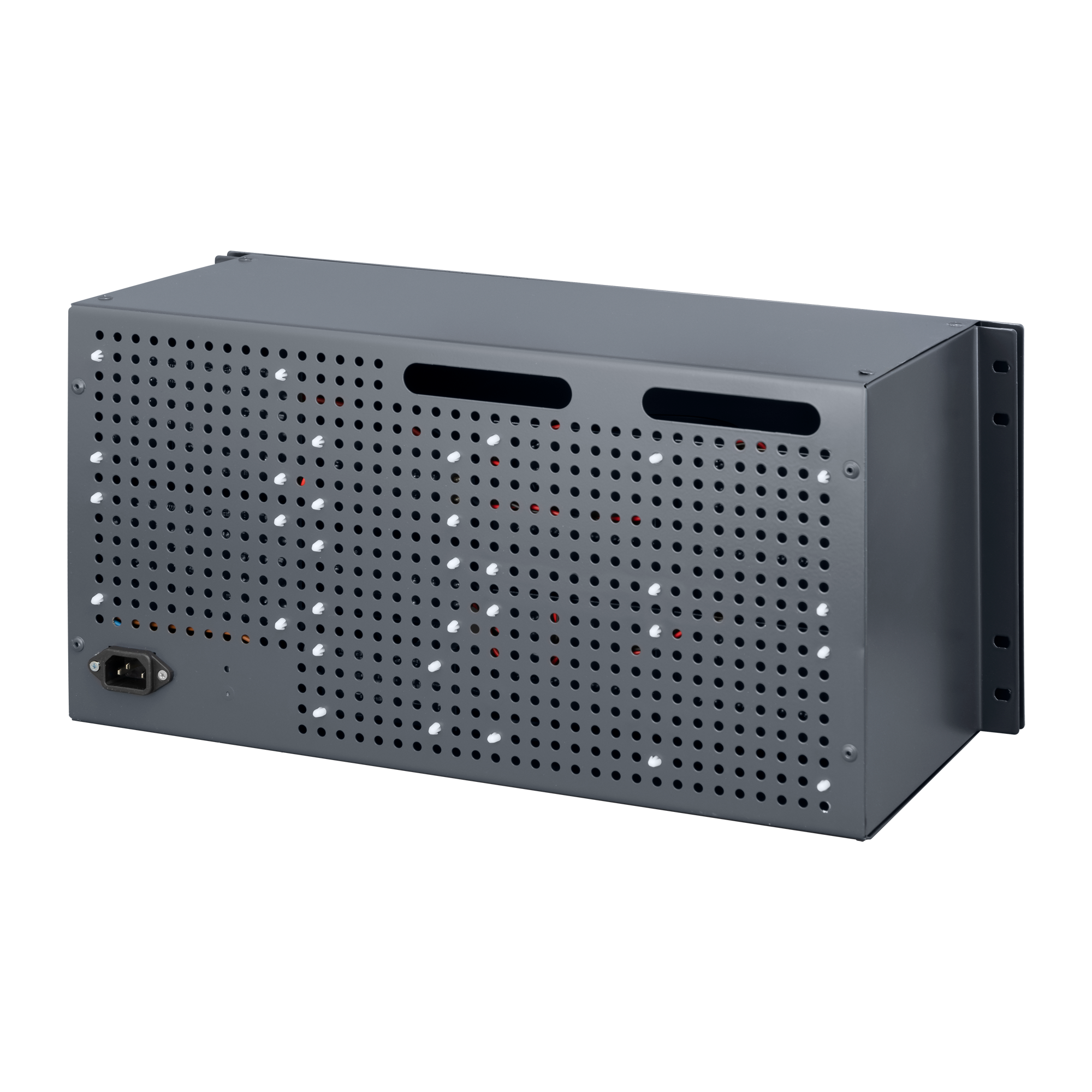

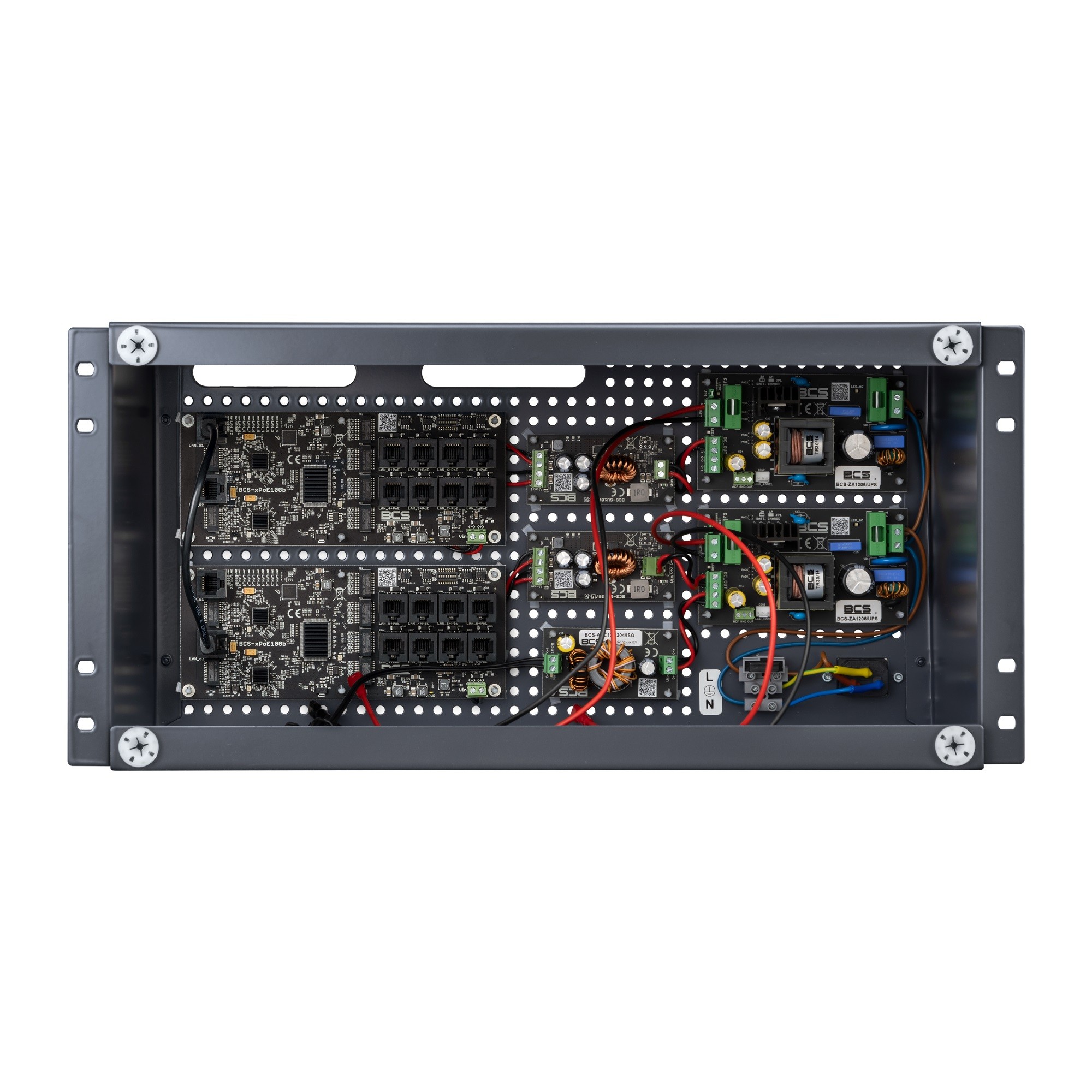

The device is closed in a housing that allows it to be installed in a RACK teletechnical cabinet. A well-thought-out and unique design on the Polish market enables installation in one device housing, together with buffer power supply and batteries. The body is made of steel sheet, and the masking cover is made of light aluminum sheet. Both elements are powder coated in a semi-matte graphite RAL 7024 color.

Product

BCS-UPS/IP16Gb/E-S/RACK5U

PoE ports

16×RJ45 100Mbps

Standard IEEE

802.3af / 802.3at / PoE PASSIVE

Adapter power

2×72W

Power supply

V in: 190-260 VAC, 50 Hz V out: 48 VDC +/- 2%

UPS backup

max 2 × 12V 18Ah

Working environment

-10°C~+40°C max 90% RH

Weight

3.5 kg

Protection level

IP20

Casing
Dimensions (W×D×H)

440×220×180mm
