BCS — Est. 2008 Decades of expertise A diverse portfolio developed across Europe

BCS POWER

BCS-UPS/IP4/Z/E-S

264,45 € gross

9 In Stock

Buffer power supply kit for 5 PoE devices, in an outdoor housing.

9 in stock

  • DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
  • Official BCS e-commerce Business Partner
  • Technical support
SKU: 7551 Categories: ,

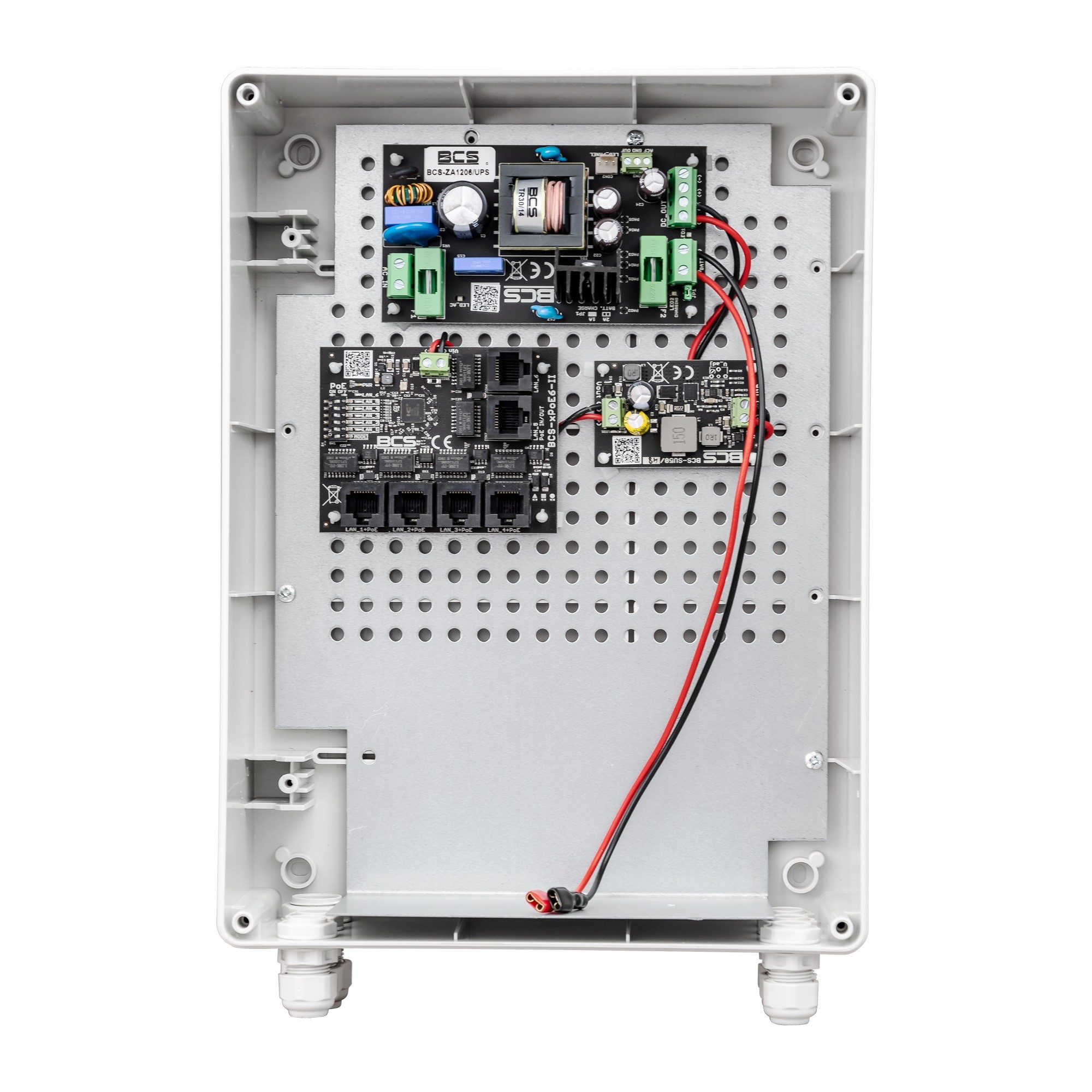

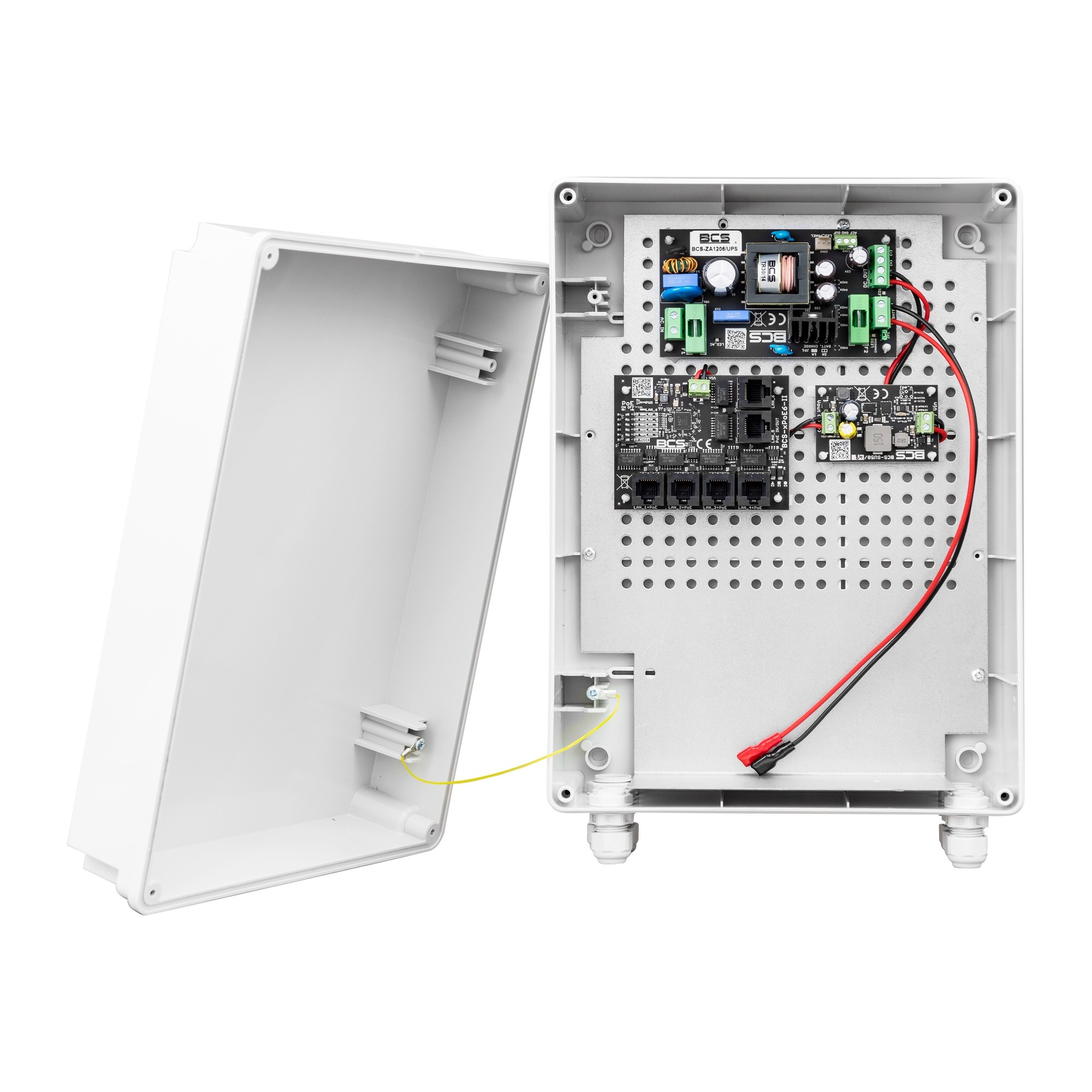

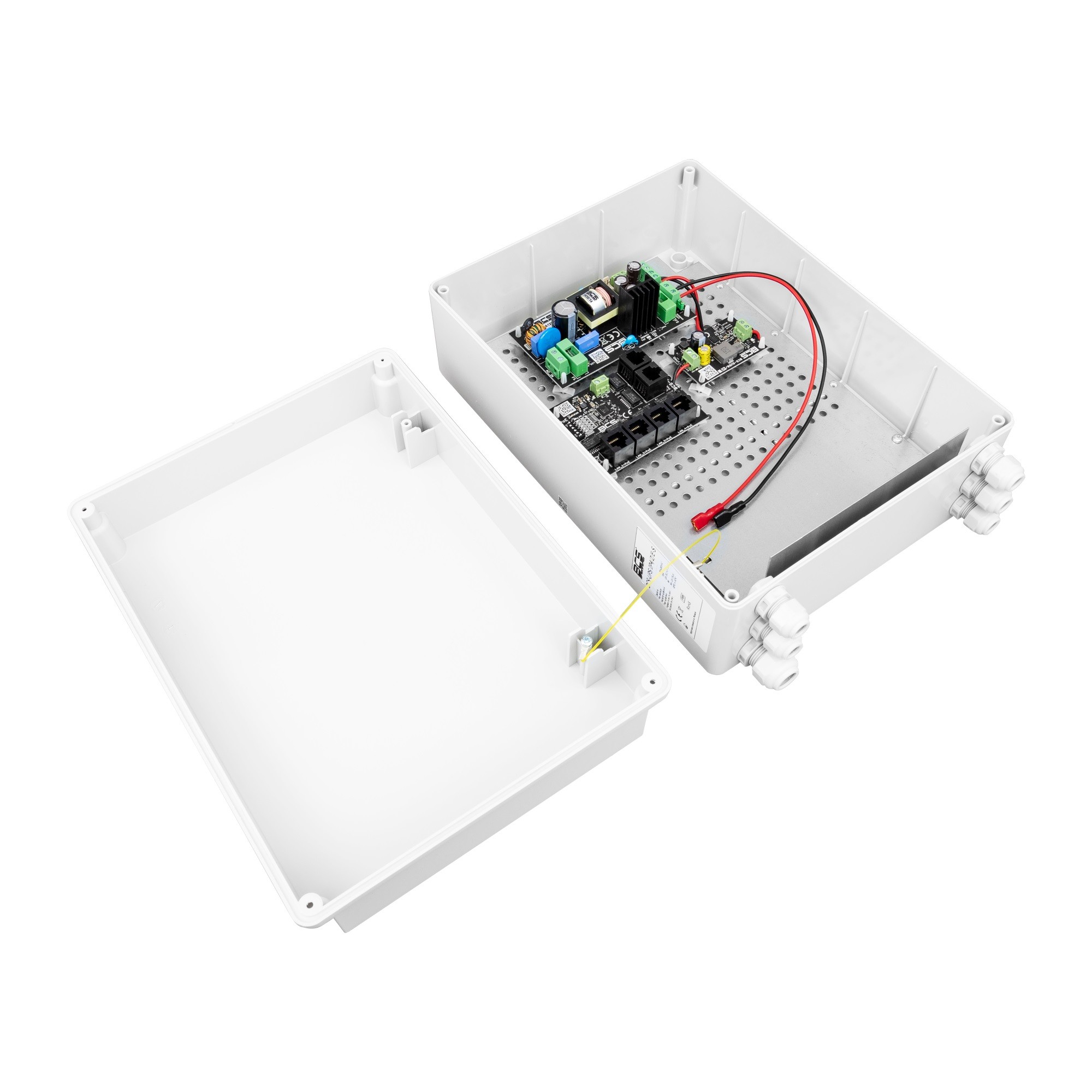

A set for buffer power supply of IP CCTV cameras. The device is a convenient solution to the problem of a buffer power supply for surveillance cameras that require uninterrupted operation. The device is designed to work with IP cameras and other network devices powered in PoE 802.3at / af and PoE PASSIVE standards.

The LONG RANGE mode allows you to increase the transmission range up to 280m with the use of a standard UTP twisted pair.

The system is adapted to work with lead-acid or dry SLA batteries.

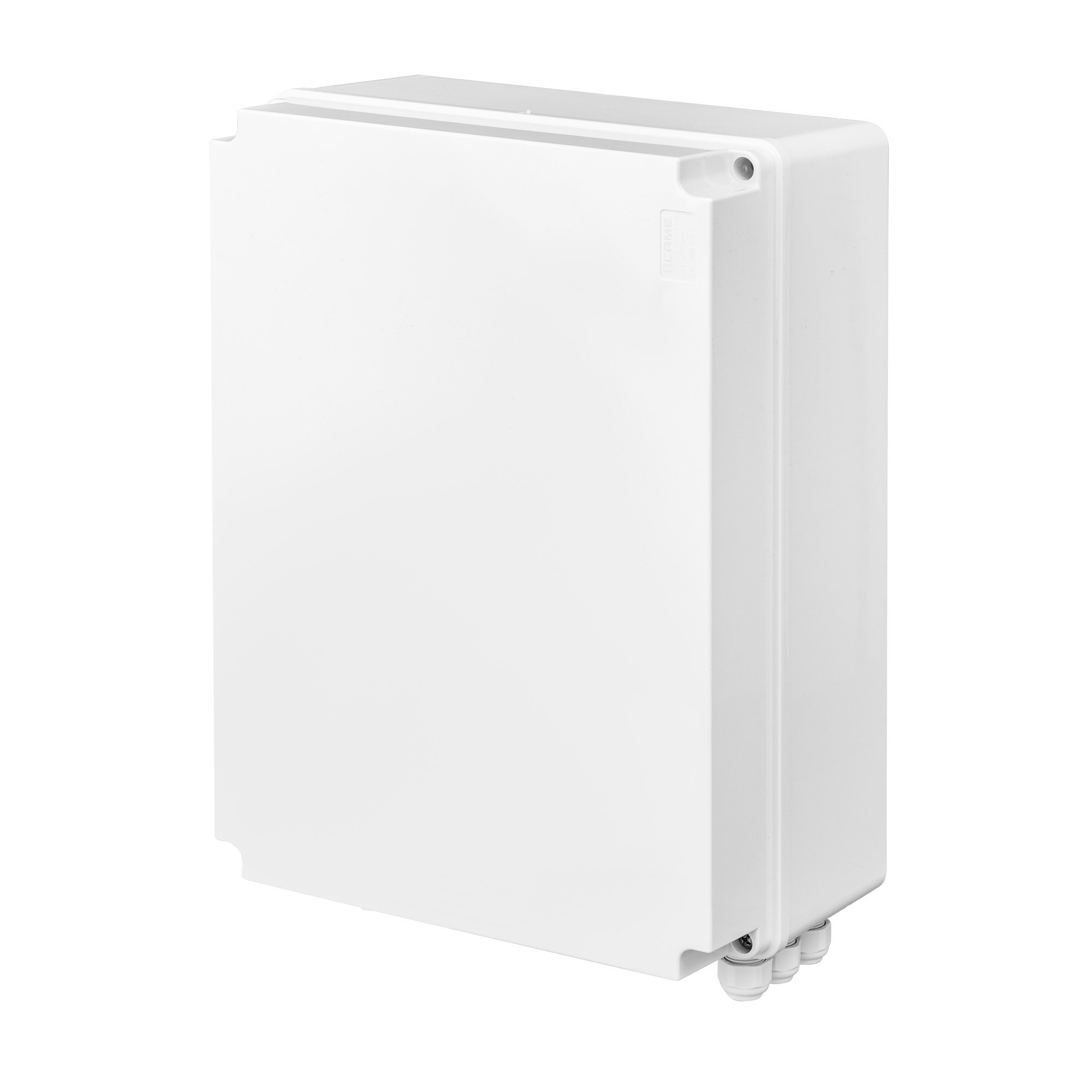

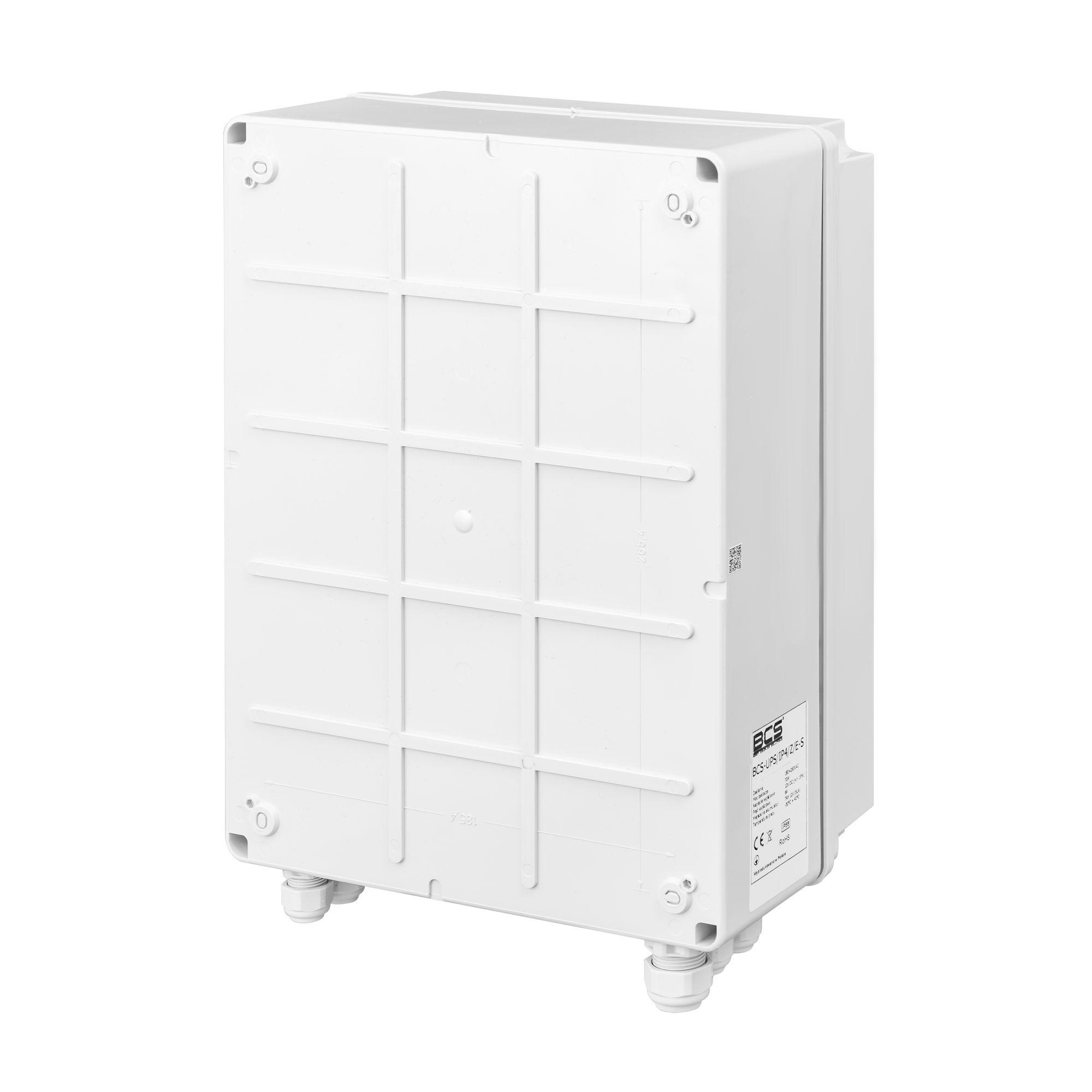

The device is closed in the BCS-XL external casing, which is a convenient solution to the problem of protection of devices and cable connections installed outdoors. High-quality plastic ensures resistance to UV radiation and other unfavorable weather conditions.

Product

BCS-UPS/IP4/Z/E-S

PoE ports

5×RJ45 100Mbps

Standard IEEE

802.3af / 802.3at / PoE PASSIVE

STANDARD mode

100m

EXTEND mode

LAN_1-LAN_4 280m 10Mbps

Adapter power

72W

Power supply

V in: 190-260 VAC, 50 Hz V out: 48 VDC +/- 2%

UPS backup

max 1 × 12V 7Ah

Working environment

-20°C~+50°C max 90% RH

Weight

1.64 kg

Protection level

IP56

Casing

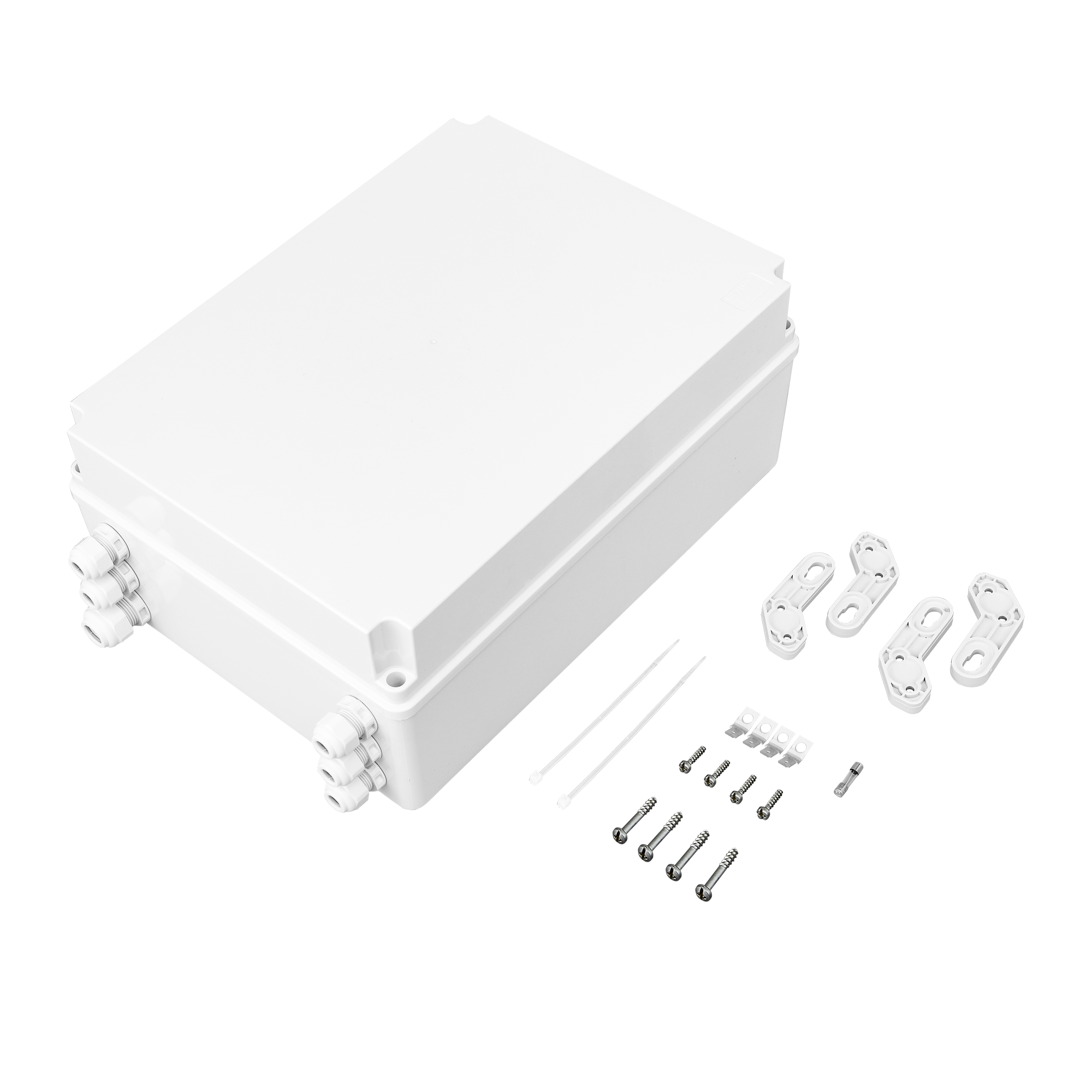

BCS-XL housing, Housing material – plastic, gray (RAL7035), Mounted glands 5 x M16, 1 x M20

Dimensions (W×D×H)

300×220×120mm
