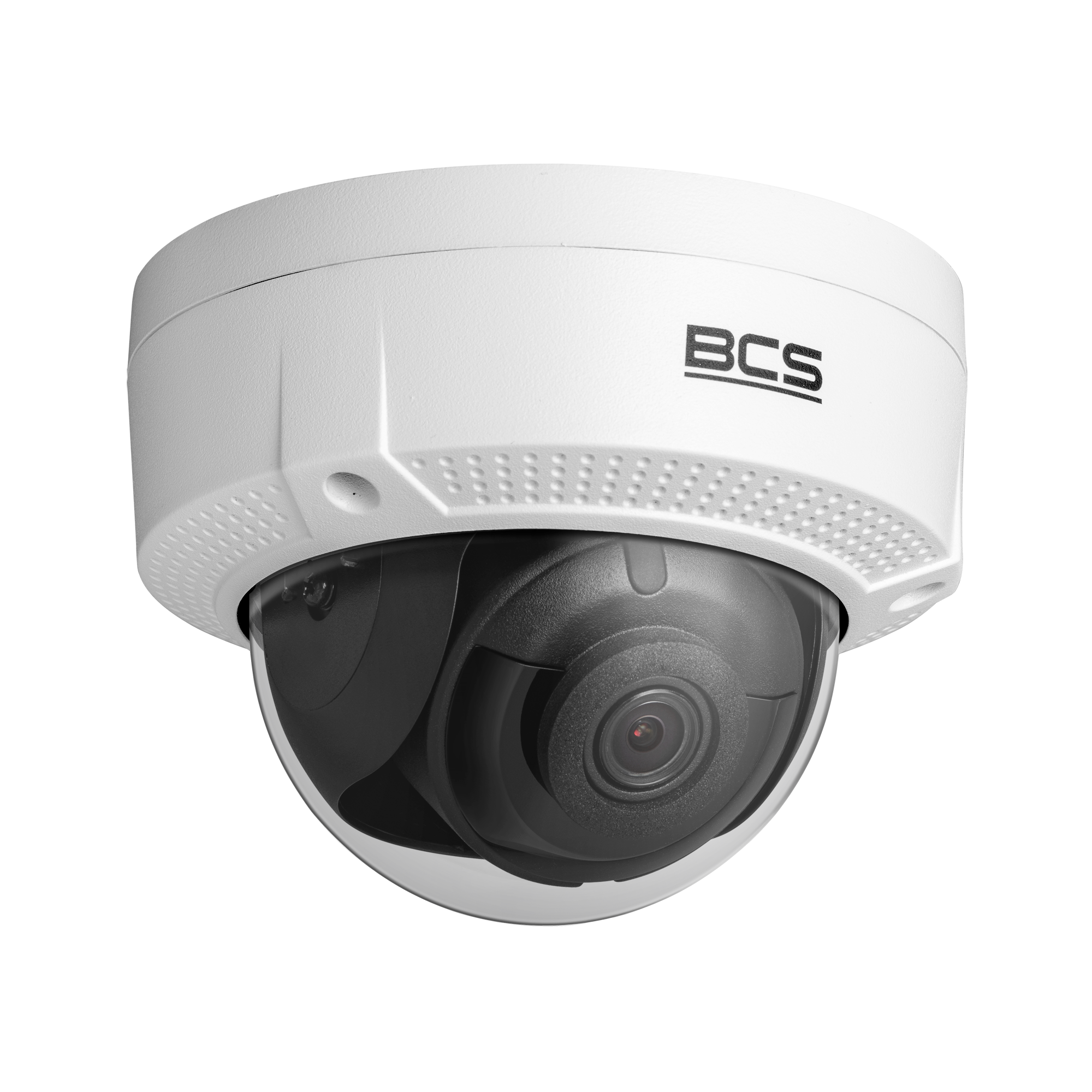

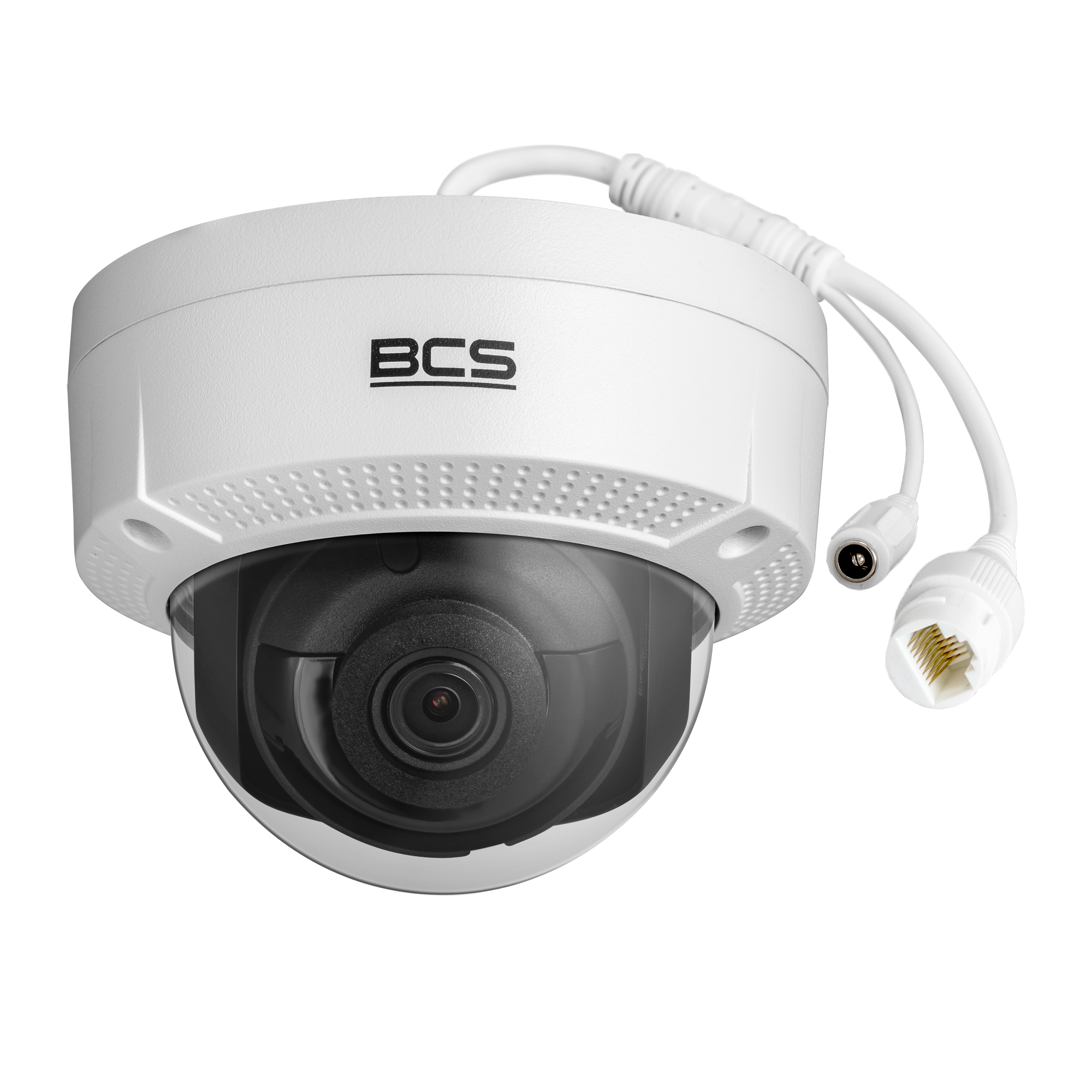

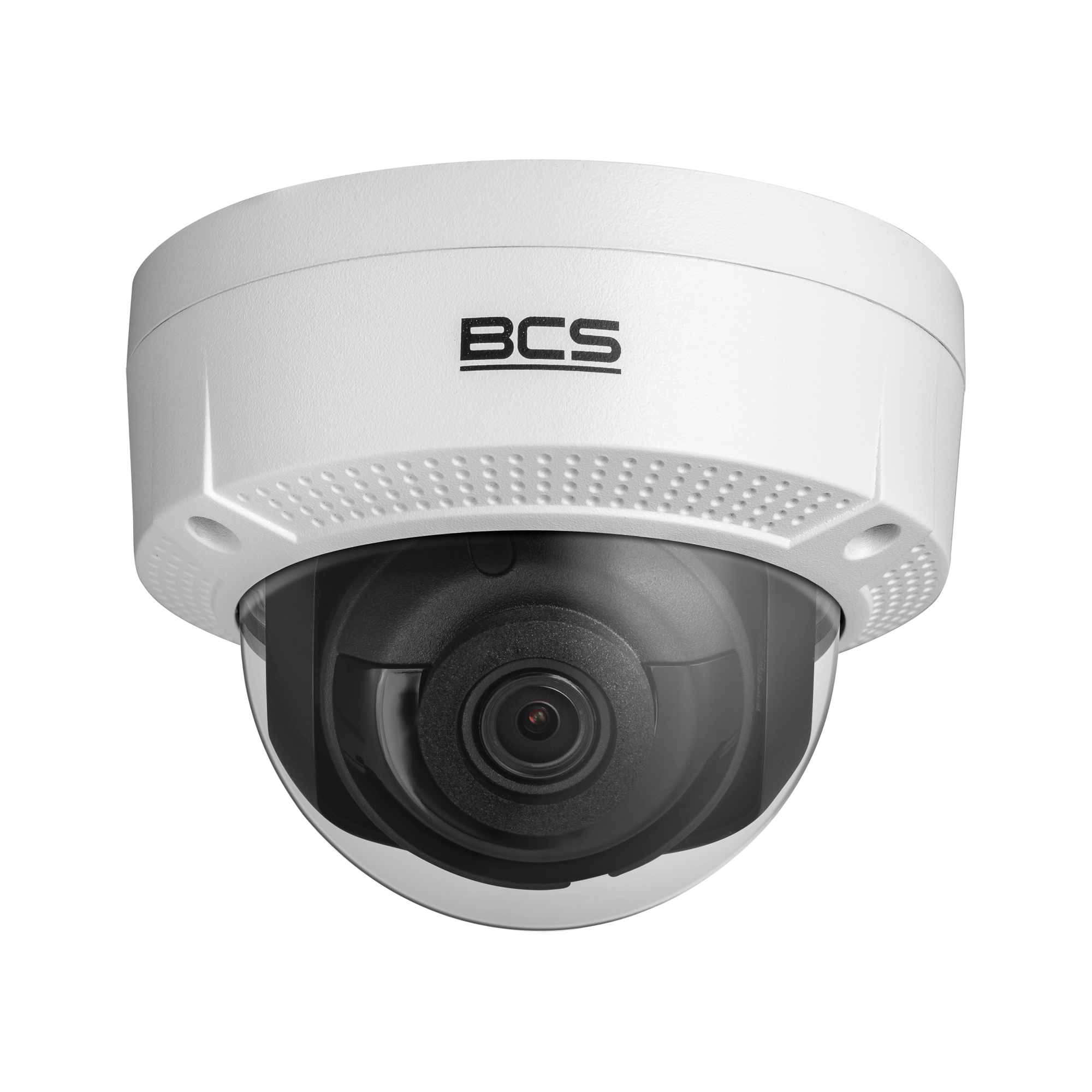

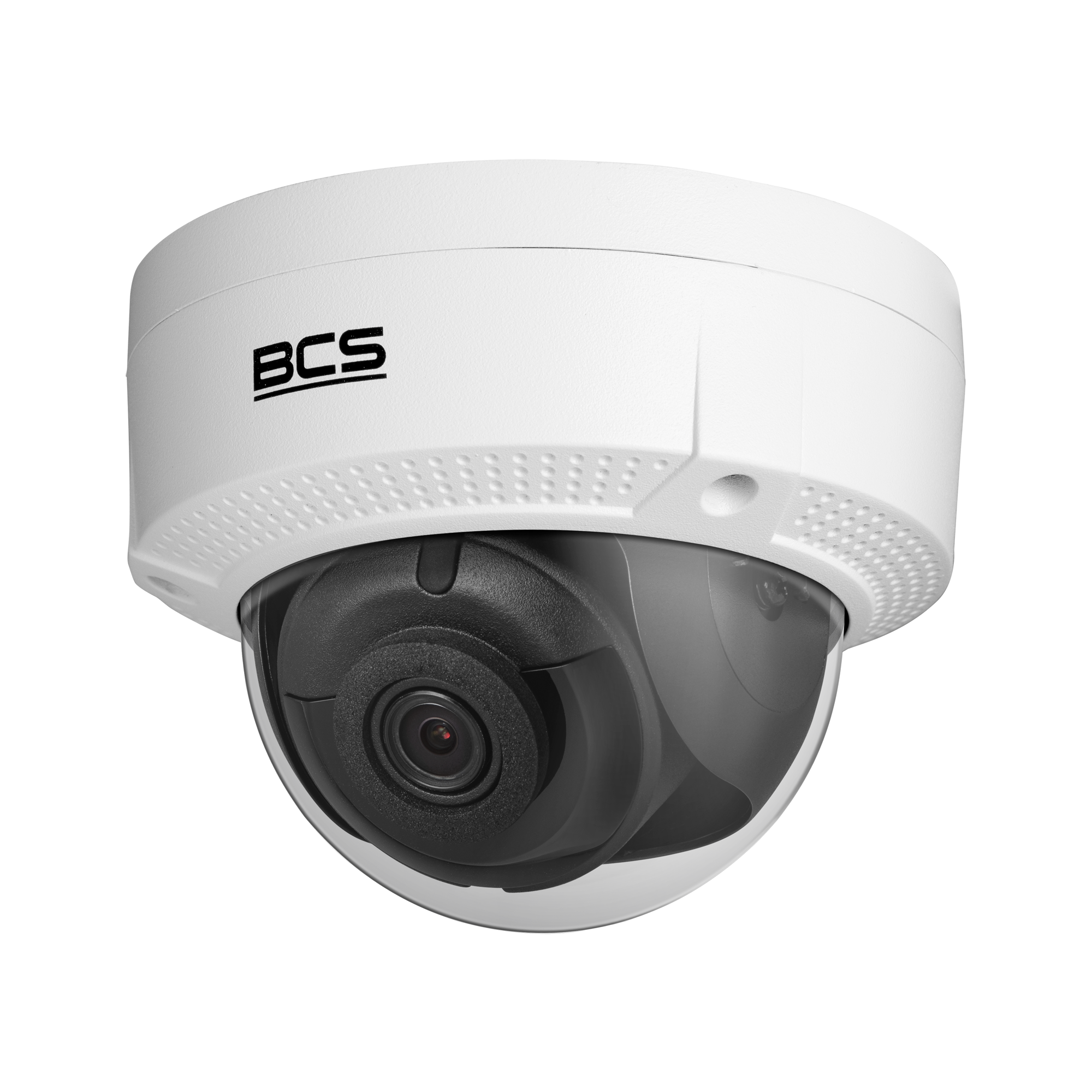

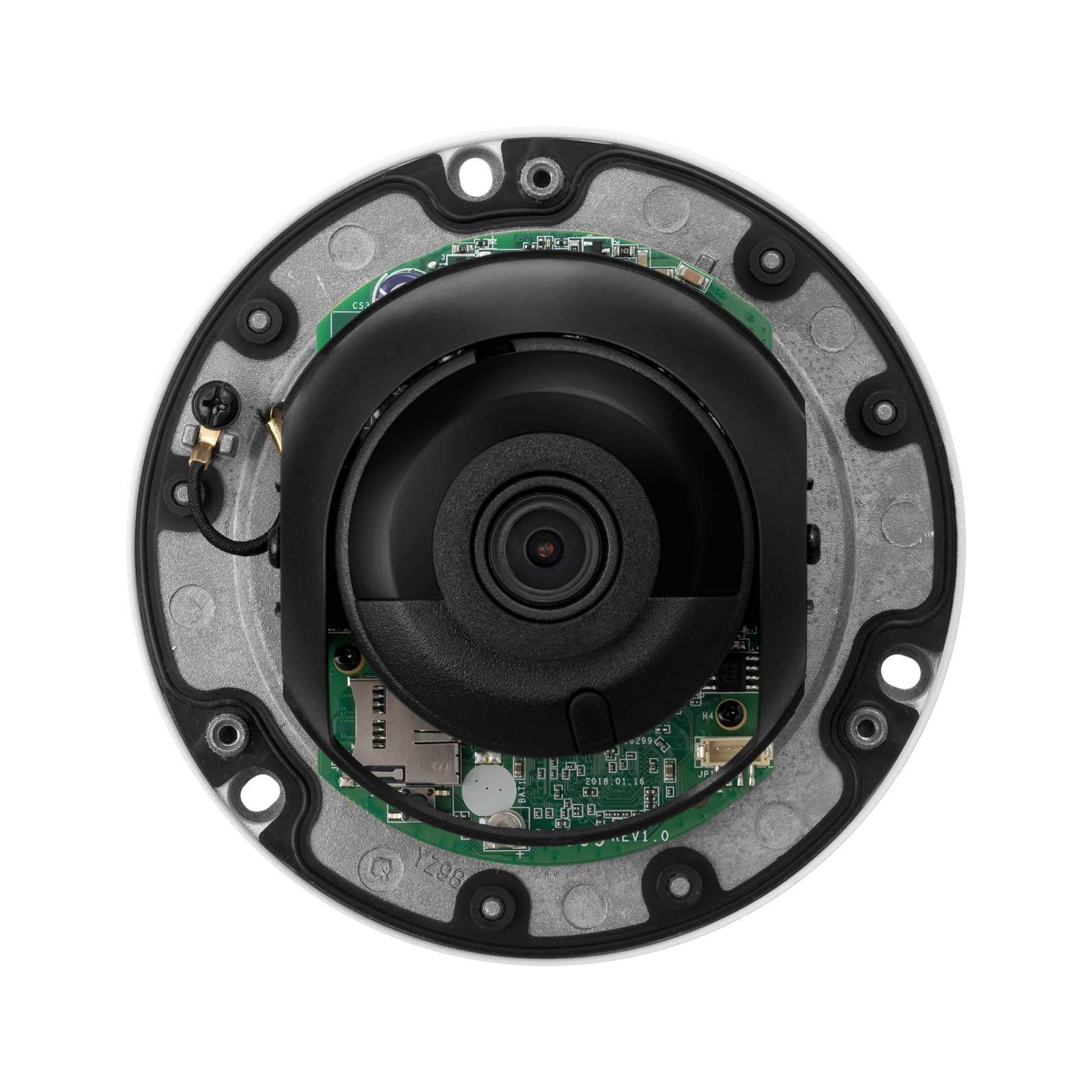

Dome IP Camera 2Mpx, 1/2.8″ PS CMOS sensor with 2.8mm lens, H.265 + / H.264 + / MJPEG, Infrared illuminator up to 30m, AGC, AWB, AES, BLC, HLC, WDR (120dB) functions, 3D DNR, ROI, motion detection, privacy mask, intelligent functions: intrusion into the area, line crossing detection, face detection, microSD up to 128GB, white outdoor metal housing IP67, IK10, power supply: DC 12V, PoE. Dimensions: Ø111 x 82.4mm.
Warning: This product belongs to the BCS VIEW product line.
Use only components and devices from the same line to ensure compatibility.
BCS VIEW
BCS-V-DI221IR3
214,02 € gross
1 In Stock- 2Mpx IP dome camera
- 1/2.8" PS CMOS sensor
- 2.8mm fixed lens
- WDR 120dB
- IR 30m
- IP67, IK10 housing
- Built-in smart features
1 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Ai - Face detection | Yes |
|---|---|
| Product | BCS-V-DI221IR3 |
| Camera type | Dome |
| Sensor | 1/2.8'' CMOS |
| Lens | fixed |
| Iris | fixed |
| White balance | (AWB) Auto / manual |
| Ai - Built-in intelligent functions | Yes |
| Flag | OUTLET |
| Gain control | (AGC) Auto / manual |
| Resolution | 2 Mpx |
| Scanning system | Progressive Scan |
| Pixels | 1920(H)×1080(V) |
| Focal length | 2.8 mm |
| Aperture | F 2.0 |
| Focus | fixed |
| Digital zoom | 16× |
| Angle of view | H: 114° V: 62° D: 135° |
| Min illumination | 0.01Lux(F1.2, AGC) 0.028Lux(F2.0, AGC) 0Lux(B/W,IR) |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1/3~1/100000s |
| Noise reduction | 3D DNR |
| Image rotate | Mirror |
| Stream support | 3 |
| Resolutions | 2M(1920×1080) / 1.3M(1280×960) / 720P(1280×720) / VGA(640×480) / 360P(640×360) / CIF(352×288/352×240) / QVGA(320×240) |
| Main stream | 1920×1080@30fps 1280×960@30fps 1280×720@30fps |
| Second stream | 640×480@30fps 640×360@30fps 320×240@30fps |
| Third stream | 1920×1080@30fps 1280×720@30fps 640×360@30fps 352×240@30fps 352×288@25fps |
| Bitrate | 32Kbps~16Mbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR |
| Illuminator type | IR LED |
| IR range | 30m |
| Memory card slot | microSD 128GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Yes |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Power supply | PoE |
| Power supply type | 12V DC / PoE (802.3af) |
| Power consumption | max 7.5W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | Ø111×82.4mm |
| Weight | 0.6 kg |
| Ai - Perimeter protection | Yes |
