| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion reduces false alarms |
|---|---|
| Resolution | 8 Mpx |
| Scanning system | Progressive Scan |
| Focal length | 2.8 mm |
| Angle of view | H: 105° V: 55° D: 128° |
| White balance | (AWB) Auto / manual |
| Gain control | (AGC) Auto / manual |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Product | BCS-V-DIP28FSR3-Ai2(2) |
| Camera type | Dome |
| Sensor | 1/1.8'' CMOS |
| Pixels | 3840(H)×2160(V) |
| Lens | fixed |
| Main stream | 3840×2160@25fps 3200×1800@30fps 2688×1520@30fps 1920×1080@30fps 1280×720@30fps |
| Aperture | F 1.0 |
| Focus | fixed |
| Iris | fixed |
| DORI | Detect 89m / Observe 35m / Recognize 17m / Identify 8m |
| Min illumination | 0.0008Lux(F1.0, AGC) 0Lux(B/W,IR) |
| S/N ratio | 52dB |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1/3~1/100000s |
| Noise reduction | 3D DNR |
| Image rotate | Mirror |
| Stream support | 3 |
| Resolutions | 8M(3840×2160) / 6M(3200×1800) / 4M(2688×1520) / 2M(1920×1080) / 720P(1280×720) / VGA(640×480) / 360P(640×360) |
| Second stream | 1280×720@30fps 640×480@30fps 640×360@30fps |
| Third stream | 1920×1080@10fps 1280×720@10fps 640×480@10fps 640×360@10fps |
| Bitrate | 32Kbps~16Mbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR |
| Illuminator type | IR LED |
| IR range | 30m |
| Microphone | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC |
| Alarm in | 1 |
| Alarm out | 1 |
| Storage | FTP, NAS |
| Memory card slot | microSD 512GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Yes |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, SRTP, SFTP |
| Power supply | PoE |
| Power supply type | 12V DC / PoE (802.3af) |
| Power consumption | max 9.5W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | Ø121.5×97.6mm |
| Weight | 0.52 kg |
| Ai - Perimeter protection | Crossline, intrusion |
| &Ai - Object classification | Yes |
| Ai - Face detection | Face detection and tracking, snapshot |
Warning: This product belongs to the BCS VIEW product line.
Use only components and devices from the same line to ensure compatibility.
Save 55%
BCS VIEW

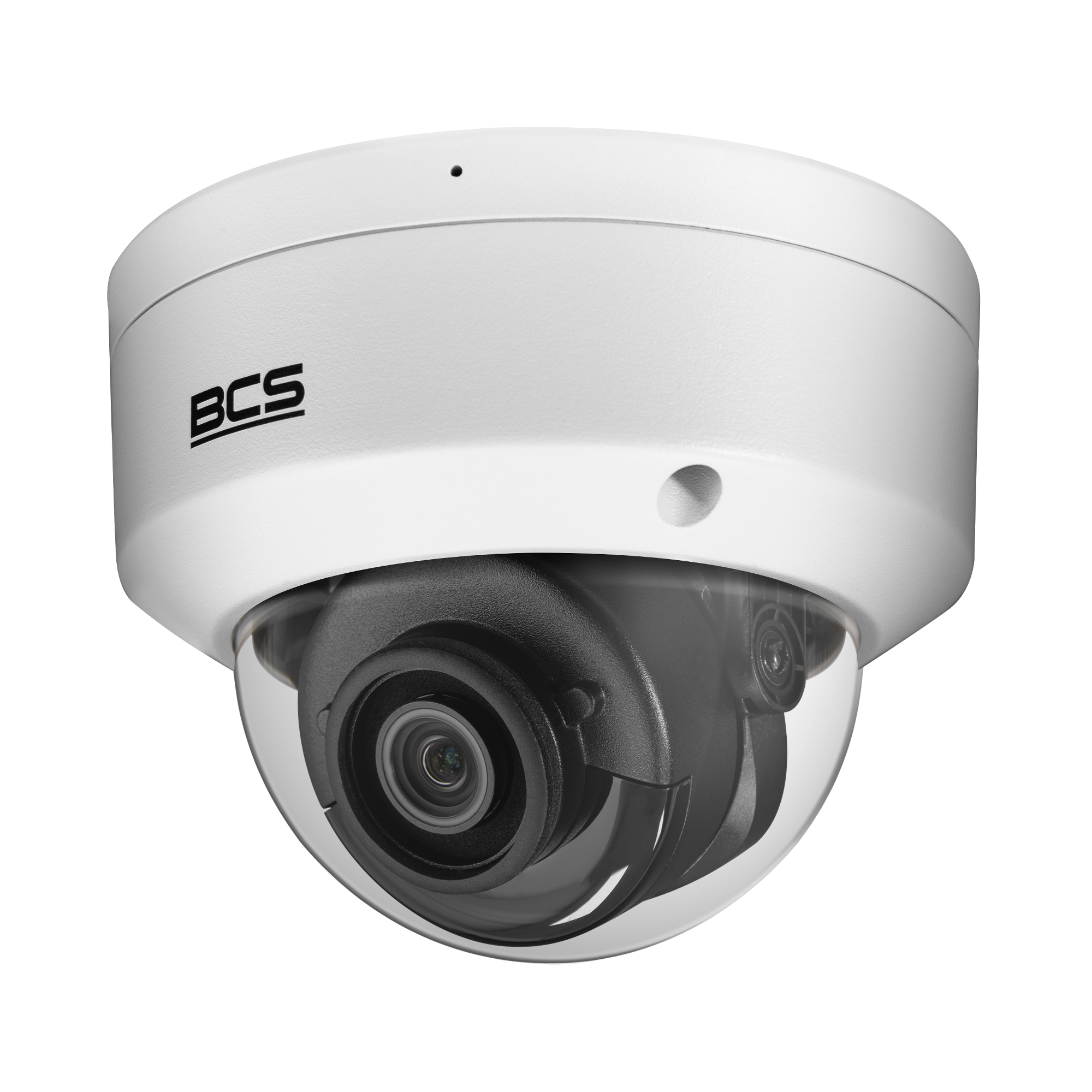

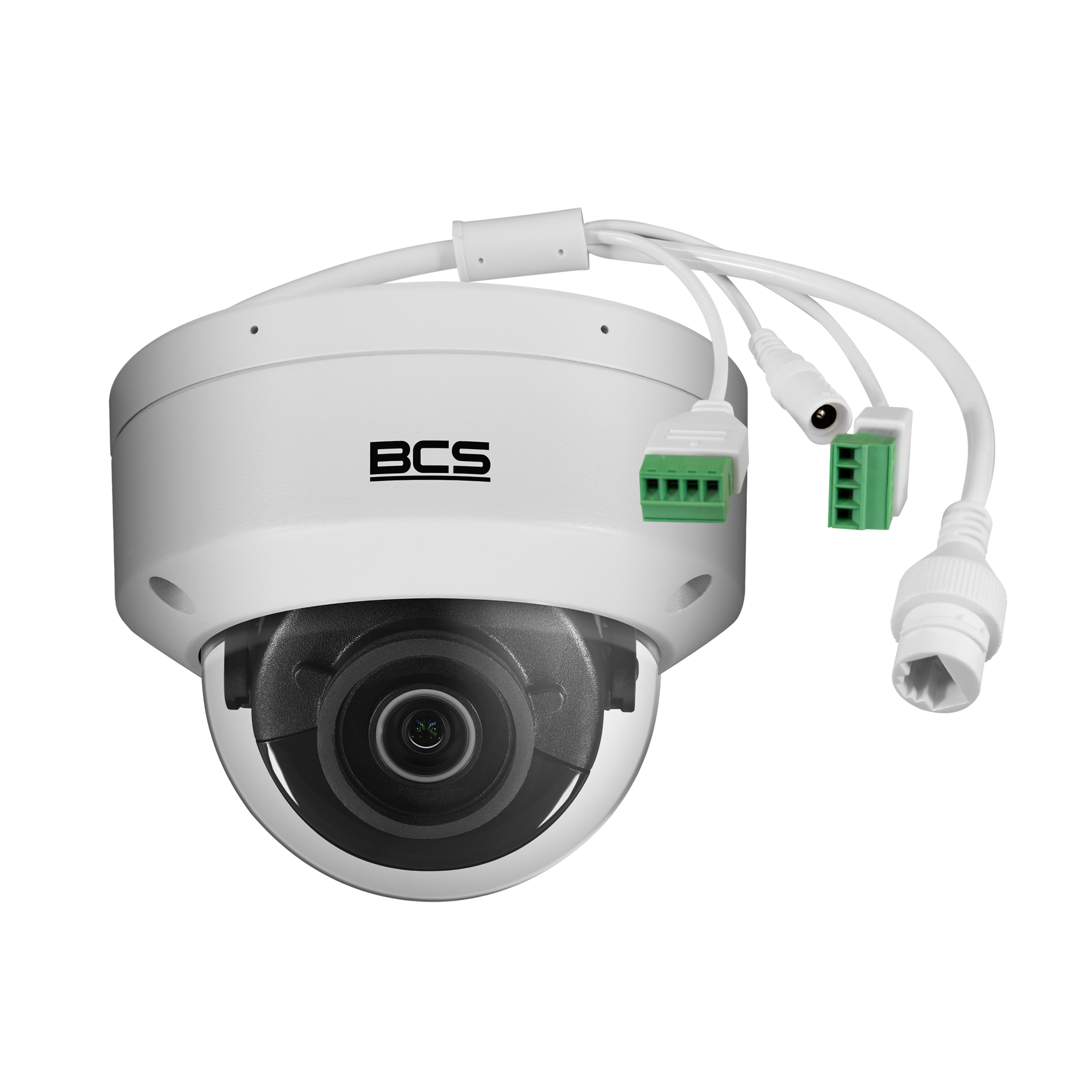

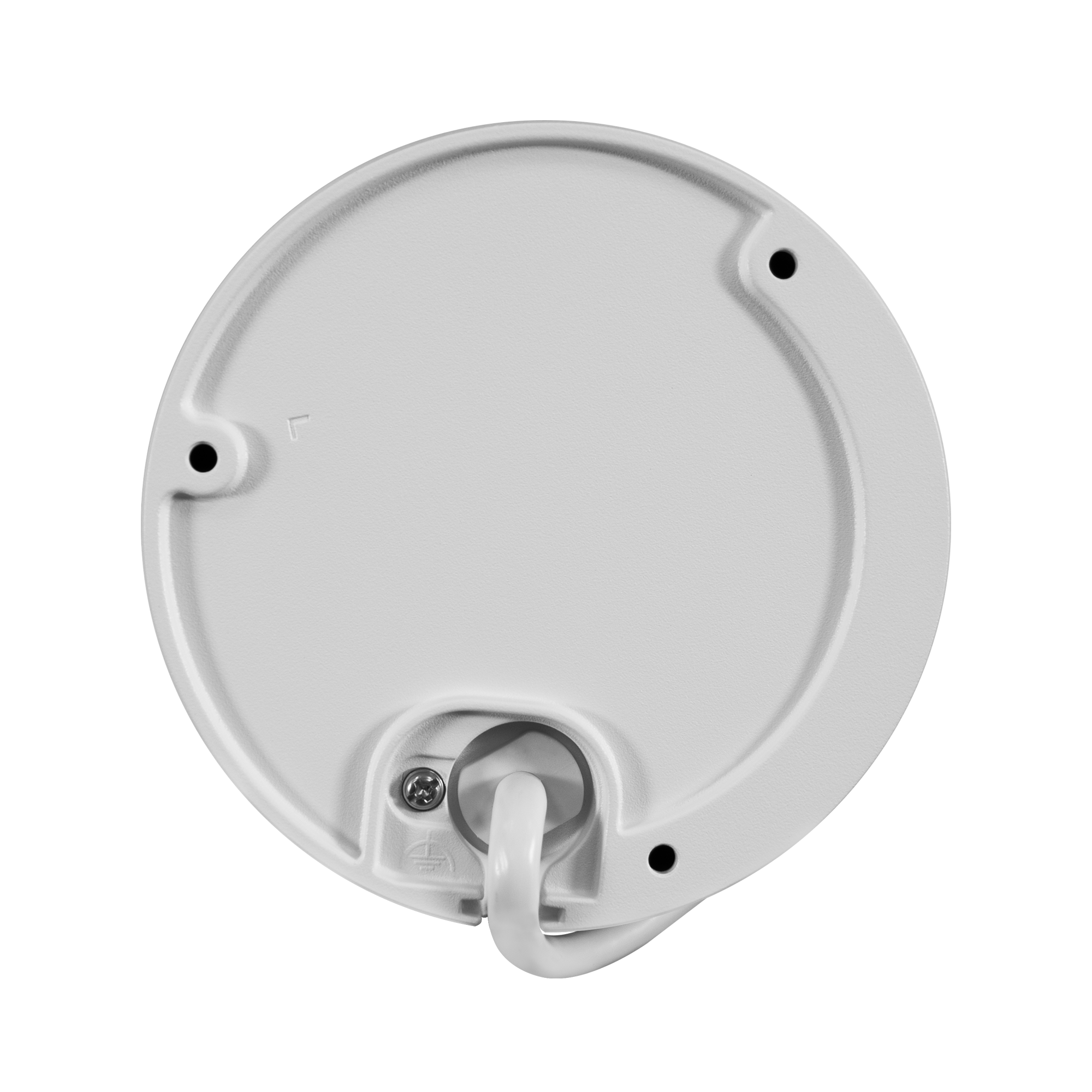

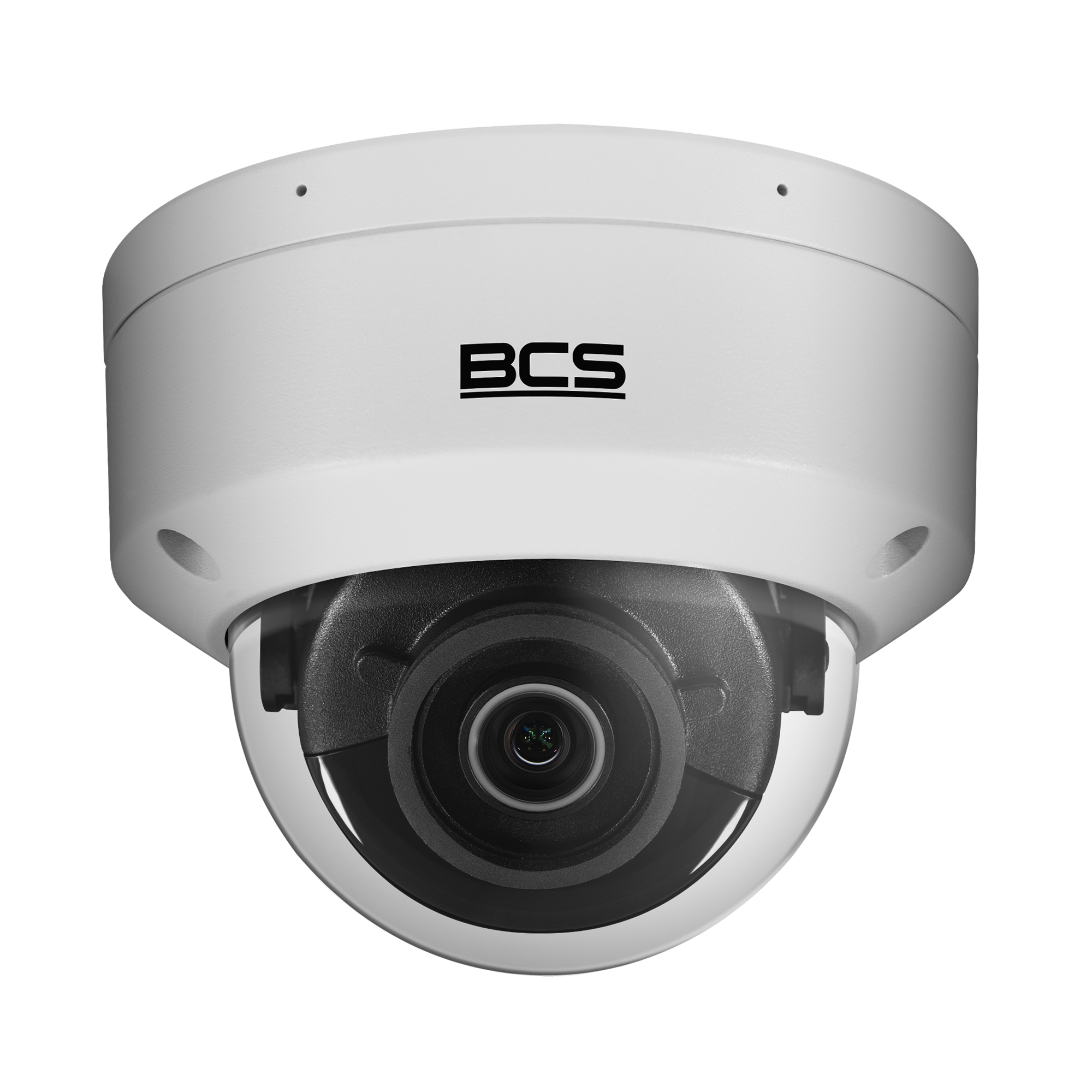

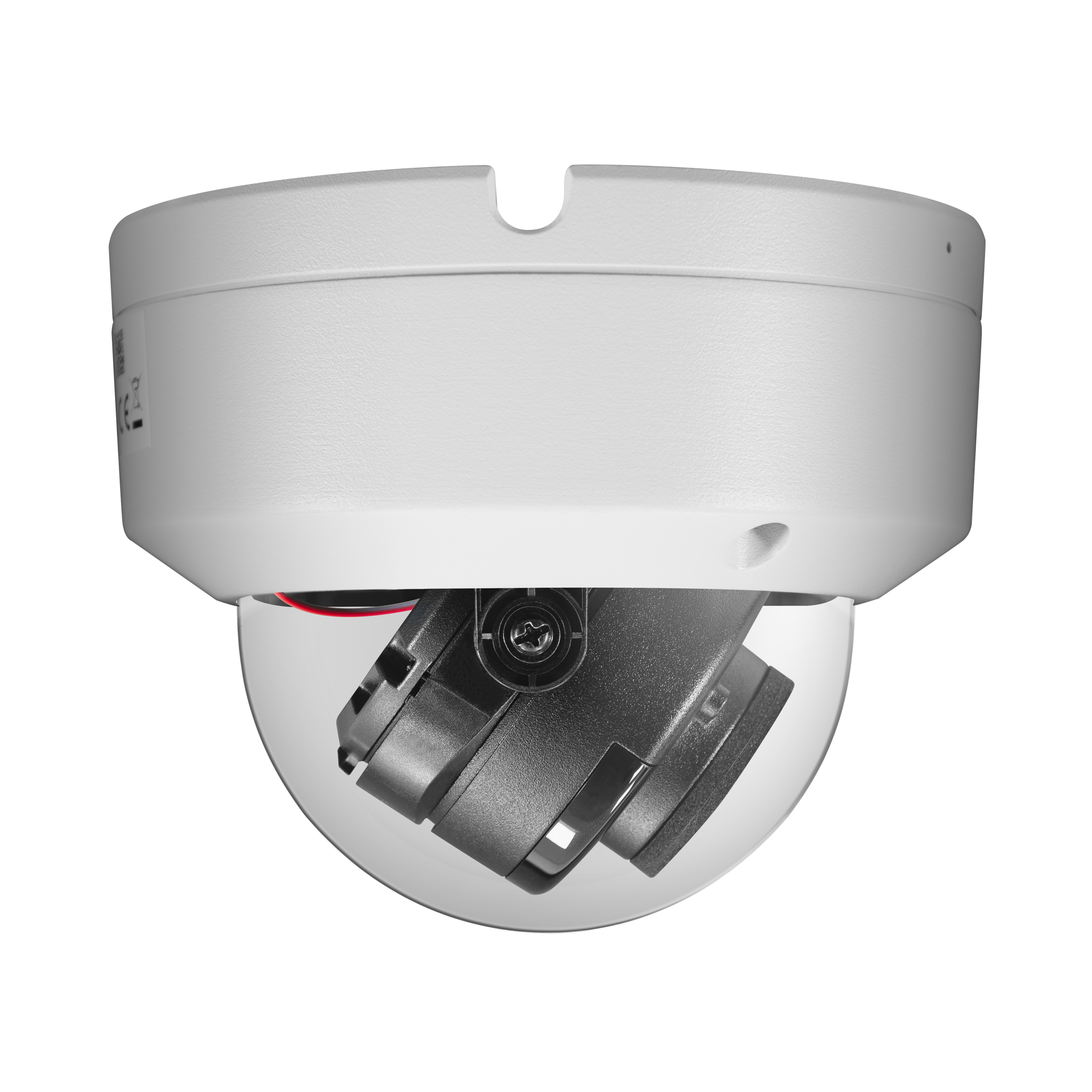

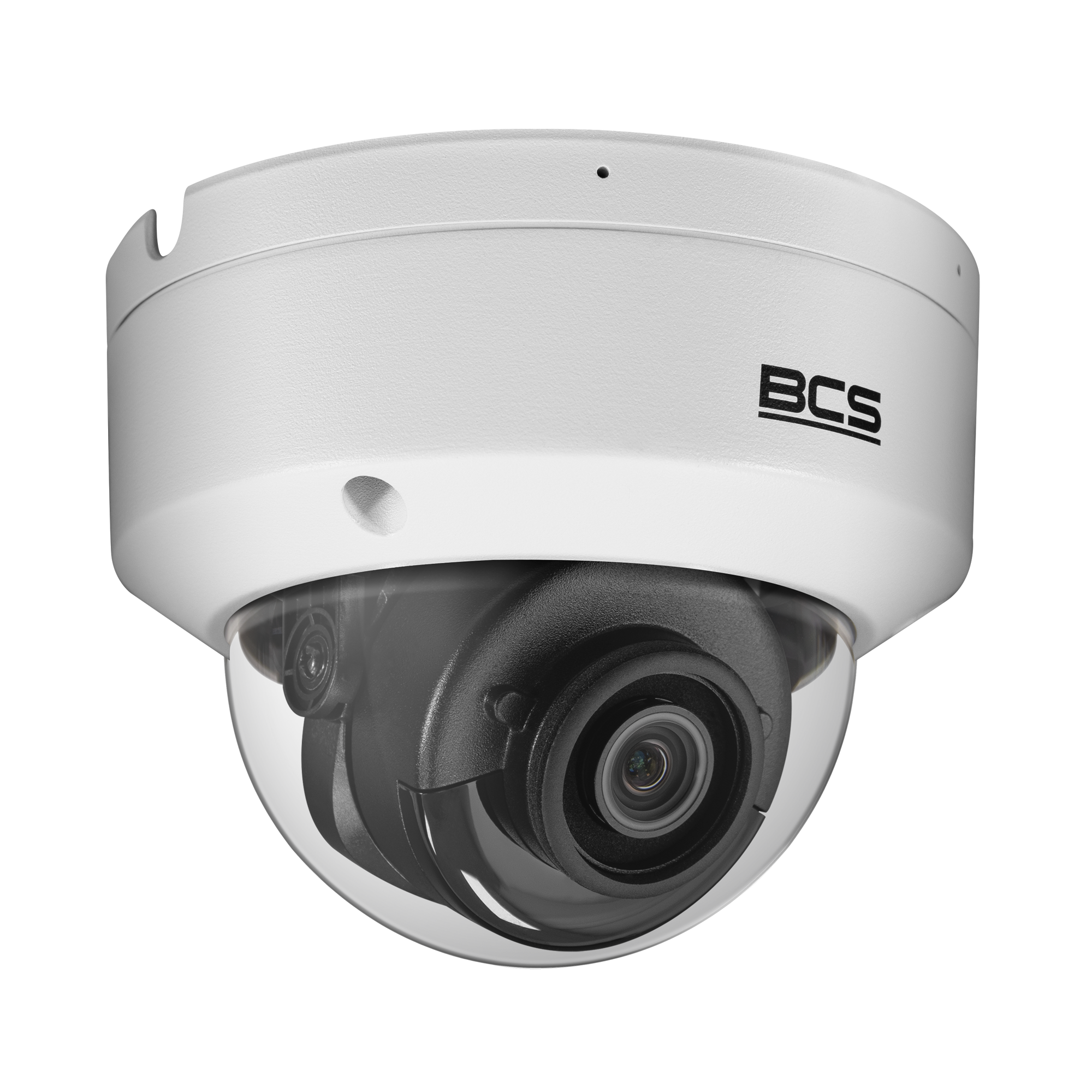

BCS-V-DIP28FSR3-Ai2(2)
201,12 € gross
30 In Stock- 8Mpx dome IP camera
- 1/1.8" PS CMOS sensor
- SkyLight technology
- AcuSense technology
- 2.8mm fixed lens
- WDR 120dB
- IR 30m
- Alarm 1/1, audio 1/1, microphone
- IP67, IK10 housing
- Built-in smart features
30 in stock
