| Power consumption (without HDD) | max 15W |
|---|---|
| Ai - Intelligent functions from camera | SMD, intrusion, crossline, heat map, ARTR, people counting |
| Product | BCS-V-NVR3202-A-8K |
| System | IP |
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| Channels | 32 |
| HDD support | 2 |
| HDD capacity | 16 TB |
| Max recording resolution | 32 Mpx |
| Incoming bandwidth | 320Mbps |
| Outgoing bandwidth | 400Mbps |
| Display efficiency | 2×32M(30fps) +2×8M(30fps) / 10×8M(25fps) / 20×4M(30fps) / 32×2M(30fps) |
| Recording resolutions | (32M/24M)8ch / 12M / 8M / 6M / 5M / 4M / 3M / 2M / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Video compression | H.265+ / H265 / H.264+ / H.264 |
| HDMI out | HDMI8K |
| VGA out | VGA |
| BNC out | BNC |
| HDMI display resolutions | 7680×4320 / 3840×2160 / 2560×1440 / 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| VGA display resolutions | 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| Display split | 1/4/6/8/9/16/25/32/36 |
| Synchronous playback | 1/4/9/16 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| User connections | 128 |
| Interfaces | 1×USB2.0, 1×USB3.0 |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Alarm in | 4 |
| Alarm out | 1 |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | 2×RJ-45 10/100/1000Mbps |
| Compatibility | ONVIF, support third party cameras |
| Protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
| Power supply | 12V DC |
| Working environment | -10°C~+55°C max 90% RH |
| Casing | 1U |
| Dimensions (W×D×H) | 385×315×52mm |
| Weight (without HDD) | 3 kg |
| POS | Yes |
Warning: This product belongs to the BCS VIEW product line.
Use only components and devices from the same line to ensure compatibility.
BCS VIEW

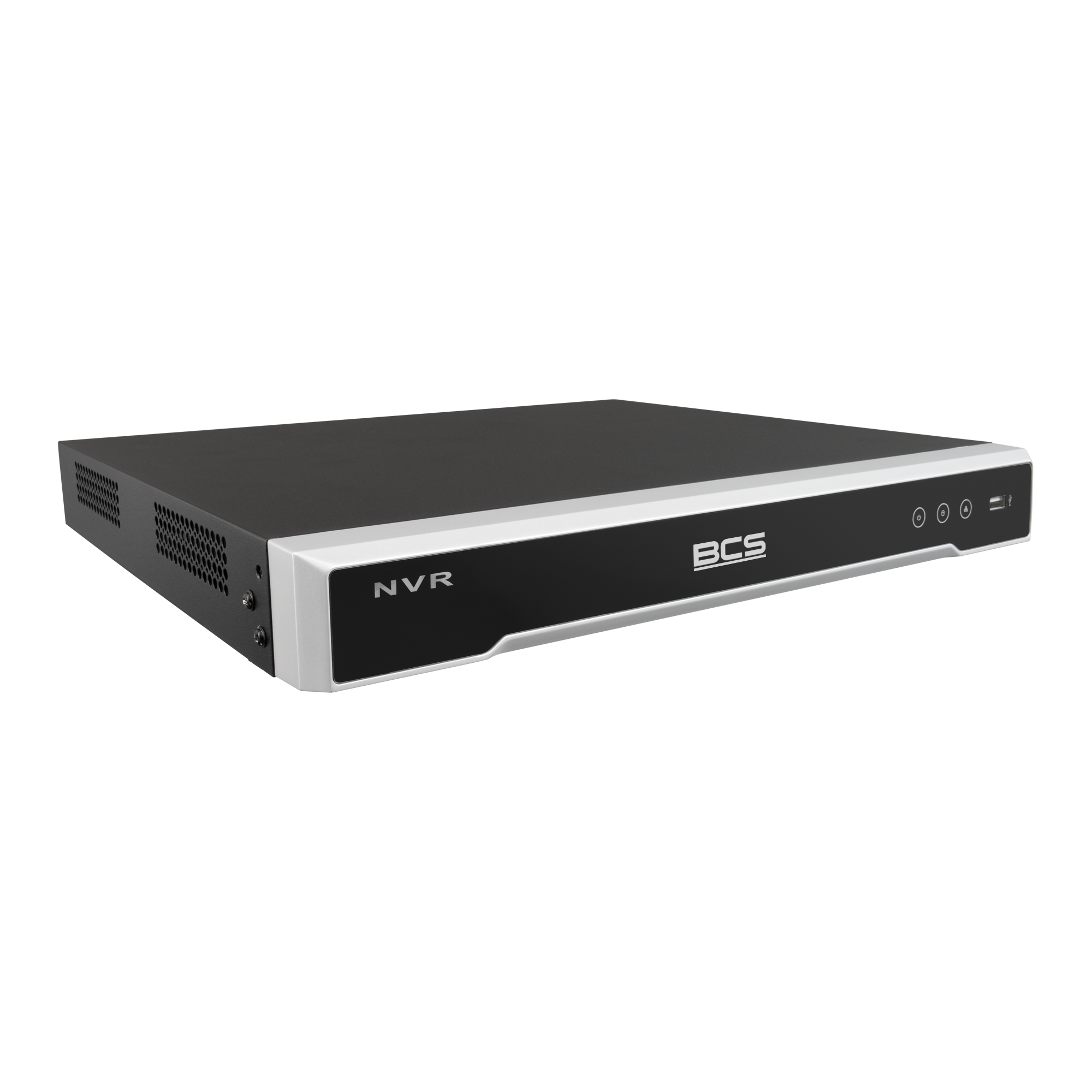

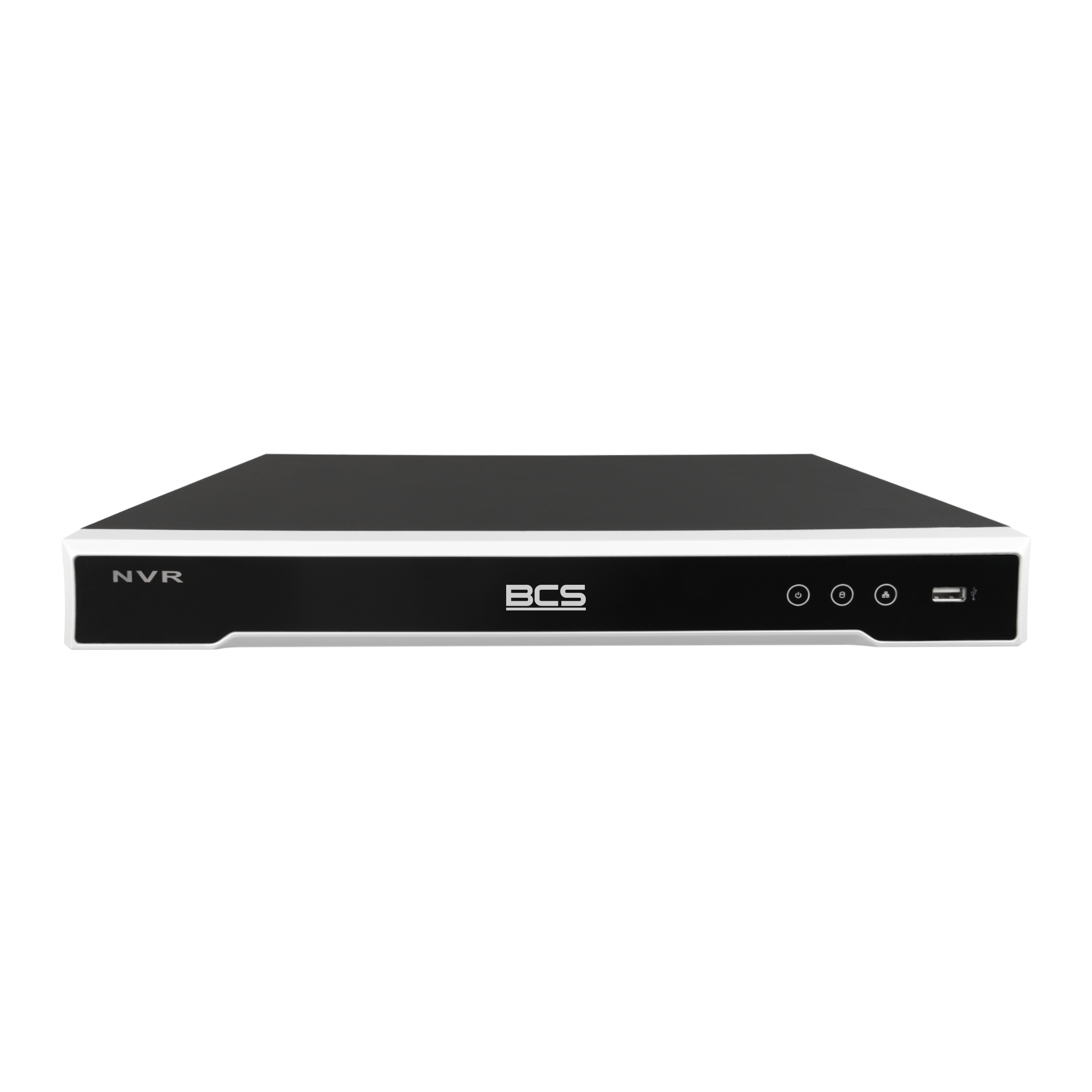

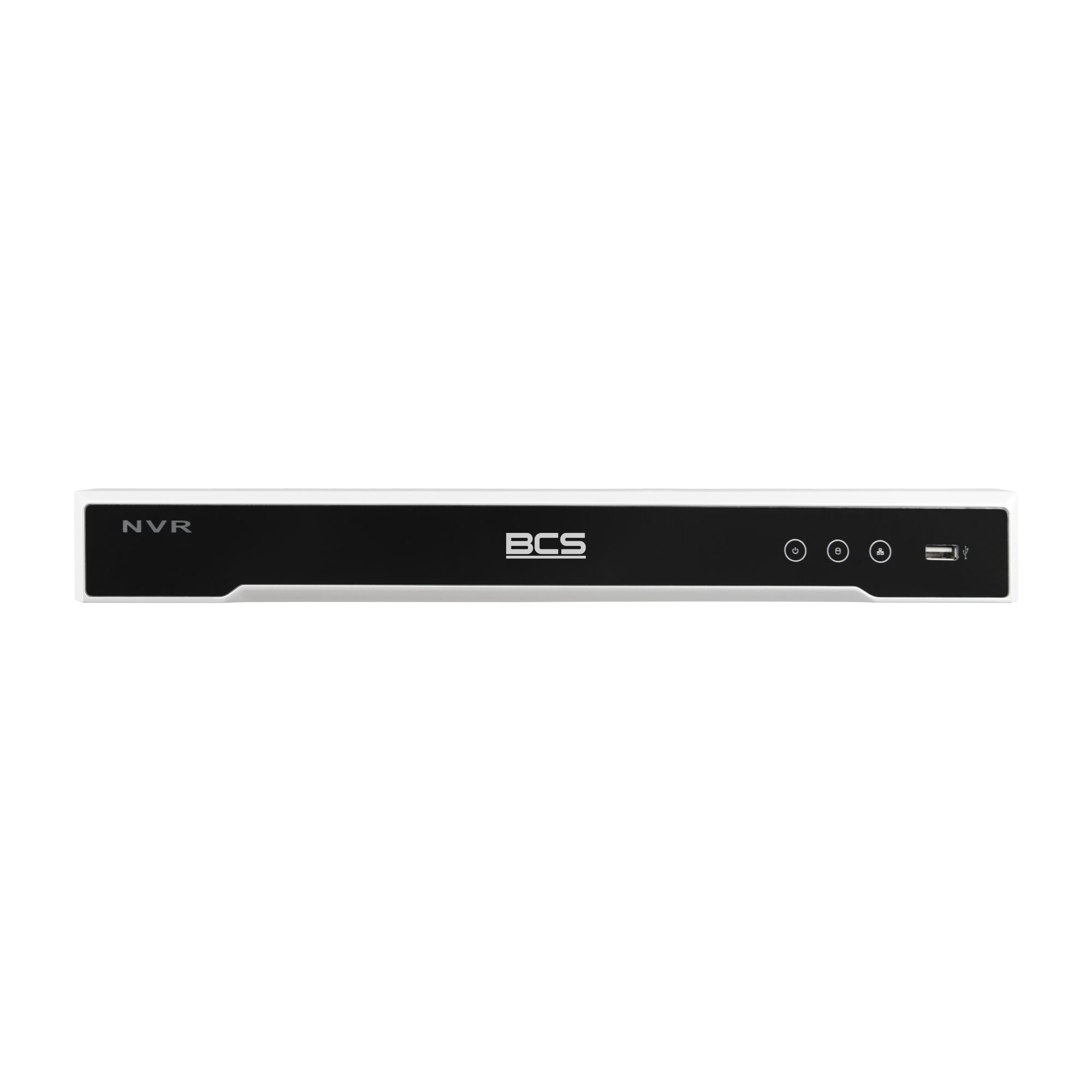

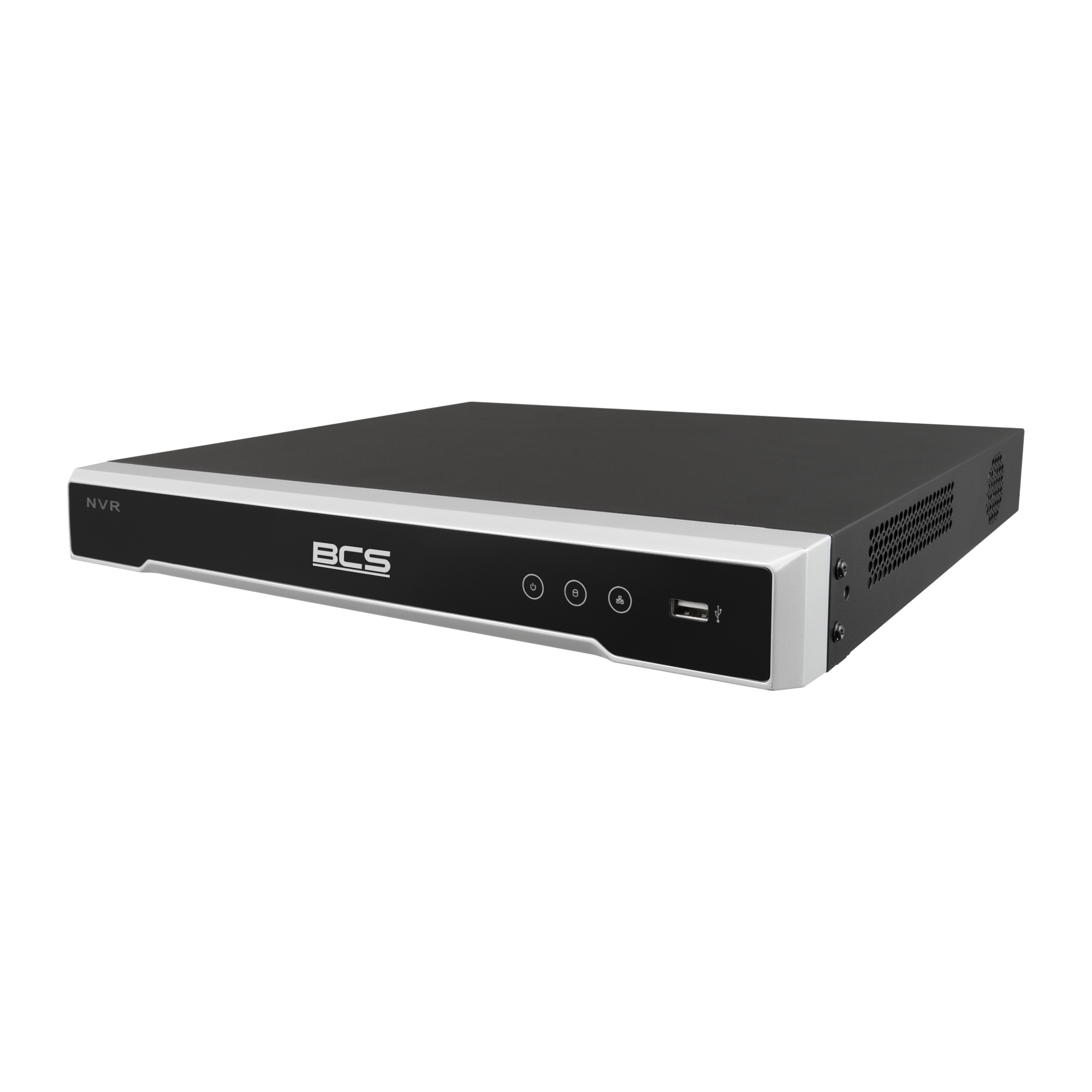

BCS-V-NVR3202-A-8K
1312,41 € gross
20 In Stock- 32-channel IP recorder
- Supports 2 hard drives
- Supports 32Mpx IP cameras
- HDMI 8K/VGA output
- Alarm 4/1, audio 1/1
