2Mpx rotating IP camera with 25x optical zoom from the BCS View series. Resolution: 2M (1980×1080), infrared illuminator up to 100m, video compression: H.265 / H.265 + / H.264 / H.264 + / MJPEG, Day / Night- ICR, audio – 1/1, alarm – 1 / 1, motion detection, privacy masks, perimeter protection, object recognition, face detection, people counting, web service, built-in 256GB microSD memory card slot. White IP66 housing. Power supply: DC 12V / PoE (802.3at).
Warning: This product belongs to the BCS VIEW product line.
Use only components and devices from the same line to ensure compatibility.
BCS VIEW
BCS-V-SIP2225SR10-Ai2
974,16 € gross
Out of Stock2Mpx rotating IP camera with 25x optical zoom from the BCS View series.
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.

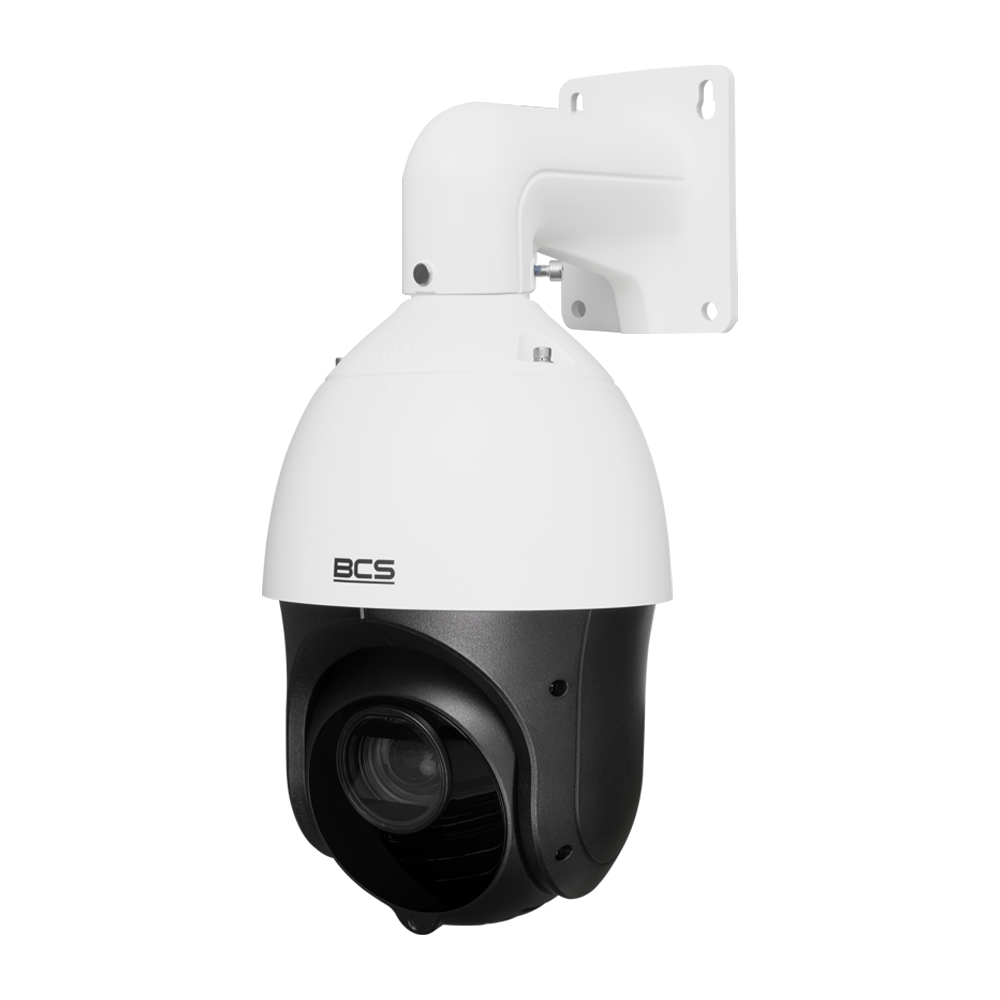

| Accessories included | Wall mount, power supply 12VDC |
|---|---|
| Product | BCS-V-SIP2225SR10-Ai2 |
| Camera type | PTZ |
| Sensor | 1/2.8'' CMOS |
| Lens | motozoom |
| Iris | Auto / manual |
| DORI | Detect 2400m /Observe 952m / Recognize 480m / Identify 240m |
| WDR | 120dB |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Image rotate | Mirror, Flip |
| Flag | TO ORDER |
| Resolution | 2 Mpx |
| Scanning system | Progressive Scan |
| Pixels | 1920(H)×1080(V) |
| Focal length | 4.8~120 mm |
| Aperture | F 1.6~3.5 |
| Focus | Auto / manual |
| Optical zoom | 25× |
| Digital zoom | 16× |
| Angle of view | H:57.6°~2.5° V:34.4°~1.4° D: 64.5°~2.9° |
| Min illumination | 0.005Lux(F1.6,AGC) 0.001Lux(F1.6,AGC,B/W) 0Lux(B/W,IR) |
| S/N ratio | 52dB |
| White balance | (AWB) Auto / manual / indoor / outdoor / atw |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1~1/30000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Bitrate | 32Kbps~16Mbps |
| Stream support | 3 |
| Resolutions | 2M(1920×1080) / 1.3M(1280×960) / 720P(1280×720) / D1(704×576)(704×480) / VGA(640×480) / CIF(352×288)(352×240) |
| Main stream | 1920×1080 / 1280×960 / 1280×720(25/30fps) |
| Second stream | 704×576 / 640×480 / 352×288(25pfs) 704×480 / 640×480 / 352×240(30fps) |
| Third stream | 1920×1080 / 1280×960 / 1280×720 / 704×576 / 640×480 / 352×288(25fps) 1920×1080 / 1280×960 / 1280×720 / 704×480 / 640×480 / 352×240(30fps) |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 100m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711alaw / G.711ulaw / G.722.1 / G.726 / MP2L2 / PCM |
| Alarm in | 1 |
| Alarm out | 1 |
| Memory card slot | microSD 256GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Yes |
| Privacy masking | 24 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Network security | HTTPS, IEEE802.1X, Digest authentication, IP adress filtering, host authentication (MAC address) |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3at) |
| Power consumption | max 18W |
| Housing color | White |
| IP class | IP66 |
| Surge protection | TVS 6kV |
| Working environment | -30°C~+65°C max 95% RH |
| Dimensions | Ø164.5×290mm |
| Weight | 2 kg |
| PAN speed | 0.1°/s~80°/s(80°/s preset) |
| TILT speed | 0.1°/s~80°/s(80°/s preset) |
| PAN range | 0°~360° |
| TILT range | -15°~90° auto-flip |
| Ai - Perimeter protection | Crossline, intrusion |
| &Ai - Object classification | Yes |
| Ai - Face detection | Face detection and tracking, snapshot |
| Ai - People counting | People counting for intrusion and crossline, counting people in/out |
| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion reduces false alarms |
