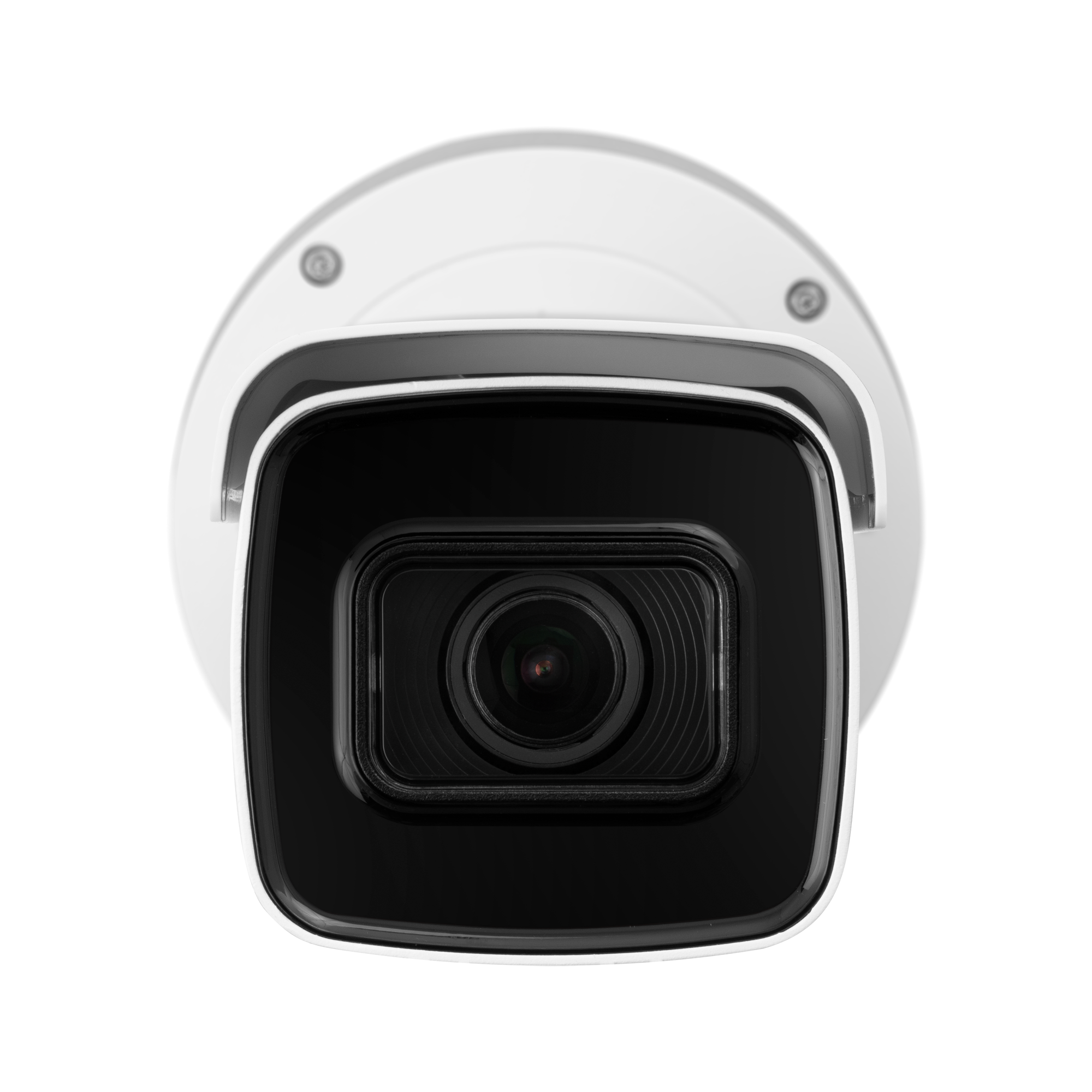

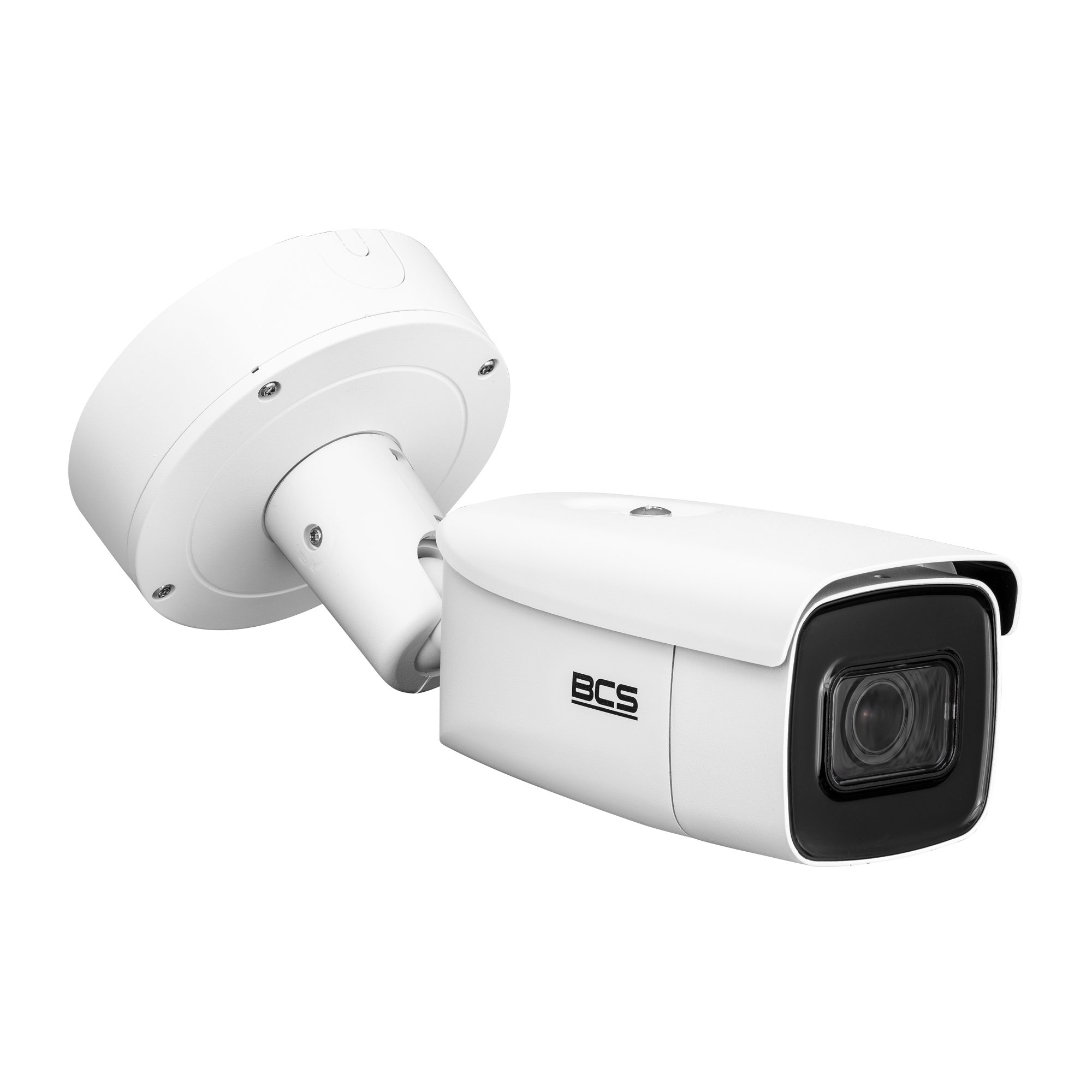

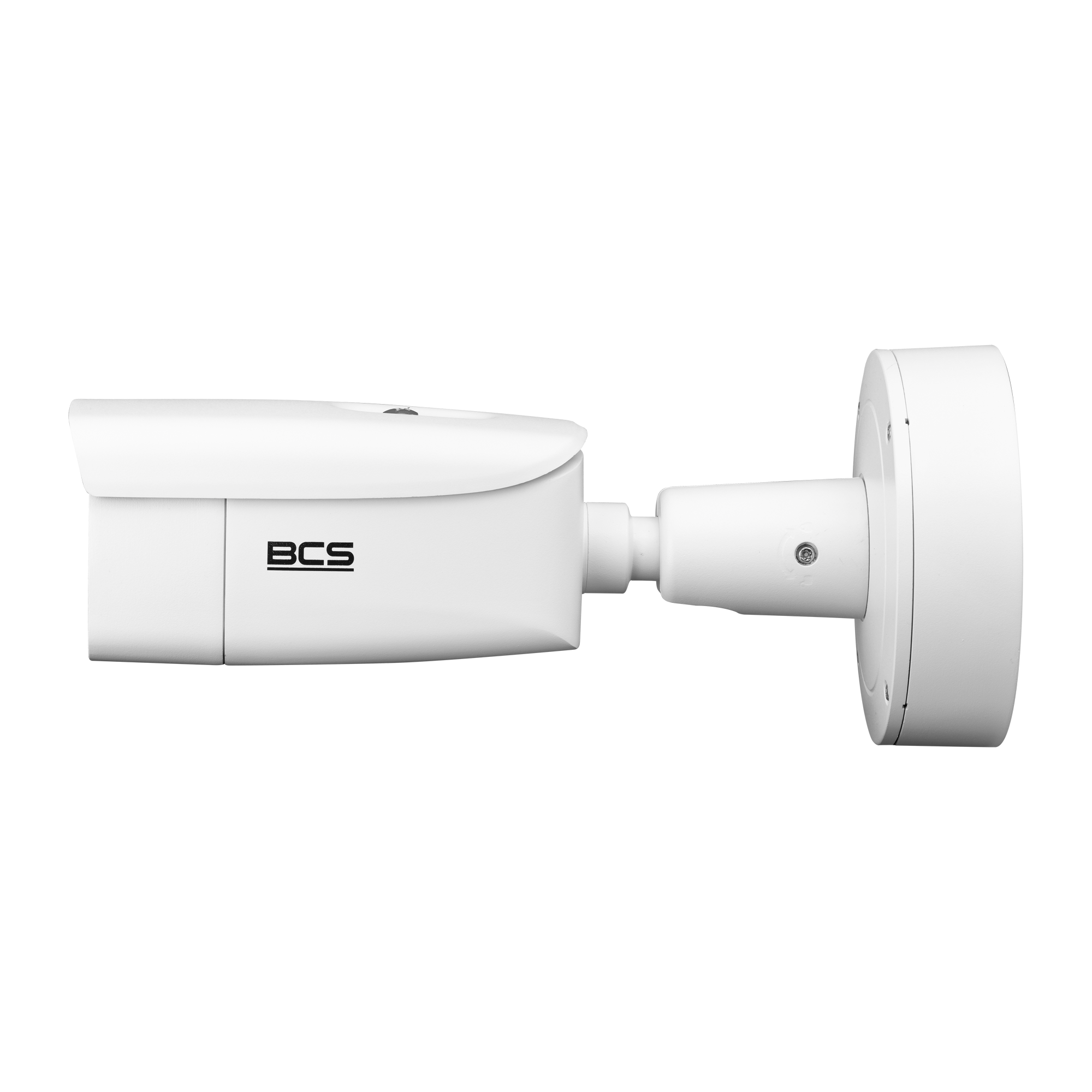

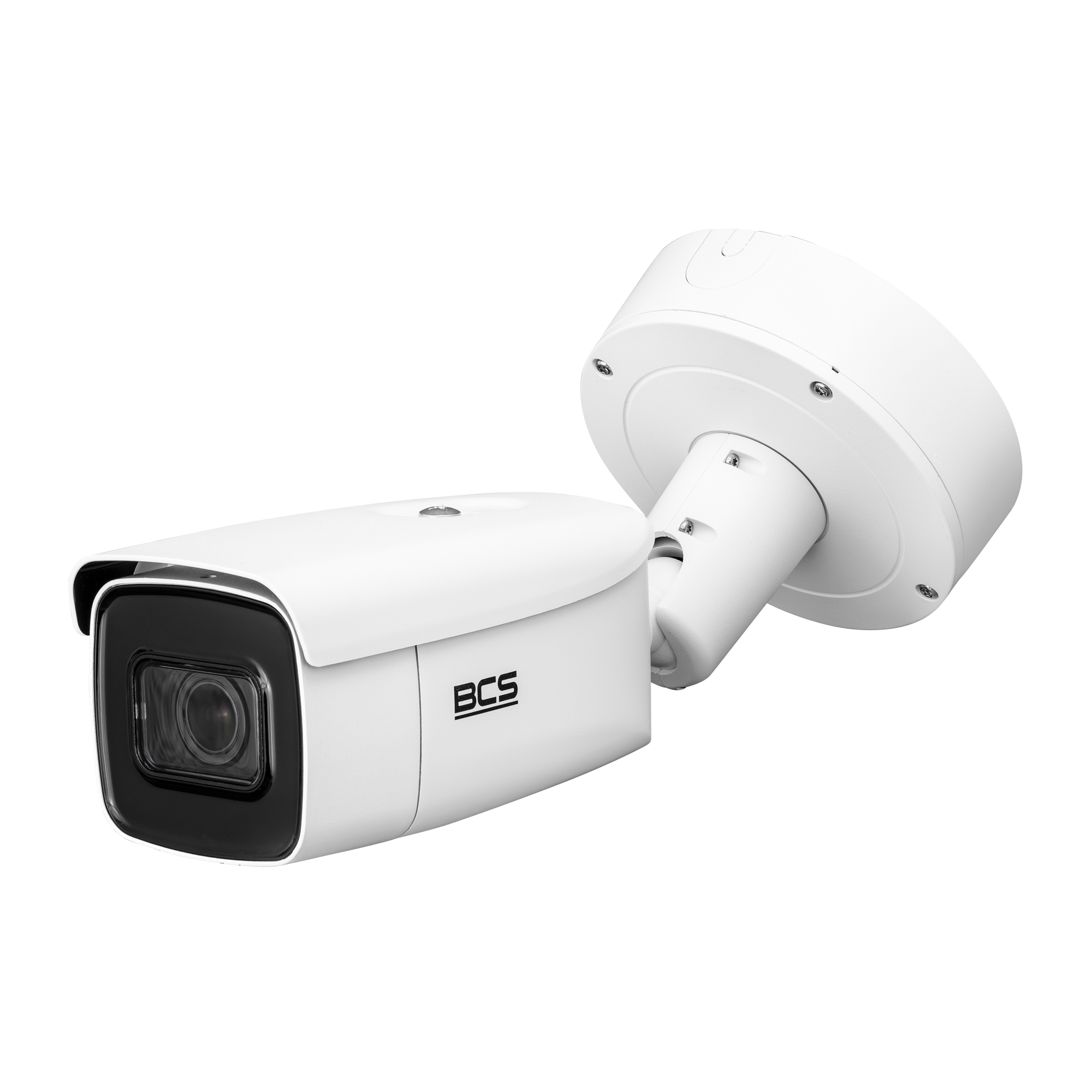

Tube IP Camera, 2Mpx, Transducer 1/2.8″ PS CMOS with lens 2.8 ~ 12mm, H.265 + / H.264 + / MJPEG, infrared illuminator up to 50m, AGC, AWB, AES, BLC, HLC, WDR (120DB) , 3D DNR, ROI, Motion detection, Privacy mask, Smart functions: Intrusion into the area, line crossing detection, Face detection, Left / Abandoned object, 1 input and 1 Audio output, 1 input and 1 Alarm output, MicroSD to 128GB, External housing Metal IP67, IK10, power supply: DC 12V, PoE +.
Warning: This product belongs to the BCS VIEW product line.
Use only components and devices from the same line to ensure compatibility.
BCS VIEW
BCS-V-TI236IR5
464,94 € gross
1 In Stock- 2Mpx IP bullet camera
- 1/2.8" CMOS sensor
- 2.8–12 mm motorised zoom lens
- IR 50m

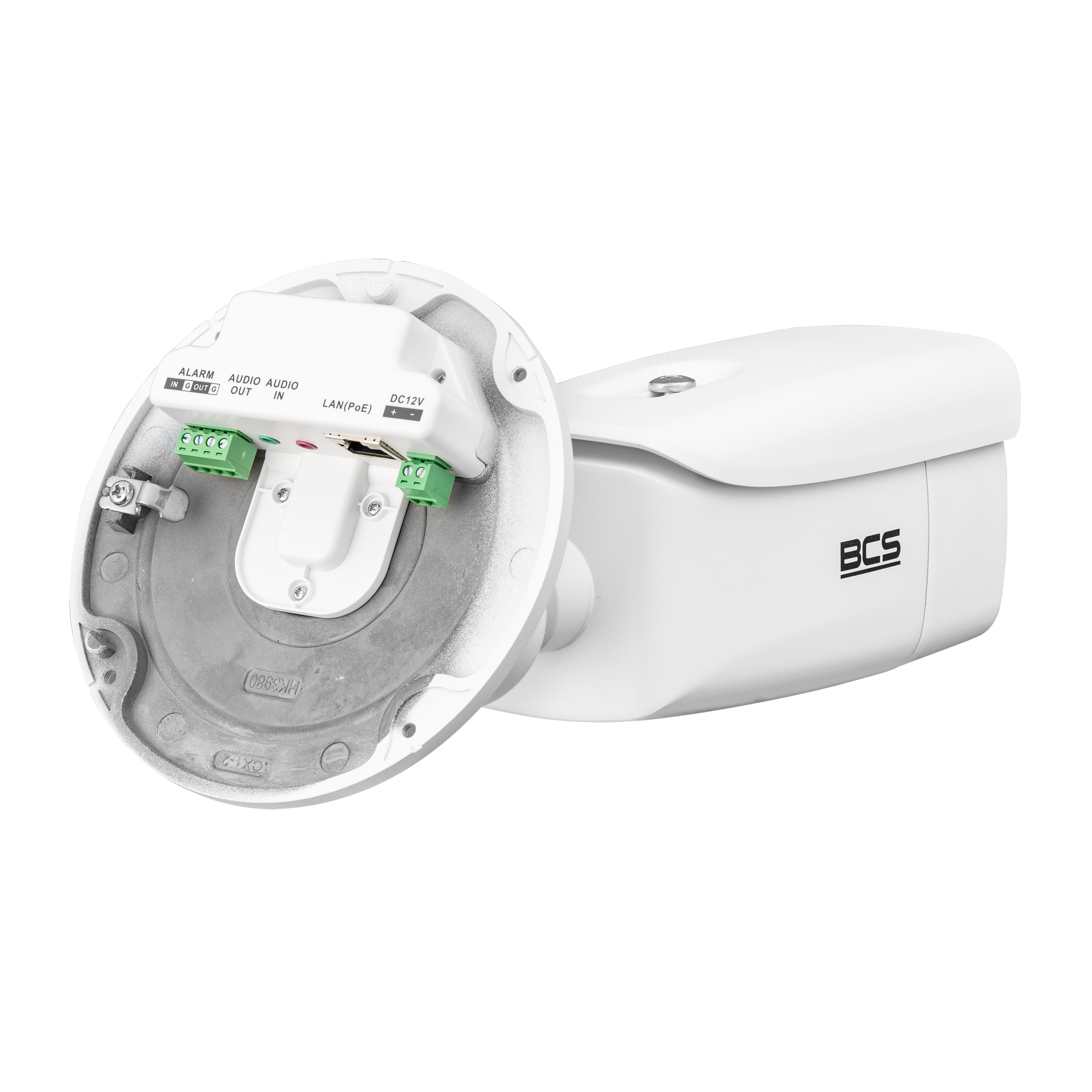

- Alarm 1/1, audio 1/1
- IP66, IK10 housing

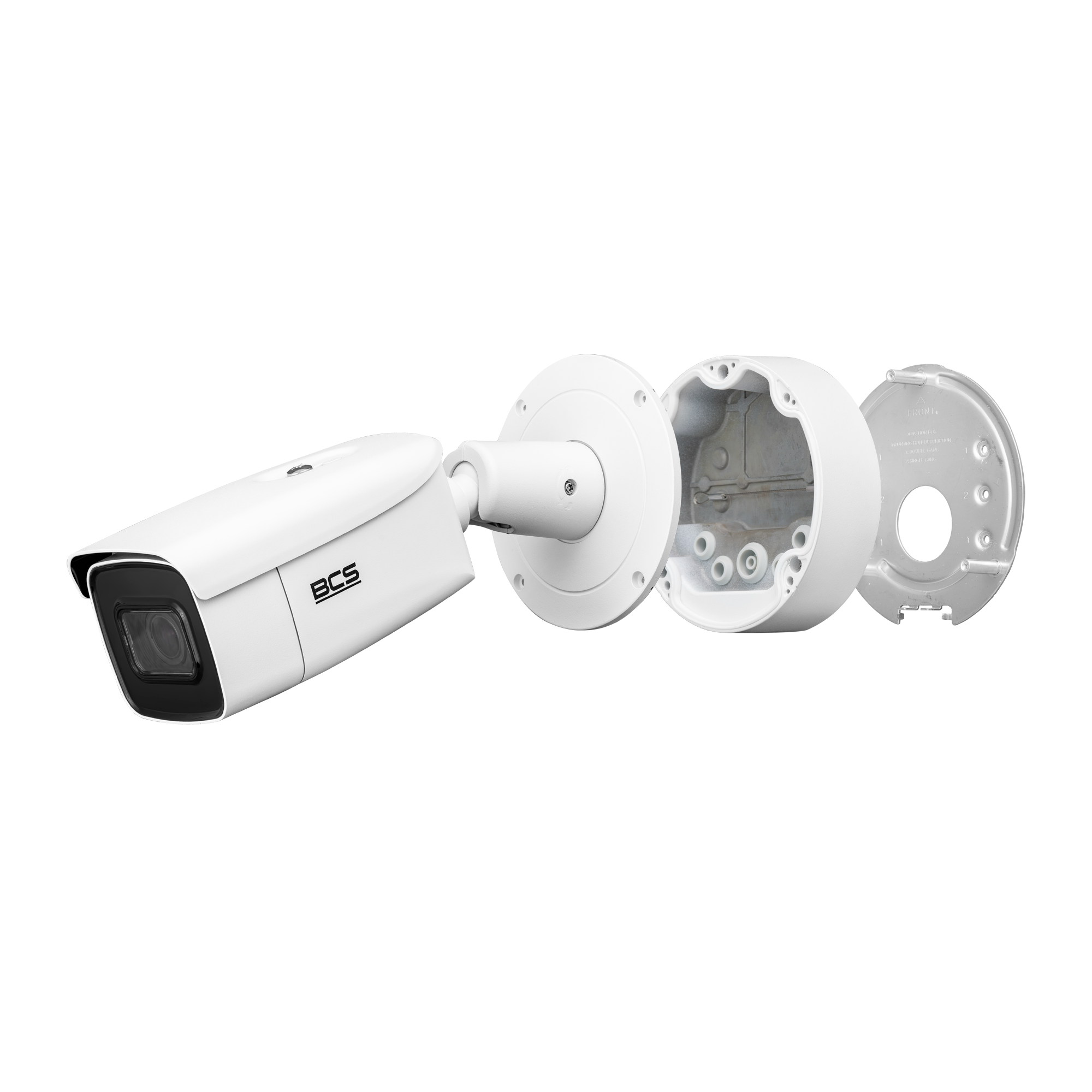

- Integrated mounting box
- Built-in smart features
1 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Ai - Face detection | Yes |
|---|---|
| Product | BCS-V-TI236IR5 |
| Camera type | Bullet |
| Sensor | 1/2.8'' CMOS |
| Lens | motozoom |
| Iris | fixed |
| Min illumination | 0.005Lux(F1.2, AGC) 0.0068Lux(F1.4, AGC) 0Lux(B/W,IR) |
| Shutter | Auto / manual 1/3~1/100000s |
| Ai - Built-in intelligent functions | Yes |
| Flag | OUTLET |
| Resolution | 2 Mpx |
| Scanning system | Progressive Scan |
| Pixels | 1920(H)×1080(V) |
| Focal length | 2.8~12 mm |
| Aperture | F 1.4 |
| Focus | Auto / manual |
| Optical zoom | 4× |
| Digital zoom | 16× |
| Angle of view | H: 105°~35° V: 56°~20° |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Resolutions | 2M(1920×1080) / 720P(1280×720) / VGA(640×480) / 360P(640×360) / (360×240) / QVGA(320×240) |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Image rotate | Mirror |
| Stream support | 3 |
| Main stream | 1920×1080@30fps 1280×720@30fps |
| Second stream | 640×480@30fps 640×360@30fps 320×240@30fps |
| Third stream | 1280×720@30fps 640×480@30fps 640×360@30fps 360×240@30fps |
| Bitrate | 32Kbps~8Mbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR |
| Illuminator type | IR LED |
| IR range | 50m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711 / G.722.1 / G.726 / MP2L2 / PCM |
| Alarm in | 1 |
| Alarm out | 1 |

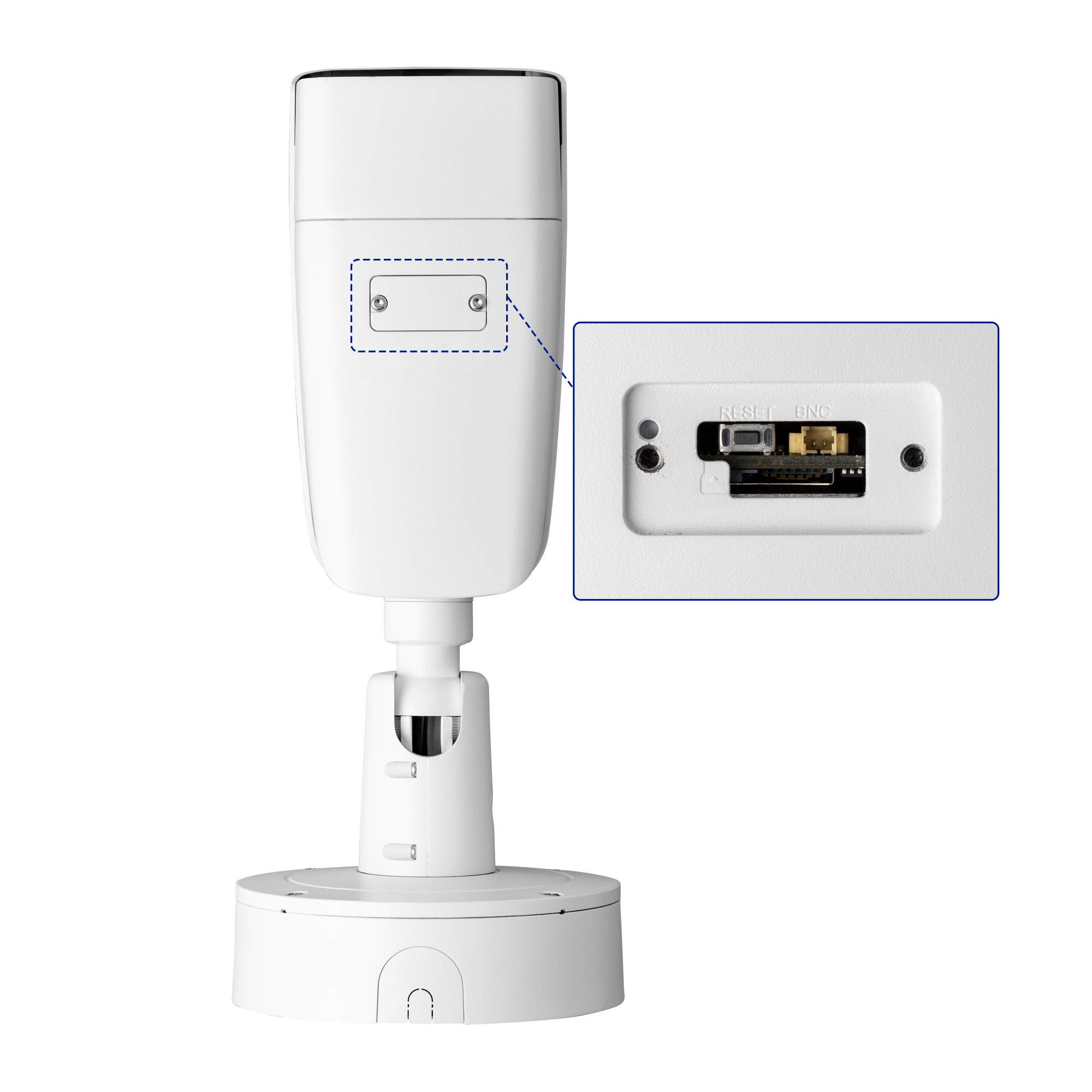

| Memory card slot | microSD 128GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Yes |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Power supply | PoE |
| Power supply type | 12V DC / PoE (802.3at) |
| Power consumption | max 16.5W |
| Housing color | White |
| IP class | IP66 |
| IK10 | Yes |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | Ø144×332mm |
| Weight | 1.9kg |
| Ai - Perimeter protection | Yes |
