| Ai - Perimeter protection | 4 channels analog HD |
|---|---|
| Ai - SMD - Smart Motion Detection | 16 channels analog HD |
| Product | BCS-V-XVR1601-Ai |
| System | Analog HD + IP |
| HDD support | 1 |
| Incoming bandwidth | 96Mbps |
| Power consumption (without HDD) | max 24W |
| HD-TVI camera | 3K@20fps, 4M@25/30fps, 3M(ch1&2&3&4)@18fps, 1080P@25/30fps, 720P@25/30/50/60fps |
| Ai - Built-in intelligent functions | Yes |
| Ai - Intelligent functions from recorder | Perimeter protection (human/vehicle recognition) or smart motion detection (human/vehicle recognition) |
| Flag | PROMOTION |
| Transmission standard | HD-CVI / AHD / HD-TVI / ANALOG / IP |
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| Channels | 16 |
| HDD capacity | 10 TB |
| Max recording resolution | 4 Mpx Lite |
| Outgoing bandwidth | 32Mbps |
| HD-CVI camera | 4M@25/30fps, 1080P@25/30fps, 720P@25/30fps |
| AHD camera | 4M@25/30fps, 1080P@25/30fps, 720P@25/30fps |
| Main stream | 4M Lite(15fps), 3M(15fps), 1080P(15fps), 1080P Lite(30fps), 720P Lite(30fps), 720P/VGA/WD1/4CIF/CIF(30fps) |
| ANALOG camera | CVBS PAL/NTSC |
| XVR - IP camera | 24×4M / 18×6M |
| XVR - IP channels | 16+8(4M) / 16+2(6M) |
| Recording resolutions | 4M Lite / 3M / 1080P / 1080P Lite / 720P / 720P Lite / VGA / WD1 / 4CIF / CIF |
| Second stream | WD1/4CIF(12fps), CIF(25/30fps) |
| Bitrate | 32Kbps~6144Kbps |
| Video compression | H.265 Pro / H.265 Pro+ / H265 / H.264+ / H.264 |

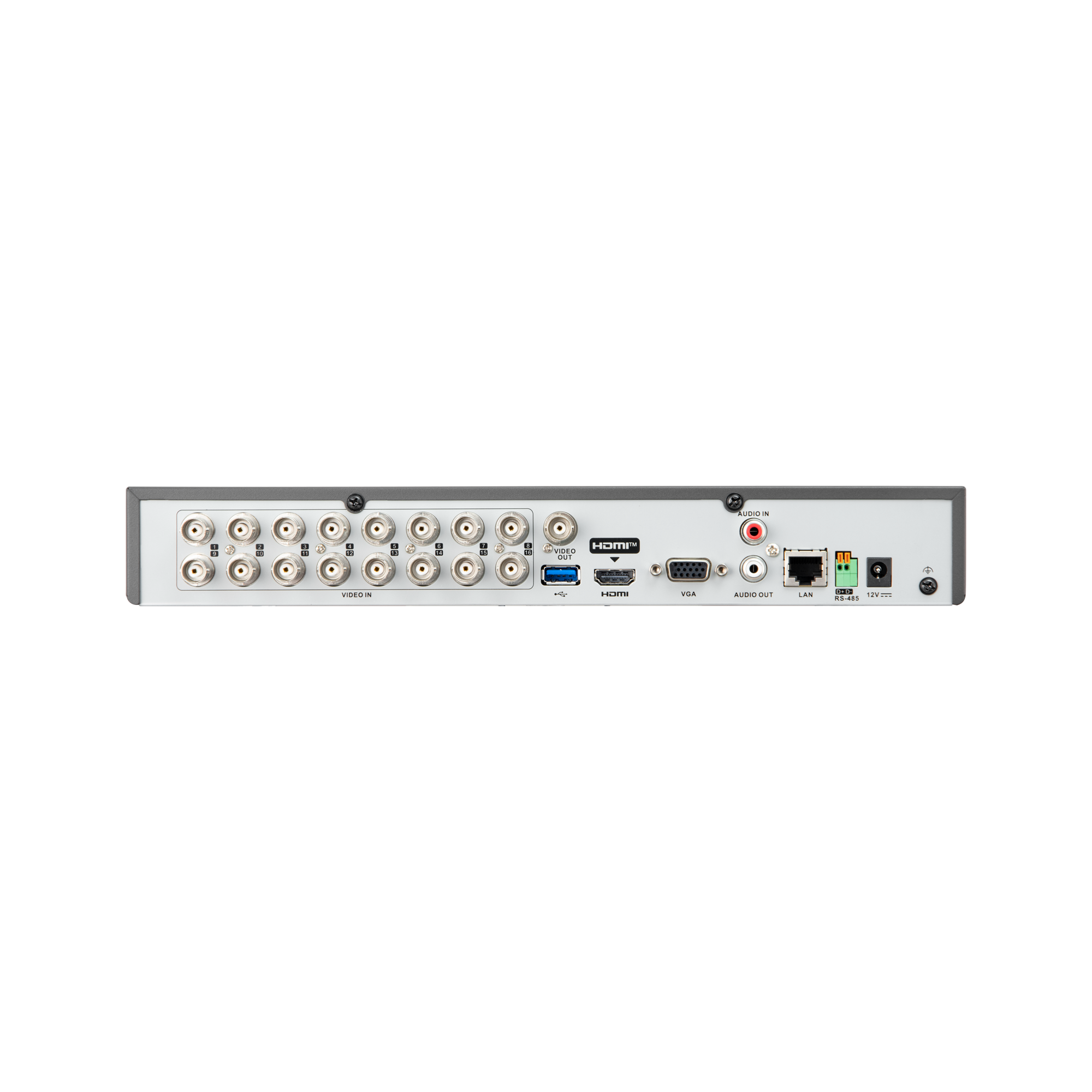

| HDMI out | HDMI |
| VGA out | VGA |
| BNC out | BNC |
| HDMI display resolutions | 1920×1080 / 1280×1024 / 1280×720 / 1024×768 |
| VGA display resolutions | 1920×1080 / 1280×1024 / 1280×720 / 1024×768 |
| Display split | 1/4/6/8/9/16/25 |
| Synchronous playback | 1/4/9/16 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| User connections | 128 |
| Interfaces | 1×USB2.0, 1×USB3.0 |
| Serial port | RS485 |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711U |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | RJ-45(10/100/1000Mbps) |
| Compatibility | ONVIF |
| Protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS |
| Power supply | 12V DC |
| Working environment | -10°C~+55°C max 90% RH |
| Casing | 1U |
| Dimensions (W×D×H) | 315×238×45mm |
| Weight (without HDD) | 2 kg |
Warning: This product belongs to the BCS VIEW product line.
Use only components and devices from the same line to ensure compatibility.

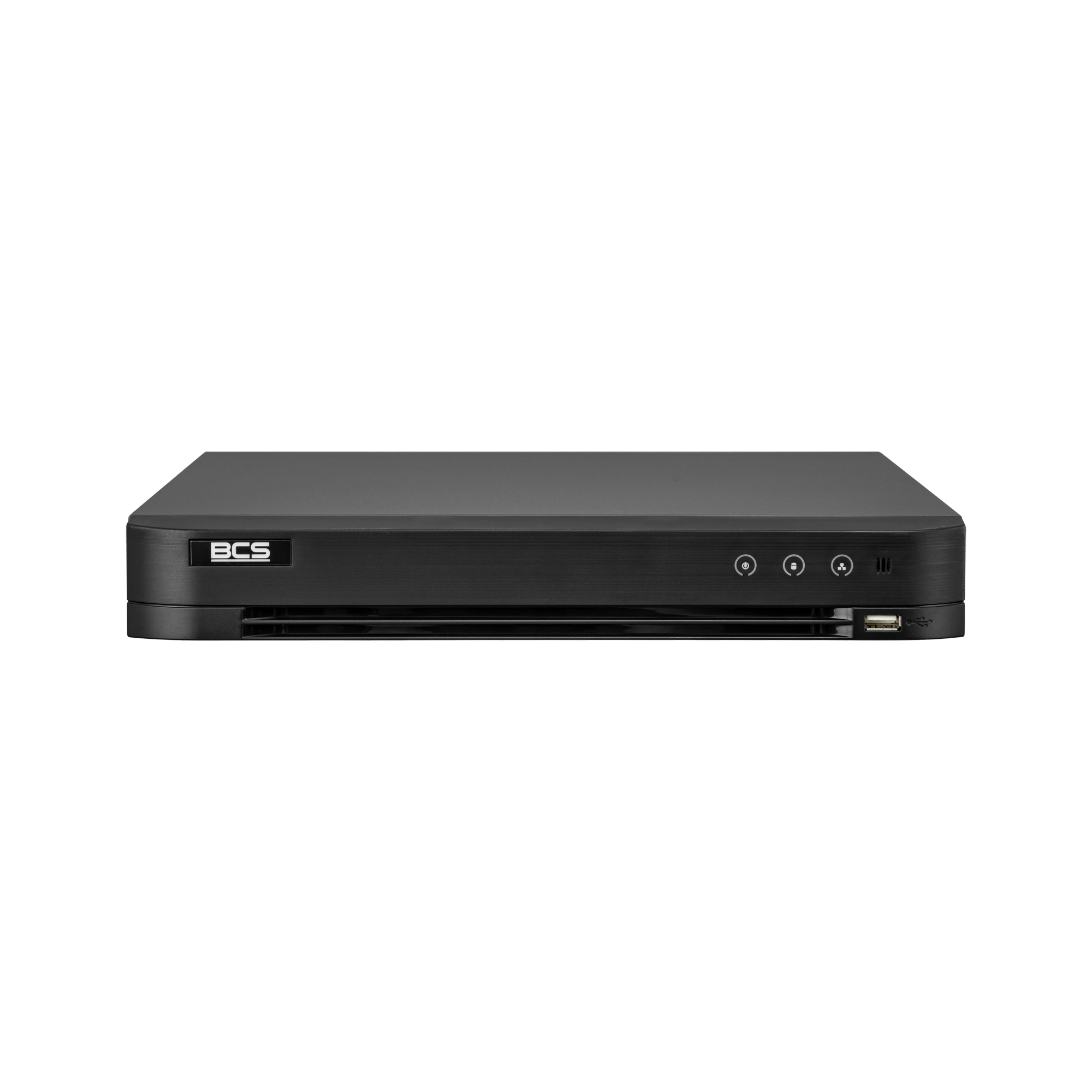

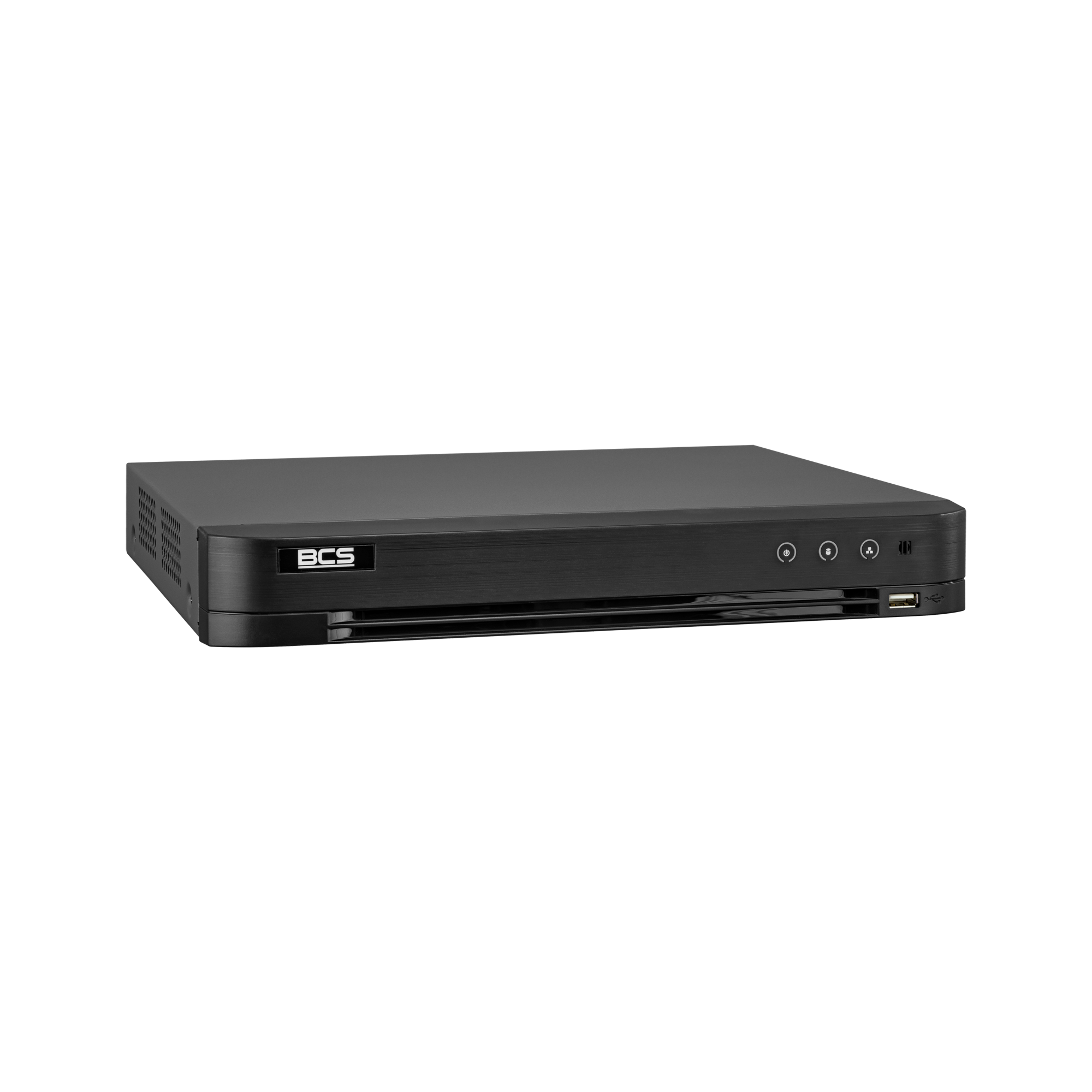

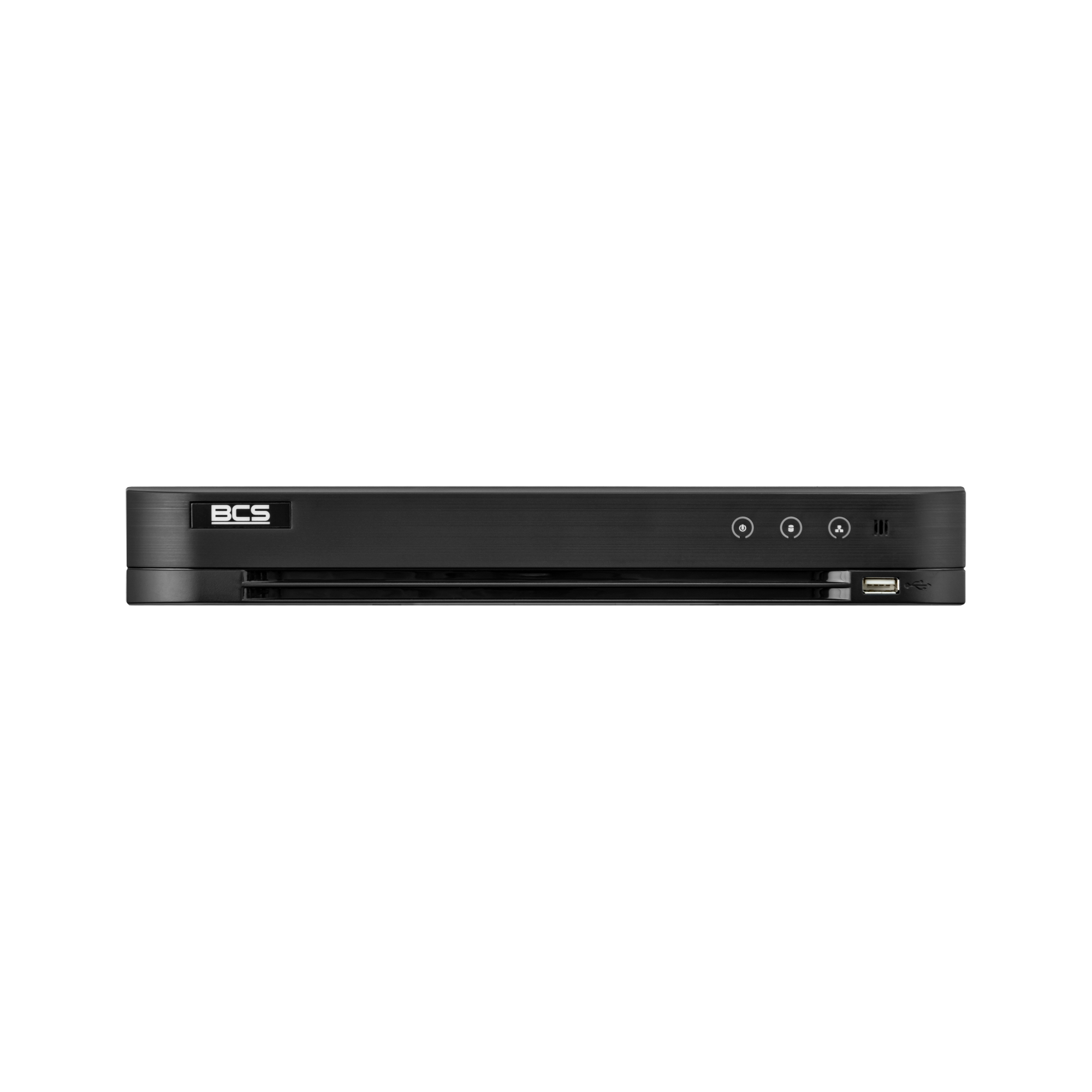

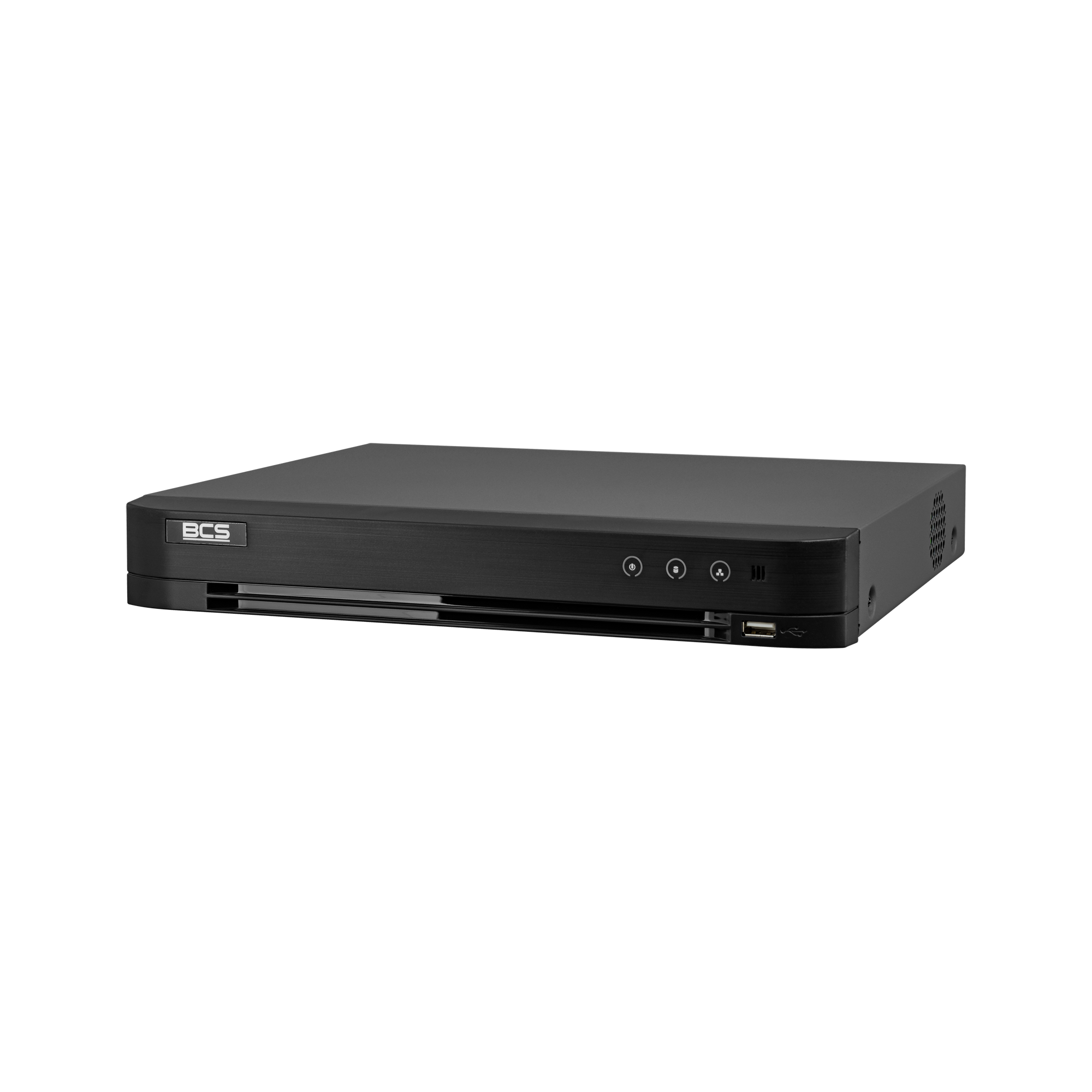

BCS VIEW
XVR SET04
462,48 € gross
68 In Stock- 16-channel, 5-system recorder
- HDCVI/AHD/TVI/ANALOGUE/IP
- AcuSense technology
- Supports 1 hard drive
- Supports analogue HD cameras up to 4Mpx and IP cameras up to 6Mpx.
- HDMI/VGA output
- Audio 1/1
- Built-in smart features
