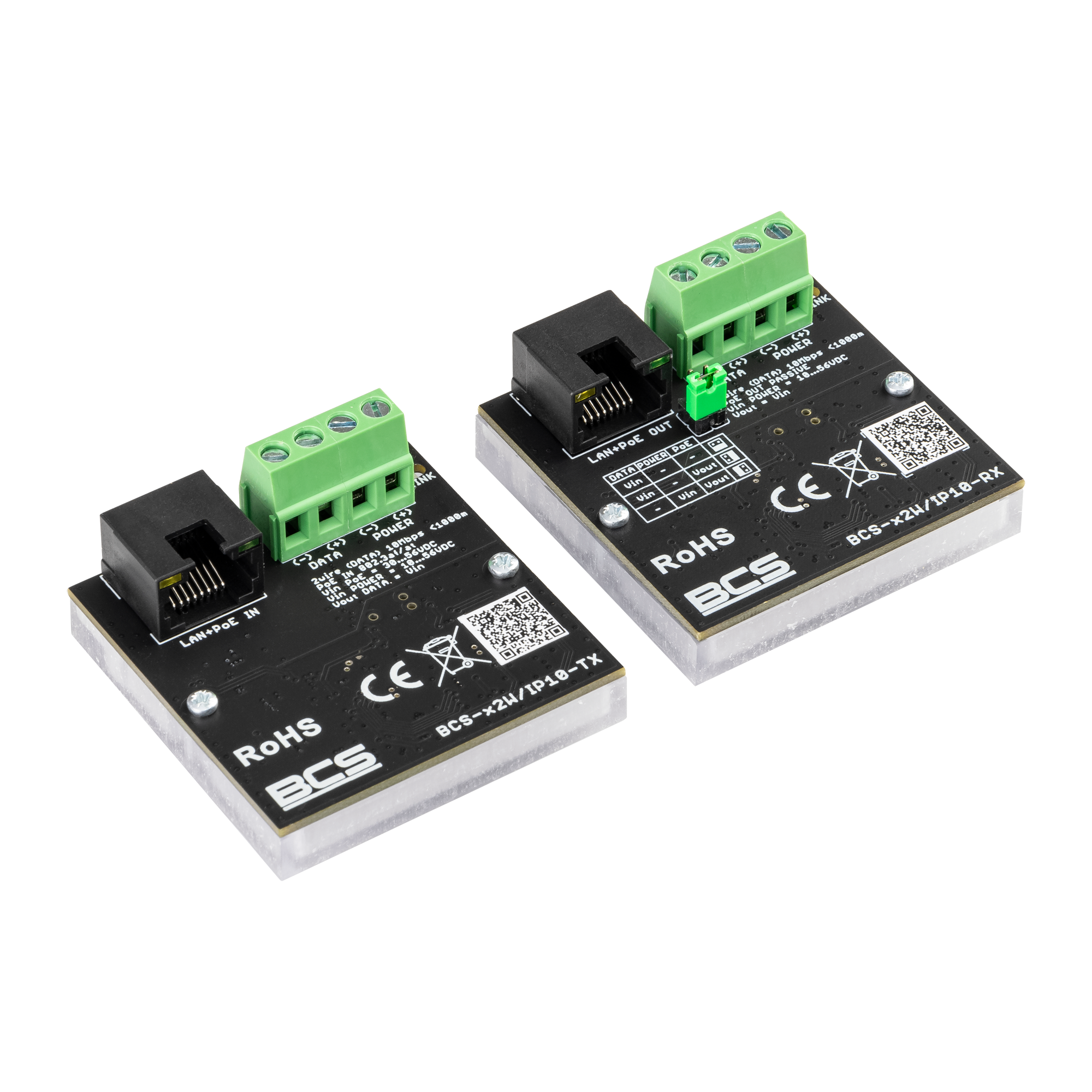

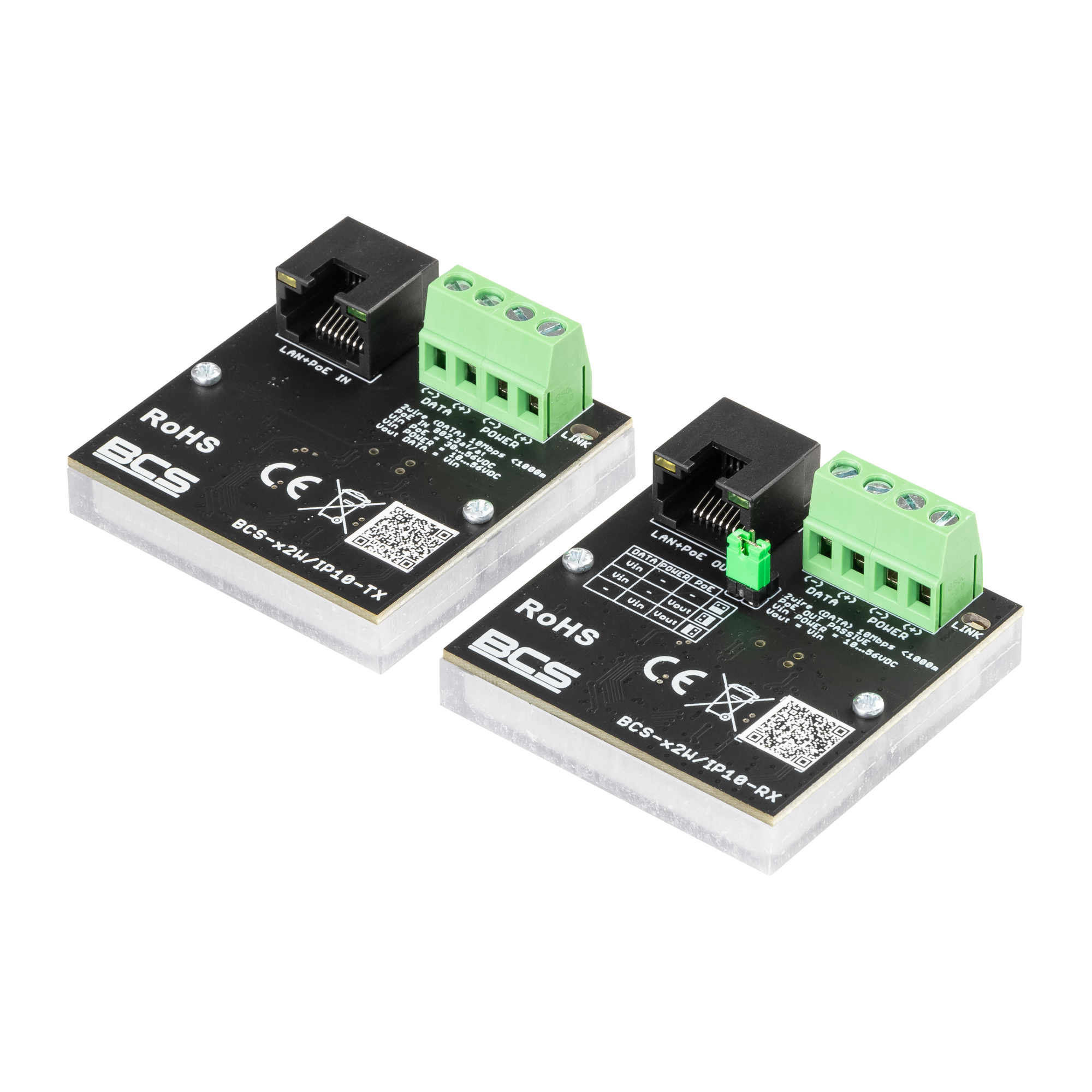

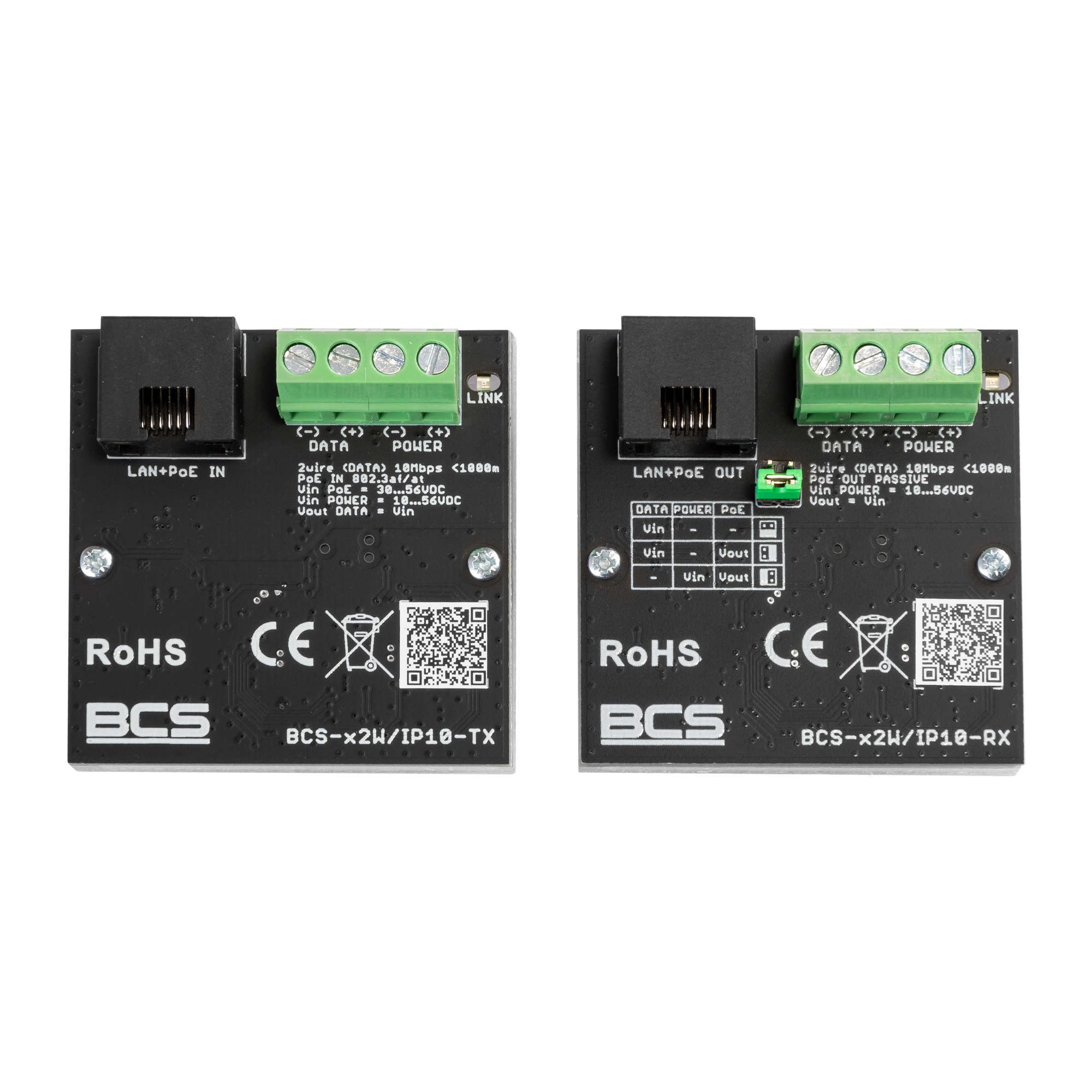

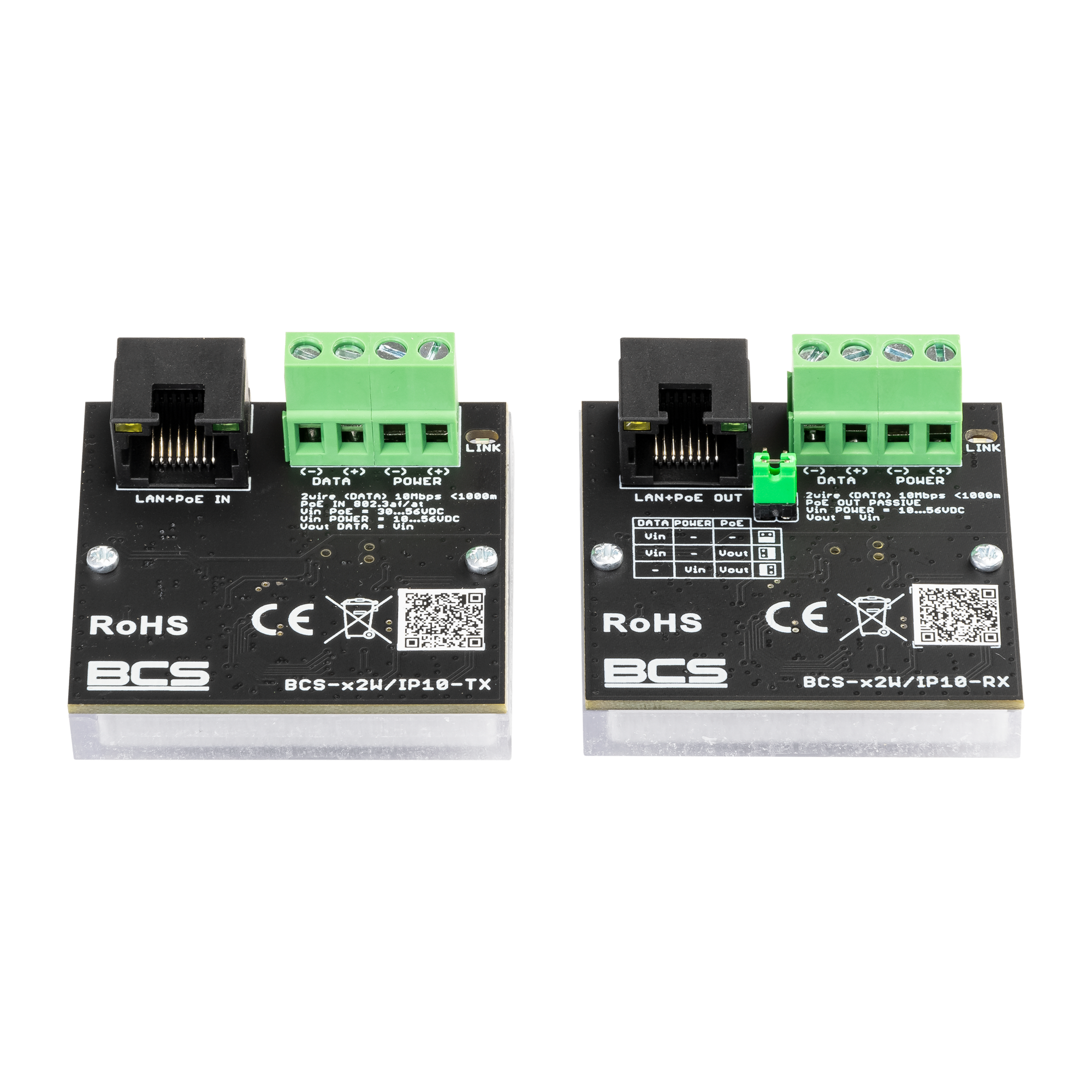

A set of active converters for data transmission from the Ethernet network and PoE power supply using 2 cables 10Mbps up to 1000m.
BCS POWER
BCS-x2W/IP10
120,54 € gross
Out of Stock- Active converter kit
- Ethernet data transmission
- PoE power transmission using 2 wires
- 10 Mbps up to 1,000 m
- Can be powered from a PoE switch compliant with 802.3af, 802.3at or Passive PoE (PoE IN port)
- PoE input voltage Vin 30 … 56 V, Vin Power 10 … 56 V
- Low power consumption (< 1.35 W)
- 3 operating modes selectable via jumper (1: power from DATA, LAN on RJ45 output; 2: power from DATA, LAN+PoE on RJ45 output; 3: power from POWER, LAN+PoE on RJ45 output)
- Communication between modules is indicated by a green LINK LED
- Overvoltage and overload protection
- Operating temperature: -25°C to +65°C
- Dimensions and weight: 51(73) x 51 x 22 mm, 0.05 kg
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
| Product | BCS-x2W/IP10 |
|---|
