BCS-ZA1206/S

81,18 € gross

2 In Stock
  • 12V 6A 72W mains power supply
  • Fitted in a BCS-S external housing
  • Fitted cable glands: 1xM16, 1xM20
  • Input voltage 180–240 V AC
  • Output voltage: 11.2–14.2 V DC, adjustable via a potentiometer
  • Efficiency: 90% @60 W
  • Input protection: T3 15A fuse
  • Short-circuit and overload protection: 9A
  • Operating temperature range: -20–+40°C
  • Dimensions: 150 × 110 × 70 mm
  • Weight: 0.4 kg

2 in stock

  • DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
  • Official BCS e-commerce Business Partner
  • Technical support
SKU: 5562 Categories: ,

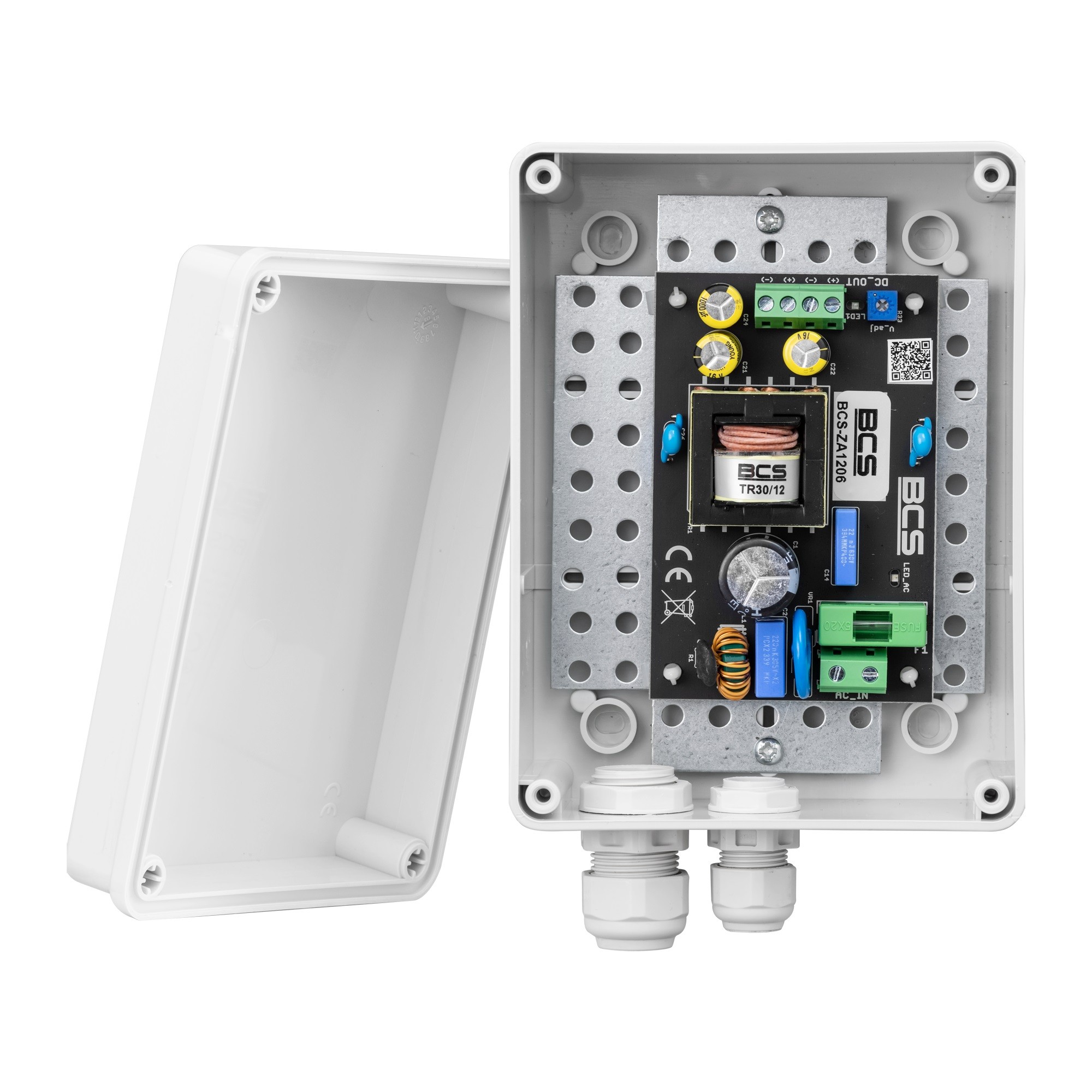

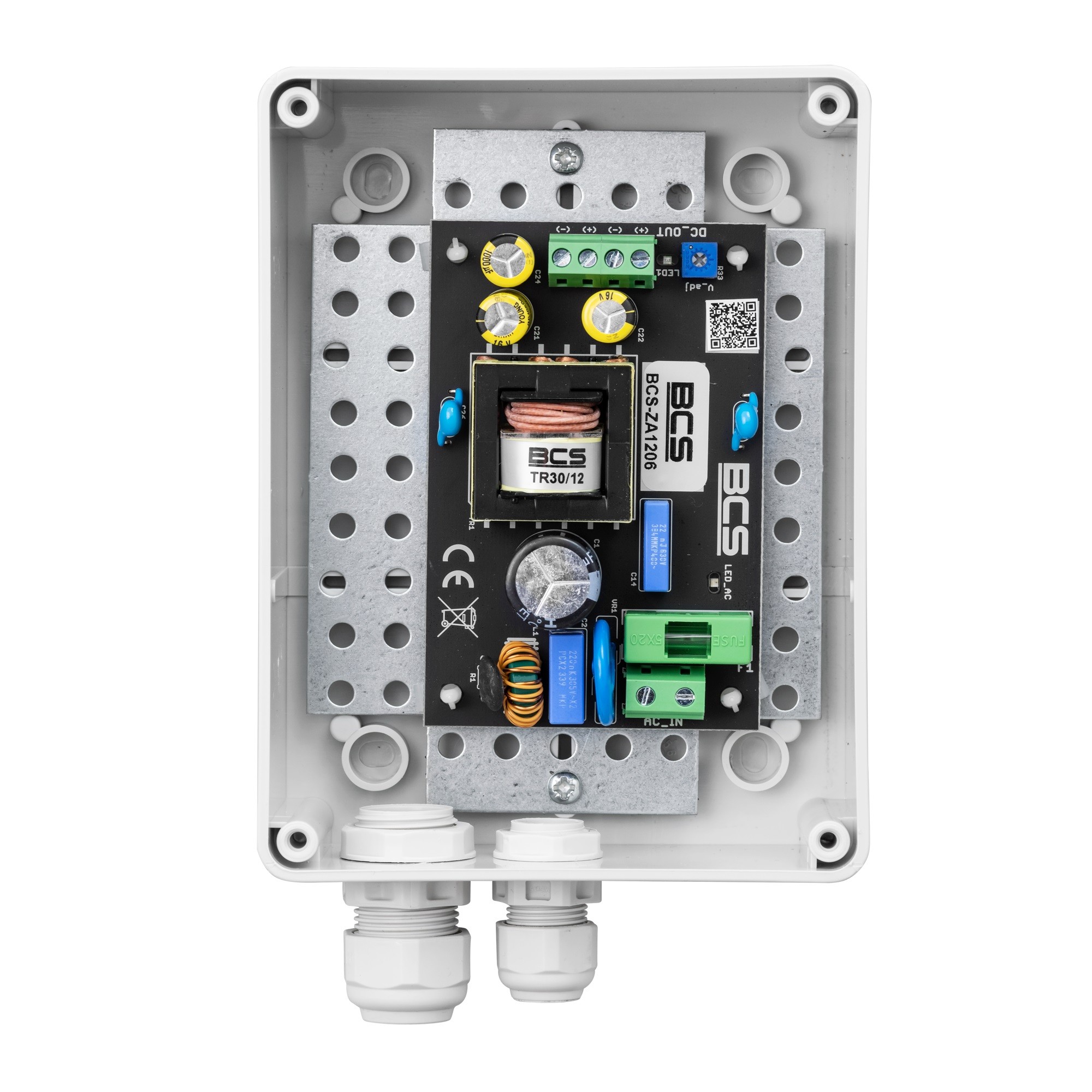

The BCS-ZA1206 / S device is a power supply unit that provides stable DC voltage for demanding electronic devices, e.g. CCTV cameras, recorders, etc. Thanks to the integration of overvoltage and short-circuit protections, it is especially recommended for use in monitoring systems requiring high reliability of power supply. The power supply system is a high-efficiency impulse converter ensuring isolation between the 230 VAC network and the powered device.

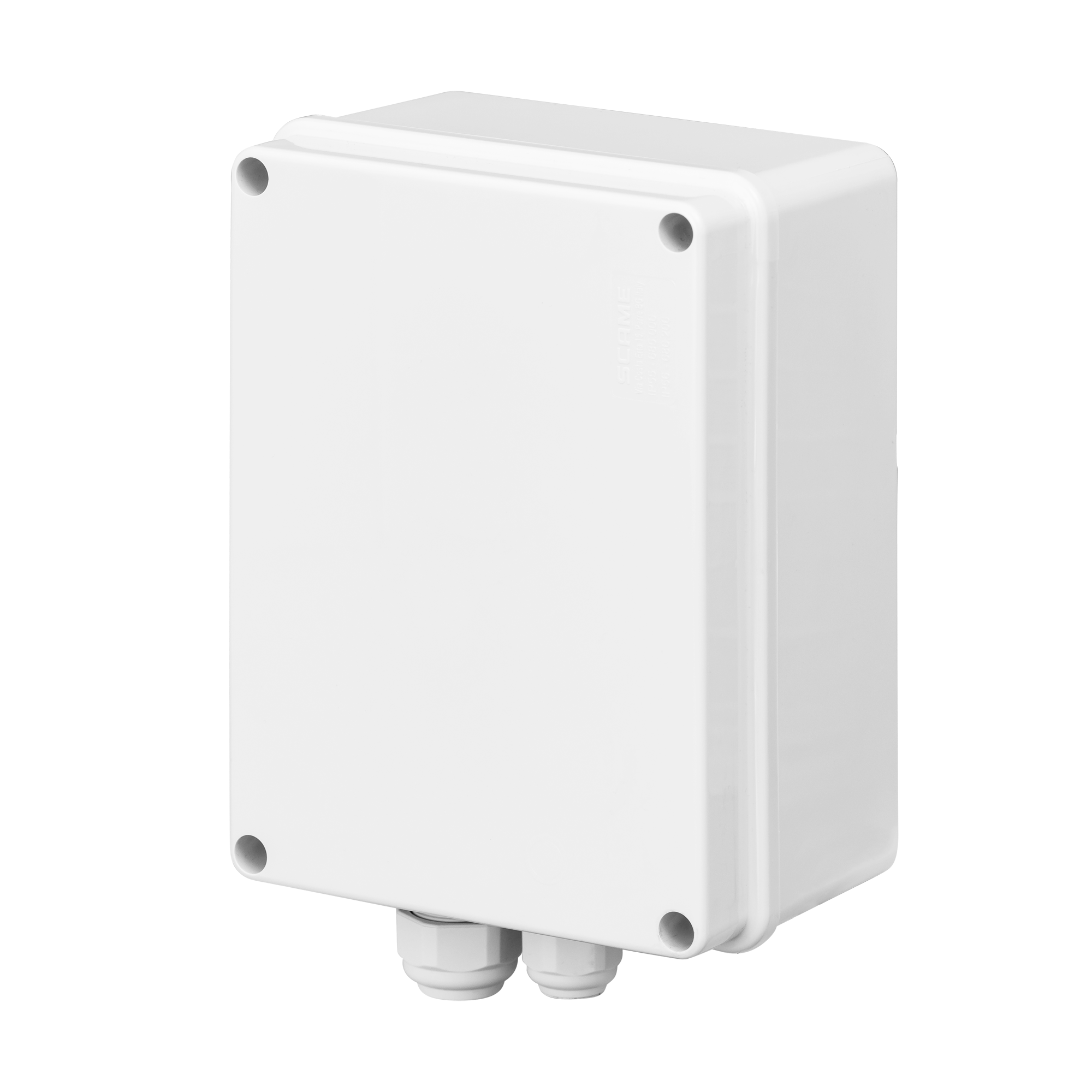

BCS series outdoor enclosures are a convenient solution to the problem of protecting devices and cable connections installed outdoors. High-quality plastic ensures resistance to UV radiation and other unfavorable weather conditions.
