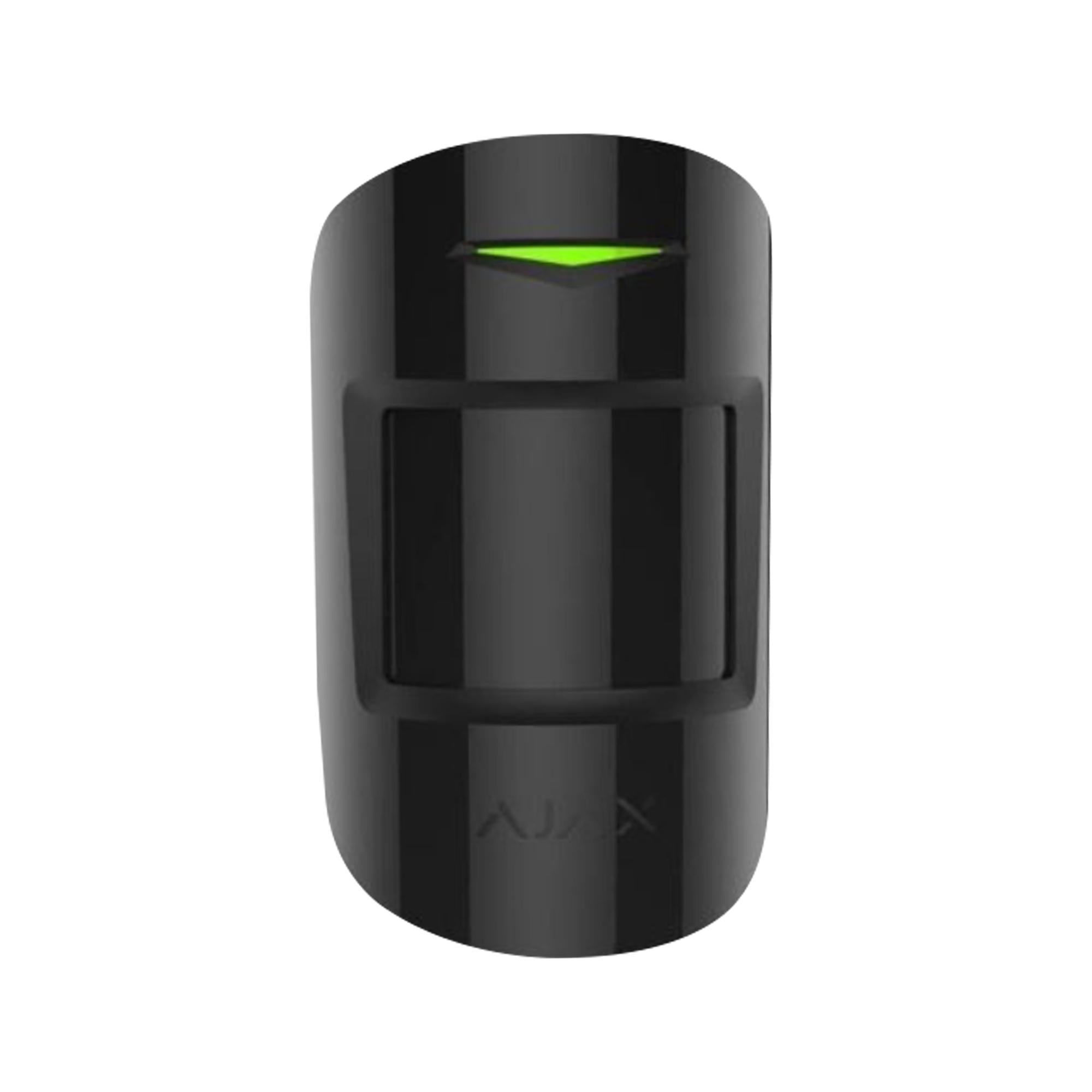

AJAX CombiProtect Glass Break and Motion Detector – Black
Motion detection up to 12 m, glass breakage detection up to 9 m
Product description:
Wireless motion and glass breakage detector. The device helps to secure a room against intruders entering through doors and windows and monitors the condition of the glass.
Key features:
Anti-tamper authentication.
Jamming detection and encryption of communication channels.
Alarm triggered upon detection of tampering.
Operates for up to 5 years without needing a battery change.
Ignores cats and dogs weighing up to 20 kg and up to 50 cm tall.
Detects movement at a distance of up to 12 m and glass breakage at a distance of up to 9 m.
The device combines the functions of two sensors — a motion sensor and a glass break sensor. It detects movement in a room at a distance of up to 12 m and registers broken glass at a distance of up to 9 m from the window.
Features
The device detects movement even in hot climates thanks to temperature compensation. It filters out false alarms caused by thunder, barking dogs or the sound of passing lorries.
Technical specifications:
Classification: Electro-optical, radio alarm sensor
Sensor type: Wireless
Installation method: Indoor
Compatibility: Works with all Ajax hubs, range extenders, ocBridge Plus and uartBridge
Sensing element: PIR sensor, electret microphone
Alarm signal transmission time: 0.15 s
Motion detection range: Up to 12 m
Field of view: Horizontal 88.5°, Vertical 80°
Motion detection time: From 0.3 to 2 ms
Recommended installation height: 2.4 m
Pet immunity: Weight: up to 20 kg, Height: up to 50 cm
Glass break detection range: Up to 9 m
Field of view: 180°
Sensitivity: Adjustable, 3 levels
Power supply: CR123A, 3 V
Battery life: Up to 5 years
Jeweller radio protocol:
Communication range with the central unit — up to 1,200 m in open terrain
Two-way communication between devices
Operating frequency — 868.0–868.6 MHz
Self-regulating radio signal output power — up to 20 mW
Block cipher based on the AES algorithm
Sensor sampling interval — 12–300 seconds
Temperature sensor: Yes
Permissible operating temperature: from +5°C to +40°C
Permissible humidity: Up to 75%
Tamper protection: Anti-fraud protection, Interference detection, Tamper resistance
Dimensions: 110 × 65 × 50 mm
Weight: 92 g
