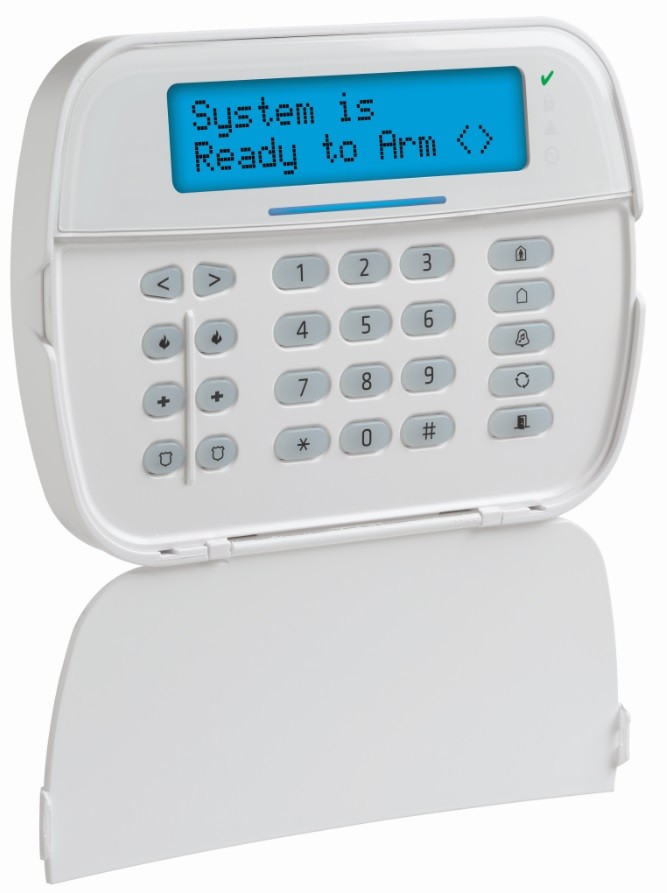

Backlit LCD keyboard dedicated to work in DSC PowerSeries NEO alarm systems with support for up to 8 subsystems and up to 16 lines. LCD text display 2×16 characters backlit in blue, function keys backlit in white, configurable according to your needs, alarm buttons, volume control of the buzzer and backlight, built-in low temperature sensor. Double tamper protection against opening the housing and tearing it off the wall. Casing tightness class: IP30, vandal resistance class: IK04. Supply voltage: DC 13.8V. Dimensions: 168 x 122 x 20 mm.
HS2LCDE3
87,33 € gross
65 In StockA backlit keypad with an LCD screen, designed for use with DSC PowerSeries NEO alarm systems, supporting up to 8 subsystems and 16 lines.
65 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Product | HS2LCDE3 |
|---|---|
| Proximity reader | No |
| Producer | Tyco (DSC) |
| pa_control-panels-compatibil | NEO series DSC control panels |
| Power supply (+/- 15%) | 12 V DC |
| Working temperature range | -10°C to +55°C |
| Keypad type | LCD |
| Touch | No |
| Inputs | 1 |
| Memory card support | No |
| Built-in radio module | No |
| Keypad color | white |
| Wireless | No |
| Certificate EN50131 | Grade 2 |
| pa_power-consumption-standby | 55 mA |
| Keypad dimensions | 168 x 122 x 20 mm |
| Keypad weight | 260 g |
