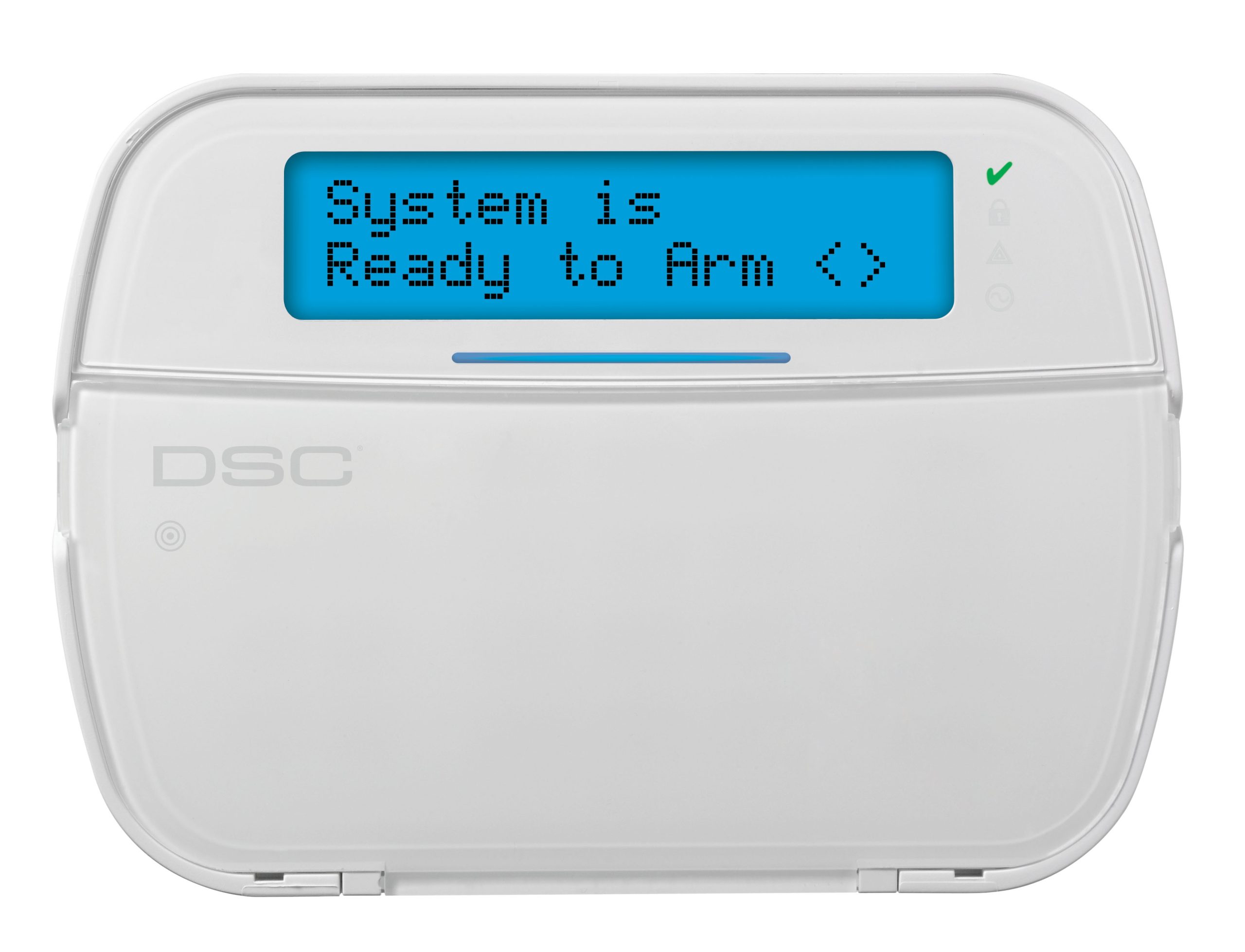

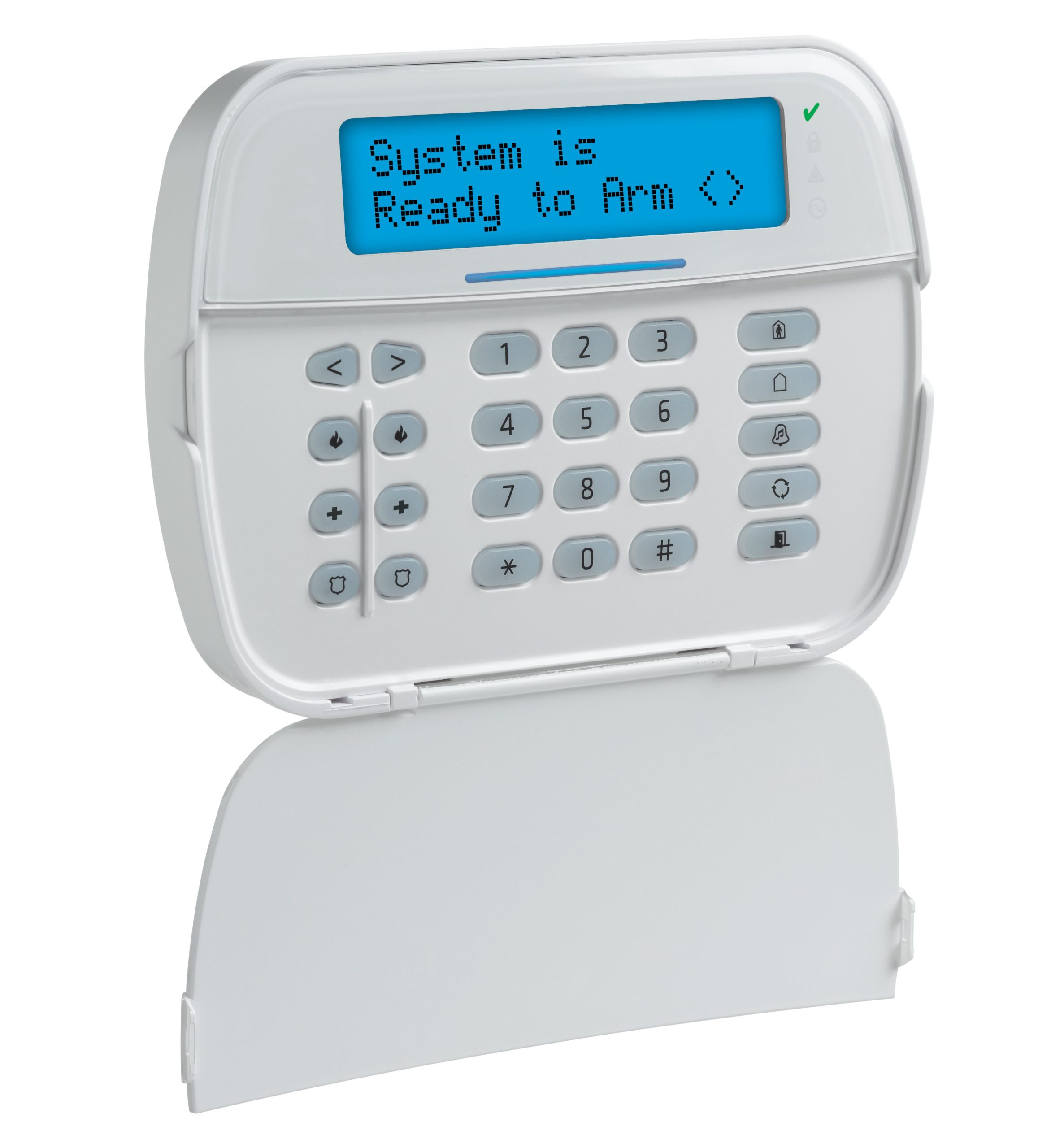

A backlit keypad with an LCD screen, designed for use with DSC PowerSeries PRO alarm systems, featuring a built-in reader for proximity cards and key fobs. A 2×16-character text LCD display with blue backlighting, white-backlit function keys that can be configured to suit your needs, alarm buttons, volume control for the buzzer and backlight, and a built-in low-temperature sensor. Dual tamper protection against opening the housing and detachment from the wall. Meets Grade 3 requirements. Housing protection rating: IP30, vandal resistance rating: IK04. Supply voltage: DC 12 V. Dimensions: 168 x 122 x 20 mm.
HS2LCDPROE3
130,38 € gross
21 In StockPowerSeries PRO (Grade 3) LCD keypad with card and proximity key fob reader.
21 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Producer | Tyco (DSC) |
|---|---|
| Partitions | 8 |
| pa_programmable-outputs-on-b | 1 |
| Standard compliance | Yes, Grade3 |
| Dedicated | Indoor |
| Sabotage | tearing off the wall and opening the housing |
| Additional input | Yes |
| Working temperature | -10°C do +55°C |
| Installation type | wall mount |
| pa_control-panels-compatibil | PRO series DSC control panels |
| Power supply (+/- 15%) | 12 V DC |
| Keypad type | LCD |
| Built-in radio module | No |
| Keypad color | white + blue backlight |
| Keypad dimensions | 168 x 122 x 20 mm |
