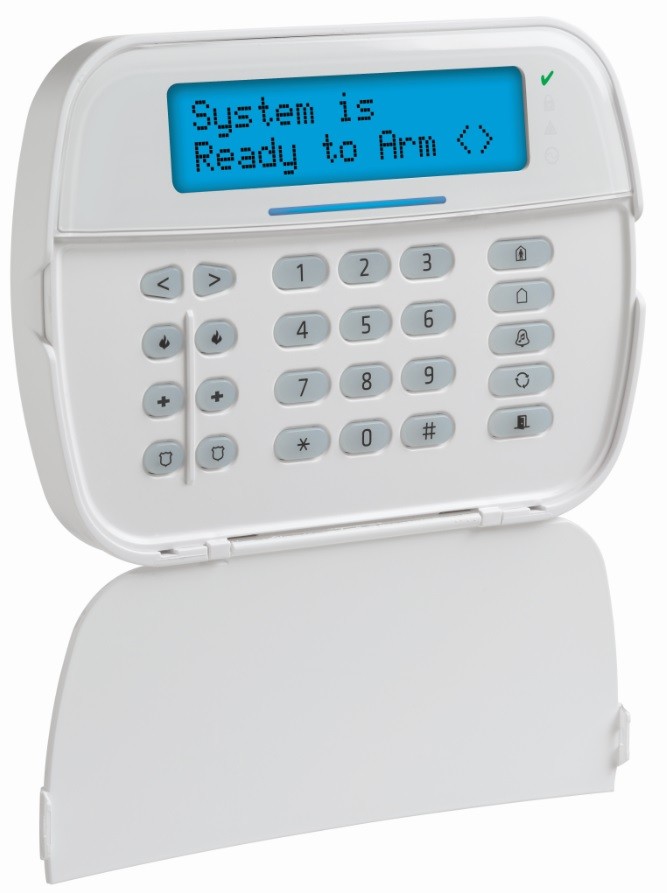

Backlit keyboard dedicated to work in DSC alarm systems with a built-in radio receiver and support for up to 128 wireless lines. Flat, easy-to-read front panel, white keyboard backlight, blue LCD 2×16 backlight, function keys configurable according to your needs, alarm buttons, buzzer and backlight volume control. Integrated low temperature sensor, built-in radio receiver enabling work with wireless devices within the PowerG technology. Double tamper protection against opening the housing and tearing it off the wall. Casing tightness class: IP30, vandal resistance class: IK04. Supply voltage: DC 13.8V. Dimensions: 168 x 122 x 20 mm. White housing.
HS2LCDRF8E3
150,06 € gross
Out of StockA backlit keypad designed for use with DSC alarm systems, featuring a built-in radio receiver and support for up to 128 wireless zones.
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
| Product | HS2LCDRF8E3 |
|---|---|
| Proximity reader | No |
| Producer | Tyco (DSC) |
| pa_control-panels-compatibil | NEO series DSC control panels |
| Power supply (+/- 15%) | 12 V DC |
| Working temperature range | -10°C to +55°C |
| Keypad type | LCD |
| Touch | No |
| Inputs | 1 |
| Memory card support | No |
| Built-in radio module | Yes, PowerG |
| Keypad color | white |
| Wireless | No |
| Certificate EN50131 | Grade 2 |
| pa_power-consumption-standby | 55 mA |
| Keypad dimensions | 168 x 122 x 20 mm |
| Keypad weight | 260 g |
