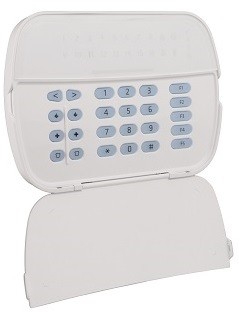

Backlit keyboard dedicated to work in DSC alarm systems with support for up to 8 subsystems and up to 16 zones. Designed with ease of use in mind – flat, readable front panel, white backlight, gentle on the eyes, function keys that can be configured according to your needs, alarm buttons, line status signaling with 16 LEDs, buzzer and backlight volume control. Double tamper protection against opening the housing and tearing it off the wall. Casing tightness class: IP30, vandal resistance class: IK04. Supply voltage: DC 13.8V. Dimensions: 168 x 122 x 20 mm.
HS2LEDE1
56,58 € gross
1 In StockA backlit keypad designed for use with DSC alarm systems, supporting up to 8 subsystems and 16 lines.
1 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Product | HS2LEDE1 |
|---|---|
| Proximity reader | No |
| Producer | Tyco (DSC) |
| pa_control-panels-compatibil | NEO series DSC control panels |
| Power supply (+/- 15%) | 12 V DC |
| Working temperature range | -10°C to +55°C |
| Keypad type | LED |
| Touch | No |
| Inputs | 1 |
| Memory card support | No |
| Built-in radio module | No |
| Keypad color | white |
| Wireless | No |
| Certificate EN50131 | Grade 2 |
| pa_power-consumption-standby | 55 mA |
| Keypad dimensions | 168 x 122 x 20 mm |
| Keypad weight | 260 g |
