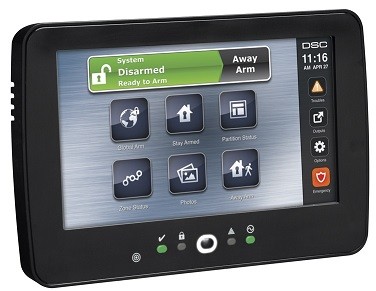

Backlit touch keyboard with LCD 7″ screen dedicated to work in DSC PowerSeries NEO alarm systems with support for up to 16 keypads in the system and a PROX proximity key reader. The alarm system can be armed / disarmed using a key fob, without having to remember the code. Text LCD display 2×16 characters backlit in blue, function keys backlit in white, configurable according to your needs, alarm buttons, built-in low temperature sensor. Built-in memory card slot, double tamper protection against opening the housing and detaching it from the wall. Casing tightness class: IP30, vandal resistance class: IK04. Supply voltage: DC 12V. Dimensions: 161 x 161 x 50 mm. Black housing.
HS2TCHPBLKE3
268,14 € gross
2 In StockA backlit touchscreen keypad with a 7" LCD screen, designed for use with DSC PowerSeries NEO alarm systems, supporting up to 16 keypads per system, and featuring a PROX proximity tag reader.
2 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Product | HS2TCHPBLKE3 |
|---|---|
| Proximity reader | Yes |
| Screen diagonal size | 7'' |
| Producer | Tyco (DSC) |
| pa_control-panels-compatibil | NEO series DSC control panels |
| Power supply (+/- 15%) | 12 V DC |
| Working temperature range | 0°C to +49°C |
| Keypad type | tactile |
| Touch | Yes |
| Memory card support | Yes |
| Built-in radio module | No |
| Keypad color | black |
| Wireless | No |
| Certificate EN50131 | Grade 3 |
| pa_power-consumption-standby | 100 mA |
| Keypad dimensions | 127,9 x 195 x 20,35 mm |
| Keypad weight | 260 g |
