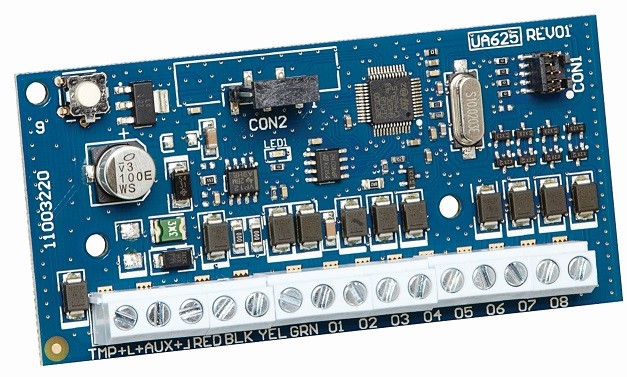

Expansion module with 8 low-current PGM outputs and two-way communication, compatible with DSC panels from the Power Neo series. PGM outputs load: 50mA per output, AUX output load: 250mA, tamper clamp. Current consumption: 60mA. Power supply: DC 12V. Dimensions: 45 x 92 mm.
HSM2208
41,82 € gross
Out of StockExpansion module with 8 low-current PGM outputs and two-way communication, compatible with DSC panels from the Power Neo series.
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
| Product | HSM2208 |
|---|---|
| Producer | Tyco (DSC) |
| pa_control-panels-compatibil | NEO series control panels |
| Power supply (+/- 15%) | 12V DC |
| Module type | output module |
| Outputs | 8 |
| Max power output | 50mA per output |
| Output type | transistor |
| Power consumption | 60 mA |
| Module dimensions | 45 x 92 mm |
| pa_module-working-temperatur | from -10°C to 55°C |
