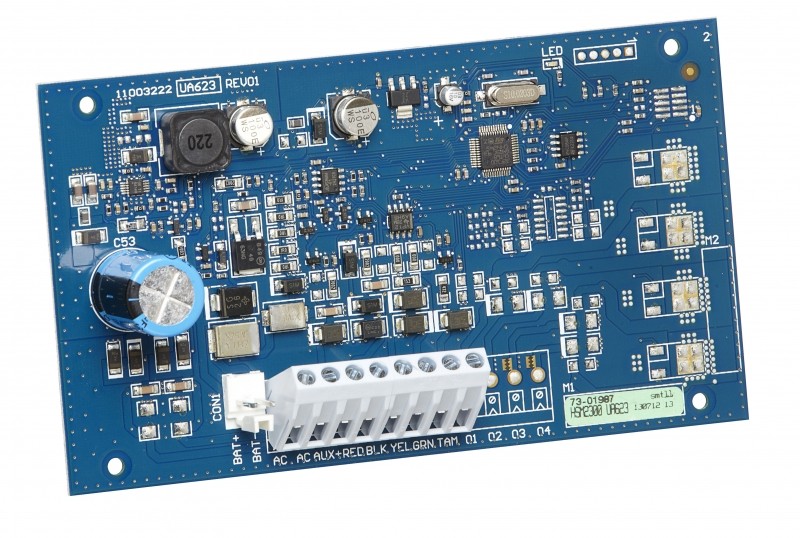

Power supply module with 4 programmable outputs, providing 1A current to compatible control panels from the Power Neo series. Transformer: 220-240VAC, 50Hz, current consumption 40mA, has auxiliary power sources: maintenance-free DC 12V battery, replaceable every 3-5 years, capacity 7-17Ah. Backup time – up to 24 hours, charging up to 80% of the capacity in no more than 24 hours. Protection against total battery discharge. Power supply: AC 16V. PCB board dimensions: 145 x 83 mm.
HSM2300
56,58 € gross
6 In StockPower supply module with 4 programmable outputs, providing 1A current to compatible control panels from the Power Neo series.
6 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Product | HSM2300 |
|---|---|
| Producer | Tyco (DSC) |
| pa_control-panels-compatibil | NEO series control panels |
| Power supply (+/- 15%) | 16V AC |
| Module type | power supply module |
| AUX max power output | 1A |
| Power consumption | 40 mA |
| Module dimensions | 145 x 83 mm |
| pa_module-working-temperatur | from -10°C to 55°C |
