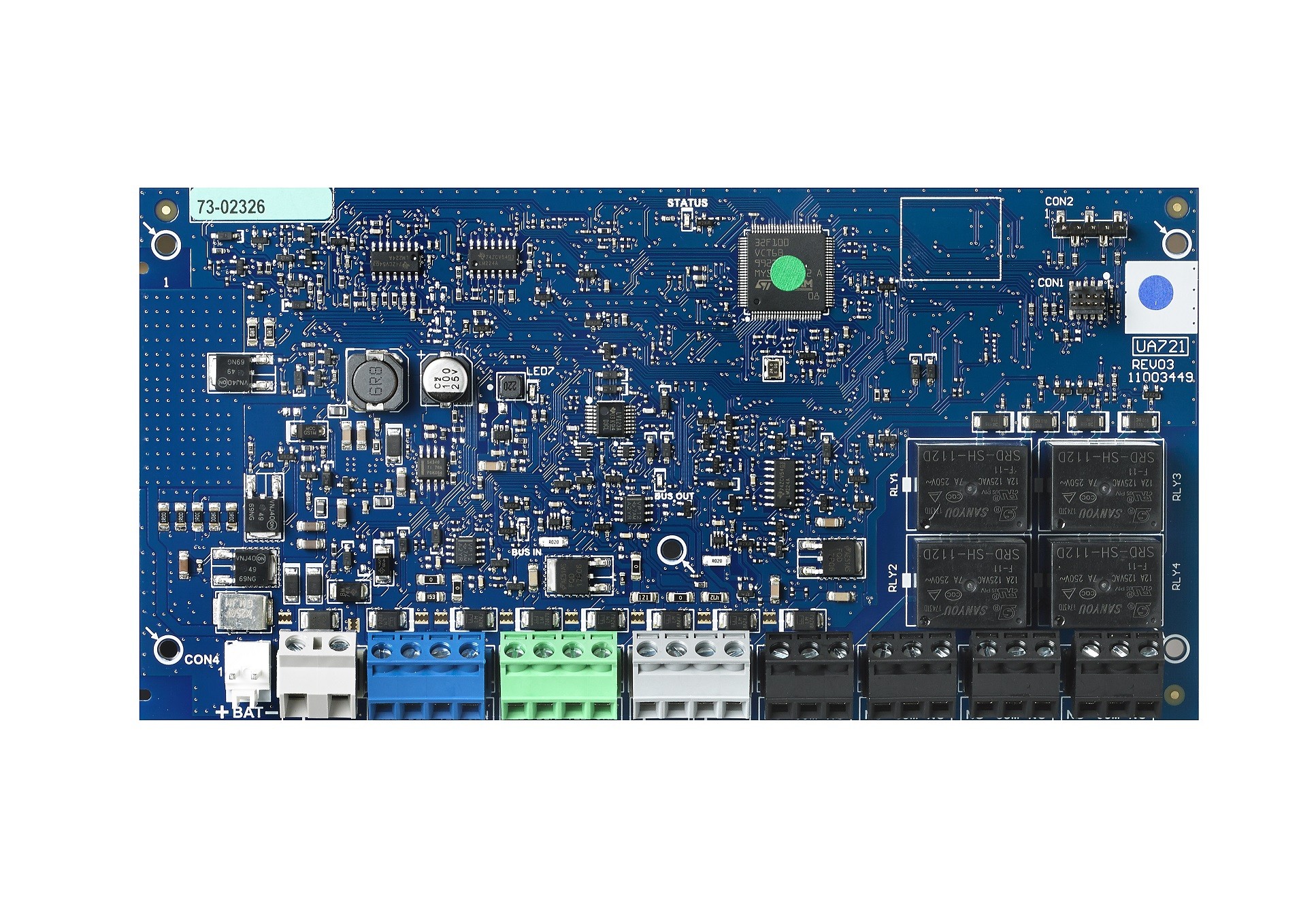

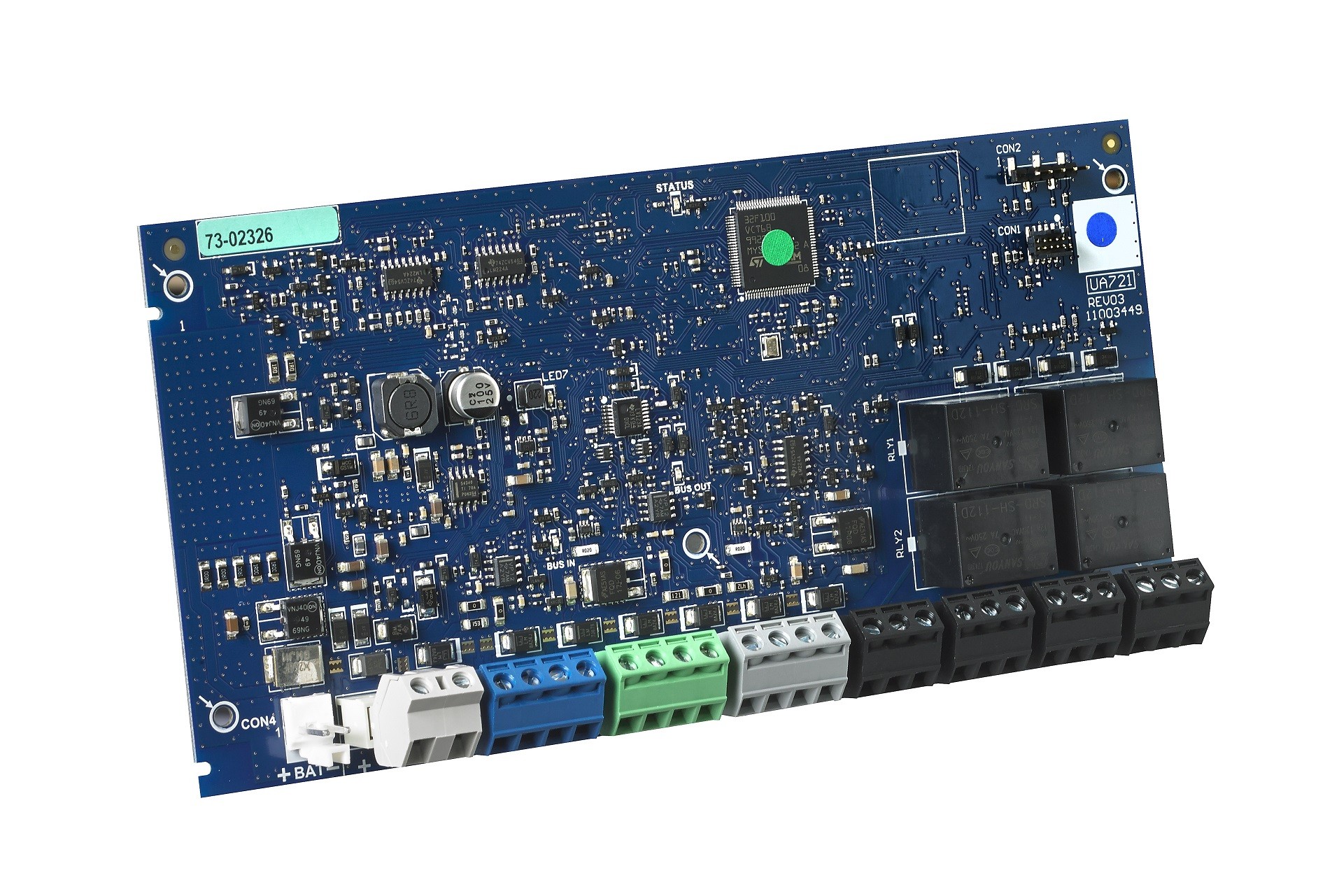

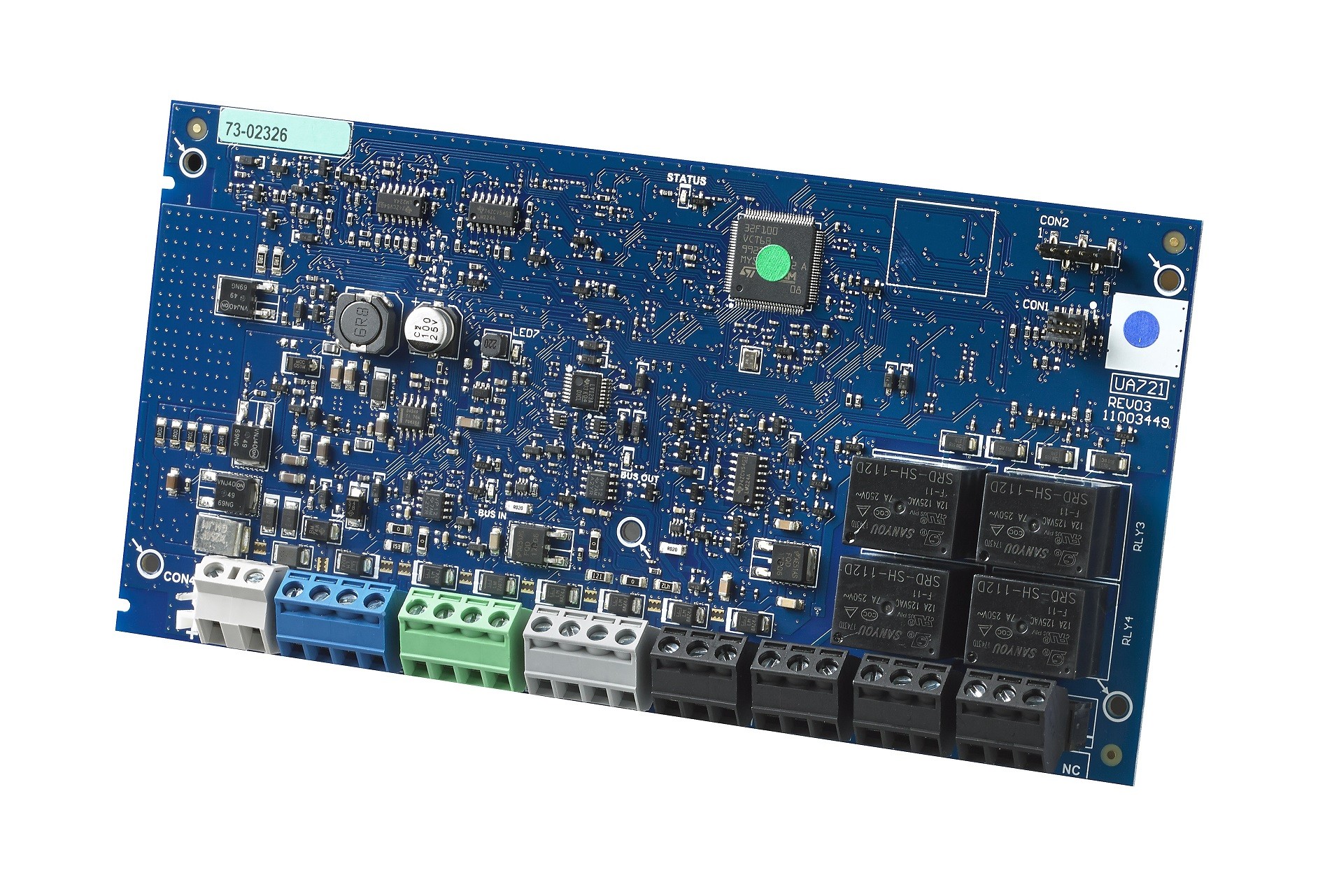

2A power supply module with 4 high-current relay outputs, equipped with the transmission bus regeneration function. 4 relay outputs, protection against total battery discharge, low-charge signaling, space for connecting 1 to 8 modules depending on the type of control panel, possibility to connect up to 4 modules in a line, each module extends the bus by about 1200m, extended system diagnostics. HS65WPS power supply included. Current consumption: 25mA (standby), 150mA (when generating an alarm). Supply voltage: DC 18V. Dimensions: 191 x 97 mm.
HSM3204CXI
188,19 € gross
Out of Stock2A power supply module with 4 high-current relay outputs, equipped with the transmission bus regeneration function.
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
| Product | HSM3204CXI |
|---|---|
| Producer | Tyco (DSC) |
| pa_control-panels-compatibil | PRO series control panels |
| Power supply (+/- 15%) | 18V DC |
| Module type | power supply and outputs module |
| Outputs | 4 |
| Max power output | 2A for 4 outputs |
| Output type | relay |
| AUX max power output | 2A |
| Power consumption | 25 – 150 mA |
| Module dimensions | 191 x 97 mm |
| pa_module-working-temperatur | from -10°C to 55°C |
