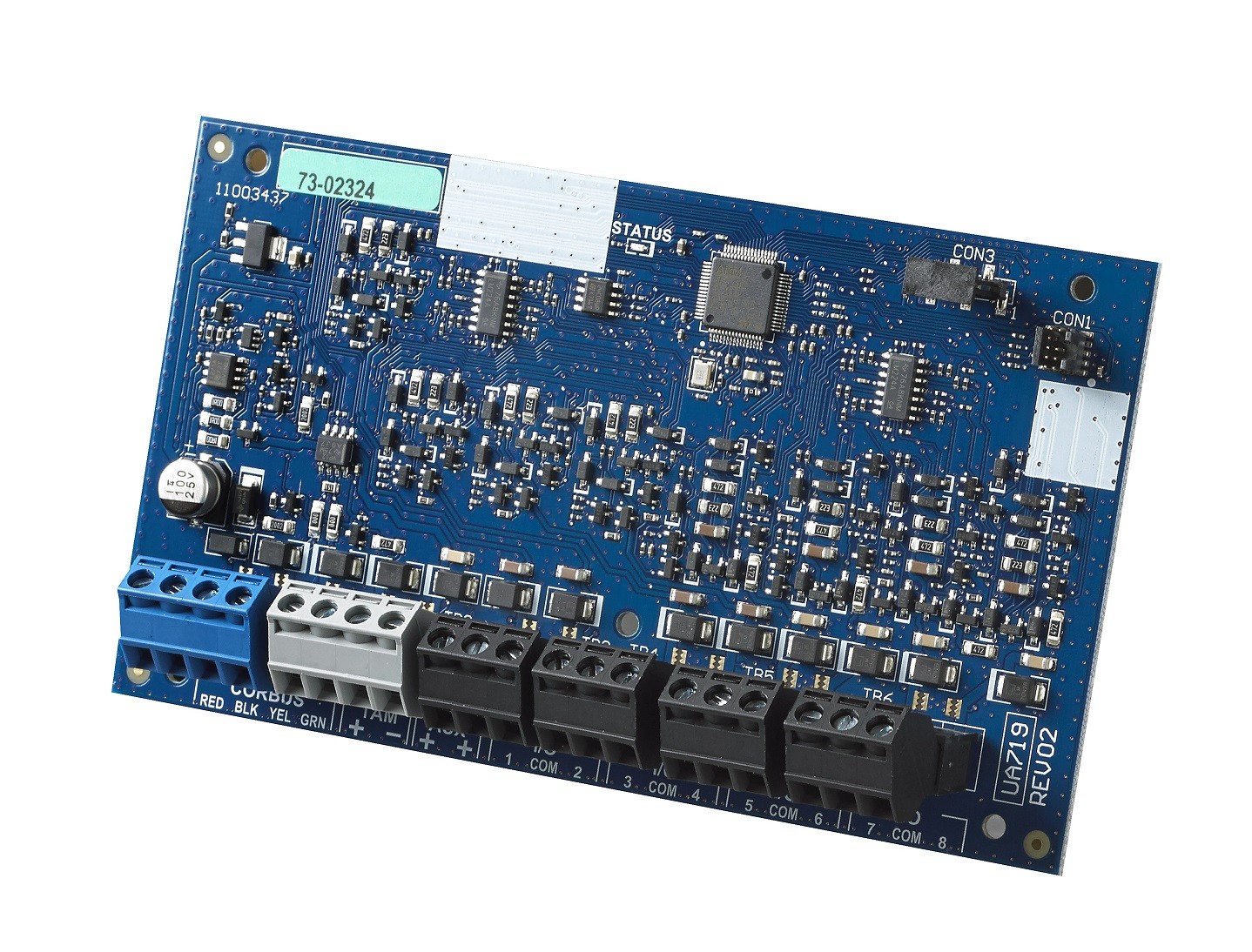

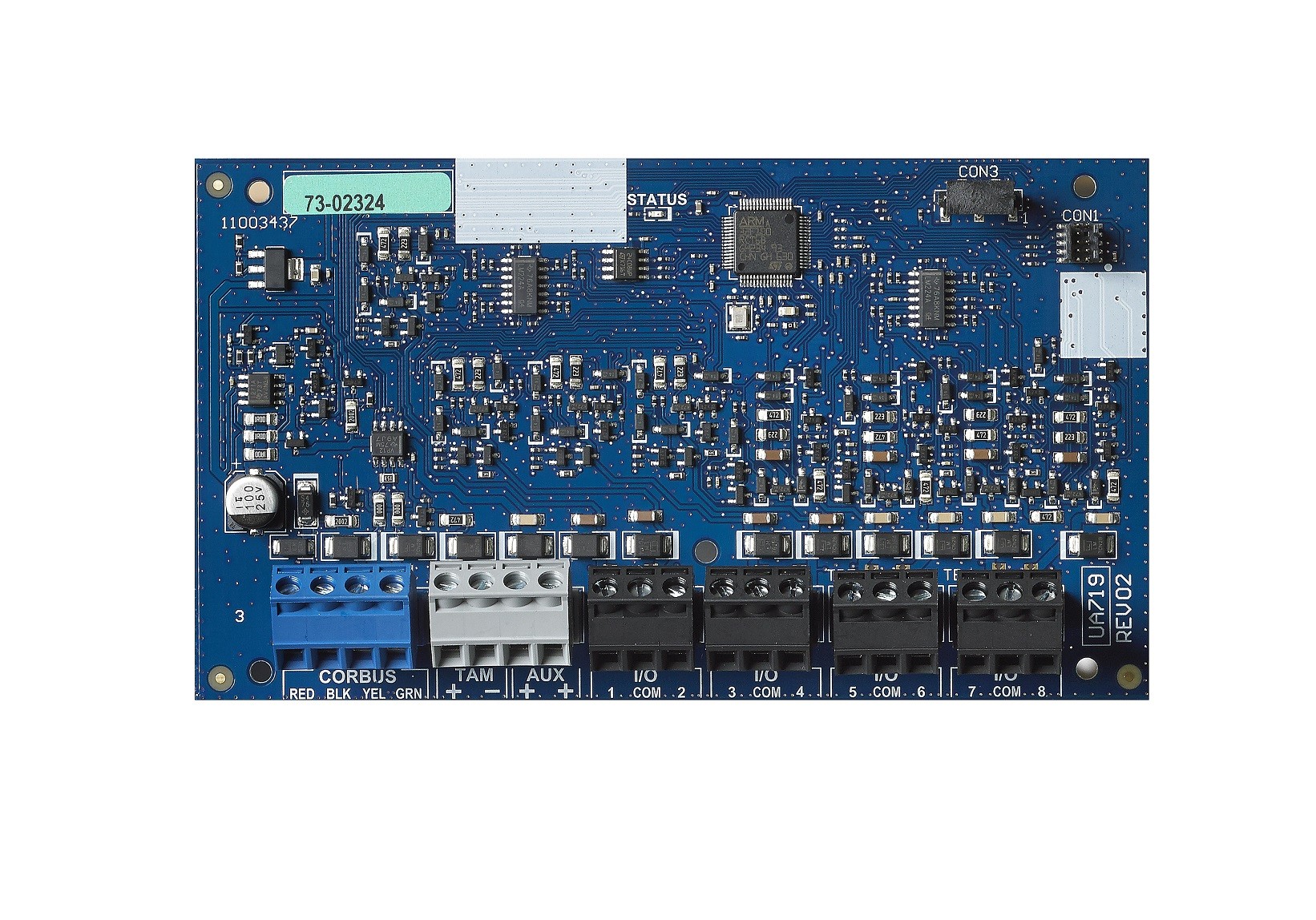

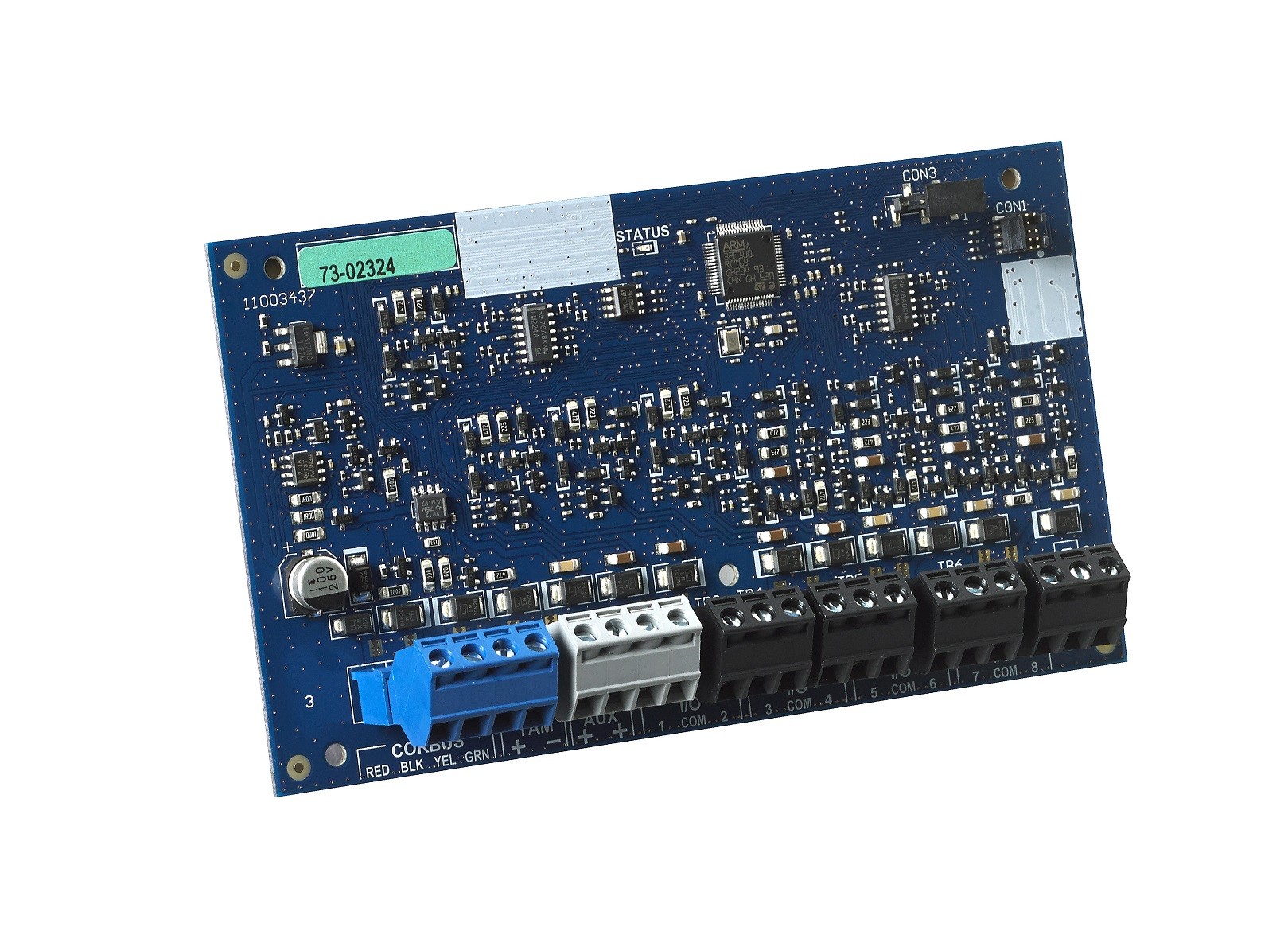

Expansion module providing support for additional 8 detection inputs, dedicated to work with PowerSeries PRO alarm control panels. Possibility to connect from 3 to 30 modules, depending on the alarm control panel used. The maximum distance for mounting the module from the control panel – 305m. Security level – Grade 3. Extended diagnostics, anti-tampering protection. Current consumption: 50mA. Supply voltage: DC 12V, AUX output: DC 10.8 – 12.5V. PCB board dimensions: 83 x 145 mm.
HSM3408
66,42 € gross
Out of StockExpansion module providing support for additional 8 detection inputs, dedicated to work with PowerSeries PRO alarm control panels.
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
| Product | HSM3408 |
|---|---|
| Producer | Tyco (DSC) |
| pa_control-panels-compatibil | PRO series control panels |
| Power supply (+/- 15%) | 12V DC |
| Inputs | 8 |
| Module type | input module |
| Power consumption | 50 mA |
| Module dimensions | 145 x 83 mm |
| pa_module-working-temperatur | from -10°C to 55°C |
